Specifications:

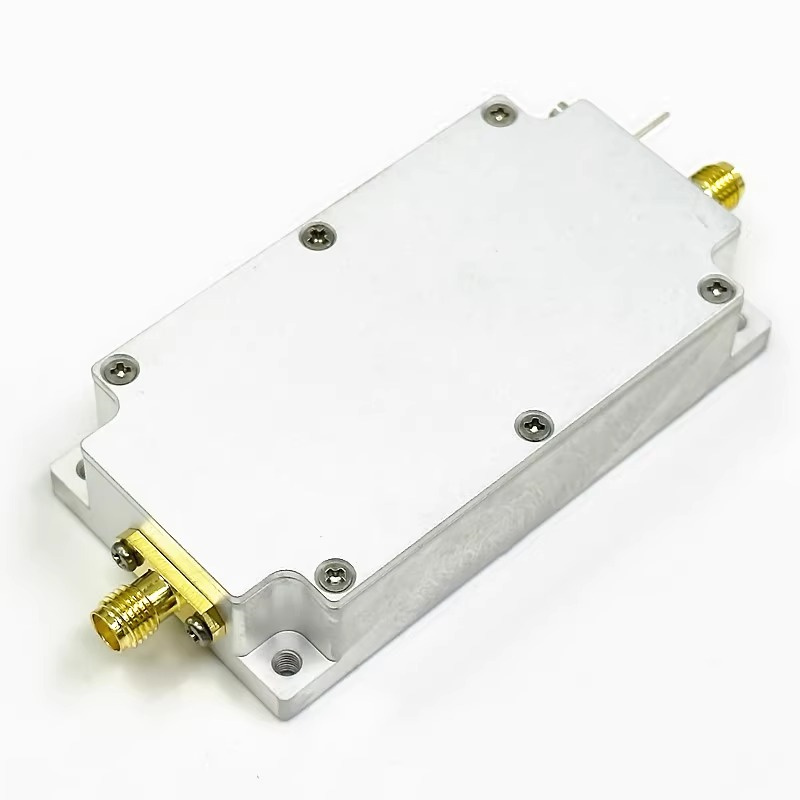

Model: RF Power Amplifier

Operating Frequency: 1.2-1.6GHz (1.25GHz, 1575GHz)

Output Power:

10W (40dBm@24V, RFin=5dBm (3mW))

12W (41dBm@28V, RFin=5dBm (3mW))

Working Voltage: 20-28V (recommended 24V)

Working Current: 1.5A (depending on the supply voltage)

System Impedance: 50 ohms

Dimensions: 76x40x16.5mm (excluding joints)

Product Weight: 95g

Connector Type: SMA female head (outer screw inner hole)

Heat Dissipation: Requires external auxiliary heat dissipation

Features:

1.Wide Operating Frequency:

Spanning from 1.2 to 1.6GHz, this RF Power Amplifier supports a broad range of frequencies, including 1.25GHz and 1575GHz. This wide range ensures it can handle various applications, making it versatile and adaptable to numerous RF systems.

2.High Output Power Capacity:

The amplifier offers substantial output power levels, including 10W and 12W, ensuring robust signal amplification. With different output power settings, users can select the appropriate power level to match their transmission needs, enhancing flexibility.

3.Variable Voltage Support:

Operating within a 20-28V range, with a recommended 24V for optimal performance, this amplifier accommodates a variety of power supply options. This flexibility allows for easier integration into existing setups while maintaining consistent performance.

4.Efficient Power Usage:

With a working current of 1.5A, depending on the supply voltage, the amplifier efficiently manages power consumption. This efficiency is critical for extended operations without excessive energy drain, making it suitable for continuous use.

5.Compact and Connectible Design:

Despite its powerful capabilities, the amplifier maintains a compact size of 764016.5mm and weighs only 95g, making it easy to integrate into tight spaces. The SMA female connectors (outer screw inner hole) ensure a standard, reliable connection for seamless integration into various RF systems.

Package Included:

1 x RF Power Amplifier Modulemso-hansi-font-family:Calibri;mso-bidi-font-family:'Times New Roman';font-size:10.5000pt;
