Specifications:
- Power Voltage: DC 12V士2V
- Operating Current: 650mA during warm-up, stabilizing at 350mA
- Output Frequency: 10.000000.000MHz ±0.01Hz
- Output Waveform: Square Waves
- Output Amplitude: 10dBm
- Oven-Controlled Crystal: ISOTEMP OCXO 143-141
- Global Positioning System Module: NE0-6M

Features:
1. Introducing (Global Positioning System Disciplined Oscillator), also known as a Global Positioning System-disciplined oven-controlled crystal oscillator, Global Positioning System-disciplined clock, or 10MHz standard signal source. Compared to conventional time bases, it boasts superior precision, minimal temperature drift, and unparalleled output stability.
2. Leveraging the precise 1PPS signal from Global Positioning System, our microcontroller meticulously adjusts and outputs a 16-Bit PWM signal to meticulously control the oven-controlled crystal oscillator's precision. The fine-tuning voltage for the crystal oscillator ranges from 0-5V, where each 1Bit PWM increment precisely adjusts the output voltage by 0.000076V.

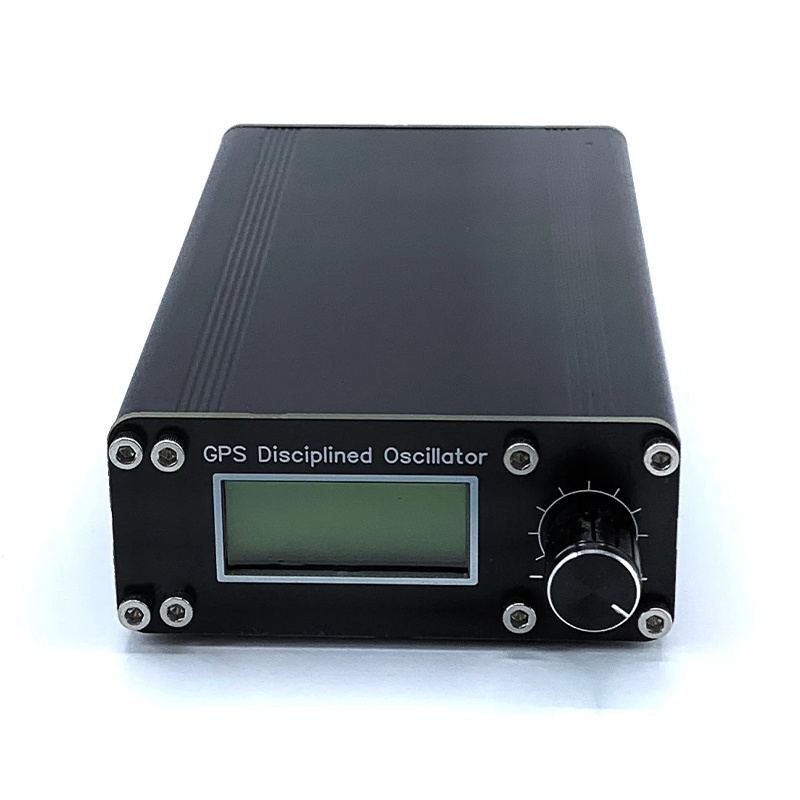

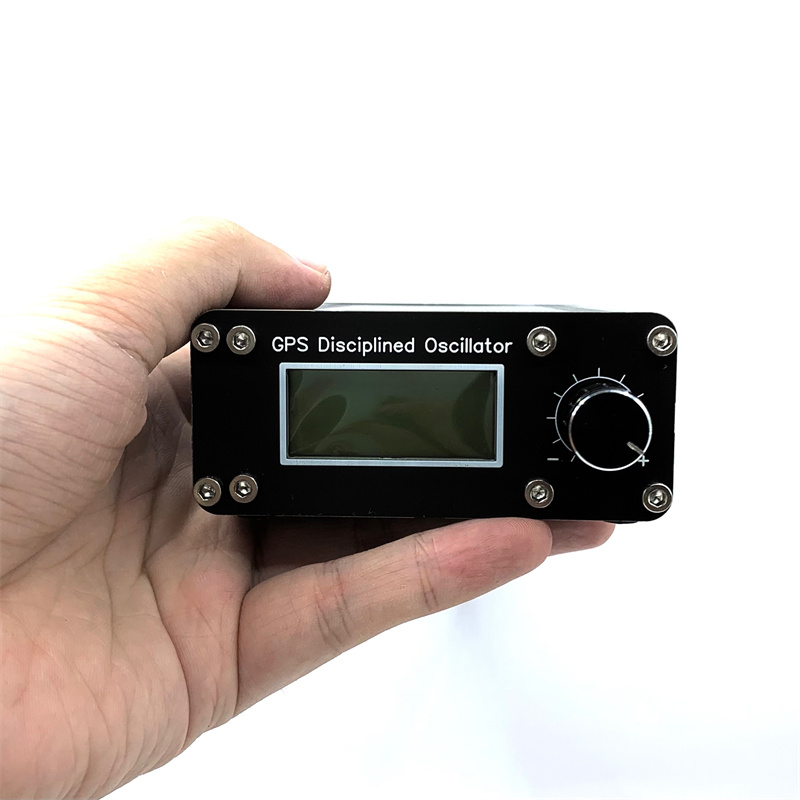

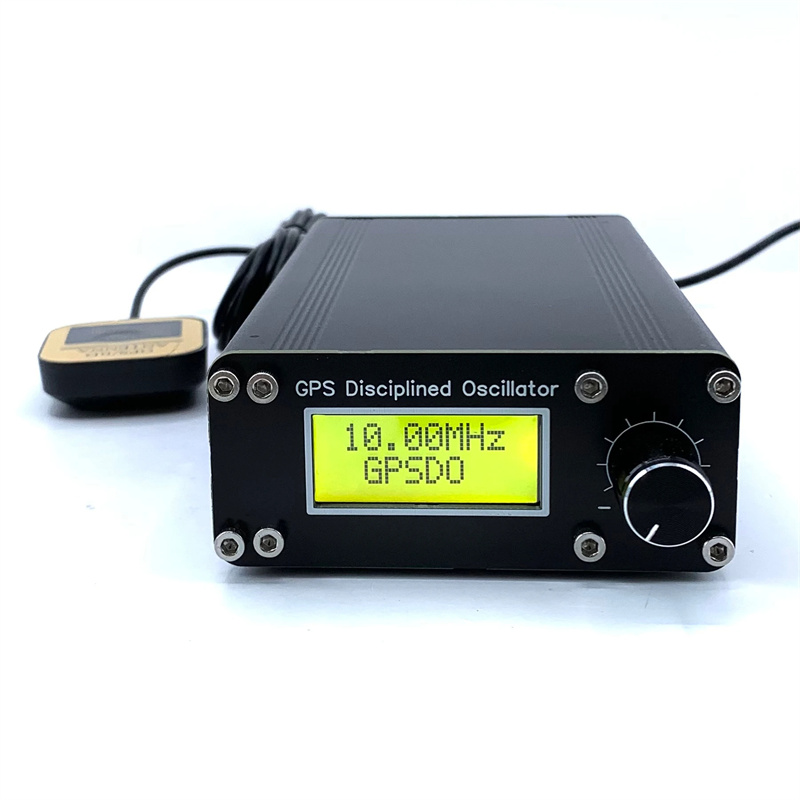

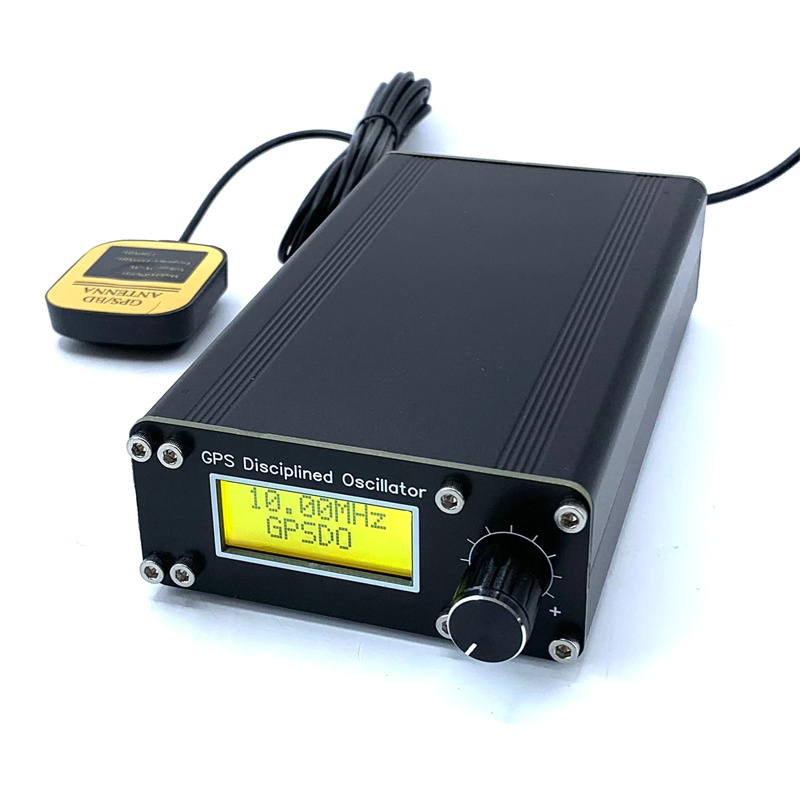

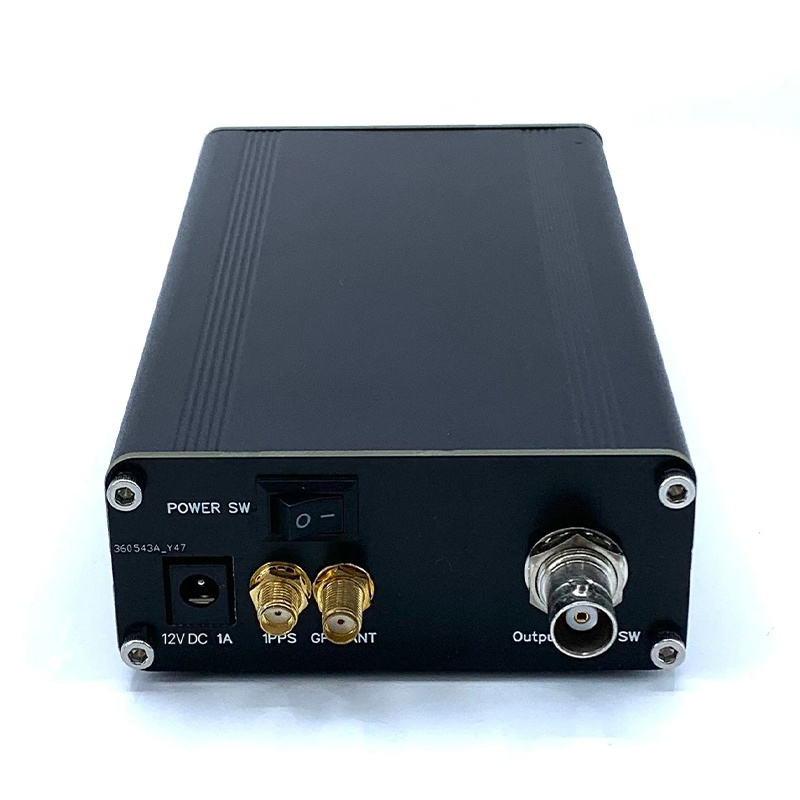

3. Measuring 150*88*38mm in dimensions (excluding protrusions), the front panel integrates a display screen and an encoder for easy operation. The rear panel is equipped with a 10MHz output interface, a 1PPS output interface, a Global Positioning System antenna connector, along with power switch and a 12V DC power input jack.

Ideal Applications:
This is perfect for high-end audio decoders, instruments, meters, frequency counters, signal generators, and any device requiring an external 10MHz reference source input.

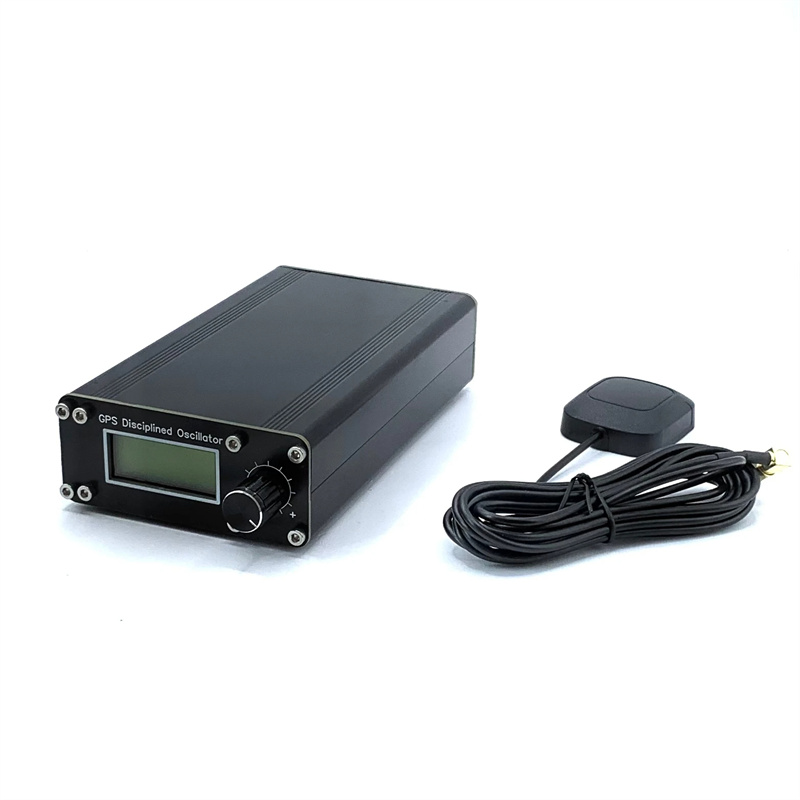

Package Includes:
1 x Main Unit (Power adapter is not included)
1 x Global Positioning System Antenna
