Specifications:

Brand: KINGBOLEN

Model: ELM327

Bluetooth Version: 5.1

Voltage: 12V

Power: 24W

Description:

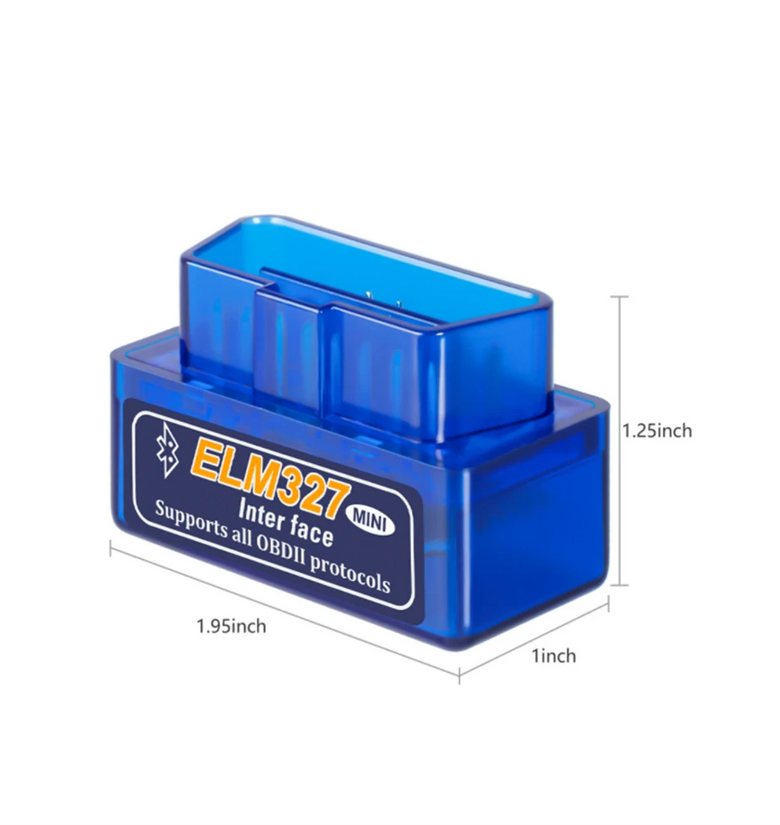

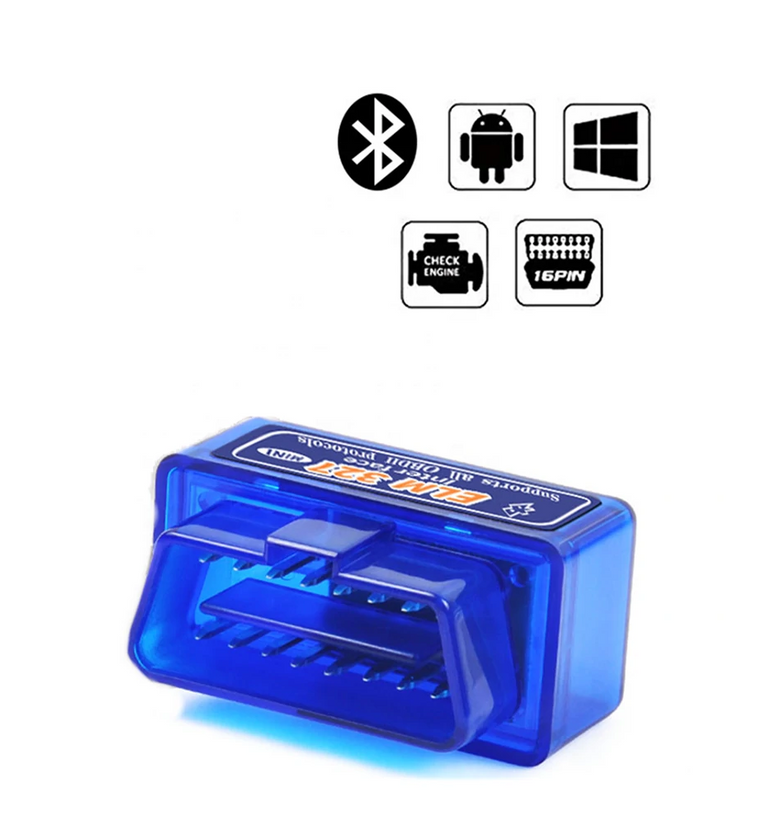

Super Mini ELM 327 V2.1 BT OBD-II OBD2 Car Diagnostic Scan Tool, for Android & iOS

-This BT OBDII Reader is the latest version 1.5, Super Mini, can be used in Android & iOS phones and PC with BT function. It supports all OBD-II protocols, retrieve Fault Codes (DTCs) and clear Check Engine lights, check car performance levels and see vital information about your car LIVE with your Phone! Please download the free app called 'Torque'

- Works on all OBD2 Vehicles ( from 1996 in USA) and EOBD vehicles ( Petrol cars from 2001 and diesel cars from 2003/2004 in Europe).

Features:

- Read diagnostic trouble codes, both generic and manufacturer-specific , and display their meaning (over 3000 generic code definitions in the database).

- Clear trouble codes and turn off the MIL ('Check Engine' light).

- Set the maximum number of responses to obtain.

- Remove spaces from ECU responses (to speed data transmission).

- Store a unique identifier in EEPROM.

- Set the CAN mask and filter with one command.

- Easily switch between variable and fixed CAN message lengths.

- Send CAN remote frames (RTRs).

- Display current sensor data, including:

- Engine RPM/ - Calculated Load Value/ - Coolant Temperature/ - Fuel System Status/ - Vehicle Speed/ - Short Term Fuel Trim

 - Long Term Fuel Trim/ - Intake Manifold Pressure/ - Timing Advance/ - Intake Air Temperature/ - Air Flow Rate/ - Absolute Throttle Position

- Oxygen sensor voltages/associated short term fuel trims/ - Fuel System status/ - Fuel Pressure

Multi-Protocol Support:

1. SAE J1850 PWM(41.6Kbaud)

2. SAE J1850 VPW(10.4Kbaud)

3. ISO9141-2(5 baud init,10.4Kbaud)

4. ISO14230-4 KWP(5 baud init,10.4 Kbaud)

5. ISO14230-4 KWP(fast init,10.4 Kbaud)

6. ISO15765-4 CAN(11bit ID,500 Kbaud)

7. ISO15765-4 CAN(29bit ID,500 Kbaud)

8. ISO15765-4 CAN(11bit ID,250 Kbaud)

9. ISO15765-4 CAN(29bit ID,250 Kbaud)

- A. SAE J1939 CAN(29bit ID,250*Kbaud)

- B. USER1 CAN(11*bit ID,125*Kbaud)

- C. USER2 CAN(11*bit ID,50*kbaud

How to use?

- Pair the phone to the OBDII scanner.

- If there are other OBD devices which are paired with the phone, please unpair them.

- When pairing, password could be one of them: 0000, 1234, 6666 or 6789.

- Go to your ap store or your Google Play store to download the free editions of Torque.

-  You can choose to pay for the full version if you want more functions. Then go into the phone and pair the OBD to Torque app

How to Pair into Torque app?

- go into 'Menue',

- go into 'More',

- go into 'Settings',

- Find the 'DEVICE' under (BT Preferences), once all have been done, it depends on the Android device.

- Note :For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II complian

Package Included:

1 x ELM327 BT OBDII Scan Tool

1 x CD Driver
