Specification:
Brand: KONNWEI
Model: KW331
Item Name: Automotive Lead-Acid Battery Tester

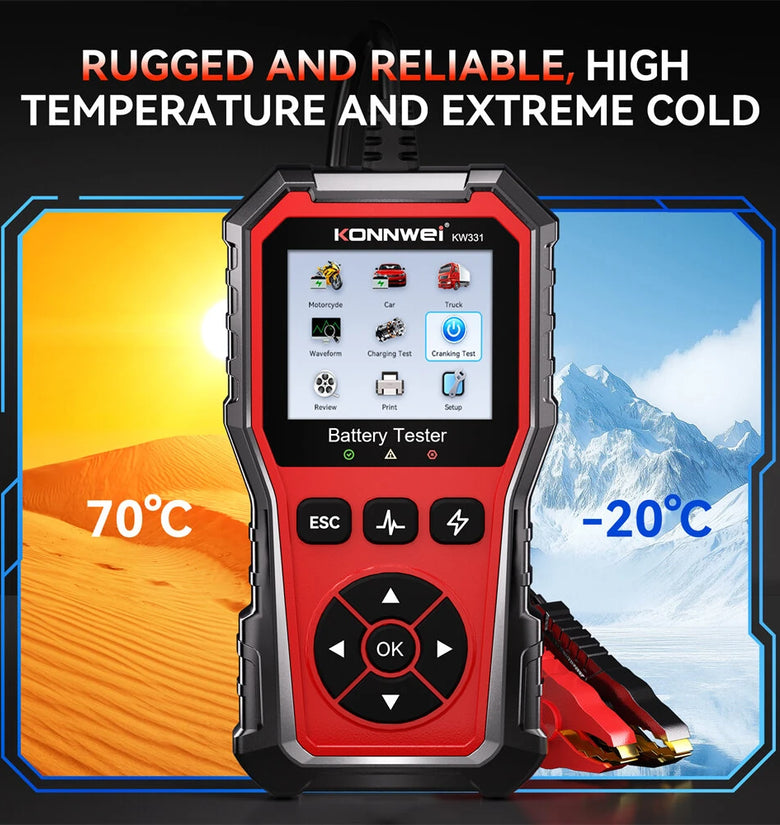

Operating Temperature : -20 to 70 ℃ (-4 to 158 ℉)
System Voltage: 6V 12 24 Volts.
Input Voltage Range: 6V-30V Provided Via Vehicle.
Display: Big 2.8' LCD Color Screen
Support System: XP WIN7 WIN8 WIN10
Power Requirement：No internal batteries required

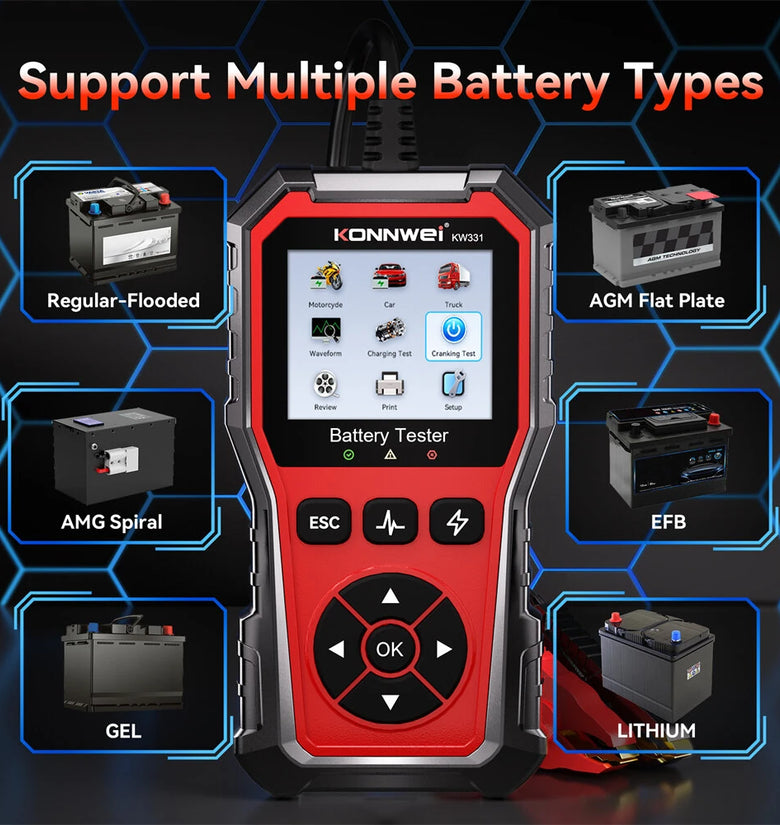

Support battery types: Regular flooded battery, AGM flat plate battery, AGM spiral battery, GEL and EFB battery.

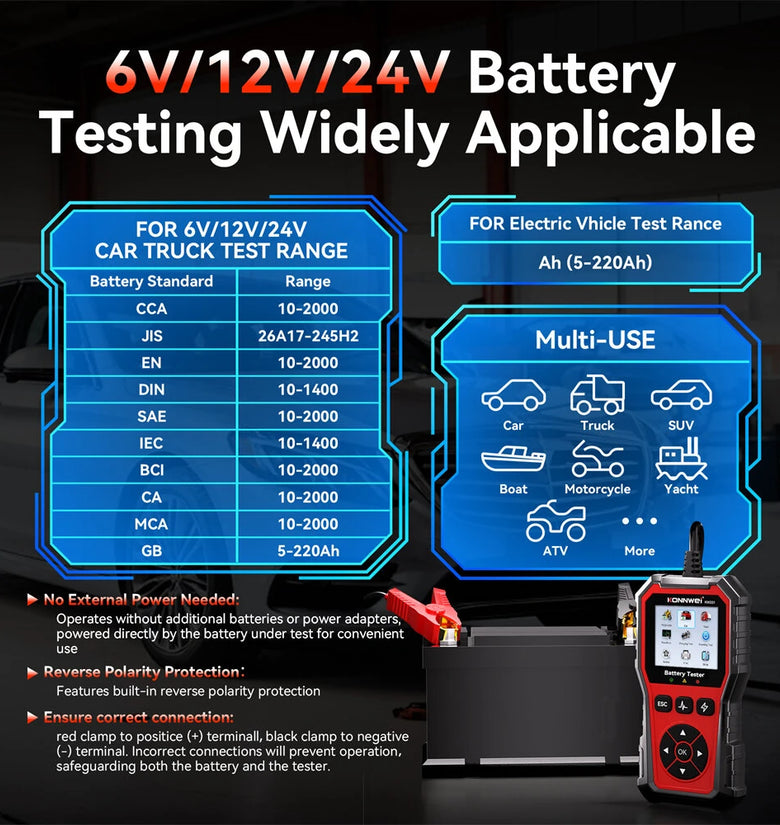

Battery Standards:
CCA:10-2000 / BCI:10-2000 / CA:10-2000 / MCA:10-2000.
JIS:26A17-245H52 / DIN:10-1400 / IEC:10-1400 / EN:10-2000 /SAE:10-2000.

KW331 konnwei Battery tools can Apply for all 6V 12V 24V car battery include battery from gasoline, diesel, for hybrid electric vehicles, motorcycle batteries , Truck and emergency batteries.

KW331 Battery Tester adopts the state-of-the -art conductance testing technology in the word to easily, quickly and accurately measure the actual cold cranking amps capability of the vehicle starting battery, healthy state of the battery itself, and common fault of the vehicle starting system and charging system, which can help maintenance personnel to find the find the problem quickly and accurately, thus to achieve quick vehicle repair.

1. Support 6V motorcycle, 12V car, 24V truck battery detection
2. 2.8 inch clear color screen
3. The inspection speed is faster and more accurate
4. Check the battery capacity relative to the battery rating. Battery test, Cranking test, Charging test.
5. Graphical battery test results.
6. Support CCA value range 10-2000.
7. Support free upgrade and printing through BTLINK.
8. Support 12 languages: Chinese, English, German, French, Japanese, Dutch, Russian, Spanish, Italian, Korean, Portuguese, Polish.
9. Support 10 battery standards: CCA, BCI, CA, MCA, JIS, DIN, SAE, EN, IEC, GB.

Function:
1. Identify battery status Good or Replace
2. Check Battery Capacity - Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.
3. Check Internal resistance value (Ohm)
4. Display battery life in percentage (%)
5. Battery Cranking Test, load test
6. Battery Charging Test, Ripple Test
7. Graphing voltage real time monitoring & review
8. All test results storage and review
9. Print/upload all test results and battery report on PC for deep analysis.
10. Life time update online Free

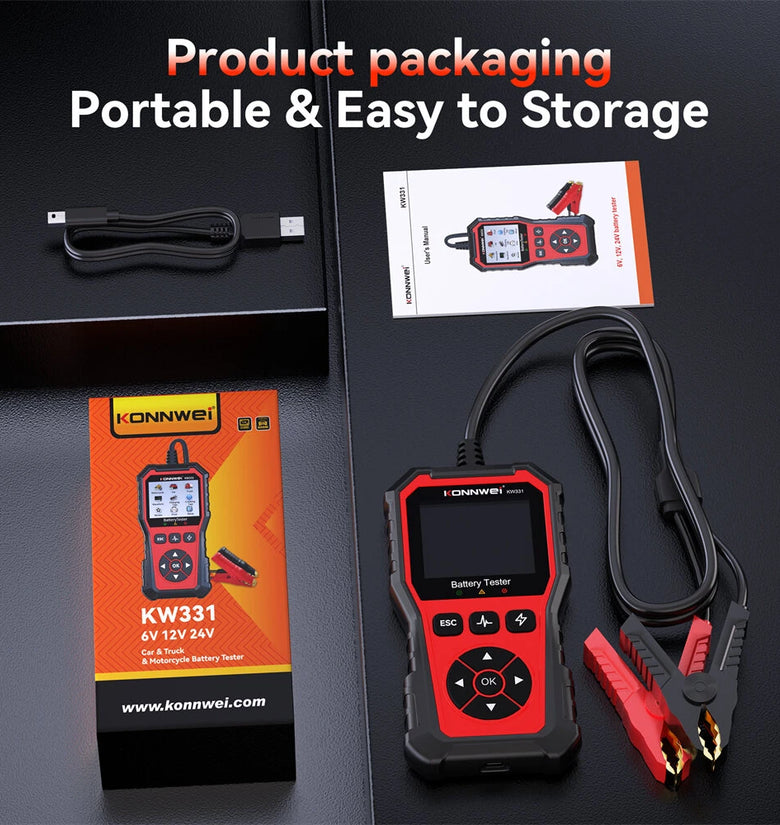

Package included:
1 x Automotive Lead-Acid Battery Tester
1 x Manual
1 x USB Cable
