Introduction:
This device is designed to identify and trace wires or cables without damaging the insulation. You can also use it to test for short circuit, open circuit blocking, etc. The instrument includes a sender and a receiver.
EM415PRO also shows direction to shorts with a turn signal, eliminating the guesswork. This professional tool will work with all types of circuits from 6 to 42 volts DC. For example, in cars, trucks, tractors, boats, RVs, etc. Due to the wide operating voltage range

Description:
The detects and immediately warns you of an open circuit. You can quickly and easily locate short circuits, open connections, wire breaks, current leaks, and even wire traces. You can also locate intermittent circuit problems by bending wires or connectors and listening for the receiver's tone change, allowing you to generally track or find out the location of the problem.

Specification:
Power supply: 2 x 9V batteries (not included)
Width: 4 cm
Length: 17cm
Material: Spiral Steel
Height: 15 inches
Type: Electrical Testers & Test Leads

Function:
-Wire tracing is possible even inside bundles, conduits, behind panels, under carpets, upholstery, etc.

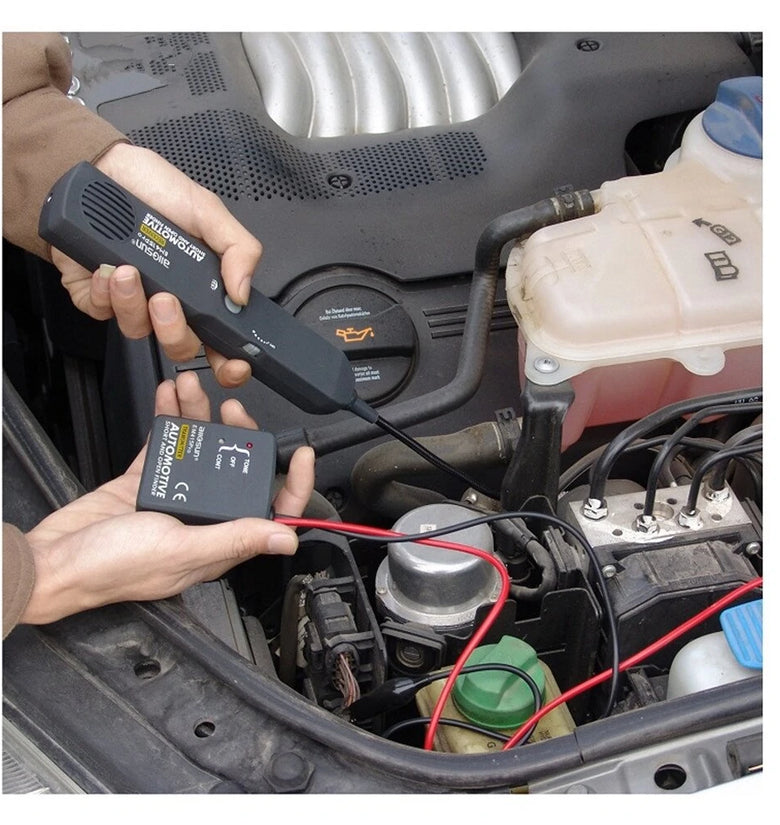

-Ease of use: Simply connect the transmitter in series with the test circuit or wire (I.D.: in place of a blown fuse, across a connector, in series with an open wire, light bulb socket, etc.), and scan the circuit/wire with a flexible probe tracers to find the faulty spot
- 42V ready: for use in the new generation of vehicles with 42V mixed or single systems
-Operates on DC voltage from 6 to 42 volts
-Internal surge and overload protection

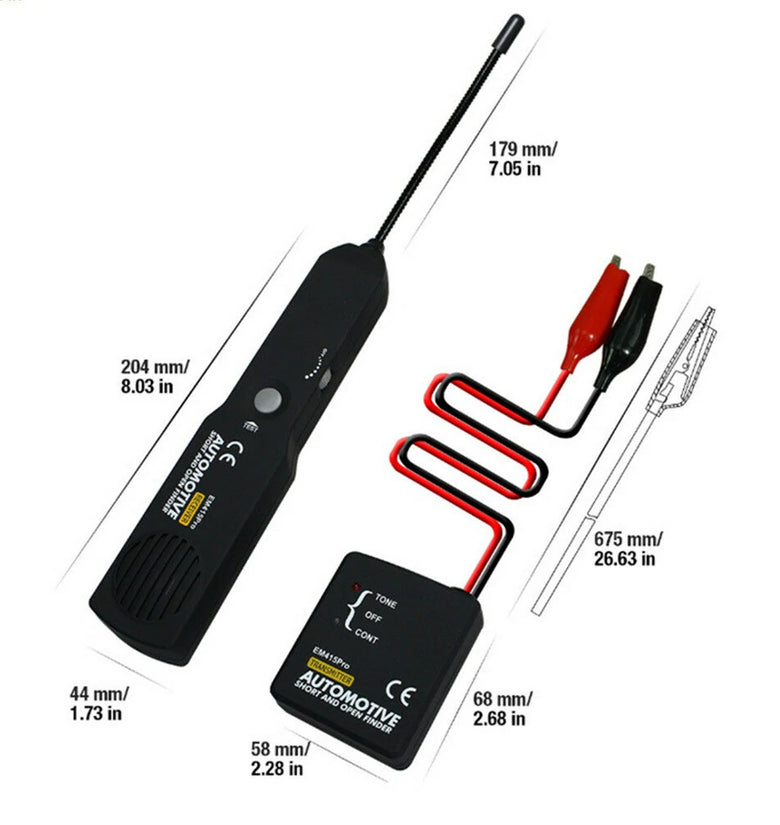

-Flexible 7' probe allows you to reach wires in congested areas
-Transmitter and receiver LEDs indicate open or short circuit conditions
-Adjustable sensitivity for all tracking situations
-No wire piercing required, non-contact technology!

Features:
-Evaluate the contours of cables or wires.
-Track cables or wires and diagnose the break point.
-Receive tone over cables or wires (telephone line).
-Determine the status of the working telephone line (clear, ringing, busy).
-Send single solid tone or double alternating tone to object cables or wires.

Basic moments:
Quickly and easily detect short circuits
Save your time and increase your income
Evaluate the contours of cables or wires.
Track cables or wires and diagnose the break point.
Receiving a tone through cables or wires (telephone line)
Identification of the state in the working telephone line (clear, ringing, busy)

How to use the probe?
The receiver probe is made from coiled steel and can be bent as needed to reach wires in congested or hard to reach areas. Depending on the characteristics of the circuit and the sensitivity settings, the Probe will pick up the signal from the wire at different positions. However, for the best possible range, the Receiver Probe Tip (black cap) should be positioned perpendicular (90°) to the wire and either above or below it.

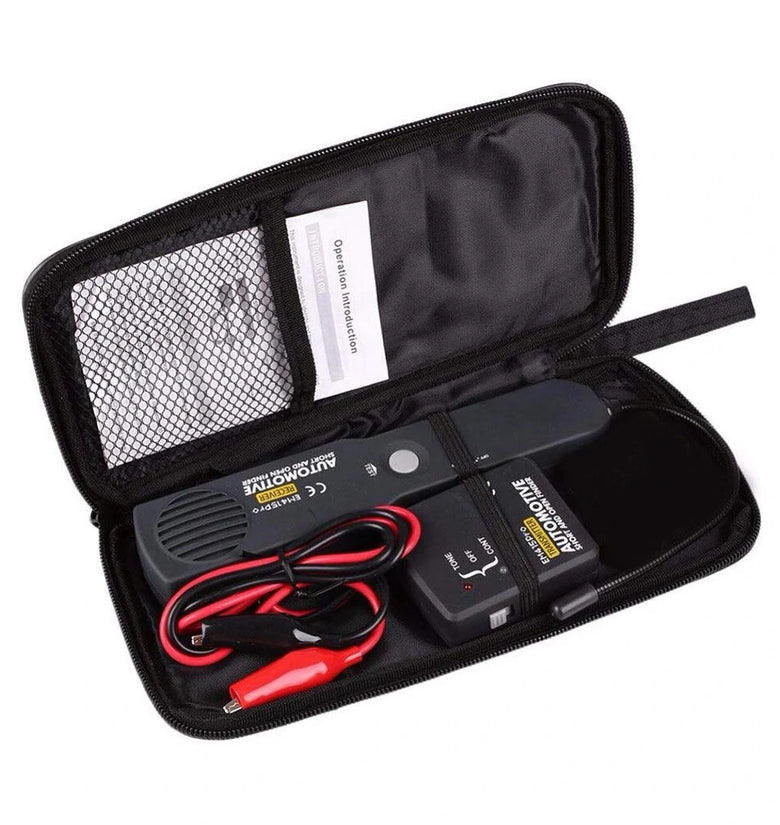

Package List:
1 x car short and open find
