Specifications:
Product Model: V520
Name: Car Scanner Diagnostic Tool
Operating Voltage: 9-16V
Operating Environment: - 30 ~ 70℃
Storage Temperature: - 30 ~ 70 ℃
Product Size: 171*85*28mm
Product Weight: 203 (Bare) 304g (With Packaging)
Package Size: 200x130x43mm
Packing Size: 54x42x23.5 Cm
Supported Languages: England, Germany, France, Spain Italy, Russia, Netherlands, China Japan, Portugal

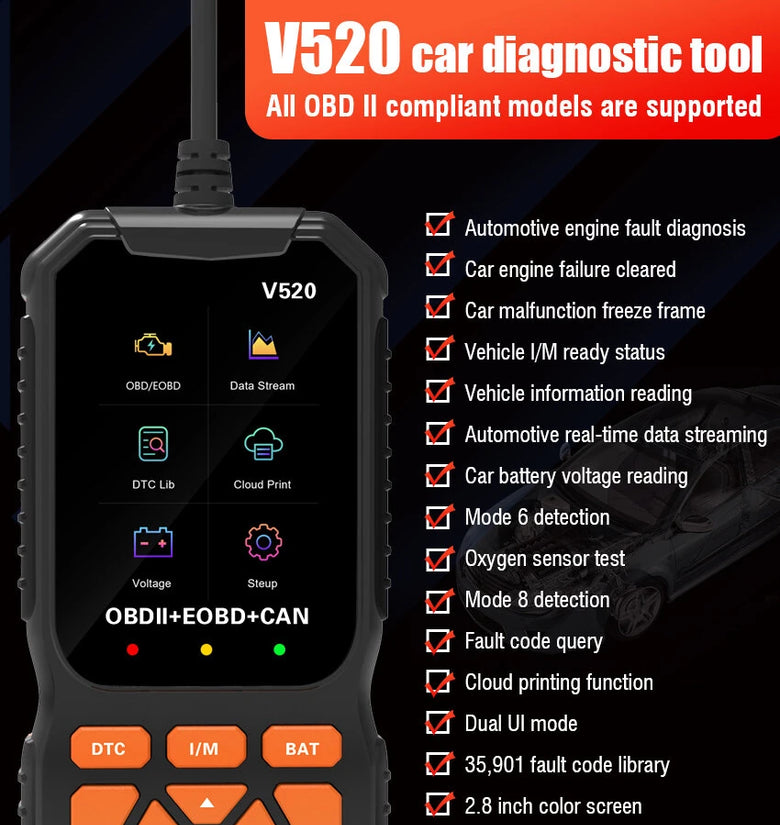

V520 is a small car code reading card product with the following features:
Automotive engine fault diagnosis
Automotive engine fault light clearing
Automotive freeze frame

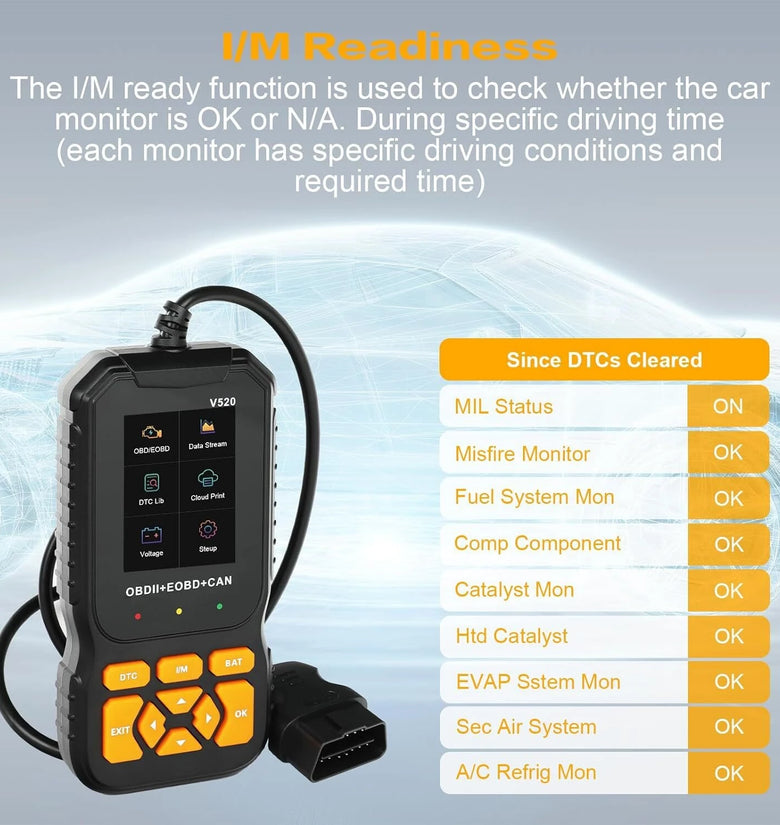

I/M readiness status
Vehicle information reading
Real-time data streaming
Vehicle battery voltage reading
Mode 6 test
Oxygen sensor test
Mode 8 test
Fault code query
Code scanning and printing function
35901 fault code library
Color screen display 2.8 inches

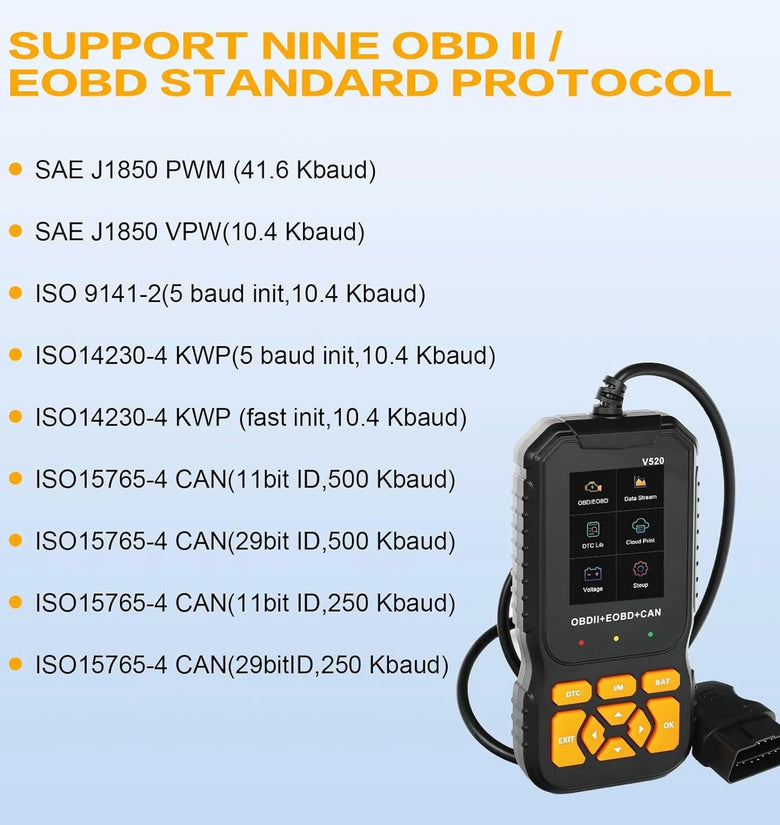

2.Supported Protocols
SAE J1850 PWM (41.6 Kbaud)
SAE J1850 VPW (10.4 Kbaud)
ISO 9141-2 (5 baud init,10.4 Kbaud)
ISO 14230-4 KWP (5 baud init,10.4 Kbaud)
ISO 14230-4 KWP (fast init,10.4 Kbaud)
ISO 15765-4 CAN (11bit ID,500 Kbaud)
ISO 15765-4 CAN (29bit ID,500 Kbaud)
ISO 15765-4 CAN (11bit ID,2500 Kbaud)
ISO 15765-4 CAN (29bit ID,250 Kbaud)
3.Supported vehicle data
Read error diagnostic code
Clear error codes (clear error codes and turn off MIL)
Engine revolutions per minute (RPM)
Calculated load value
Coolant Temperature
Fuel system status
Vehicle speed
Short-term fuel condition
Long-term fuel condition
Intake manifold pressure
Injection Advance Time
Intake Air Temperature
Air flow rate
Absolute throttle position
Oxygen detection voltage associated with short-term fuel status
Fuel system status
Fuel pressure
Fuel consumption monitoring, etc.
Note: The number of supported data items varies by model year and is subject to actual support.
Package includes:
1 X V520 Car Diagnostic Tool
1 X USB Cable
1 X User Manual
