Feature:
1.CANTesterBoxisaCANBuscircuittester compatible with 12 and 24 volt systems;
2. Testing DLC ​​(OBDport) Faults before connecting Connecting other diagnostic devices to the DLC, e.g. short circuit and polarity reversal;
3. Real-time display-out communication signals (e.g., communication protocol signals), uncapped pins that can be quickly located to replace the voltage measurement function of the digital multimeter;
4. Fast connection of 16 pins during vehicle terminal diagnostics;
5. Monitoring of the OBD input voltage during module burning, high and low voltage alarm;
6. Fast short OBD for Porsche communication 3-7;
Short circuit OBD for VW Key lost all 1-6;
Short circuit OBD for Mitsubishi remote control 1-4;
Short circuit OBD for Toyota Sync 4-13;
7. OBD workbench CAN trunk;
8. Replace the battery-powered tool.

Specifications:
Brand Name: WOYO
Model: CTB007
Item Name: 16Pin Tester Box
Input voltage: 9.0–3.0 VDC
Maximum load: 2.0 A
Resolution: 0.1 V
Overload protection: Yes, PTC fuse (self-healing)
ReversePolarityProtection:Yes,LEDOnPin4&5RotationRed
Protocol standard:PWM(J1850)、VPW(J1850)、ISO9141-2、DIS/ISO14230-4、CAN(J-2284)
Operating temperature: 0℃-50℃, humidity <70%
Banana plug: 16P * 2.0 mm
OBD cable length: 75 cm (29.5 inches) / 150 cm (59 inches)

You can connect all kinds of diagnostic tools.
The free pins allow you to place them more stably when connecting our pins for reading data.
If you understand and need to diagnose problems with the car's OBD system using other tools, our tester Box and banana plug attachment will make the maintenance process easier.

New version: Add an additional 12V/24V power supply.

If you connect to the vehicle's OBD, but the CTB007 does not work (the vehicle could not supply power),
You can connect a 12V/24V power battery at the same time for it to work.
WOYO CTB007 can help you more in the workshop.

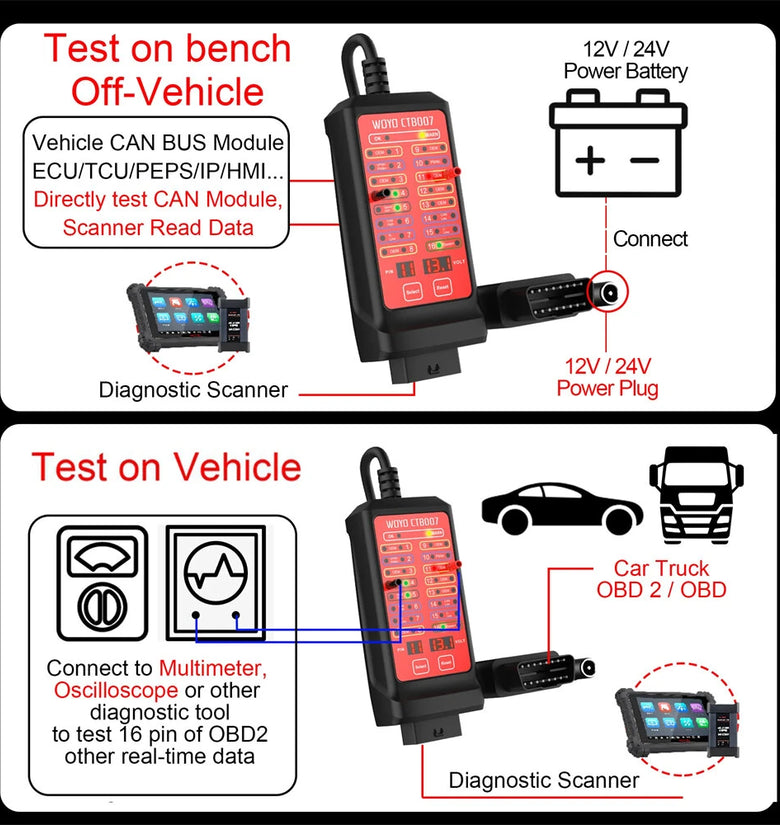

Test on the bench / outside the vehicle:
(Supports CAN BUS Electronic Modules, EPS/ECU/TCU/PEPS/IP/HMI/EPB...)
1. Use a 12V/24V power adapter to connect a battery. You do not need to connect to an OBD/OBD 2 connector.
2. Use the CAN BUS electronic module to connect it to CTB007.
3.CTB007 establishes a connection to the diagnostic scanner, read and verify the actual data of the CAN bus module.

Vehicle condition test:
1.CTB007 is connected to the car's OBD/OBD2 connector and diagnostics.
2. Connect to the vehicle diagnostic scanner.
3. If you know whether a 16-pin OBD is working properly or not, you can read the actual data from the vehicle using a scanner.
4. You can also connect to a multimeter and an oscilloscope to test the other data you might want to know about the OBD 16pin if it has a problem.

The CTB007 can also test the voltage of the 16-pin OBD pin.
* It can be quickly confirmed whether only the PIN is causing a problem.

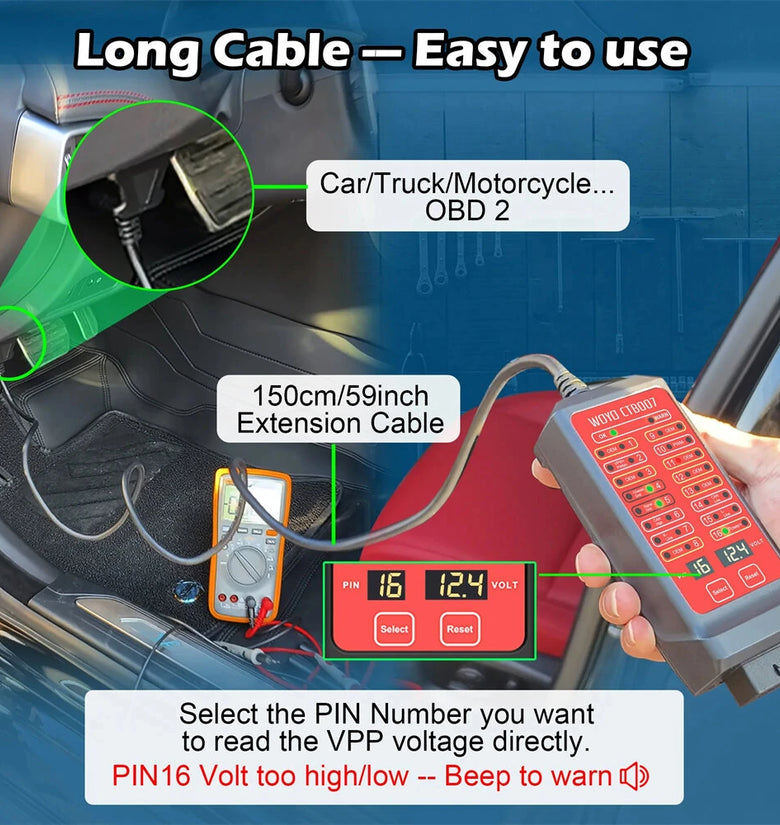

* It is even used with a 59-inch OBD extension cable, allowing you to easily check the vehicle problem in a convenient location.
*When you press the “Reset” button, CTB007 tests the value of pin 16 by default.
* Press the “Select” button to choose the required PIN number.

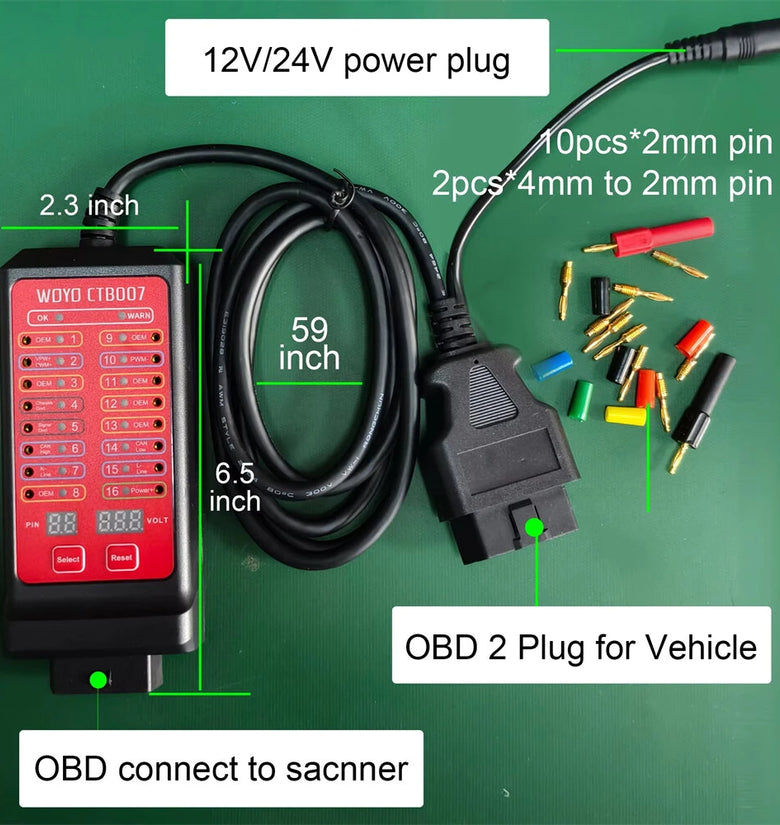

Package included:
1 * Tester Box
1 * Manual
10 * 2 mm banana stick
2 * 2 mm to 4 mm banana stick
1 * WOYO Retail Box
