Specifications:

Whole Unit:

Adapter:

Input: AC100-240V 50Hz/60Hz

Output: DC12V 2A

Distance (Indoor Monitor to Outdoor Station):

0~50m (RVV2*0.5mm², 12V voltage)

0~200m (RVV2*0.5mm², 24V voltage)

Distance (Outdoor Station to Door Lock):

0~50m (RVV2*0.5mm²)

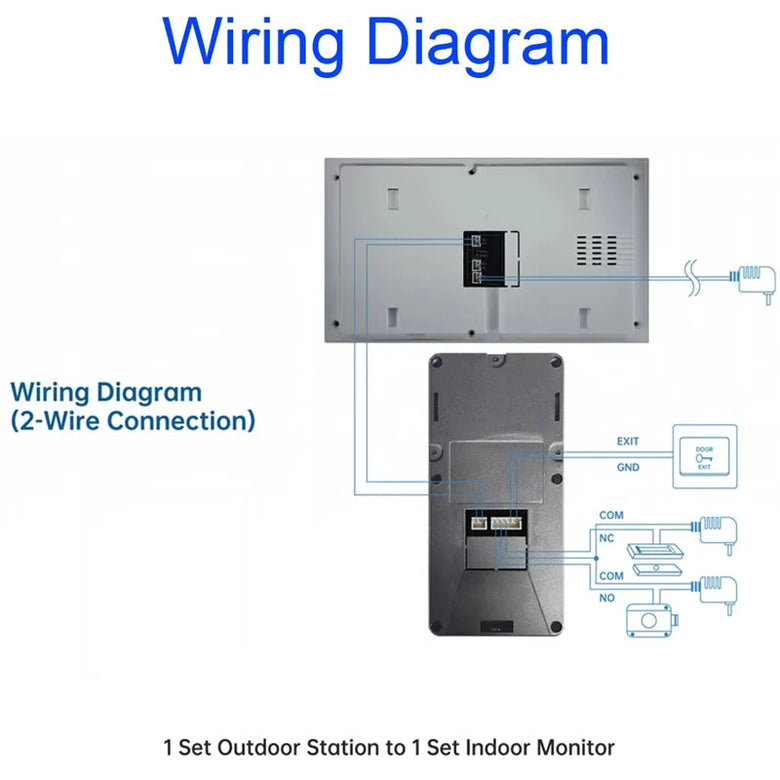

Wiring:

2-wire connection (No polarity)

Working Temperature: -20℃~70℃

Working Relative Humidity: 10%~70%

Call Duration: 2 minutes

2-Way Audio: Support

Tuya APP: 20 users capacity, supports functions including: call, photo, video, monitor, unlock, cloud storage, alarm message, video playback

Indoor Monitor:

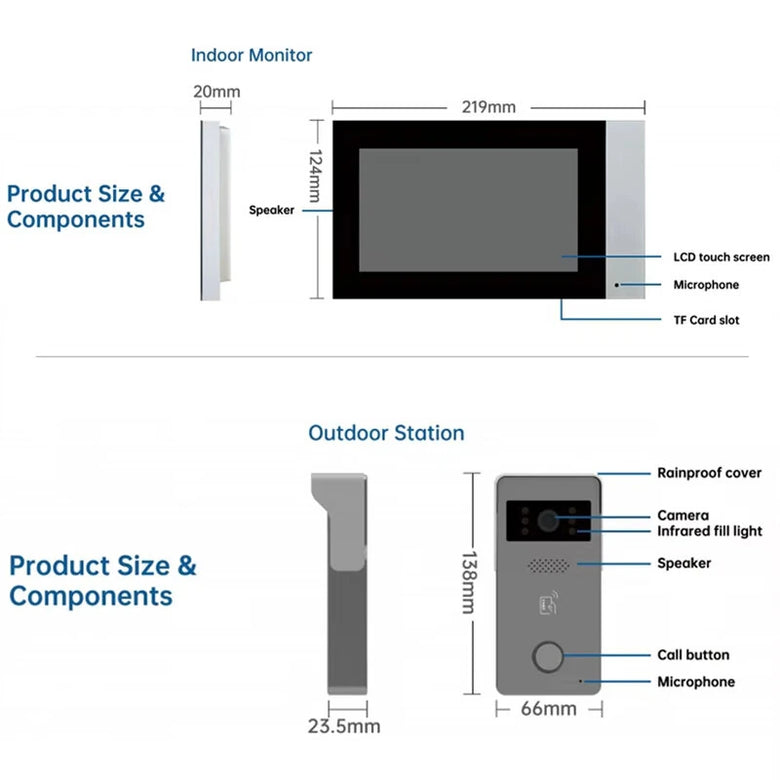

Dimensions: 219×124×20mm

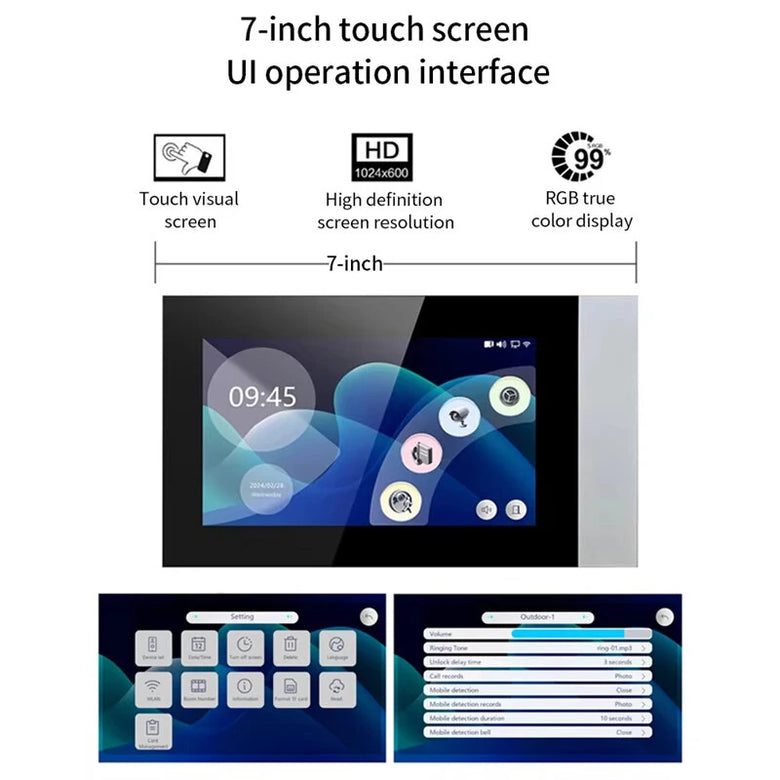

Display: 7' LCD touch screen

Screen Resolution: 1024×600

OS: Embedded Linux

RAM: 128M

Flash: 16M

Material: Engineering ABS plastic and tempered glass

Power Consumption: Static state <3W, working state <4W

Working Voltage: DC 12~24V

Network: 2.4G WiFi

Installation: Wall-mounted

Photo Storage Capacity: 1000

External TF Card: Max 512GB storage, automatically save photo and video

Functions: Call, photo, video, monitor, unlock, visitor record, pedestrian detection, calendar display, adjust brightness & contrast & color & volume, lock delay adjustment, multi-language OSD menu

Outdoor Station:

Dimensions: 66×138×23.5mm

Material: Engineering ABS plastic

Camera: 2 million pixels/1080P

View Angle: 110°

Night Vision: IR CUT switch, high color precision, black and white image

Fill Light: 940nm (6 Infrared LED)

Door Lock Control: Connectable to magnetic lock and electronic lock, indoor monitor features lock delay time setting

Smart Motion Detection: Photo and video

IC Card Unlock: Support

Power Consumption: Static state <2W, working state <4W

Installation: Wall-mounted

IP Rating: IP65

Features:

1.High-Resolution Touchscreen Display: Equipped with a 7-inch LCD touch screen that delivers crisp and clear visuals with a resolution of 1024x600. This large and responsive screen enhances user experience with easy navigation and high-quality video playback.

2.Comprehensive Communication Capabilities: The device supports various communication methods such as intercom, photo capture, video recording, remote unlocking, and visitor records. These features ensure seamless interaction and enhanced security management.

3.Advanced Security and Monitoring: Incorporates pedestrian detection, calendar display, and adjustment options for brightness, contrast, and color. These security features are designed to provide additional surveillance and information for better monitoring and control.

4.Smart Connectivity and App Integration: Connects through 2.4G WiFi and integrates smoothly with the Tuya APP. This allows users to access and control the system remotely, providing convenience and control from any location via their smartphone or other internet-enabled devices.

5.Secure Lock Control and IC Card Unlocking: Offers compatibility with both magnetic locks and electric locks, complete with lock delay timing settings. The system also includes IC Card Unlocking which provides secure and convenient access control options, enhancing the overall security of your premises.

Package Included:

For the 1V1 package:

1 x 7 inch Monitor

1 x Outdoor Device

5 x 13.56Mhz IC Cards

For the 1V2 package:

2 x 7 inch Monitor

1 x Outdoor Device

5 x 13.56Mhz IC Cards
