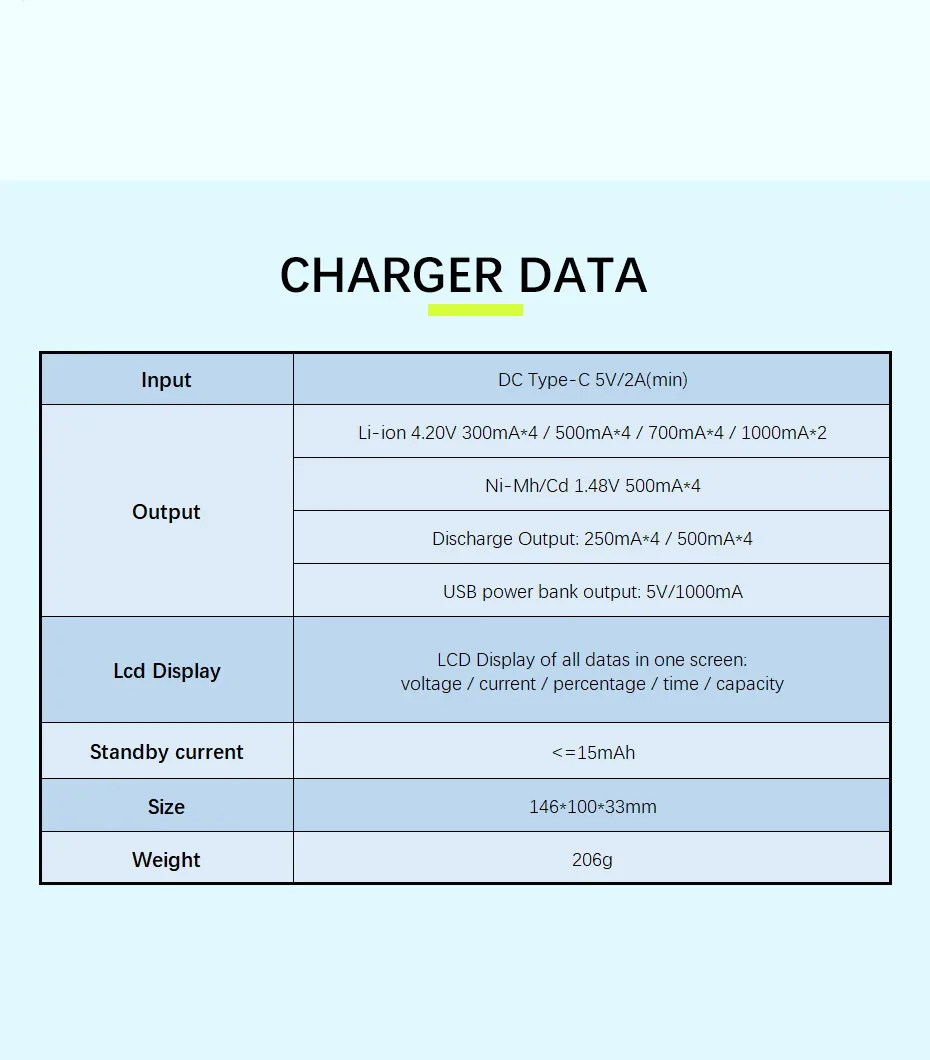

Specifications:
Brand |
LiitoKala |
Model |
Lii-M4S |

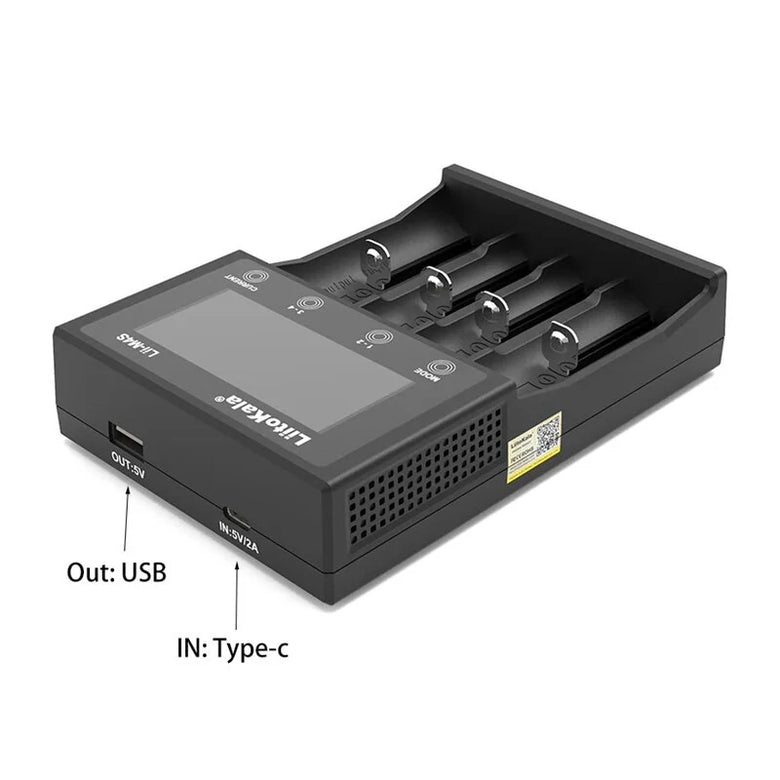

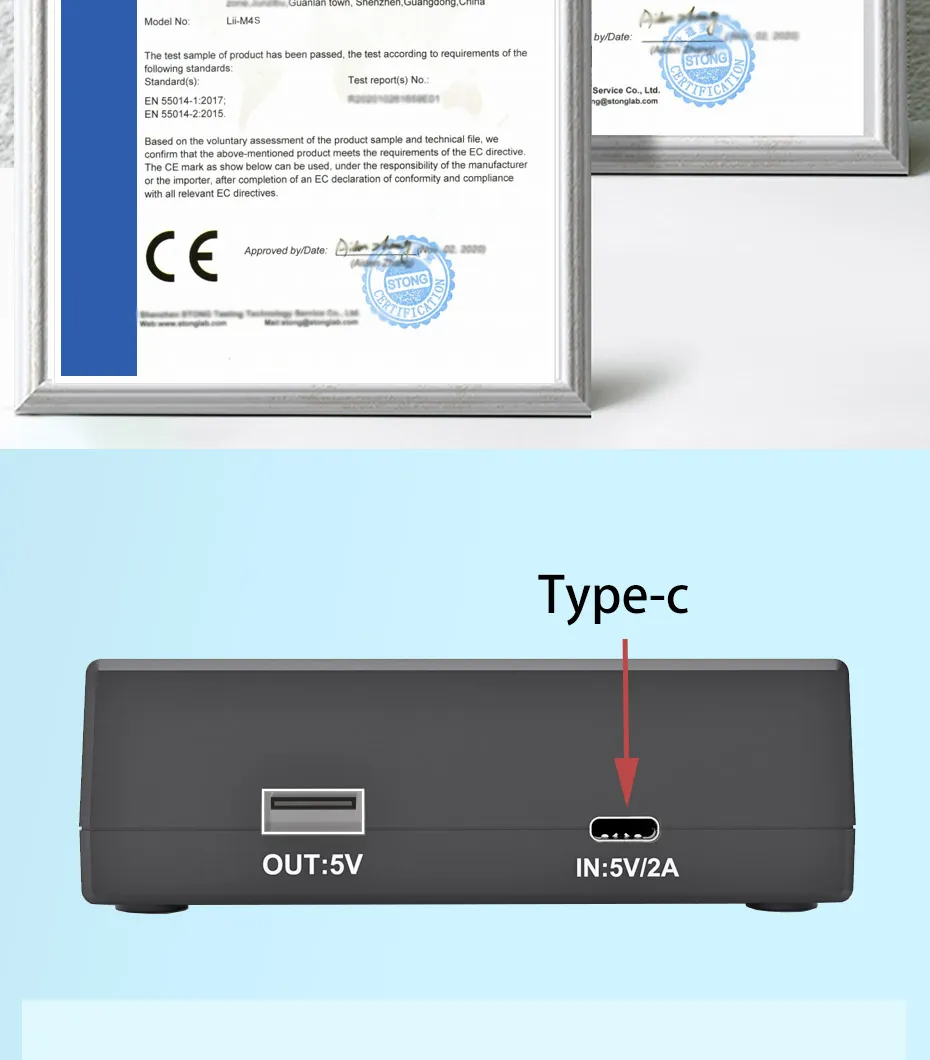

Input |
DC Type-C 5V/2A(min) |
Output |
Li-ion 4.20V 300mA*4 / 500mA*4 / 700mA*4 / 1000mA*2,Ni-Mh/Cd 1.48V 500mA*4 |
Discharge Output |
250mA*4 / 500mA*4 |
USB Power Bank Output |
5V/1000mA |

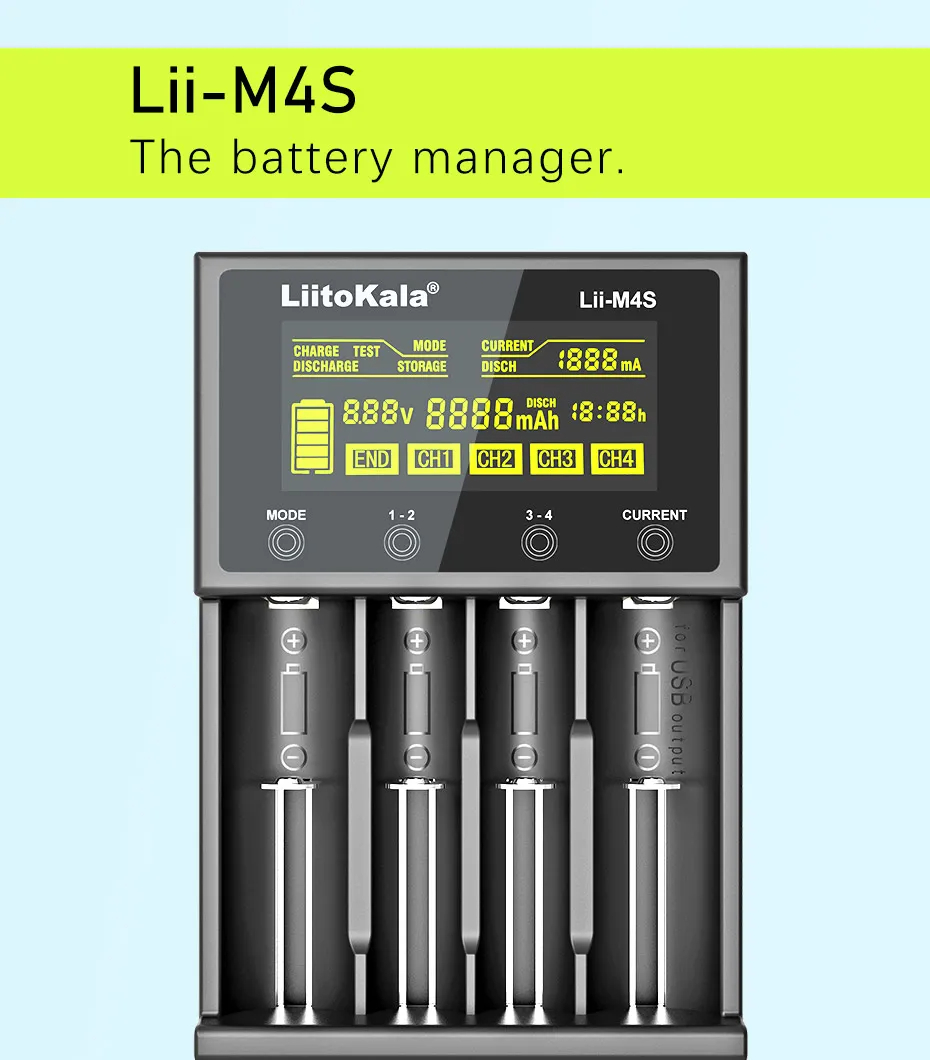

LCD Display |
LCD Display Of All Datas in One Screen: |
Standby Current |
≤15mAh |
Size |
146*100*33mm |
Weight |
206g |
Instructions for use

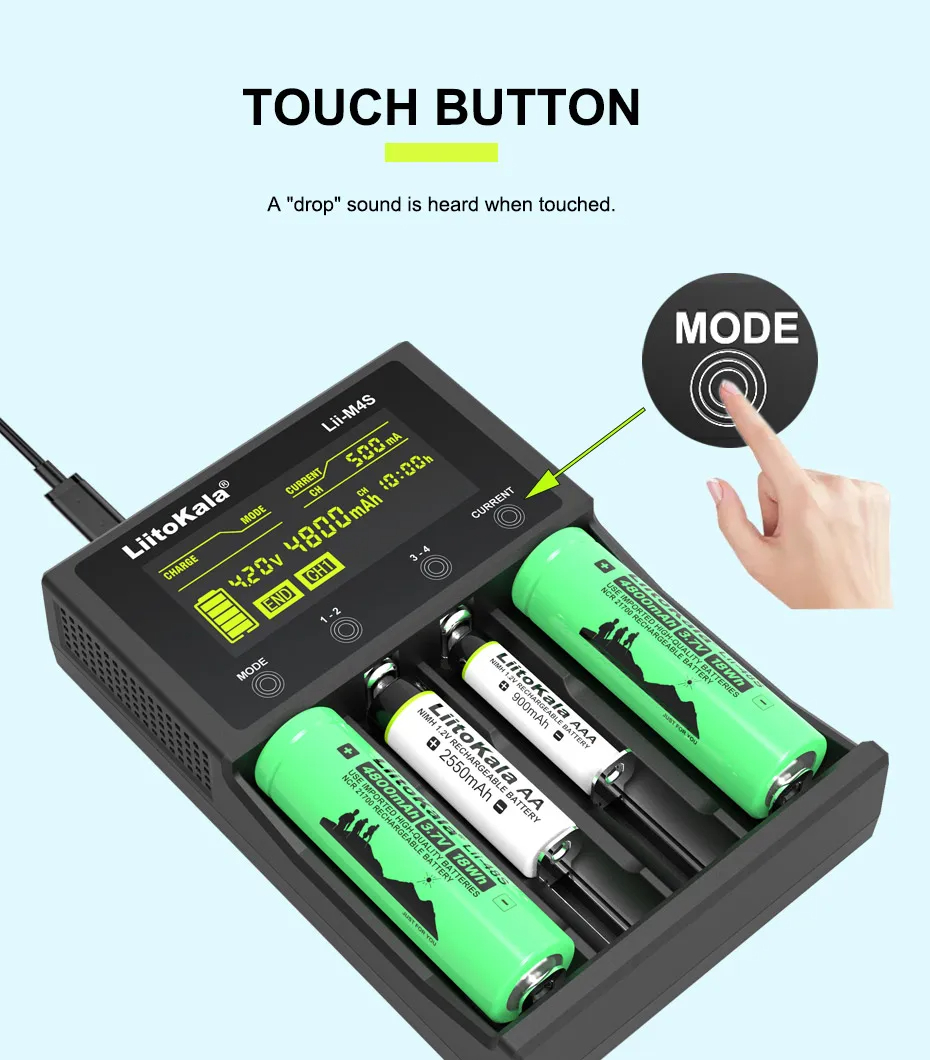

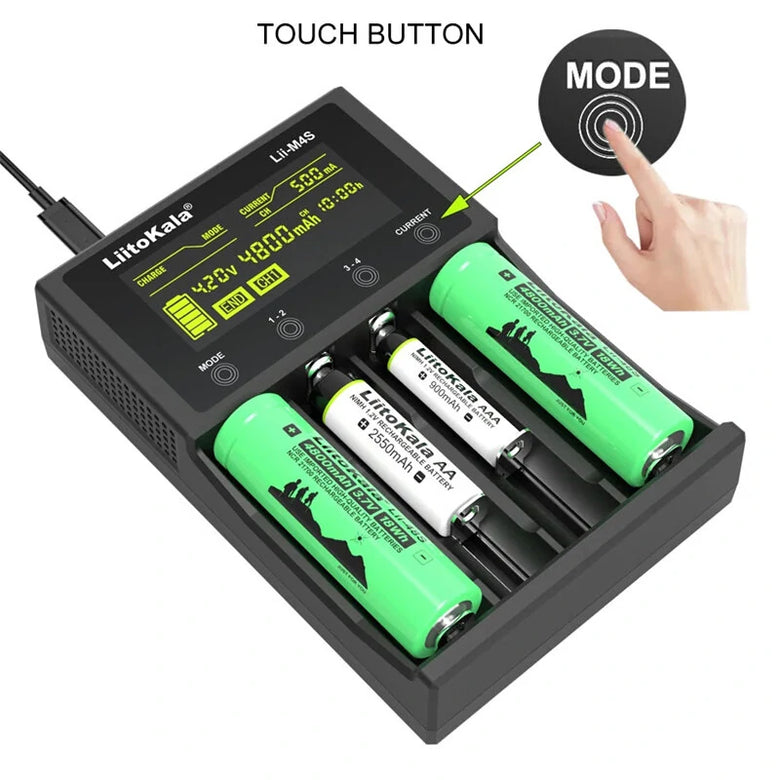

●CHARGE: Press and hold the “MODE” button for 3 seconds to enter the mode selection. CHARGE mode will charge the battery to full.
●TEST: Press and hold the “MODE” button for 3 seconds to enter the mode selection. Select “TEST” mode and press 'current'
button to select the desired charging current. The charger will automatically complete the test, this time only need to wait for the test results.
●DISCHARGE: Discharger the battery to empty.

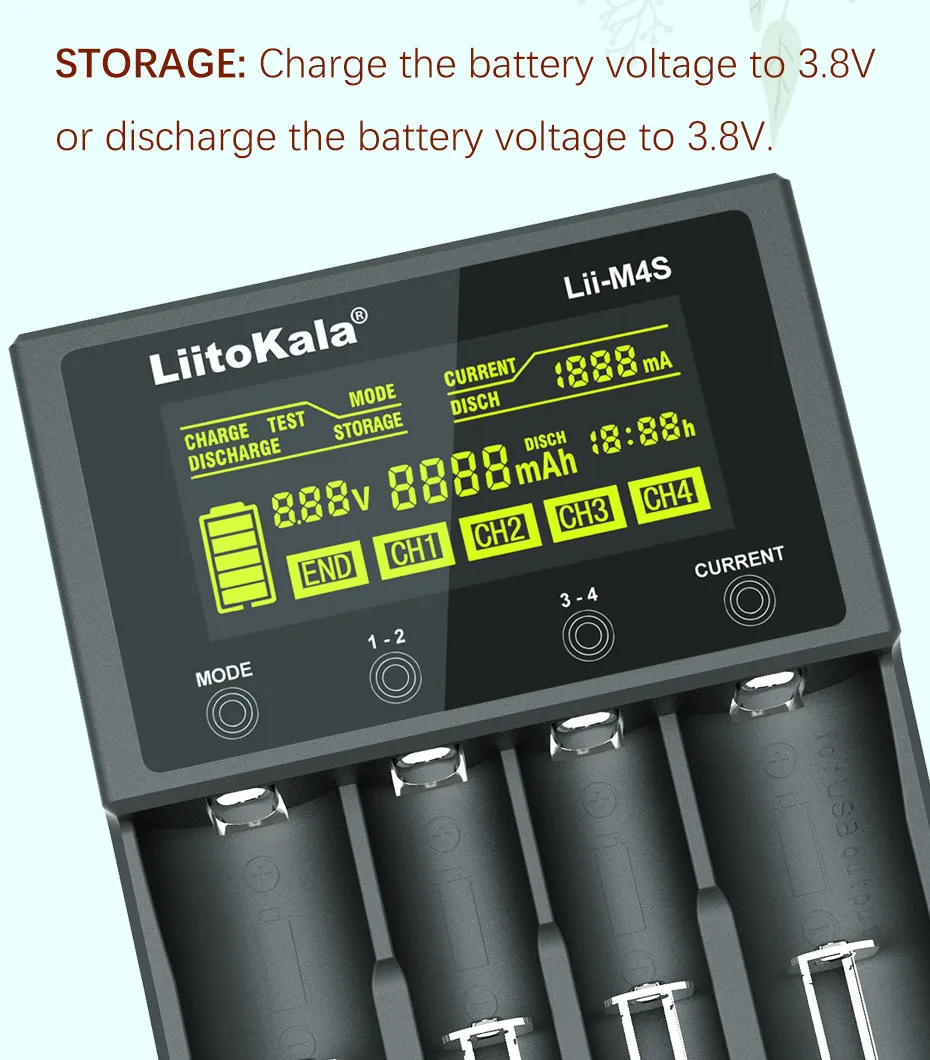

●STORAGE: Charge the battery voltage to 3.8V or discharge the battery voltage to 3.8V. When the battery is stored for a long time,
3.8V voltage is good for the battery.

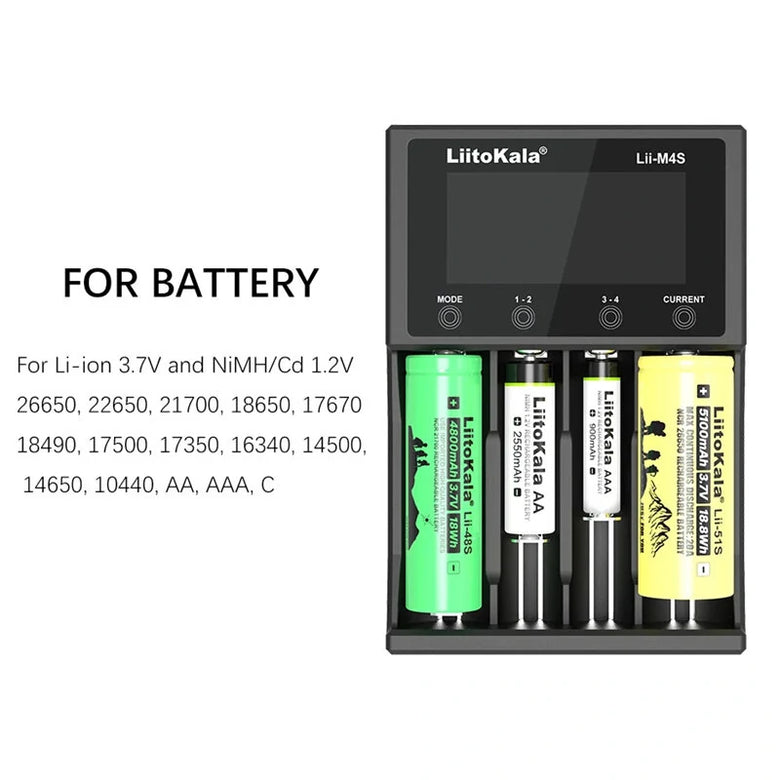

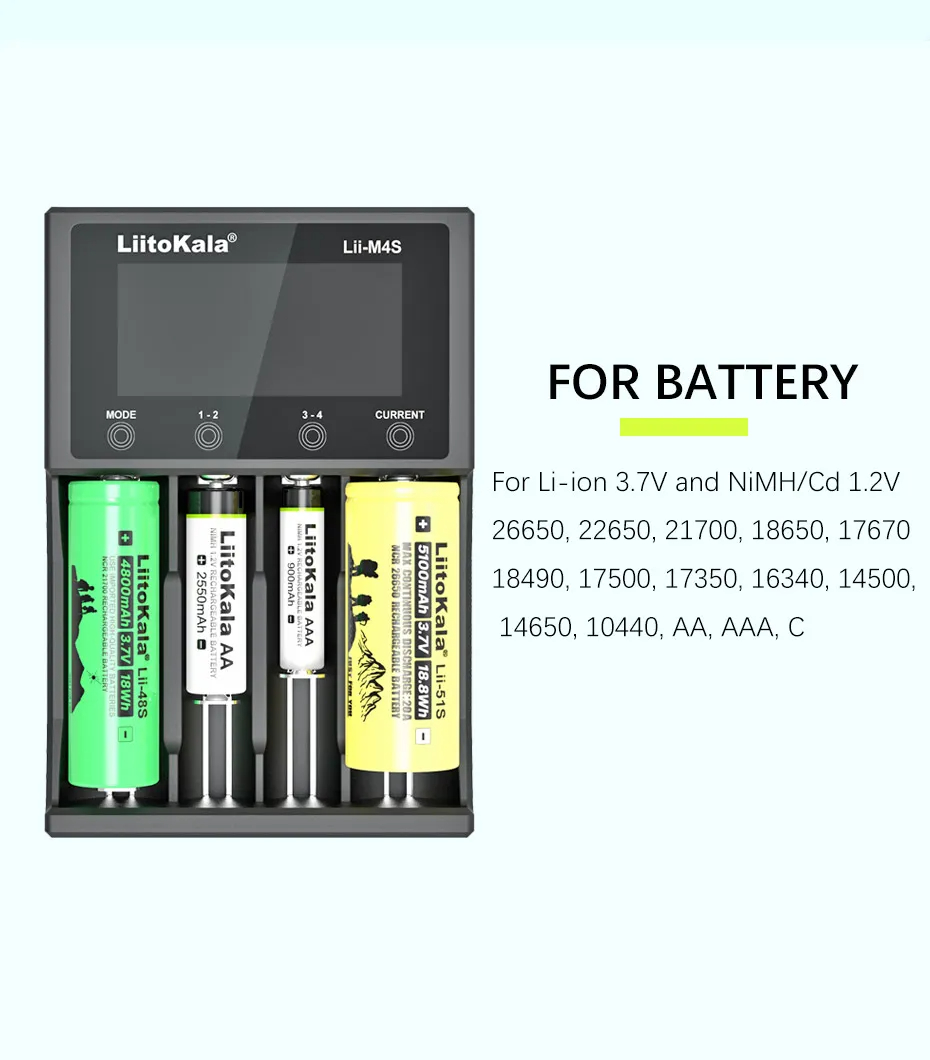

●For Battery For Li-ion 3.7V and NiMH/Cd 1.2V ; 26650, 26700, 21700, 18650, 17670,18490, 17500, 14500,14650, AA, AAA,
Note:
■About discharge current:If Discharge mode is selected. Then 500mA and 250mA current discharge can be selected. In TEST mode,
the default discharge current is 500mA.
■About the test results: Charger tested out of the results for reference only, can not be used as any commercial and other proof.
Internal resistance (mR) test results error is relatively large.

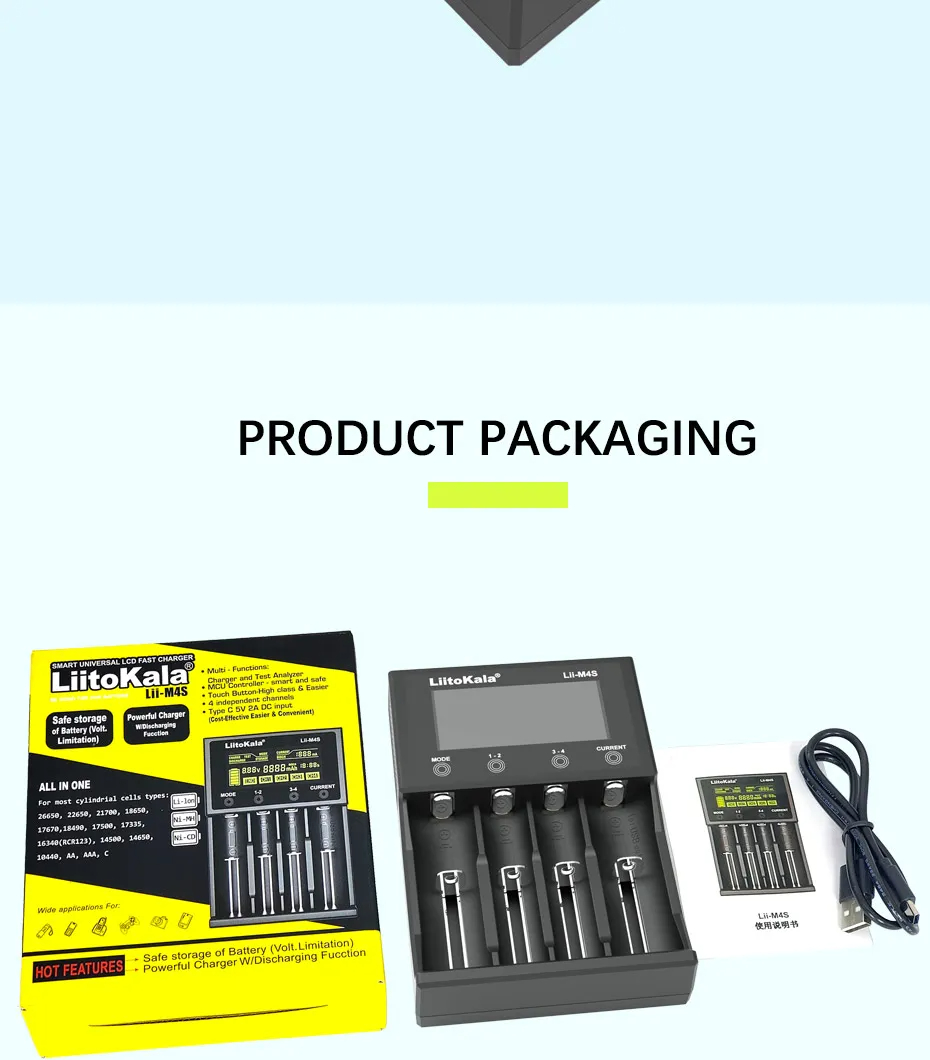

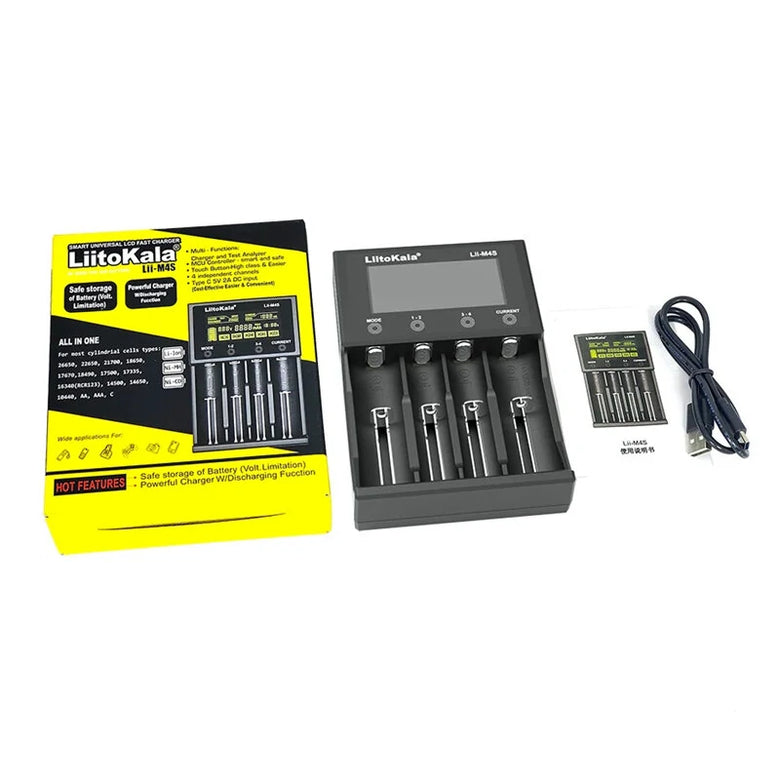

Package includes:
1 x Charger
1 x USB Cable
1 x User Manual
