Description:
Item Brand:ZTW
Model Number:422302
Model Number:422302

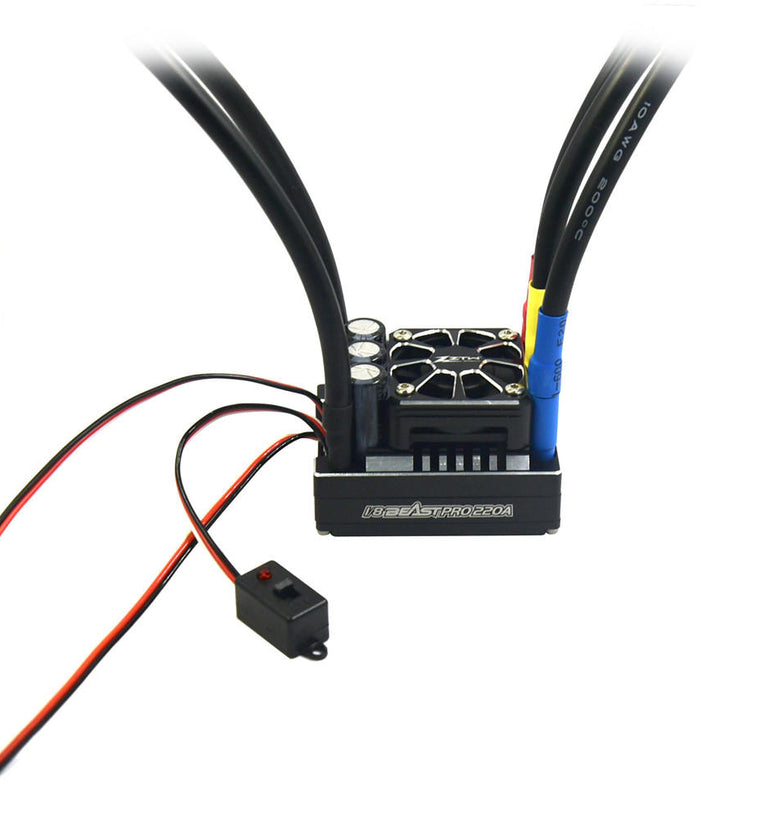

Item Name:1/8 Beast Pro 220A Brushless ESC
Continuous Current:220A
Burst Current:1000A
BEC:6.0V/7.4V Adujustable/8A
Battery NiXX/Lipo:8-18NC/3-6Lipo
Width:40mm
Length:55mm
Height:34mm
Weight:140g
Programmable:YES
Software:GECKO-LCD
Power Wires:10#AWG,160mm-Red/black
Motor Wires:5.0 Male 6*22 Gold
Signal Wire:(Black/Red/White)30C,300mm/PH1.5 3P to JR3P
Signal Wires2:(Black/Red/White)30C,200mm/PH1.5 3P to JR3P
Switch Wire::(Black/Red/White)30C,90mm
Motor Wire:(random distribution) 10#AWG,with 5.0mm Gold Connector,160mm-Black
Package included:Motor Wires:5.0 Male 6*22 Gold
Signal Wire:(Black/Red/White)30C,300mm/PH1.5 3P to JR3P
Signal Wires2:(Black/Red/White)30C,200mm/PH1.5 3P to JR3P
Switch Wire::(Black/Red/White)30C,90mm
Motor Wire:(random distribution) 10#AWG,with 5.0mm Gold Connector,160mm-Black
Features:
1.220A continuous current designing ,specialy for 1/8th scale .
2.Programmable by LCD program card.
3.Advanced PC interface to set up or update the firmware.
1.220A continuous current designing ,specialy for 1/8th scale .
2.Programmable by LCD program card.
3.Advanced PC interface to set up or update the firmware.
4.Adjustable BEC Output which is up to 7.4V.
5.Full aluminum top case , better for heat sinking.
5.Full aluminum top case , better for heat sinking.
6.Multiple protection : Low voltage cut-off protection
7.Over-heat protection and throttle signal loss protection.
7.Over-heat protection and throttle signal loss protection.
Recommedation:(the packaging do not include)
1.ZTW LCD Programming Card:1/5 Programming card for rc car
2.ZTW 4269 4 pole 2150kv motor
1X ZTW 1/8 Beast Pro 220A Brushless ESC
