Specifications:

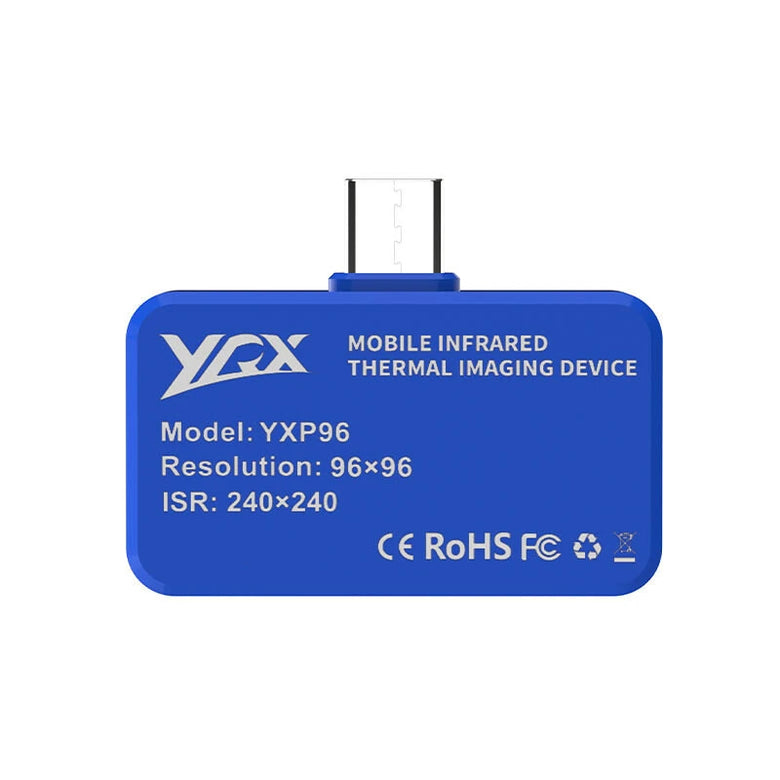

Model: YXP96
Temperature Range: -20°C to +550°C
Infrared Resolution: 96×96
Measurement Accuracy: ±2°C or ±2% (whichever is greater, at 25°C)
Detector Type: Vanadium Oxide Microbolometer
Measuring Mode: Industrial Temperature Measurement
Temperature Resolution: 0.1°C
Emissivity: 0.01-1.00 (Default: 0.95)
Infrared Spectral Band: 8-14 μm
Pixel Size: 12 μm
Spatial Resolution: 8.89 mrad
Lens Focal Length: 1.35 mm
Frame Rate: 25 Hz
Thermal Sensitivity: <40mK
Focus Type: Fixed Focus (No Adjustment Required)
Field of View (FOV): 50°×50°
Temperature Units: °C/°F/K
Temperature Display: Center, Maximum, Minimum Readings

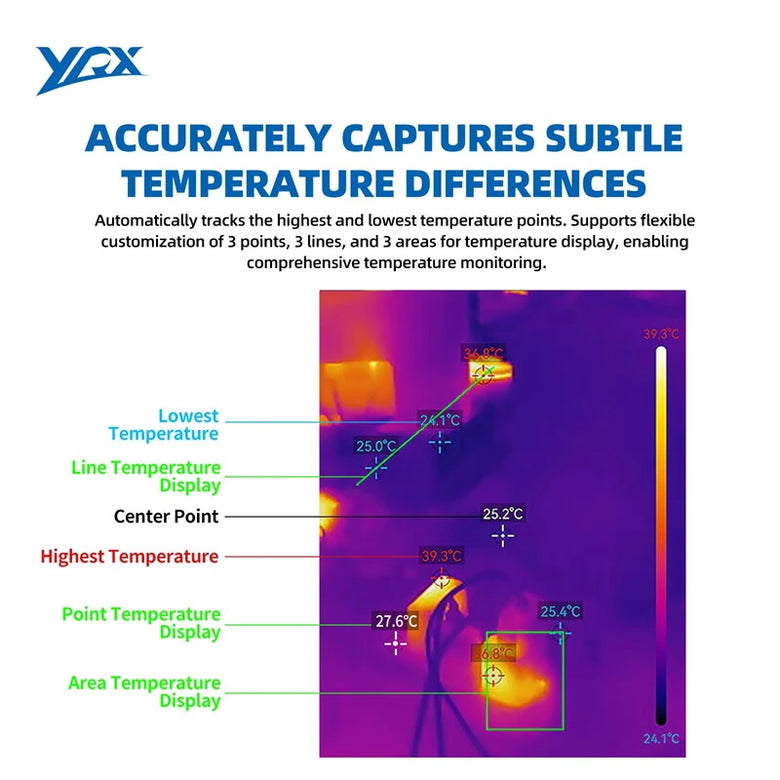

Temperature Analysis: 3 Points, 3 Lines, 3 Rectangles
Isotherm: Automatic
High/Low Temperature Tracking: Supported
High/Low Temperature Alarm: Screen Icon/Sound Alert
Color Palettes: Red Hot, Rainbow, Iron, ForLava, Black Hot, White Hot, etc.
Image Modes: Thermal Imaging, Picture-in-Picture
Photo/Video Recording: Supported
Image/Video Format: JPEG/MP4
Interface: USB Type-C
Supported Languages: Simplified Chinese, Traditional Chinese, English, Spanish
Compatible Operating Systems: Android
Working Temperature: -10°C to +50°C
Working Humidity: 10%-90% RH (Non-condensing)
Storage Temperature: -20°C to +60°C
Certifications: FCC, CE, RoHS

Model: YXP160
Infrared Resolution: 160×120
Temperature Range: -20°C to 550°C
Measurement Accuracy: ±2°C or ±2% of reading
Measurement Distance: 0.3m–3m, adjustable
Detector Type: For VOx microbolometer
Emissivity: 0.01–1.00 (Default: 0.95)
Infrared Wavelength: 8–14μm
Pixel Size: 17μm
Spatial Resolution: 5.31mrad
Focal Length: 3.2mm
Frame Rate: 25Hz
Thermal Sensitivity: ≤40mK
Focus Type: Autofocus
Field of View (FOV): 50.0°(H) × 37.2°(V), 63.6°(D)
Temperature Units: °C / °F
Temperature Display: Center, high, low (custom 3 points, 3 lines, 3 areas)
Isotherms: Manual
High/Low Tracking: Yes
High-Temperature Alerts: On-screen and voice alerts
Color Palettes: 15 options (thermal, iron, rainbow, grayscale, etc.)
Image Modes: Thermal, blended
Photo/Video Recording: Yes
Image/Video Format: JPEG / MP4
Interface: Type-C USB
Supported Languages: English, Simplified/Traditional Chinese
Mobile System Compatibility: Android
Operating Temperature: -10°C to 50°C
Humidity Tolerance: 10%–90% RH (non-condensing)
Storage Temperature: -20°C to 60°C
Power Consumption: ≤0.41W
Certifications: FCC, RoHS, CE
Dimensions: 35.3 × 26 × 19.8mm
Net Weight: 17g

Features:

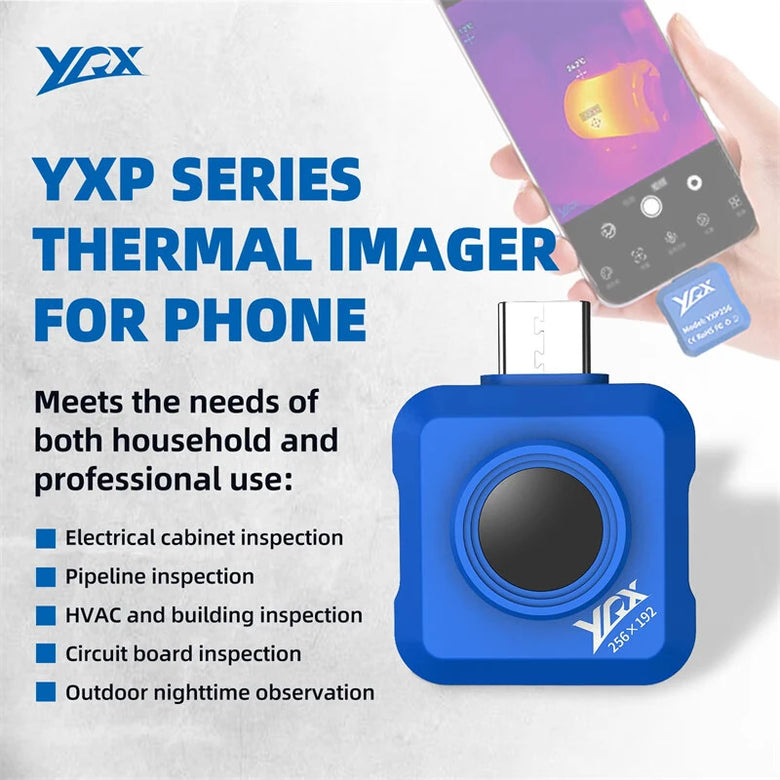

1.Compact Plug-and-Play Design
The YXP96 is lightweight and easy to use, featuring a USB Type-C interface for hassle-free compatibility with Android devices.
2.High Temperature Range and Accuracy
Offering a wide temperature range of -20°C to +550°C with an impressive accuracy of ±2°C or ±2%, it ensures reliable measurements in diverse industrial applications.
3.High-Resolution Thermal Imaging
Equipped with a 96×96 infrared resolution and thermal sensitivity of <40mK, it provides clear and detailed imaging for precise temperature analysis.
4.User-Friendly Analysis Tools
Features adjustable emissivity, 3-point temperature analysis, and isothermal line capabilities to simplify industrial applications and environmental monitoring.
5.Multi-Palette Imaging Modes
Includes various color palettes such as Rainbow, Iron, and White Hot, along with a picture-in-picture option for enhanced thermal image versatility & analysis.

Package Included:
1 x Thermal Imager
1 x Storage Bag
1 x Lens Cleaning Cloth
1 x User Manual
1 x Color Box
