Specifications:

- Displayed Frequency Range: 35-4400 MHz

- Measured Frequency Range: 45-4400 MHz

- Dynamic Range:

  - 75 dB (45-3000 MHz band)

  - 70 dB (3000-4400 MHz band)

- Maximum Bandwidth: 4355 MHz

- IF Bandwidth (Fixed): 200 kHz

- Sweep Speed:

  - With span > 100 MHz: 600 MHz/s

  - Sweep Time of 100 MHz Span: < 0.25 s

- Detectable Signal Duration at 10 MHz Scan Span: 20 ms

- Noise Floor:

  - Up to 3000 MHz: < -100 dBm

  - 3000-4500 MHz: < -95 dBm

  - 4500-6200 MHz: < -90 dBm

- Input Impedance: 50 Ohm

- SWR in Operating Frequency Range: < 1.5

- Internal Attenuator: 0-30 dB

- Attenuation Error:

  - Up to 10 dB: 2 dB

  - 10 to 20 dB: 5 dB

  - 20 to 30 dB: 8 dB

- Built-in Tracking Generator Frequency Range: 35-6200 MHz

- Tracking Generator Output Power: -15 to -25 dBm

- Signal Display Accuracy within Dynamic Range: 2 dB

- Maximum Input Power:

  - With 0 dB Attenuator: +10 dBm

  - With > 20 dB Attenuator: +20 dBm

- Measured Maximum Input Signal: +10 dBm

- Maximum RF Input DC Voltage: 5V

- Maximum Supply Current:

  - Battery Mode: 450 mA

  - USB Mode (charging): 500 mA

- Battery Capacity: 3000 mAh

- Continuous Operation Time on Battery: 3 hours

- Battery Charging Time: ~4 hours

- Dimensions: 155x81x27 mm

- Weight: 0.49 kg

Features:

1. Wide Frequency Range: Capable of scanning frequencies from 45 MHz to 4400 MHz with an internal attenuator and amplifier, covering a broad spectrum for various applications.

2. Efficient Sweep Speed: Provides a fast sweep speed of 600 MHz/s with a span of more than 100 MHz, allowing for quick and efficient spectrum analysis.

3. High Accuracy: Offers a high dynamic range (up to 75 dB) and low noise floor (< -100 dBm up to 3000 MHz), ensuring precise and reliable measurements.

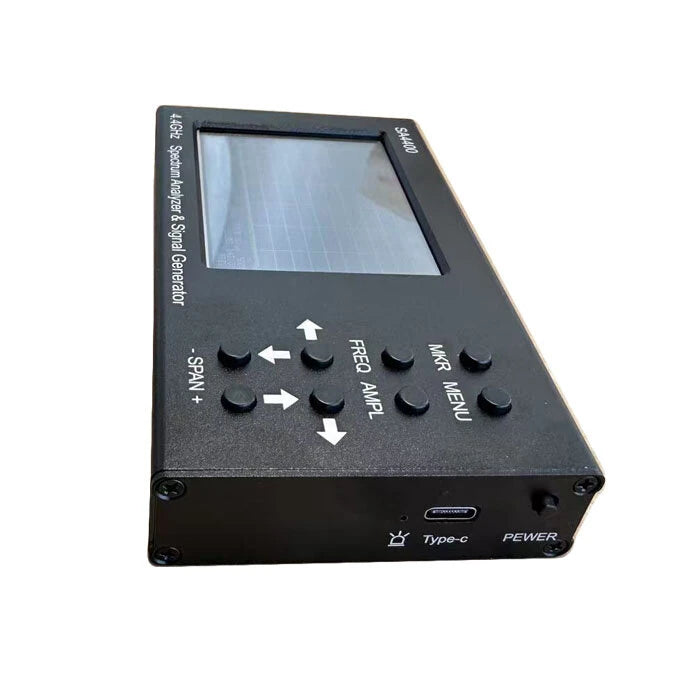

4. Enhanced Display: Features a 3.2-inch color resistive touch screen combined with button controls, providing a user-friendly interface for easy operation.

5. Long Battery Life: Equipped with a 3000 mAh battery that supports continuous operation for up to 3 hours, ensuring longevity for fieldwork and extended use.

Package Included:

1 x 4.4G Spectrum Analyzer & Signal Generator

1 x USB Type-C Connecting Cable

1 x SMA_BNC Connector

1 x Touch Pen
