Features:

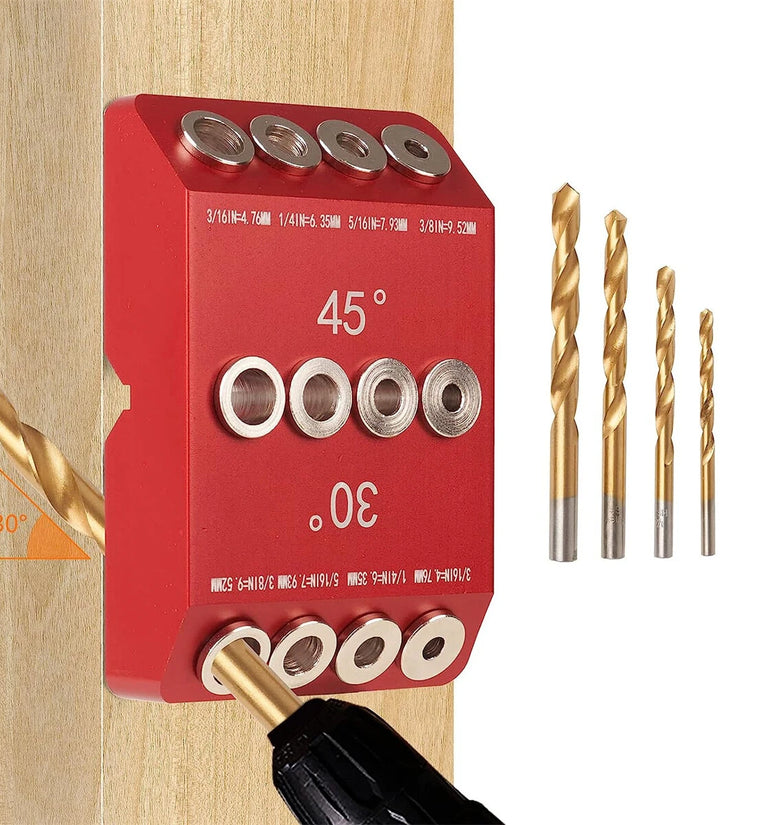

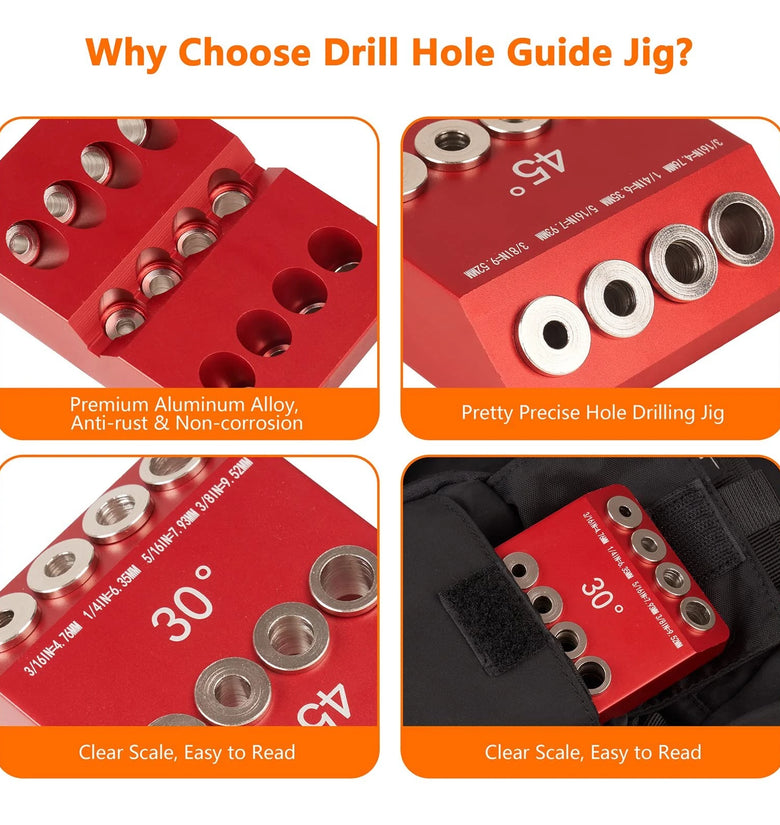

Superior Drill Guide: Crafted from high-grade industrial aluminum alloy, this hard yet lightweight drill guide for cable railing is easy to operate and transport. The red anodized surface ensures excellent finish and corrosion resistance for long-lasting use. The guide holes are inlaid with steel drill sleeves for sturdy performance and maintained accuracy.

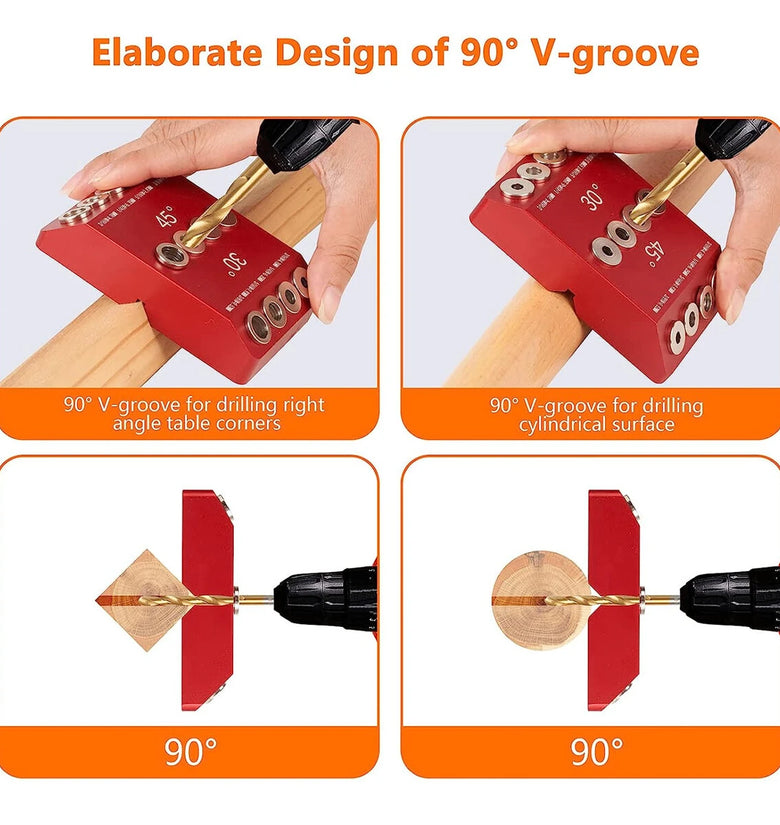

Precision Drilling Angles: The drill guide offers fixed 30, 45, and 90-degree drilling angles. Perfect for a 90° horizontal deck post and 45° & 30° angled stairs railing, you can swiftly drill accurate 30°/45°/90° angle holes with a handheld drill, saving your time and effort.

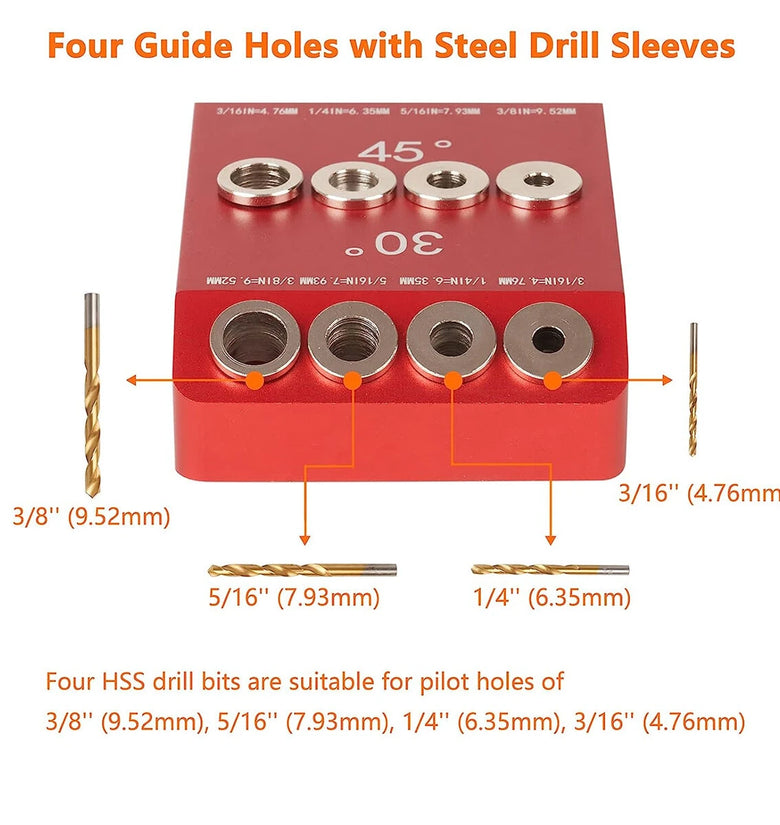

Multi-size Guide Holes: Each drilling angle is paired with four guide hole sizes: 3/8”(9.52mm), 5/16”(7.93mm), 1/4”(6.35mm), and 3/16'(4.76mm). These are compatible with most cable railing protector sleeves and lag screws, creating a highly efficient and portable angled drill guide.
Industrial-grade Drill Bits: The set comes with (or without) four titanium-plated drill bits that match the pilot hole sizes. These high-quality industrial-grade steel bits offer quick, robust, and sturdy drilling.
Versatile Use: Ideal for use with a locking C-clamp and F-clamp (not included) to prevent shaking during drilling and achieve burr-free and crackless holes. This drill guide is perfect for wood, aluminum, high-speed steel post installations, deck railing, cable railing, stair deck railing, and DIY railing projects.
Specifications:
Parameter |
Description |
Material |
Industrial-grade Aluminum Alloy |
Surface |
Anodized Red |
Drilling Angles |
30°, 45°, 90° |
Guide Hole Sizes |
3/8”(9.52mm), 5/16”(7.93mm), 1/4”(6.35mm), 3/16'(4.76mm) |
Drill Bit Material (if included) |
Industrial-grade Steel, Titanium-plated |
Applications |
Wood, Aluminum, High-speed Steel Posts, Deck Railing, Cable Railing, Stair Deck Railing, DIY Railing Projects |
Colors |
Blue, Red |
Type |
With 4 Drills, Without 4 Drills |
Package Included:
Type A:
1 x Red Drill Guide Jig
Type B:

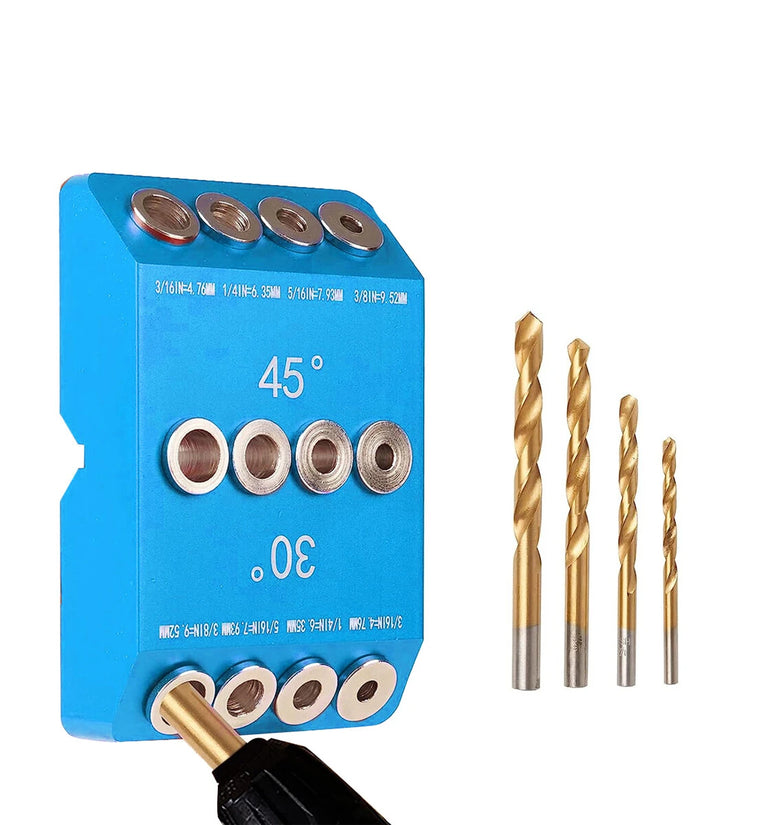

1 x Blue Drill Guide Jig
Type C:
1 x Red Drill Guide Jig
4 x Titanium-plated Drill Bits (sizes: 3/8”, 5/16”, 1/4”, 3/16')
Type D:
1 x Blue Drill Guide Jig
4 x Titanium-plated Drill Bits (sizes: 3/8”, 5/16”, 1/4”, 3/16')
