Specifications:
FPGA: XC7z020-2CLG400I with dual-core Cortex-A9 processor
RF Chip: AD9363 configured in AD9361 mode
Frequency Range: 70MHz to 6GHz
Sampling Rate: Up to 61.44MHz
Memory: 1GB, 32-bit wide DDR3 running at 1066MHz
Storage: 32MB QSPI, supports TF card expansion
Clock Accuracy: VCTCXO initial frequency accuracy of 0.5PPM, external PPS or 10MHz disciplined oscillator supported

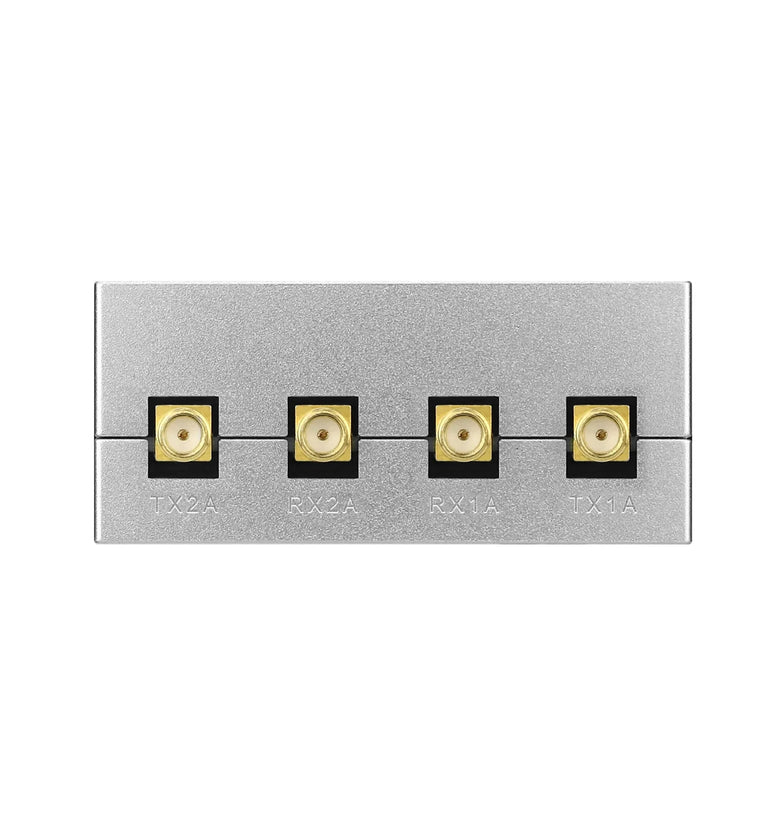

Interfaces: Gigabit Ethernet, USB OTG (TYPE-C), onboard JTAG and USB-to-serial port
PCB Design: 10-layer, impedance matching and signal integrity
Features:
1.Advanced FPGA with High-Speed Processing
Powered by XC7z020-2CLG400I FPGA featuring a dual-core Cortex-A9 processor, this SDR ensures high-performance computation for demanding applications.
2.Wide Frequency Range & Sampling Capability
Capable of operating within a frequency range of 70MHz to 6GHz with up to 61.44MHz sampling rate, the SDR is suitable for diverse RF applications.
3.Flexible Storage Options & Boot Modes
Equipped with 32MB QSPI for internal storage and expandable TF card support, the SDR offers automatic switching between QSPI boot and TF card boot modes.
4.Highly Accurate Internal & External Clock Reference
Integrated VCTCXO provides 0.5PPM initial frequency precision, while PPS or external 10MHz disciplined oscillator input enhances clock accuracy further.
5.Robust Design for Heat Dissipation
