Specifications:

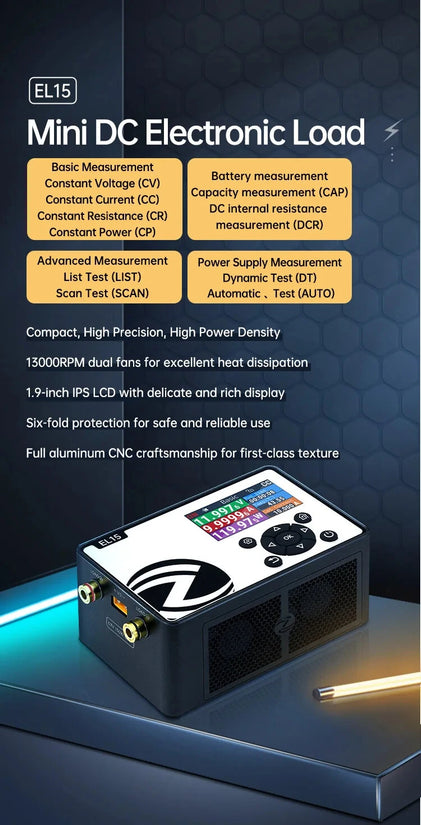

Model: EL15
Display: 1.9’’ IPS LCD, 320 x 170 resolution
Input Interface: 4mm banana plug socket + XT30 male connector

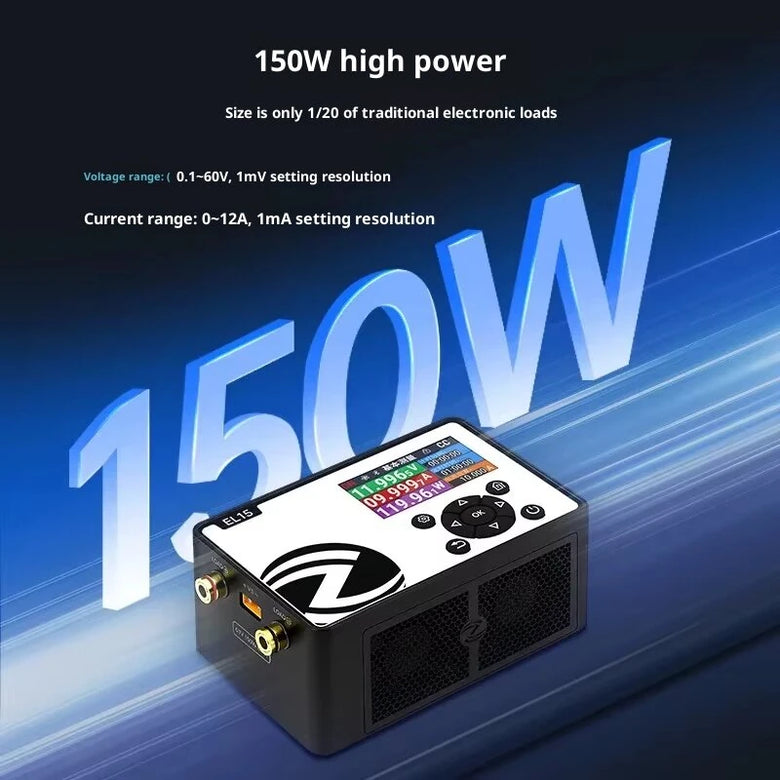

Load Power: Up to 150W
Voltage Range: 0.1V to 60V
Current Range: 0A to 12A
Power Supply Interface: Type-C (5V 2A)
Resolution: Voltage: 1mV, Current: 1mA
Accuracy: Voltage: ±0.05%FS, Current: ±0.025%FS
Net Weight: Approx. 300g

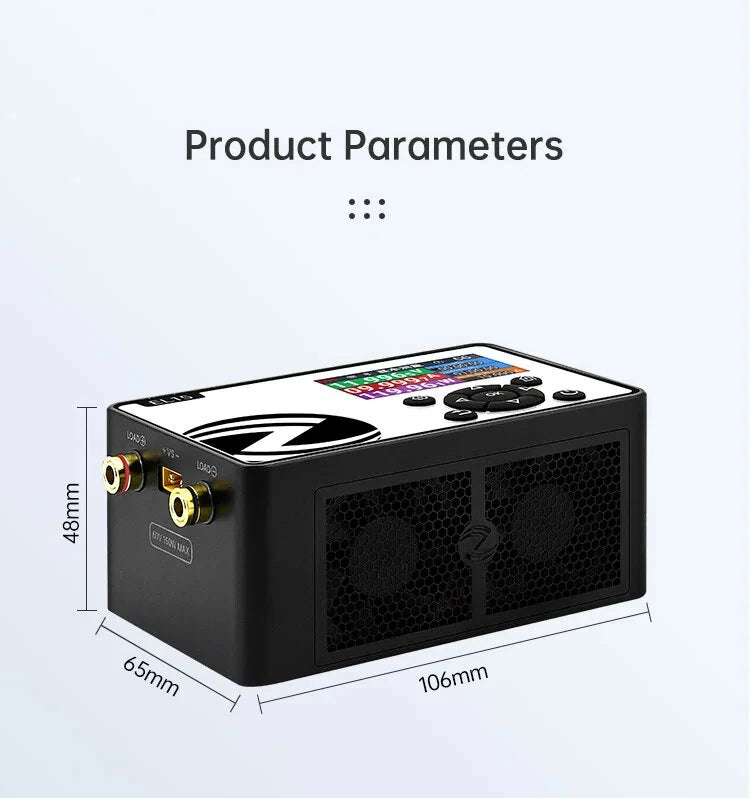

Dimensions: 106mm x 65mm x 48mm
Features:
1.Professional-grade power testing
Offers load power of up to 150W, making it suitable for accurate testing and measurement of batteries and power supplies across various scenarios.
2.Precision measurement technology
Equipped with a 24-bit high-performance ADC, ensuring highly accurate readings of voltage (1mV resolution) and current (1mA resolution).
3.Compact & smart interface
A portable design with a vibrant 1.9’’ IPS LCD screen displaying real-time measurement data with intuitive user controls.
4.Wide voltage & current range compatibility
Supports a voltage range of 0.1V to 60V and a current range of 0A to 12A, accommodating multiple battery types and projects.
5.Versatile input interfaces
Includes both banana plug sockets and XT30 connectors, offering flexibility in connecting with diverse power sources conveniently.

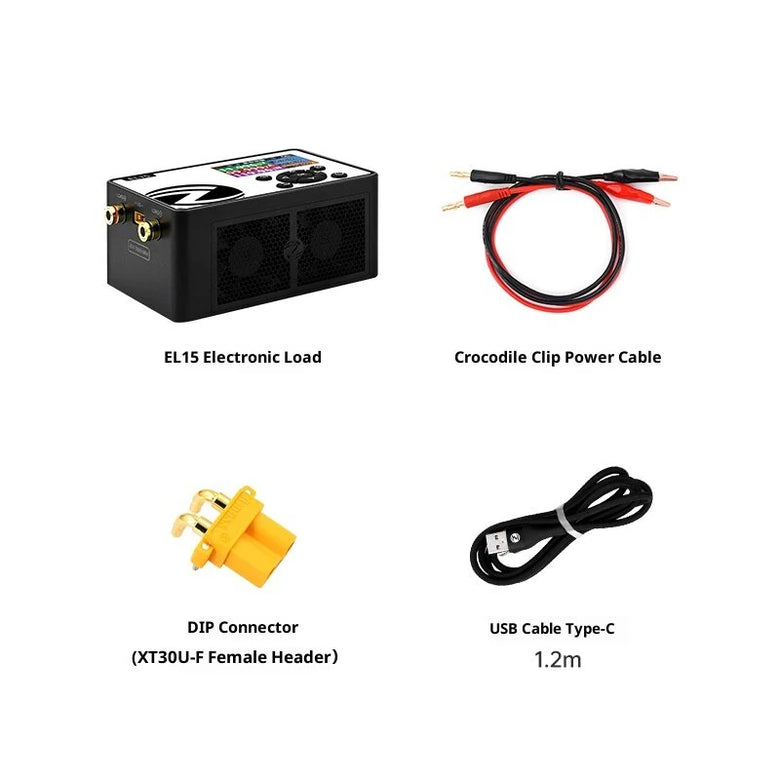

Package Included:
1 x EL15 Digital Load
1 x USB Type-C Cable (1.2m)
1 x XT30U-F Female Connector
2 x Alligator Clip Power Cord
