Specifications:

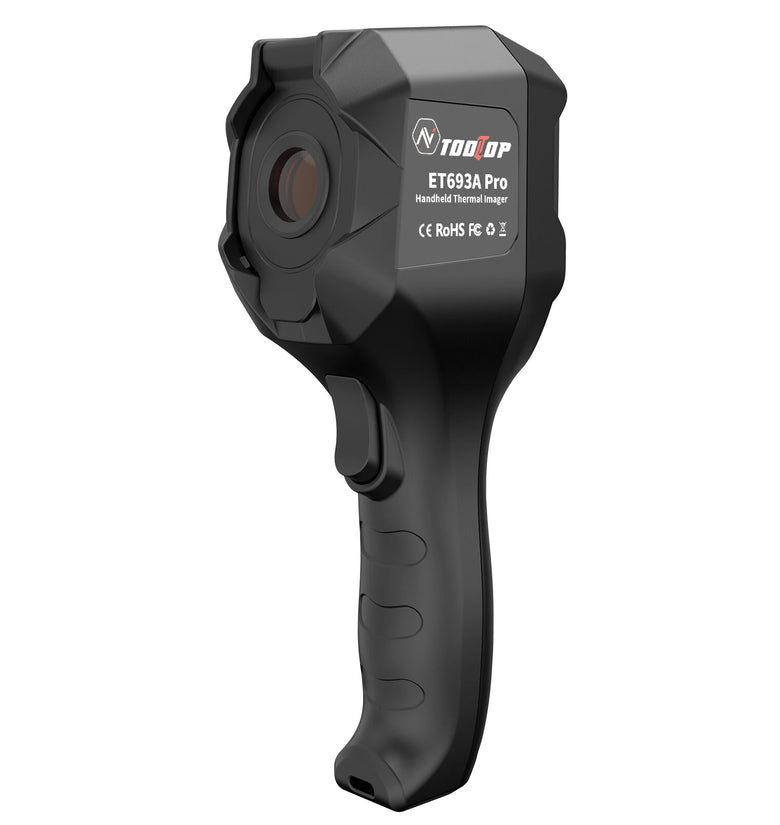

Model: ET693A(Without Macro lens), ET693A PRO(With Macro Lens)
Infrared Sensor Resolution: 96 x 96
Temperature Range: -20°C to 550°C
TISR Resolution: 240 x 240
Measurement Accuracy: ±2°C or ±2% of reading
Measurement Sensitivity: 0.1°C
Thermal Sensitivity: ≤60 mK (@25°C, F#1.0)
Frame Rate: 25Hz
Pixel Size: 12μm
Detector Type: VO
Field of View (FOV): 50° x 50°
Focal Length: 1.35mm
Infrared Wavelength Range: 8~14μm
Emissivity: Adjustable from 0.01 to 1.00
Dimensions: 231mm x 79.2mm x 84.9mm
Weight: 303g
Display: 2.4-inch screen
Battery: 3200mAh, non-removable, charging time ≤4h, operating time ≥7h
Certifications: CE, FCC, ROHS
Storage (Expandable): 8GB SD card
Temperature Display: Center Point, Max Temp, Min Temp
High/Low Temperature Tracking: Yes
High/Low Temperature Alarm: On-screen marker alarm
Image Modes: IR, Fusion, PIP
Image/Video Capture: Image (JPEG), Video (MP4)
Data Interface: Type-C
Available only for Model ET693A Pro:
Visible Light Camera: 200W resolution

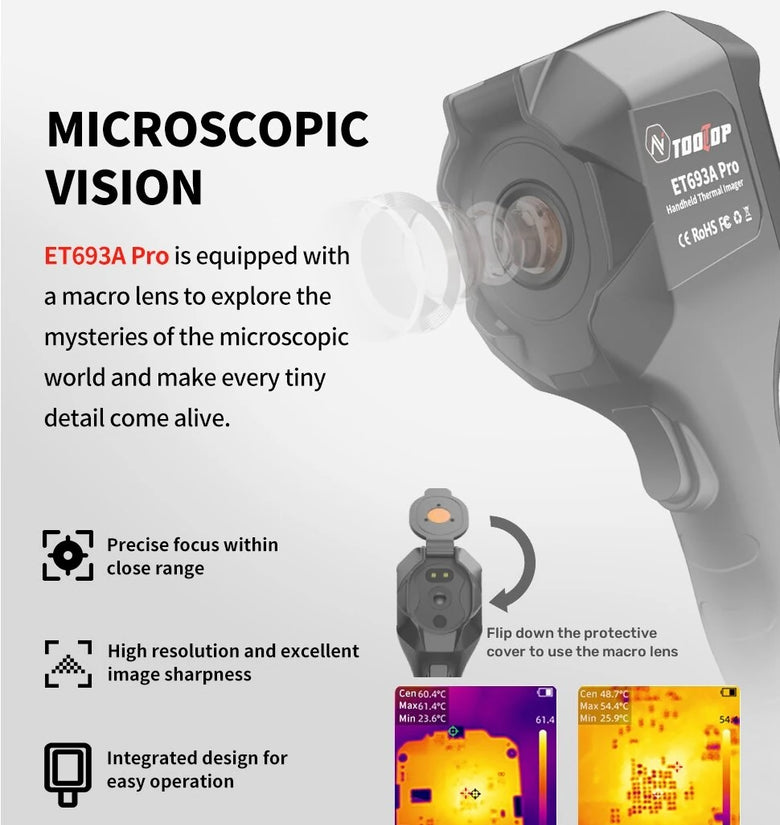

Macro Lens: Mounted on the lens cap
Features:
1.Enhanced Temperature Range
The ET693A and ET693A Pro provide wide temperature measurement capabilities, ranging from -20°C to 550°C, making them suitable for diverse applications such as electrical inspections, HVAC checks, and equipment monitoring in various environments.
2.High Thermal Detection Accuracy
With superior measurement accuracy of ±2°C or ±2% of reading and sensitivity up to 0.1°C, these devices identify minute temperature changes effectively and precisely.

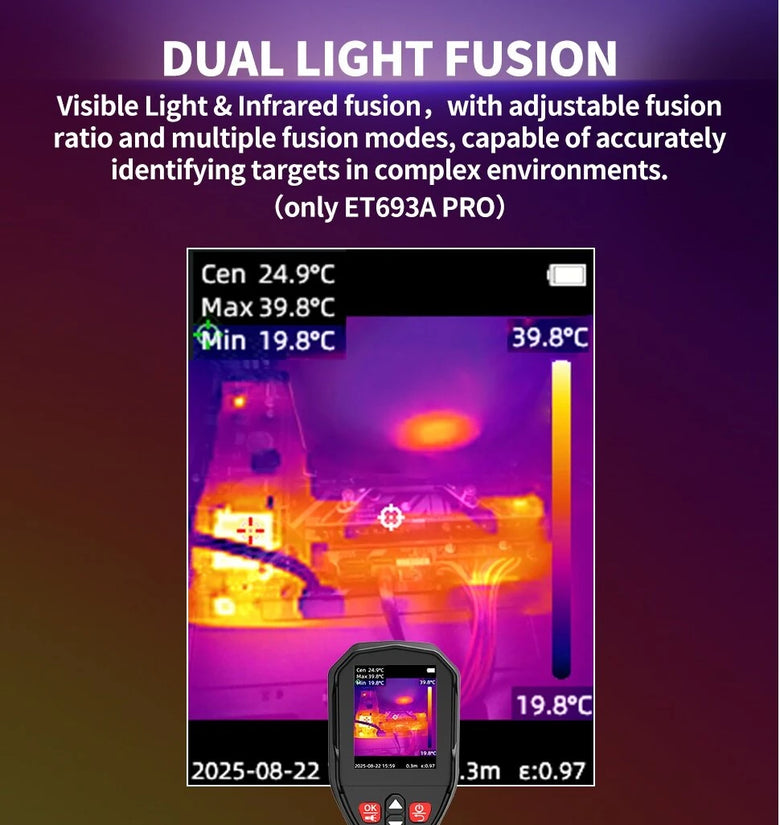

3.Dual Image Modes for Analysis
The ET693A Pro combines infrared imaging with a 200W visible light camera and macro lens, offering versatile imaging and capturing for clearer and insightful thermal data analysis.

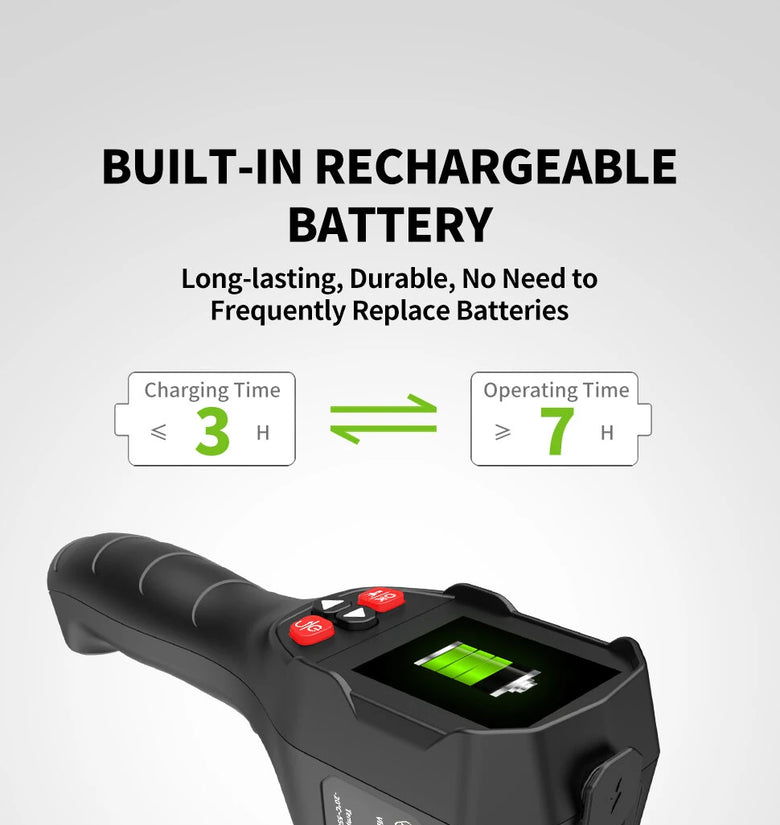

4.Ergonomic Design and Extended Operation
Compact (231mm x 79.2mm x 84.9mm) and lightweight (303g) design with a 3200mAh non-removable battery for continuous use up to 7 hours.
5.User-Friendly Interface
Equipped with a 2.4-inch display and multi-language support across 10 languages, the intuitive design ensures seamless operation, while the expandable 8GB SD card provides ample storage for data-saving needs.
Package Included:
1 x Thermal Imaging Camera
1 x Type-C Cable (1 meter)
1 x User Manual
