Note: The product's app is not compatible with the following phone models. Please check before purchasing:OnePlus 13OnePlus 6TSamsun Galaxy Z Fold4Samsug Galaxy S10Redmi Note 9 ProRedmi Note 11 Pro 5GRedmi Note 7 ProHUAWEI P30 lite
Specifications:
Model: T3(Without Macro lens), T3S+(With Macro Lens)
Infrared Resolution: 96×96

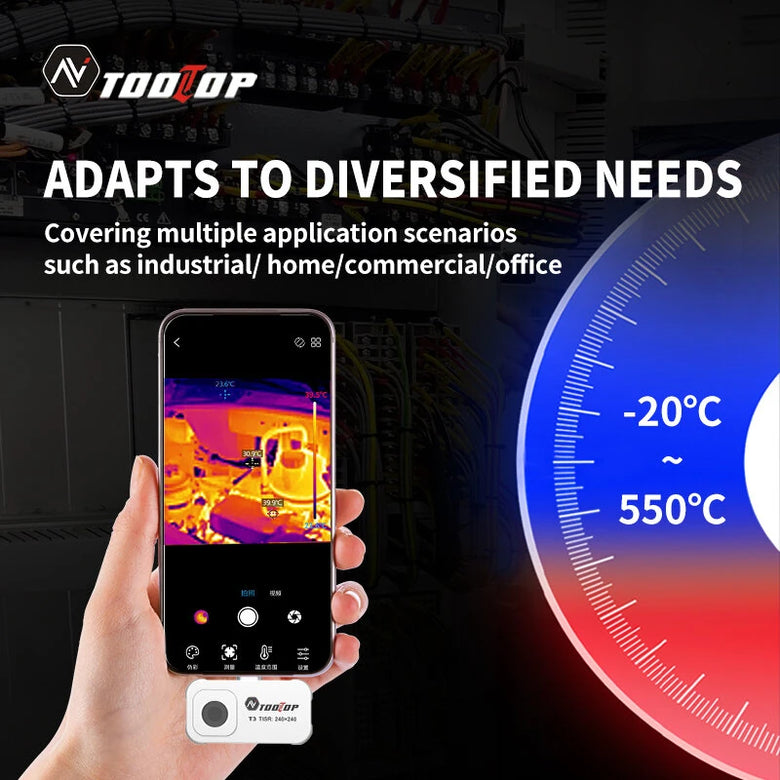

Temperature Range: -20°C ~ 550°C
Measurement Accuracy: ±2°C or ±2% of reading (ambient temperature 25°C)
Detector Type: Oxide Vanadium Thermal Imaging Sensor
Measurement Modes: Industrial temperature measurement
Measurement Resolution: 0.1°C
Emissivity: 0.01~1.00 (default: 0.95)
Infrared Wavelength Range: 8~14μm
Pixel Size: 12μm
Spatial Resolution: 8.89mrad
Focal Length: 1.35mm
Frame Rate: 25Hz
Thermal Sensitivity: <40mK
Focusing Method: Fixed Focus

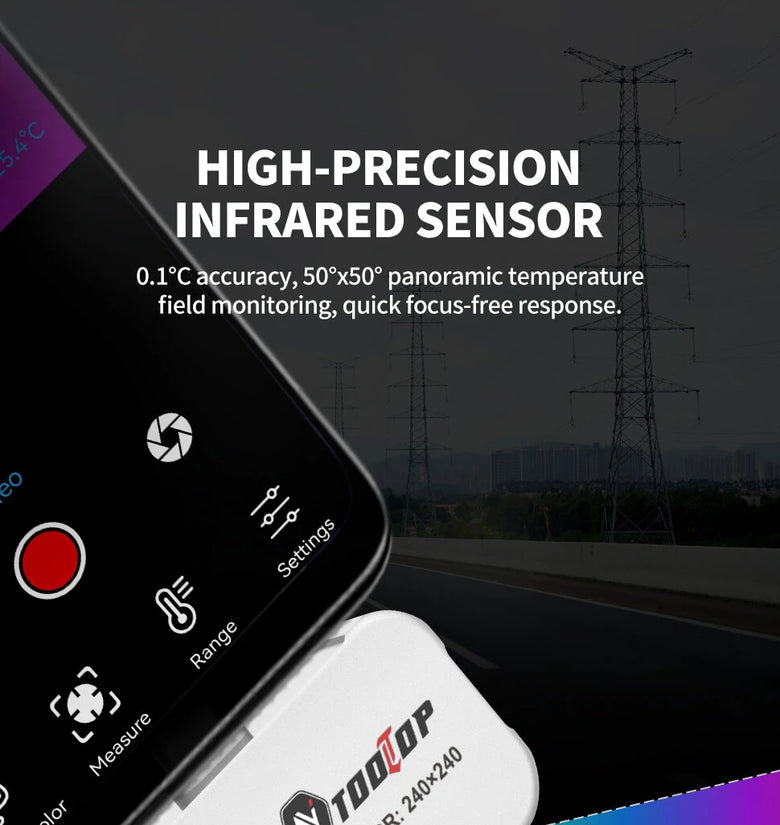

Field of View (FOV): 50° × 50°
Temperature Unit: °C/°F/K
Temperature Display: 3 temperature measurement points (Center, Max, Min)
Temperature Analysis: 3 points, 3 lines, 3 rectangles
Isotherms: Auto
High/Low Temperature Tracking: Yes
High/Low Temperature Alarm: On-screen marker alarm, Audio alarm
Color Palettes: Red hot, rainbow, lav, iron red, black hot, white hot, etc.

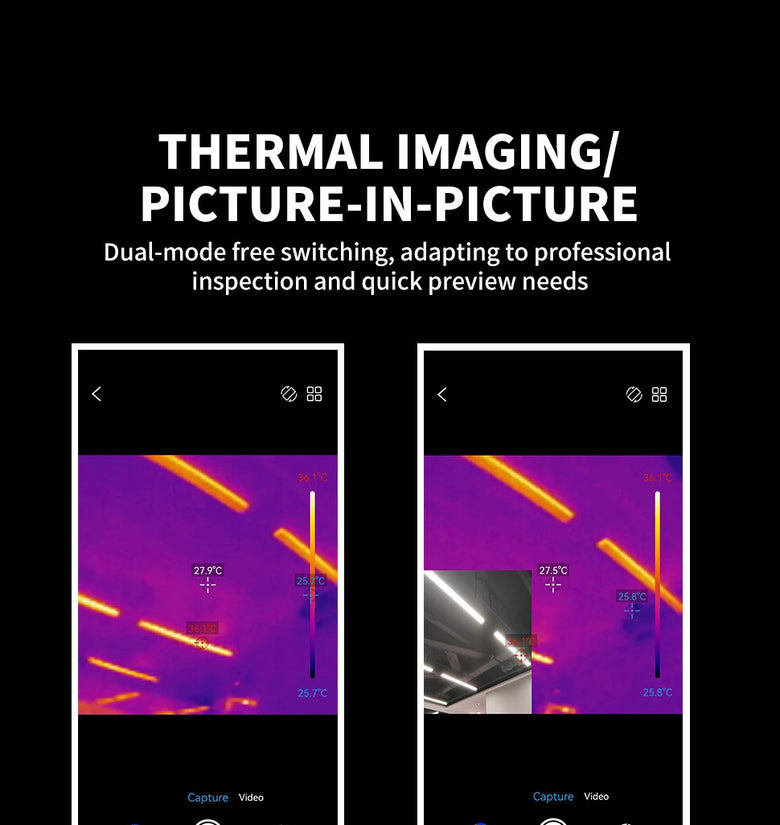

Image Modes: Thermal imaging, picture-in-picture

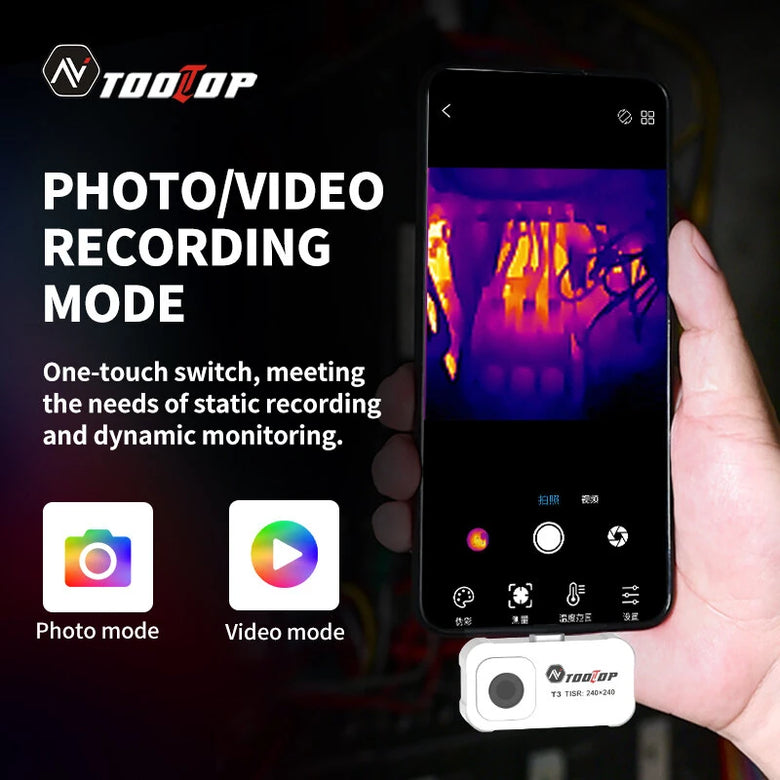

Photo/Video Recording: Yes
Image/Video Format: JPEG/MP4
Product Interface: Type-C USB

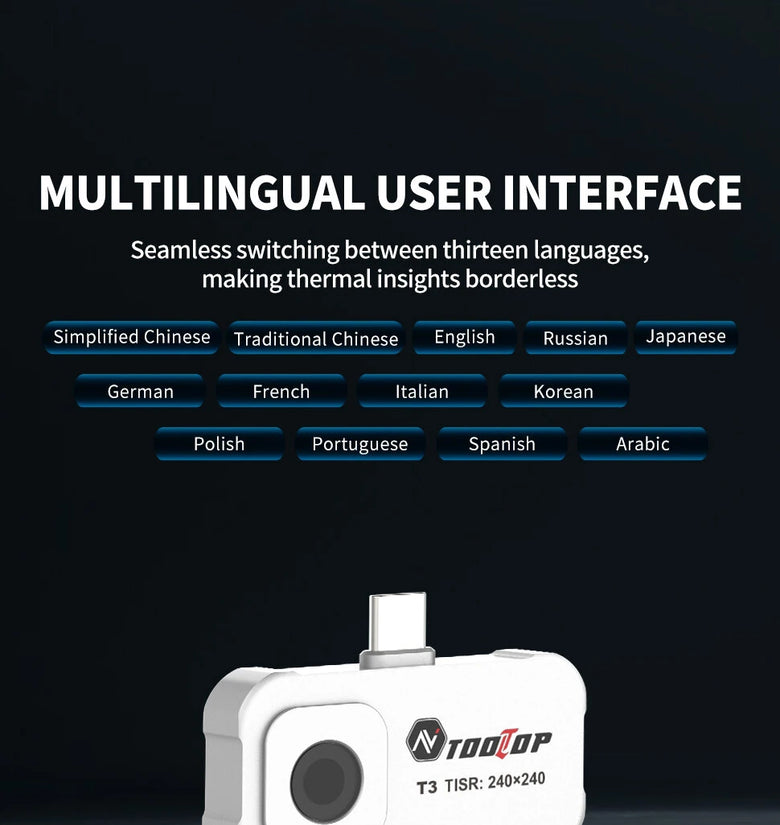

Supported Languages: English, Chinese (Simplified/Traditional), Russian, Japanese, German, French, Italian, Korean, Polish, Portuguese, Spanish, Arabic
Supported Mobile Systems: Android, compatible with YaoGuang Zhigan APP
Operating Temperature: -10°C ~ 50°C
Operating Humidity: 10% ~ 90%RH (Non-condensing)
Storage Temperature: -20°C ~ 60°C
Certifications: FCC, CE, ROHS
Product Dimensions: 44mm × 25mm × 10mm
Product Weight: 18g
Features:
1.Compact Design
Measuring just 44mm × 25mm × 10mm and weighing only 18g, the T3 is a lightweight and portable thermal imaging device perfect for mobile applications, offering professional-grade performance in a mini size.
2.High Temperature Range
Capable of detecting temperatures between -20°C and 550°C with high accuracy, this device excels in applications ranging from industrial inspections to mechanical diagnostics.
3.Enhanced Precision
With a measurement resolution of 0.1°C and thermal sensitivity under 40mK, this thermal imaging device ensures exceptional accuracy for detecting subtle temperature variations.
4.Wide Compatibility
Supports multiple languages and works seamlessly with Android mobile systems through the user-friendly YaoGuang Zhigan APP, ensuring accessibility for global users.
5.Configurable Image Settings
Offers customizable color palettes (red hot, rainbow, black hot, etc.) and multiple display options like thermal imaging and picture-in-picture, ensuring clear, functional image visualization tailored to your needs.
Package Included:
