Specifications:
Model: TH201
Type: 4-in-1 Dual-Channel Oscilloscope with Thermal Imaging and Multimeter
Display: 3.2-inch TFT color screen
Temperature Range: -20°C to 550°C (-4°F to 1022°F)
Thermal Resolution: 96*96 (ISR 288 × 240 pixels)
Focus Lens: FOV 50°(H) × 50°(V)
Color Palettes: 15 palette modes available
Accuracy: Temperature error ±2°C
Oscilloscope Bandwidth: Single-channel: 70 MHz; Dual-channel: 40 MHz
Features:
1. 4-in-1 Versatility:
Combines four essential tools in one device: Thermal Imager, Dual-Channel Oscilloscope, Multimeter, and Signal Generator, making it a multifunctional solution for various technical tasks.
2. Advanced Thermal Imaging:
Offers precise thermal imaging with a resolution of 288 x 240 pixels, a wide temperature range of -20°C to 550°C, and advanced tracking of up to five hot/cold points for enhanced visualization.
3. Multiple Color Palettes:
Choose from 15 color palette modes to suit diverse environments and applications, from routine diagnostics to industrial use, ensuring maximum flexibility.
4. Easy One-Touch Oscilloscope:
Features a one-button auto-scope function for simplified signal measurements with adjustable amplitude and timebase, supporting up to a 70 MHz bandwidth for single-channel operations.

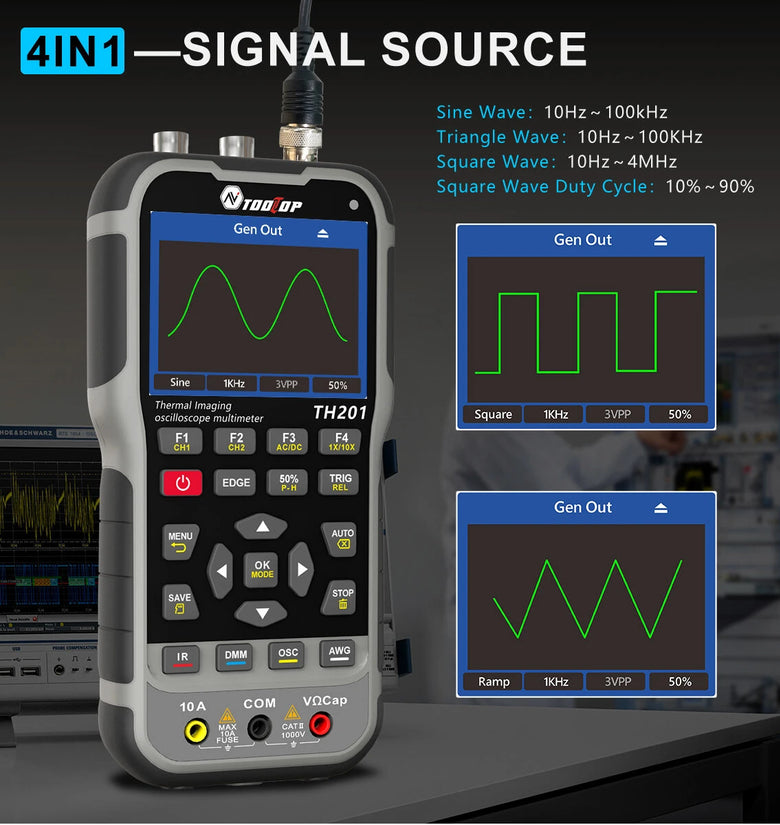

5. Customizable Signal Generator:
Generate sine, triangle, or square waveforms with adjustable frequencies and duty cycle, ranging from low-frequency signals up to 4 MHz for high-precision testing needs.
Package Included:
1 x TH201 Dual-Channel Oscilloscope Multimeter(Built-in macro lens)
