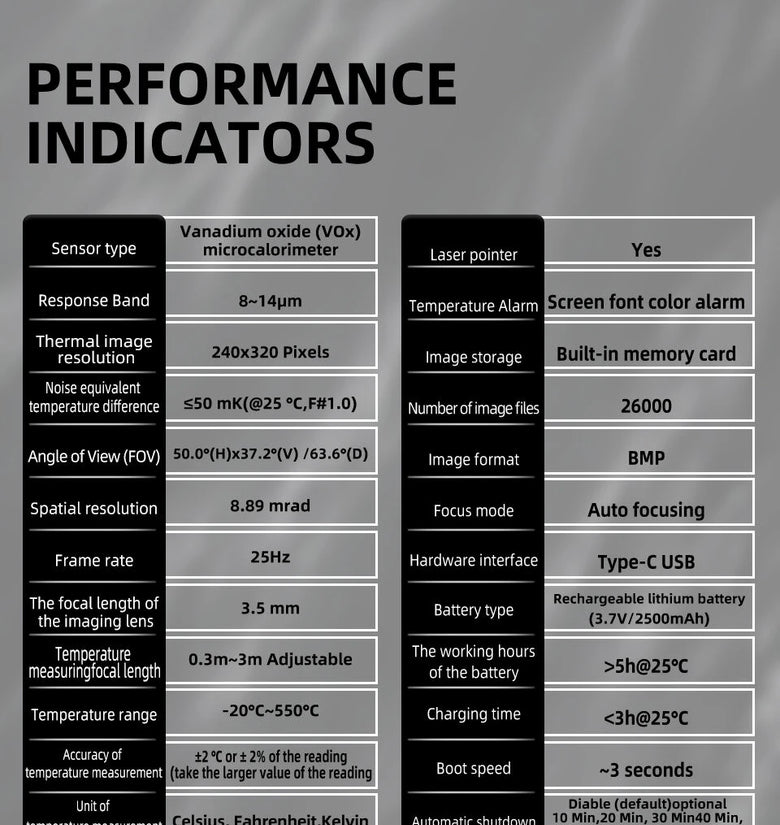

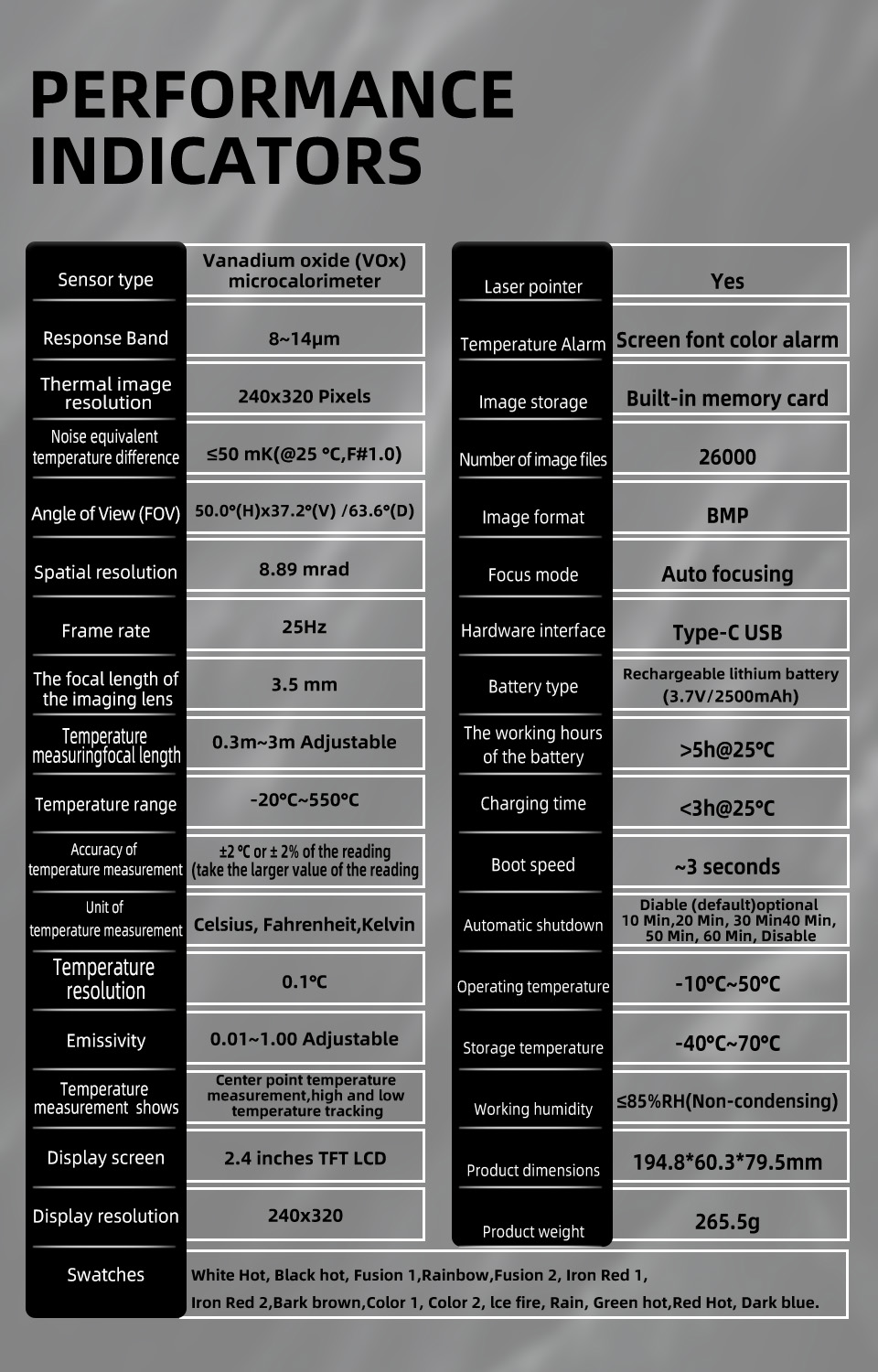

Specifications:
Sensor Type: Vanadium Oxide (VOx) Microbolometer
Thermal Image Resolution: 240×320 Pixels
Noise Equivalent Temperature Difference: ≤50 mK (@25°C, F#1.0)

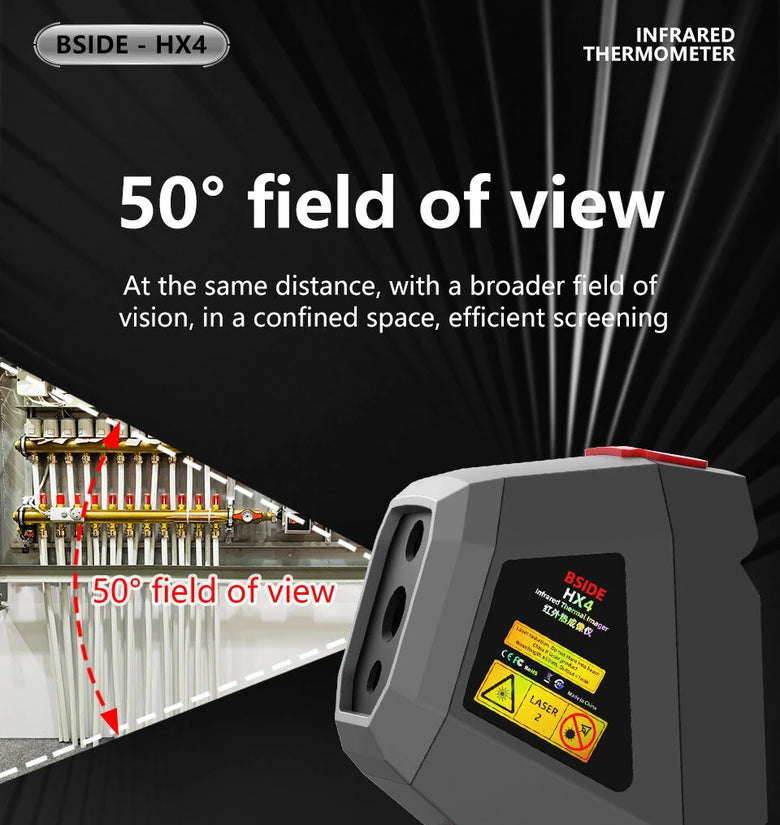

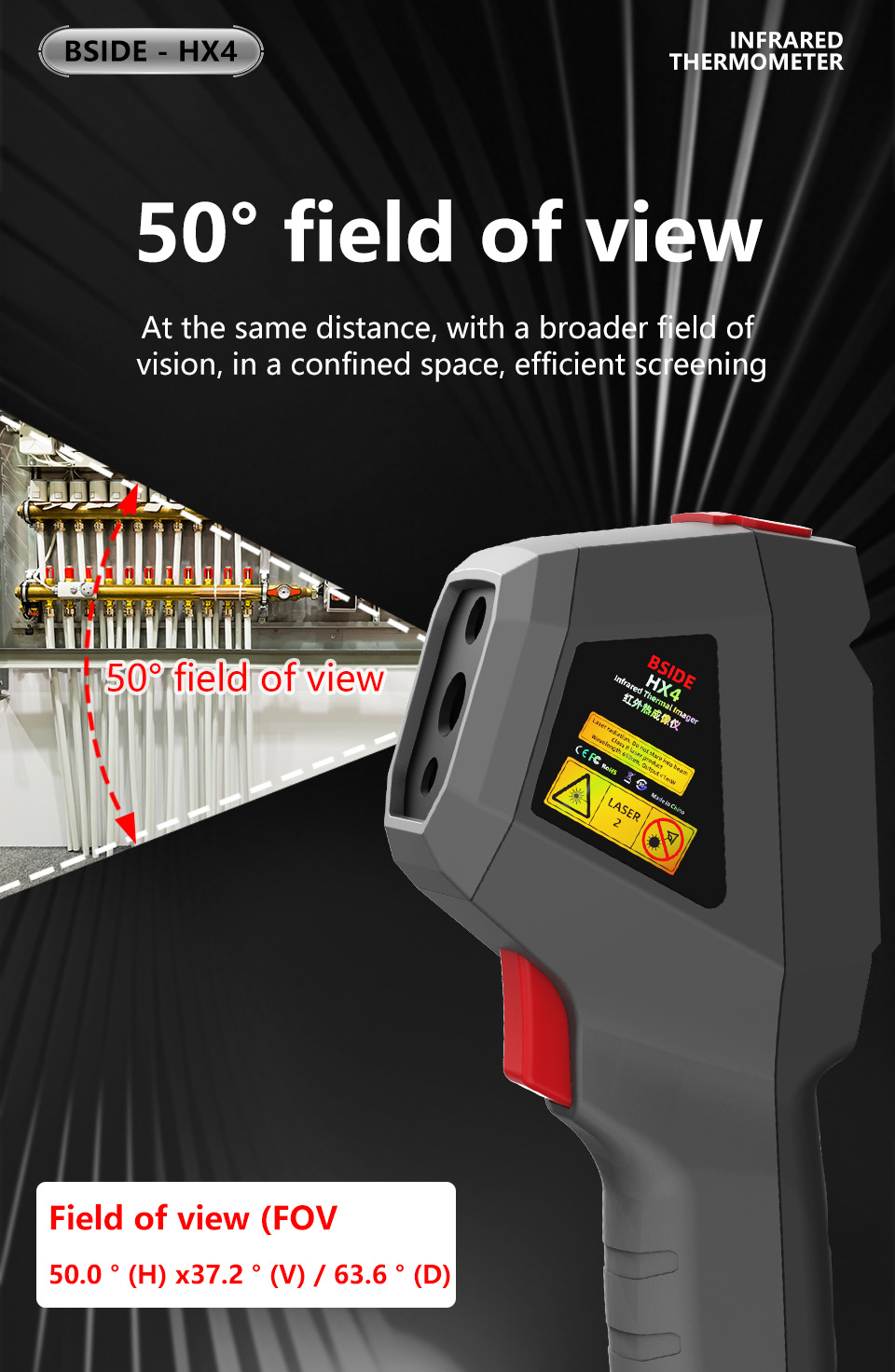

Field of View (FOV): 50.0° (H) × 37.2° (V) / 63.6° (Diagonal)
Spatial Resolution: 8.89 mrad
Frame Rate: 25 Hz
Focal Length: 3.5 mm
Temperature Range: -20°C~550°C
Accuracy: ±2°C or ±2% of reading (whichever is larger)
Temperature Resolution: 0.1°C
Emissivity: 0.01~1.00 adjustable
Display Screen: 2.4 inches TFT LCD
Display Resolution: 240×320 Pixels
Battery Type: Rechargeable lithium battery (3.7V/2500mAh)
Battery Life: >5 hours (@25°C)
Charging Time: <3 hours (@25°C)
Boot Speed: ~3 seconds
Operating Temperature: -10°C~50°C
Storage Temperature: -40°C~70°C
Working Humidity: ≤85%RH (non-condensing)

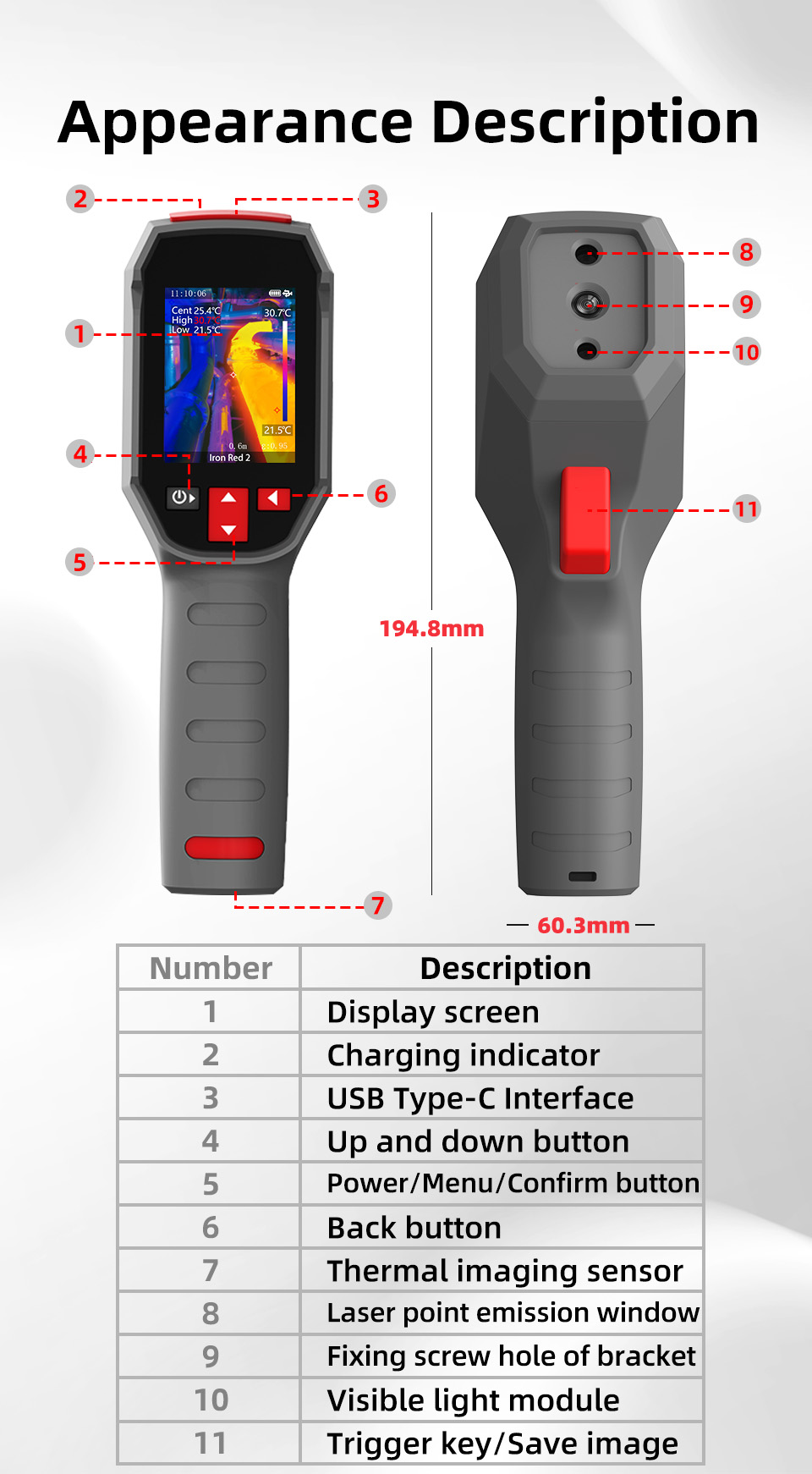

Product Dimensions: 194.8×60.3×79.5 mm
Product Weight: 265.5 g
Features:

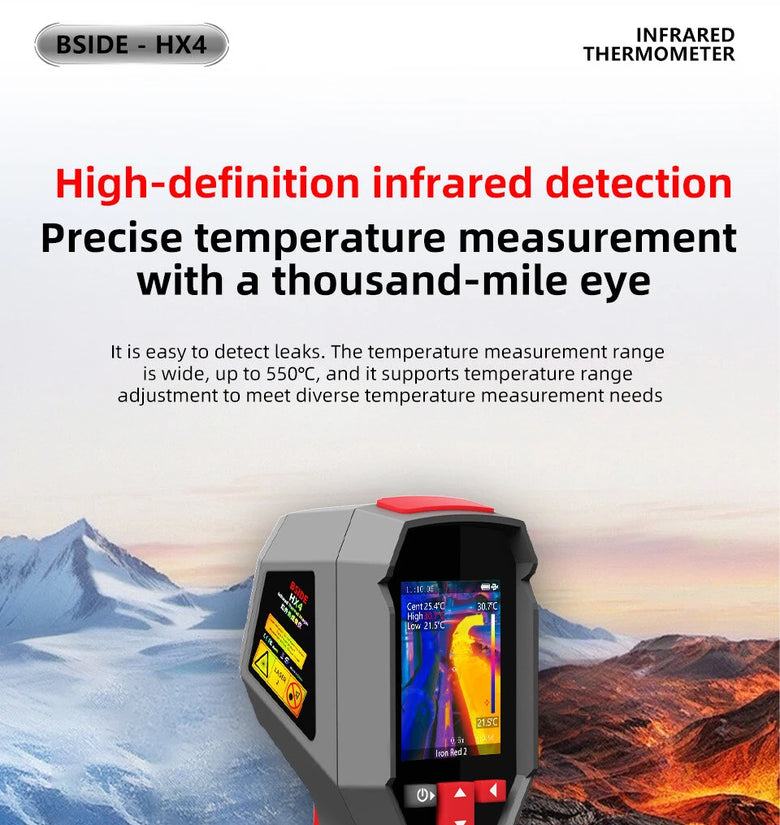

1.High-Precision Imaging: Equipped with VOx microbolometer technology and 240x320 resolution, the HX4 provides detailed thermal imagery to identify even subtle temperature variations.
2.Wide Temperature Range: Measures temperatures spanning -20°C to 550°C with adjustable emissivity setting (0.01 to 1.00), ensuring adaptability across diverse environments and applications.

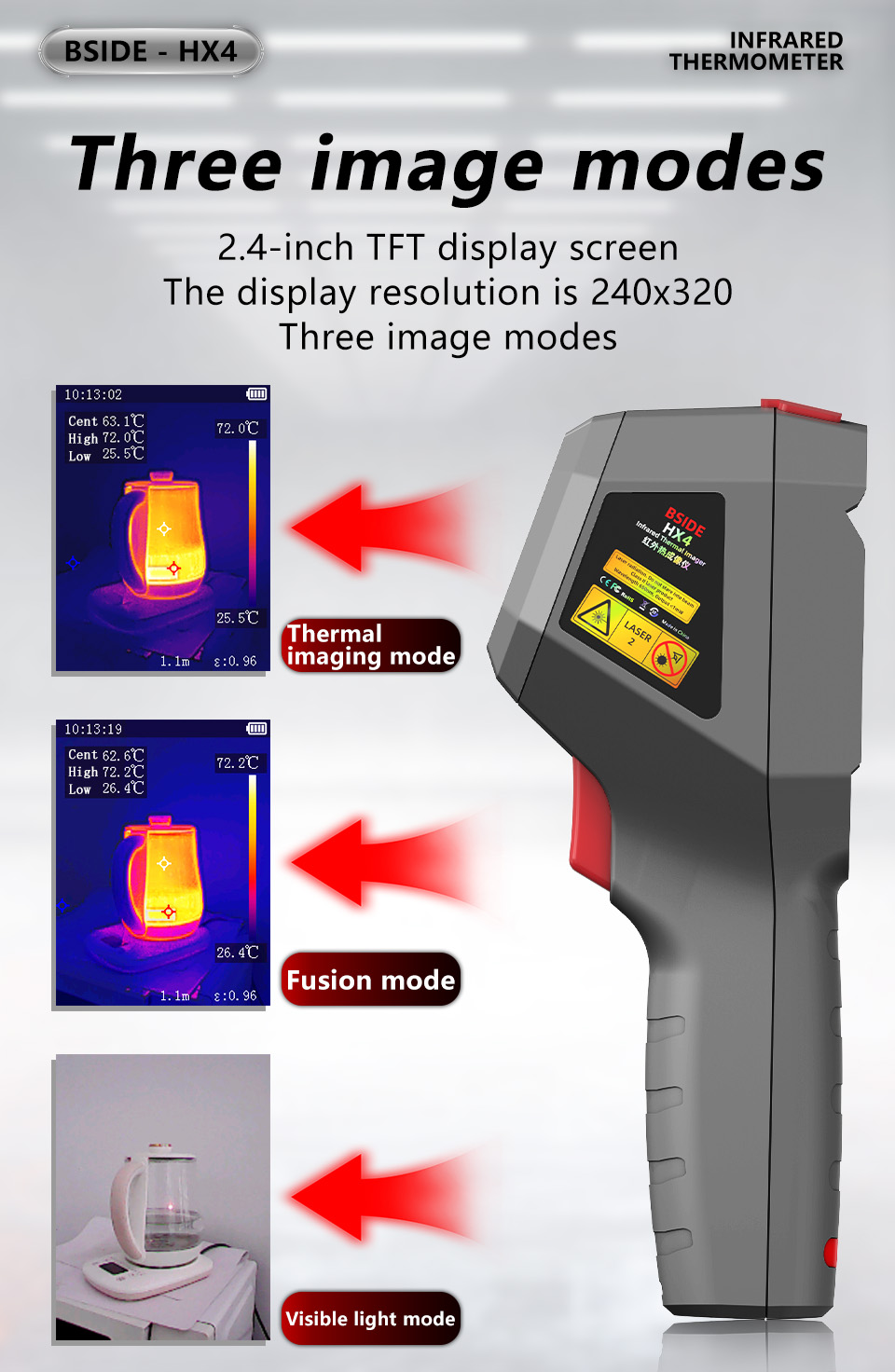

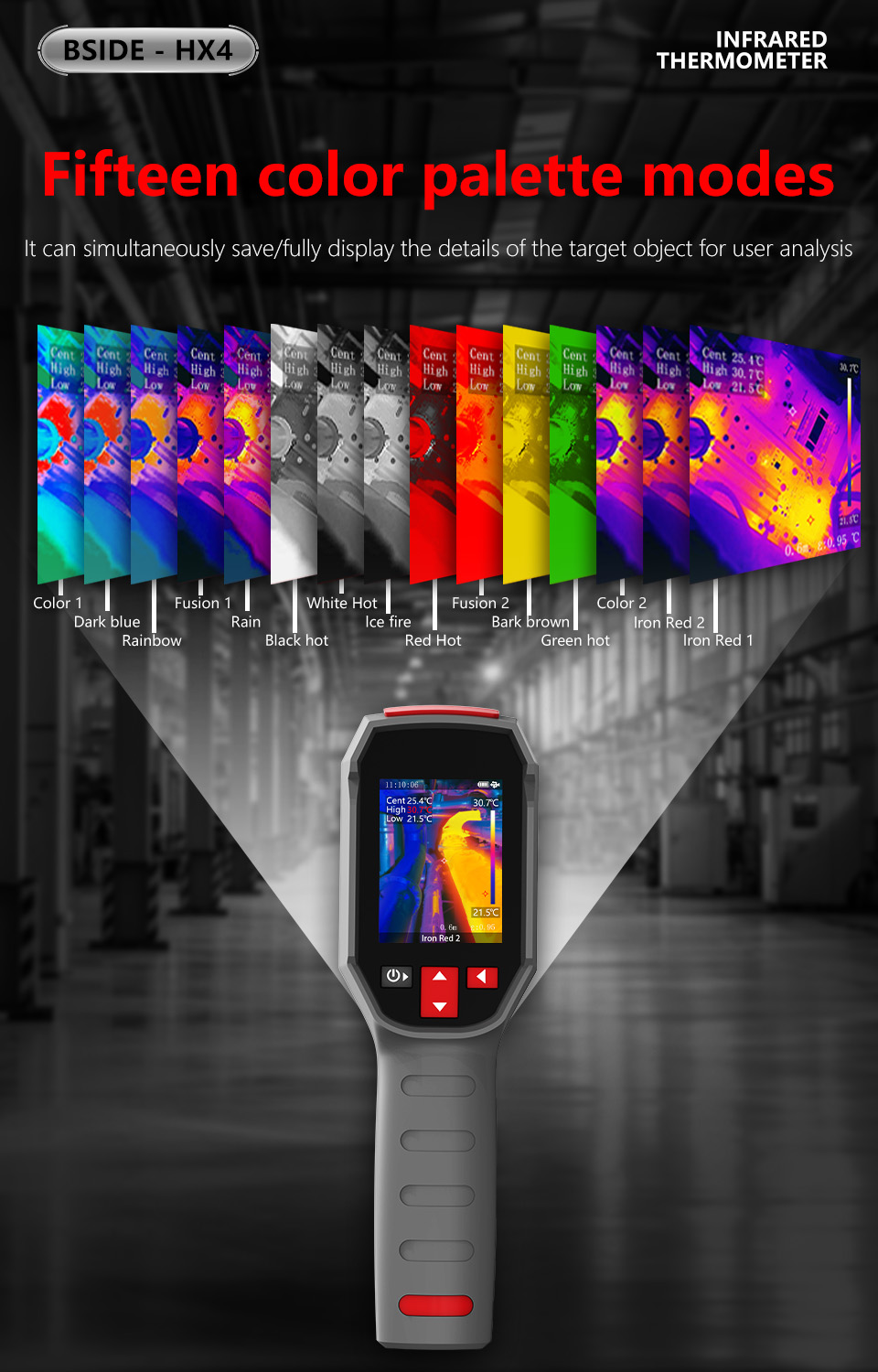

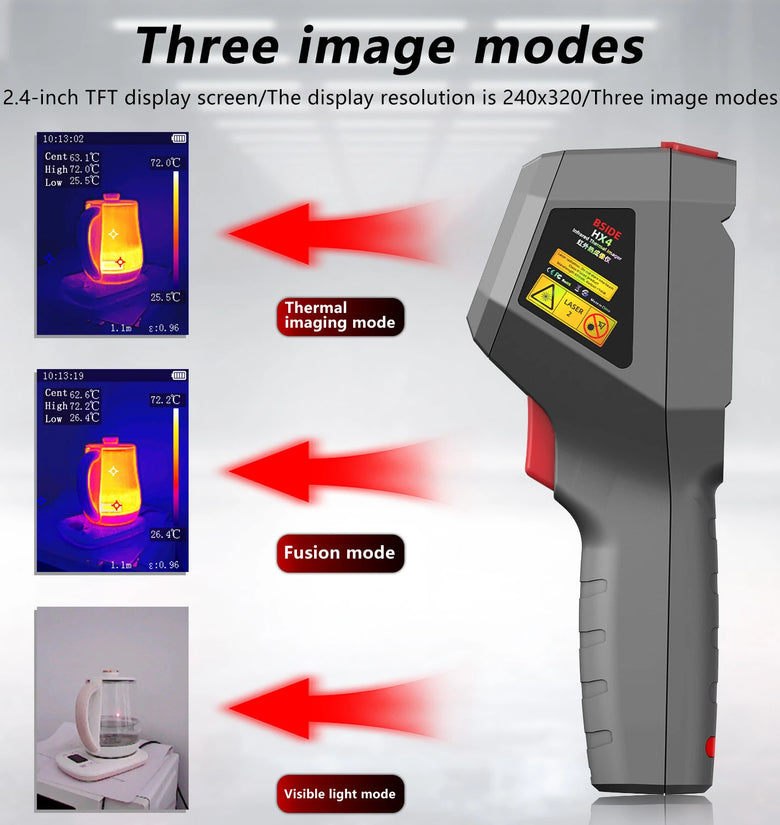

3.User-Friendly Display: The 2.4-inch TFT LCD screen with a resolution of 240x320 delivers sharp visuals, allowing the operator to monitor high and low temperature points effectively.

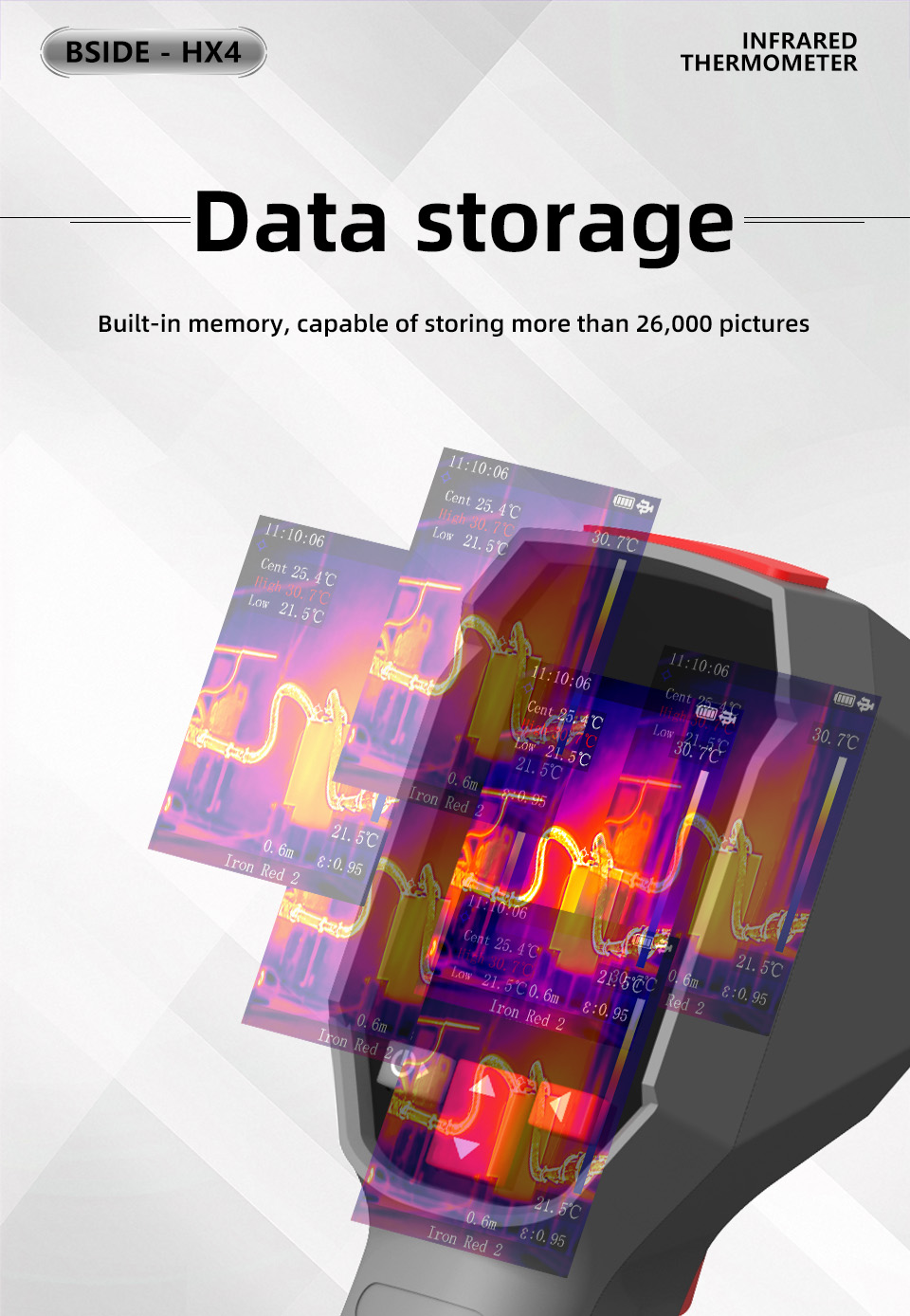

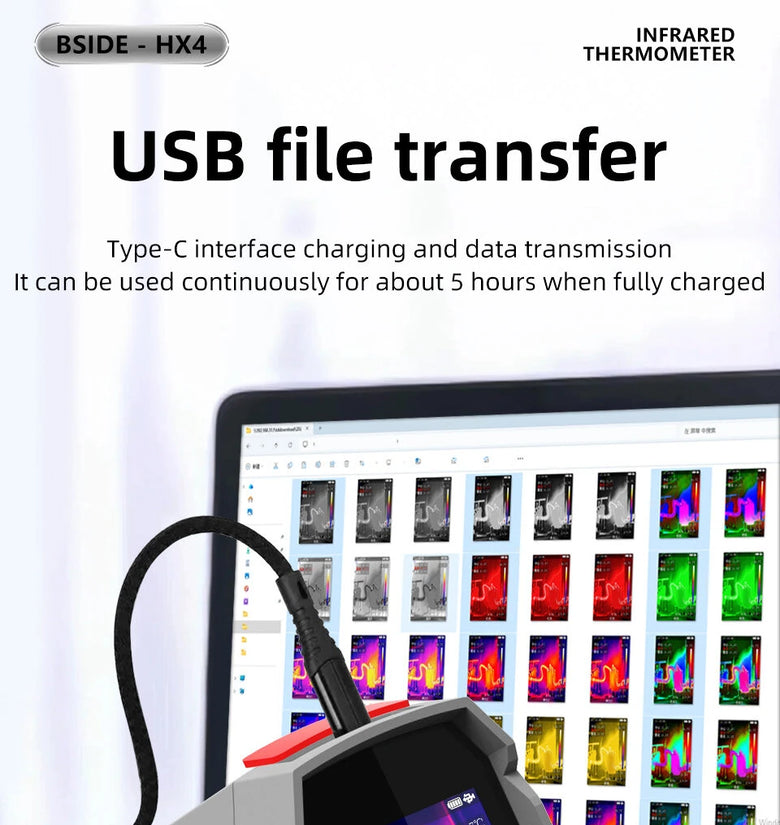

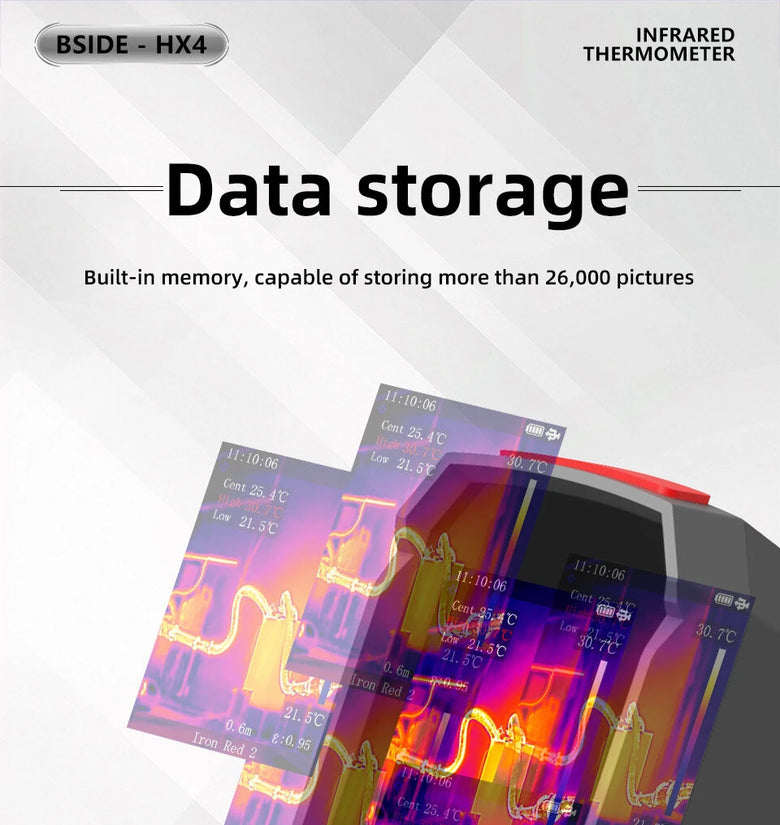

4.Built-in Storage: Comes with a built-in memory card supporting up to 26,000 image files in BMP format, enabling convenient storage and file management across multiple projects.

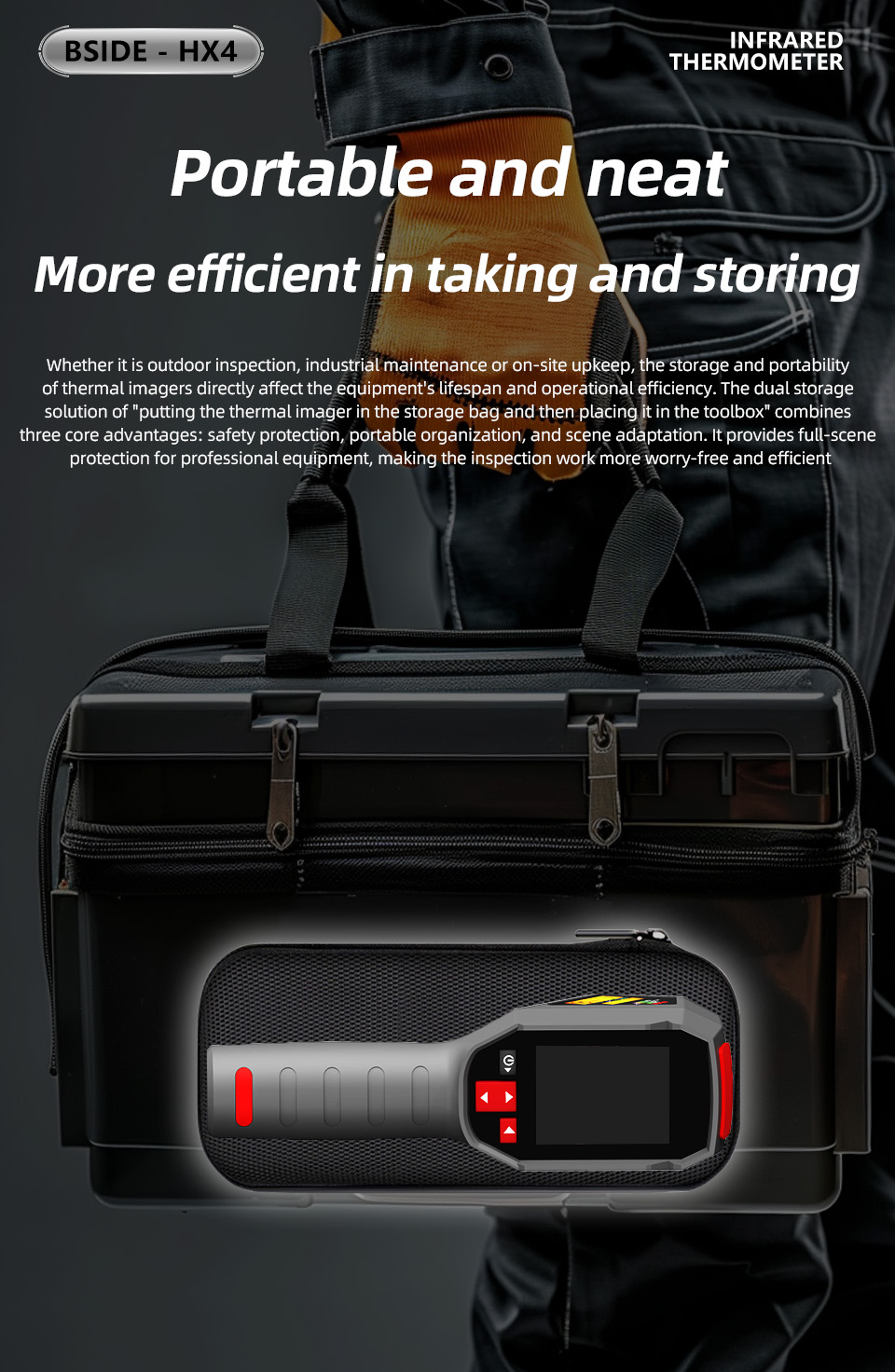

5.Portable and Stylish Design: Lightweight at just 265.5g, combined with ergonomic dimensions and a sleek storage bag, it is easy to carry and store for all professional applications.
Package Included:
1 x HX4 Thermal Imaging Camera
1 x USB Cable
1 x Instructions
1 x Box
1 x Storage Bag
