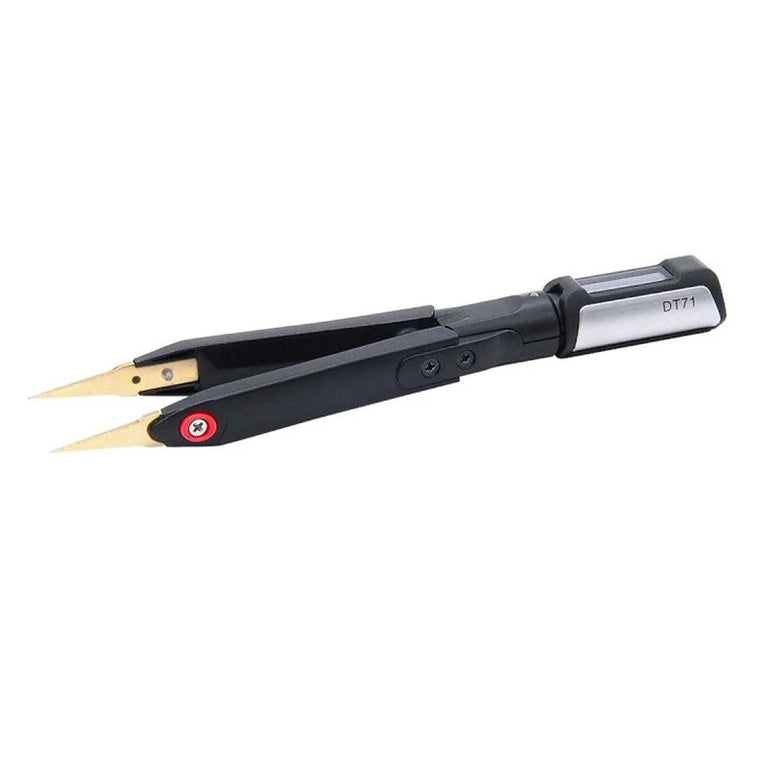

- DT71 Mini Digital Tweezers is a tool for multi-function measurements with full differential input measurement. DT71 has a unique trinary structure, which can be separated into the controller, testing arms, and tweezer tips, which are flexible to be replaced and combined.

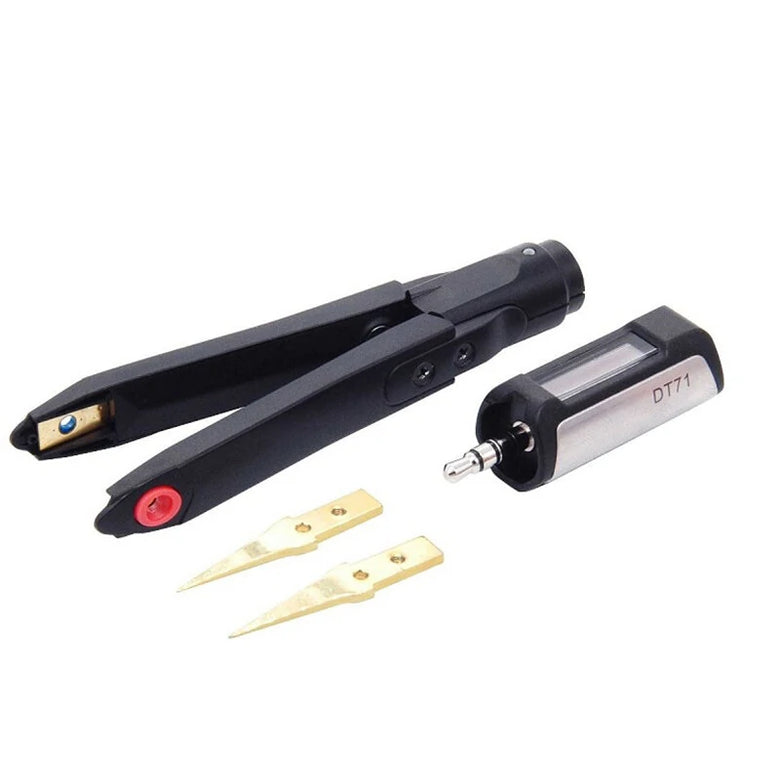

- Innovative trinary structure: separated into the controller, testing arms, and tweezer tips, which are flexible to be replaced and combined.
- 360° rotatable controller with OLED screen, with good viewing angles.
- Smart gesture recognition with automatic identification of left/right-hand operation and adjusting the screen orientation accordingly.
- Hidden touch button on top of the controller, which makes it easy to operate with only a light touch.
- Test arms use magnetic elasticity to provide an easy clipping, ergonomic, and long-lasting structure.
- Built-in dual lithium batteries in test arms, balancing both arms and providing a longer standby time.
- Several kinds of gold-plated interchangeable tweezer tips, enabling higher measurement accuracy in various usages.

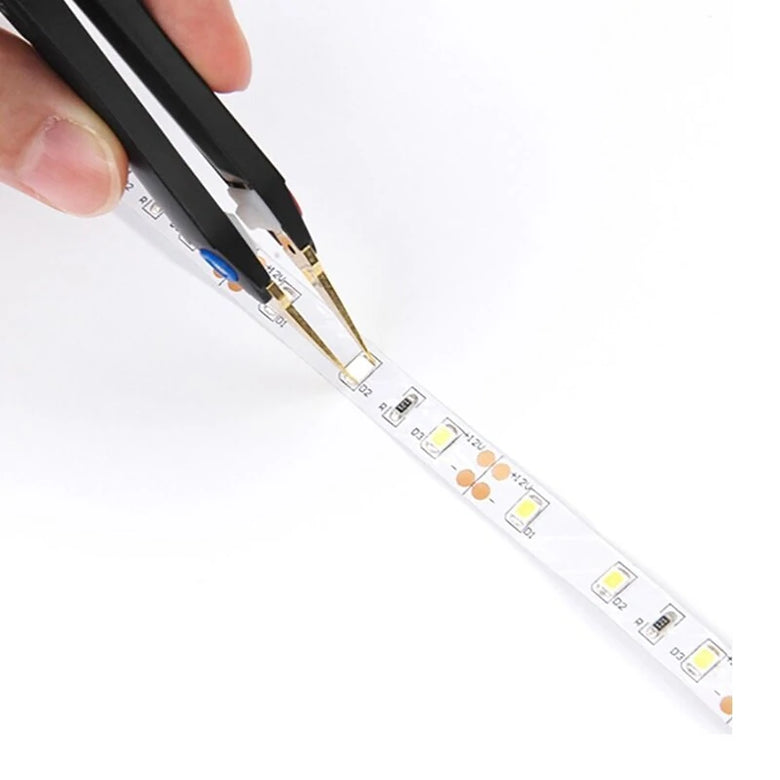

- Automatically identify SMDs including resistor, capacitor, inductor, and diode, showing both main and secondary parameters.
- A built-in signal generator can output a variety of waveform signals.
Specification:
Product Specifications | |||
Operation time |
10 hrs (in continuous operation) |
||
Charging time |
2 hrs |
||
Display |
96*16 OLED |
||
|
Controller |
47mm |
|
Test Arms |
106mm |
||
Weight |
22g |
||
Operation |
Hidden touch button |
||
Measurement | |||
Range |
Resolution |
Accuracy |
|
|
0.1Ω~1KΩ |
0.1Ω |
0.5%+2 |
1KΩ~2000KΩ |
1KΩ |
0.5%+2 |
|
|
0.1pF~1000pF |
0.1pF |
2%+3 |
0.001uF~400uF |
0.001uF |
2%+3 |
|
|
1uH~1000uH |
1uH |
5%+3 |
1mH~50mH |
1mH |
5%+3 |
|
|
1mV~100mV |
1mV |
2%+5 |
0.1V~40V |
|||
