Specifications:

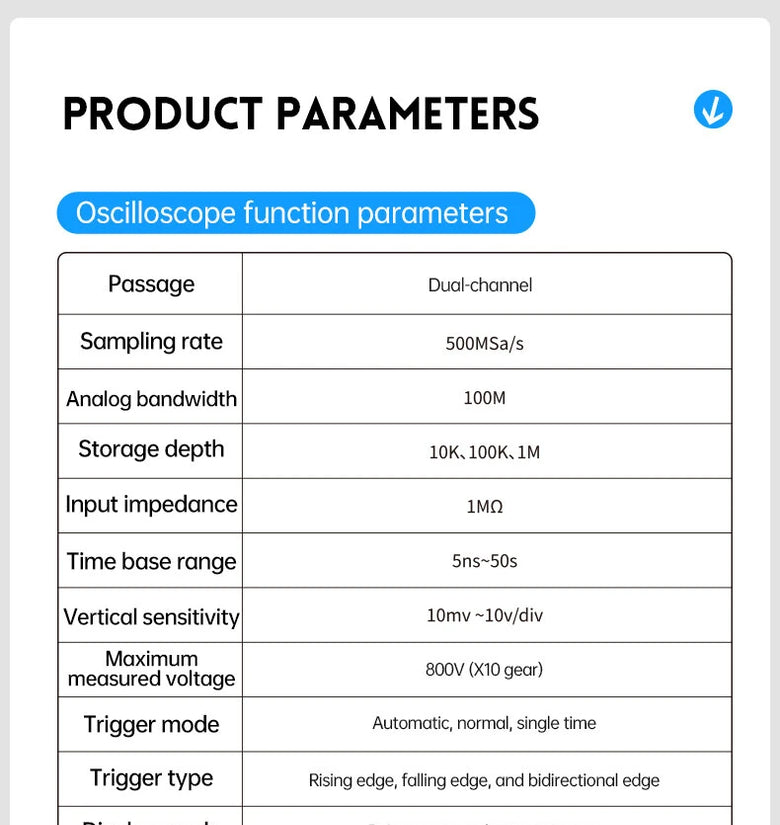

Oscilloscope Function Parameters:
Channels: Dual-channel
Sampling Rate: 500MSa/s
Analog Bandwidth: 100MHz
Storage Depth: 10K, 100K, 1M
Input Impedance: 1MΩ
Time Base Range: 5ns~50s
Vertical Sensitivity: 10mV to 10V/div
Max Measured Voltage: 800V (X10 gear)
Trigger Mode: Automatic, normal, single time
Trigger Type: Rising edge, falling edge, bidirectional edge

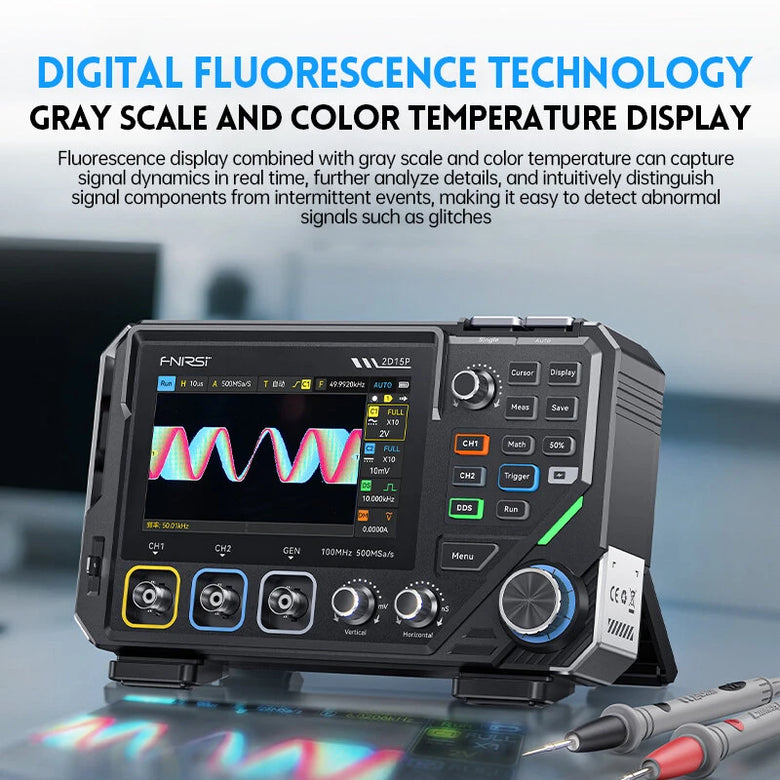

Display Mode: Point, vector, color temperature
Coupling Modes: AC/DC
Afterglow Options: min/2s/5s/10s/20s/50s/∞
Support Features: Waveform screenshot saving, waveform graph exporting, cursor measurement

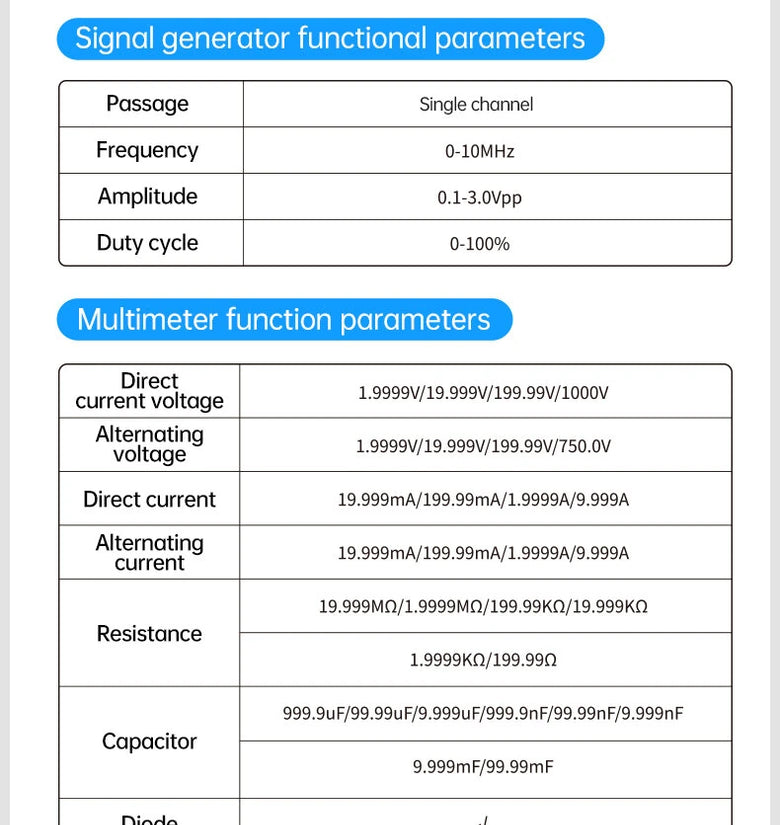

Signal Generator Function Parameters:
Channels: Single channel
Frequency Range: 0 to 10MHz
Amplitude Range: 0.1 to 3.0Vpp
Duty Cycle: 0%-100%
Multimeter Function Parameters:
Direct Current Voltage: 1.999V / 19.999V / 199.99V / 1000V
Alternating Voltage: 1.999V / 19.999V / 199.99V / 750V
Direct Current: 19.999mA / 199.99mA / 1.9999A / 9.999A
Alternating Current: 19.999mA / 199.99mA / 1.9999A / 9.999A
Resistance: 999.9Ω / 99.99Ω / 9.999Ω / 1.9999Ω / 19.999MΩ
Capacitance: 999.9μF / 99.99μF / 9.999μF / 9.999mF / 99.99mF
Diode Test: Supported
Continuity Test (On/Off): Supported
Features:

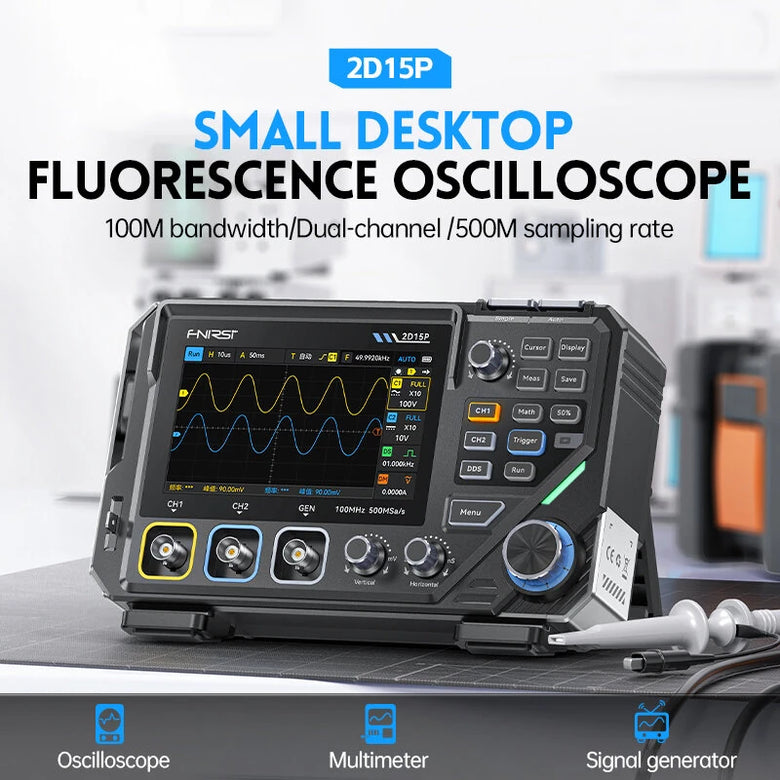

1.High Sampling Rate and Bandwidth
Featuring a 500MSa/s sampling rate and 100MHz analog bandwidth, the FNIRSI 2D15P provides precise signal analysis for professional electronic testing tasks, ensuring accurate insights into high-frequency signals.
2.Multi-Functional Integration
This device combines three essential functions—Oscilloscope, Multimeter, and Signal Generator—into one compact tool, offering seamless operation to meet diverse measurement and signal generation requirements.
3.User-Friendly Interface
Equipped with a clear color-display screen and six basic operation modes, the FNIRSI 2D15P simplifies interaction, enabling quick setup and real-time monitoring with waveform screenshots and export functions.
4.Powerful Triggering Modes
The oscilloscope includes automatic, normal, and single-time trigger modes, combined with rising edge, falling edge, and bidirectional edge detection, enhancing the user’s flexibility in capturing precise signal variations.

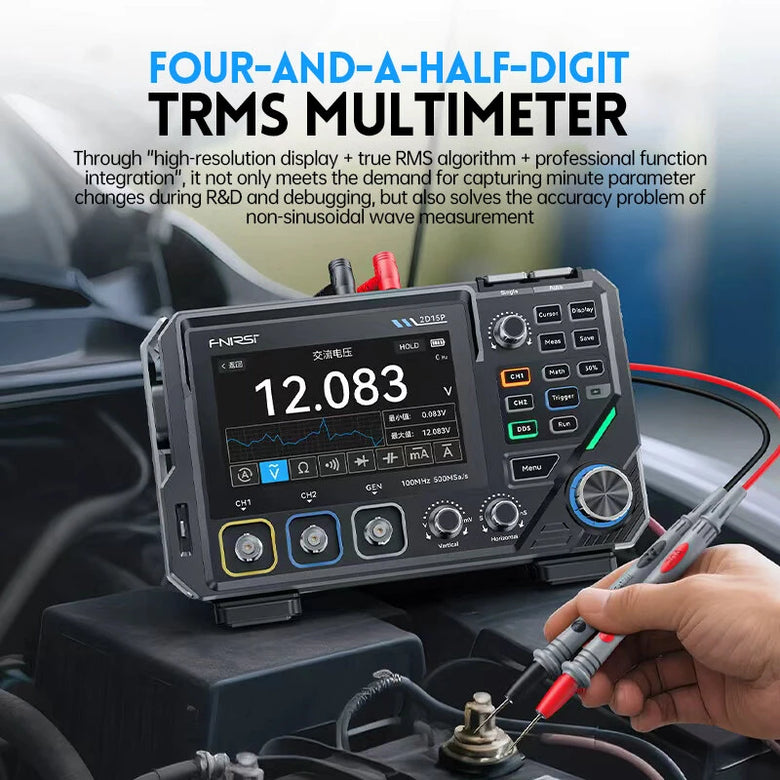

5.Broad Measurement Ranges
Offering excellent measurement flexibility, the multimeter function supports up to 1000V direct current voltage, 750V alternating voltage, and accurate resistance and capacitance values, which are essential for advanced troubleshooting tasks.

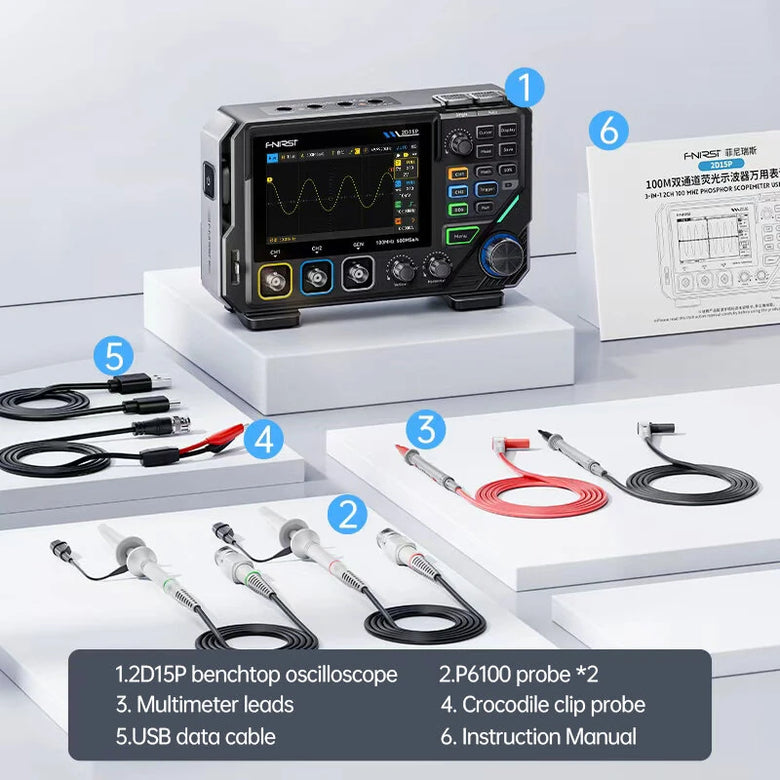

Package Included:
1 x FNIRSI 2D15P Oscilloscope
2 x P6100 Probe
1 x Multimeter Leads
1 x Crocodile Clip Probe
1 x USB Power Cable
