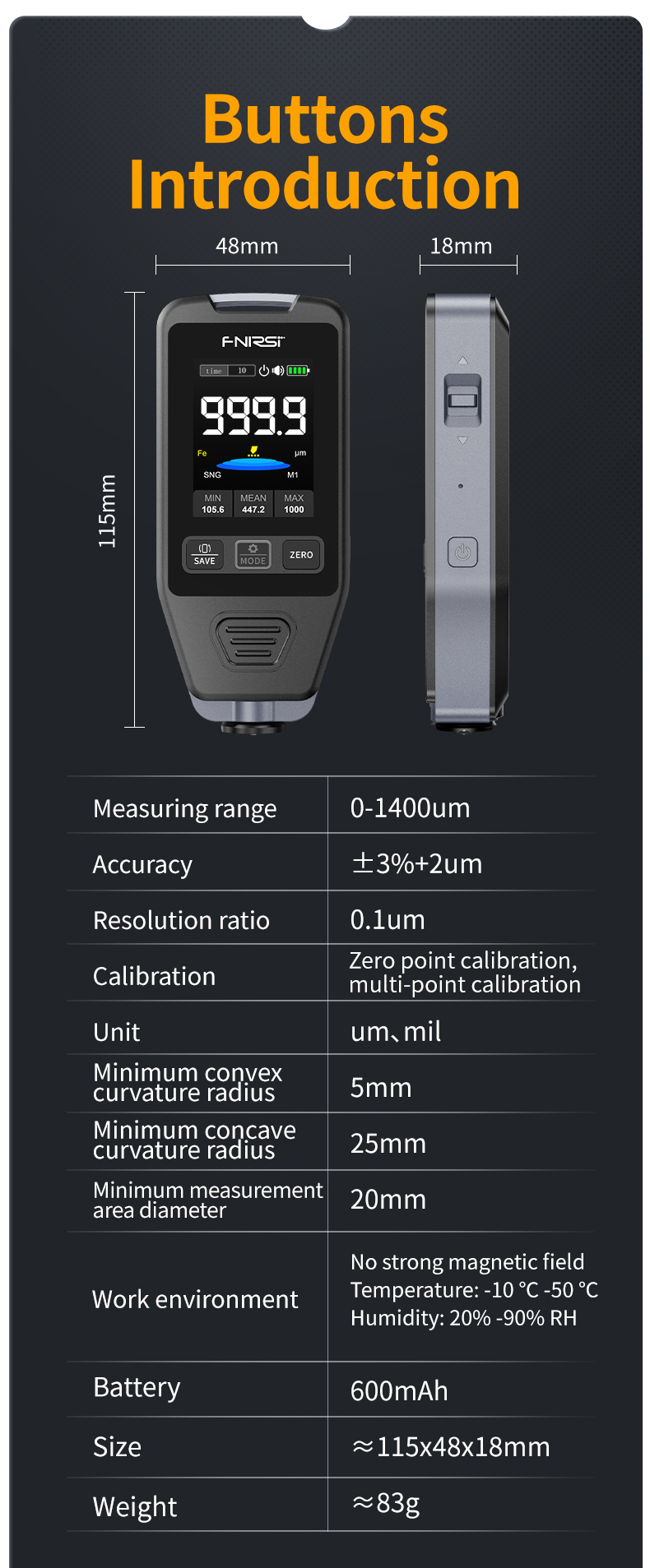

Specifications:
Brand: FNIRSI
Model: CTG-20
Measuring Range: 0-1400μm
Accuracy: ±3% + 2μm
Resolution Ratio: 0.1μm
Calibration: Zero point calibration, multi-point calibration

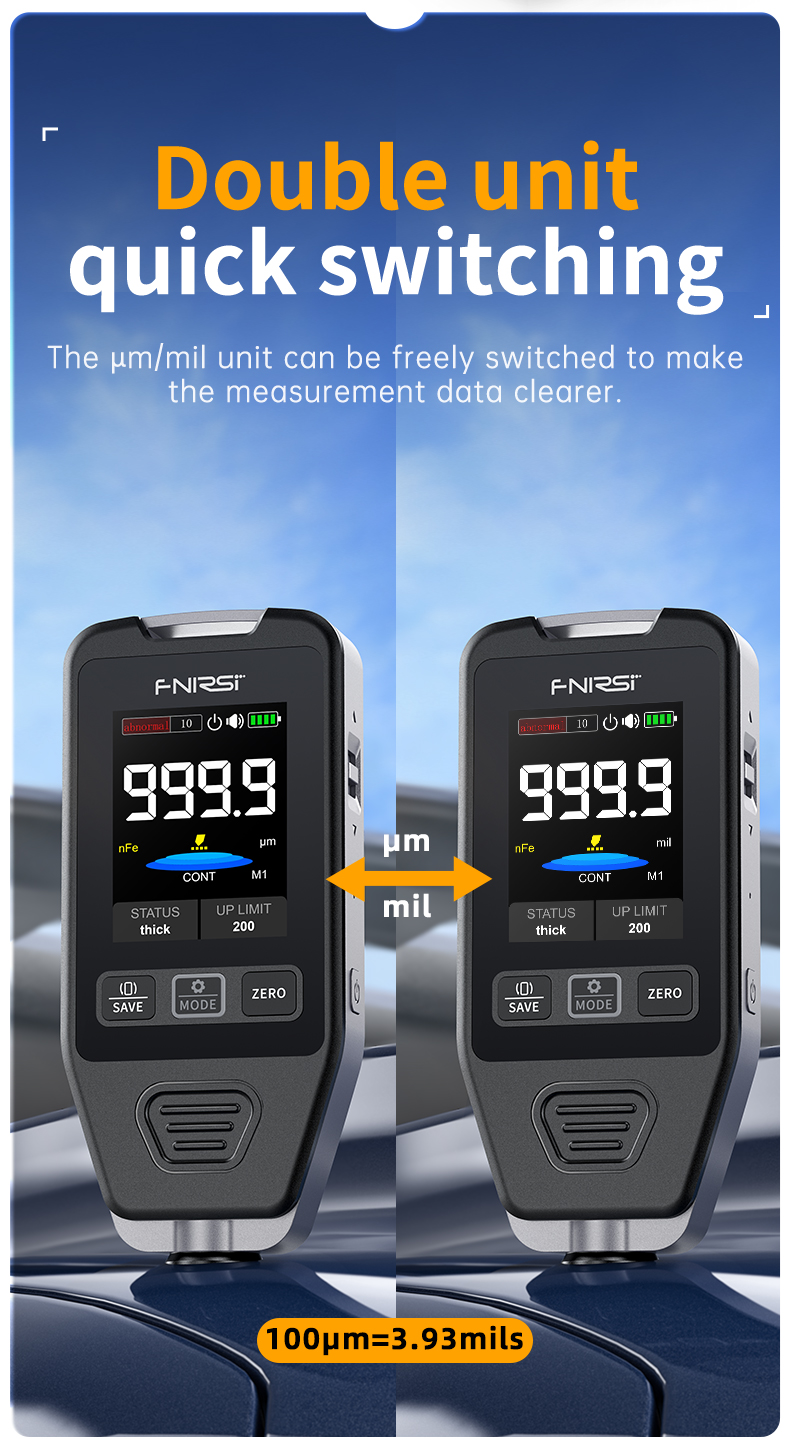

Unit: μm, mil
Minimum Convex CurvatureRadius: 5mm
Minimum Concave CurvatureRadius: 25mm
Minimum Measurement Area Diameter: 20mm
Work Environment: No strong magnetic field, Temperature: -10°C to 50°C, Humidity: 20% - 90% RH

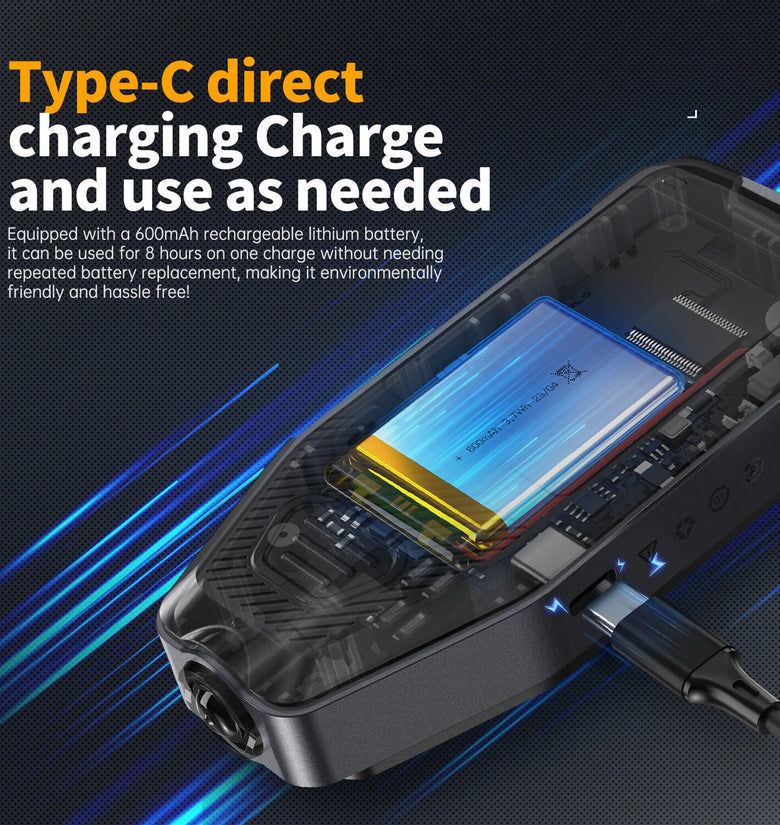

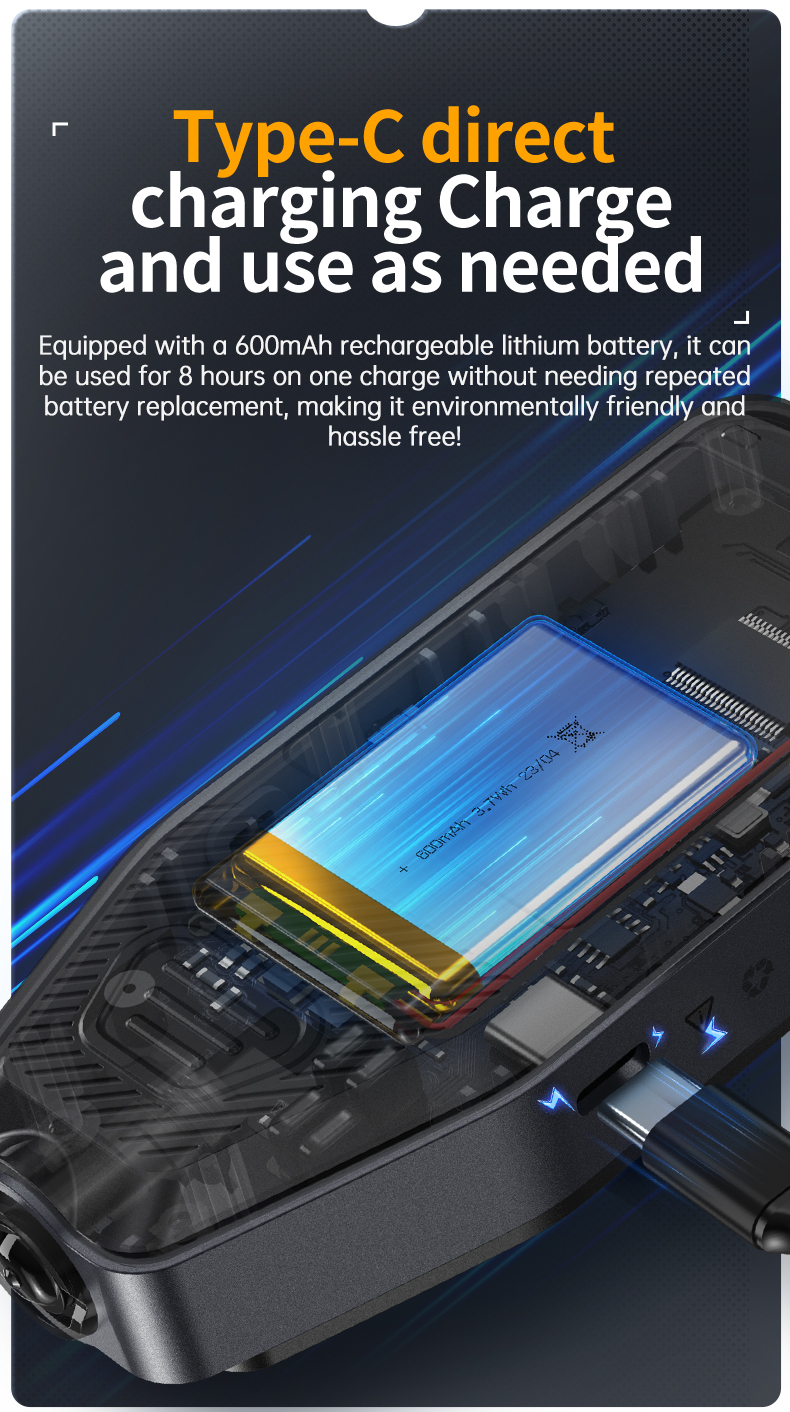

Battery: 600mAh
Size: approximately 115x48x18mm
Weight: approximately 83g
Features:

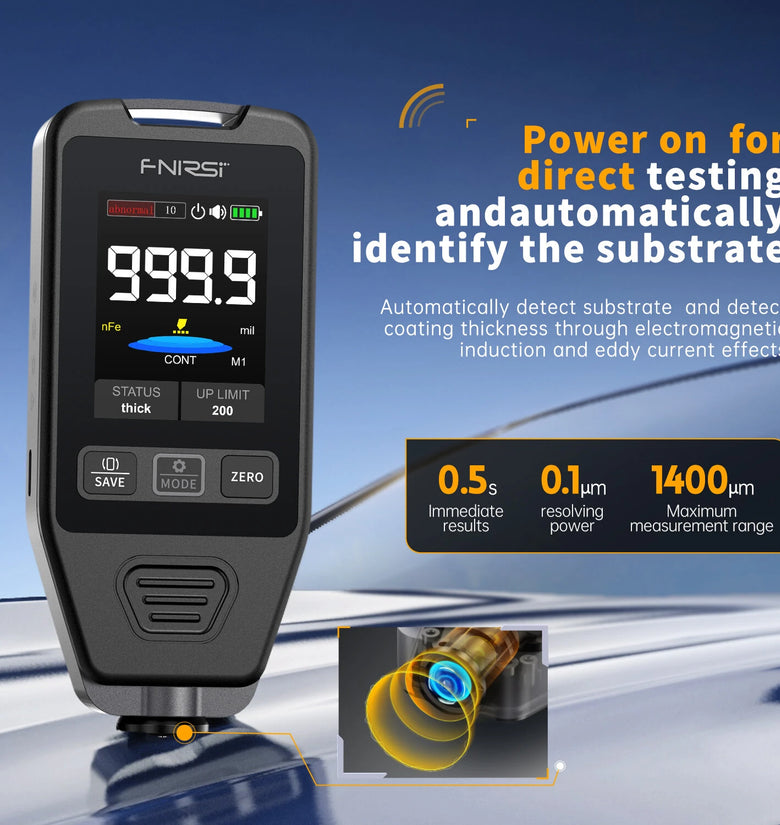

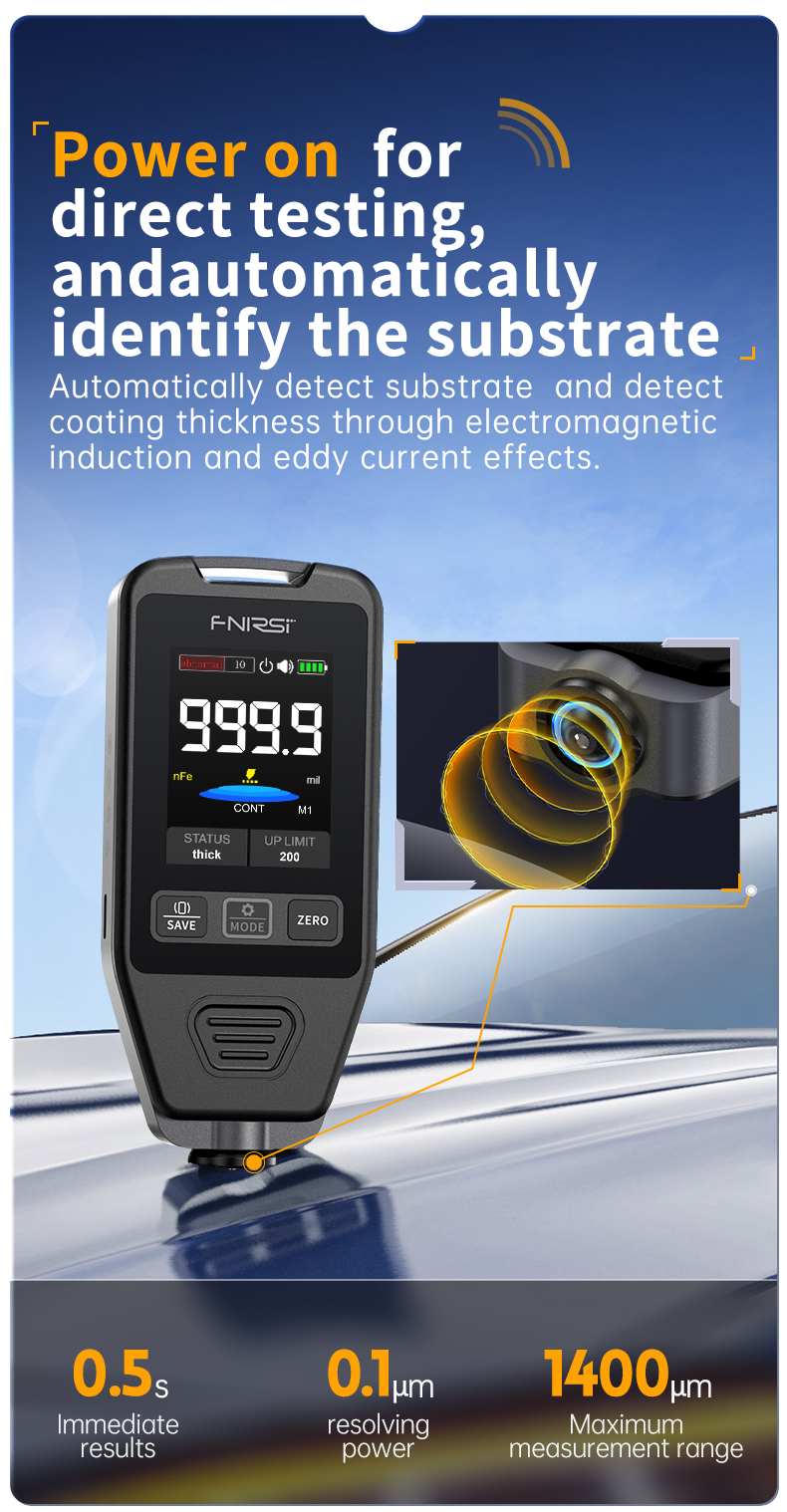

High Precision Measurement: Capable of measuring thicknesses from 0 to 1400μm with an accuracy of ±3% + 2μm, ensuring precise results in various coatings.

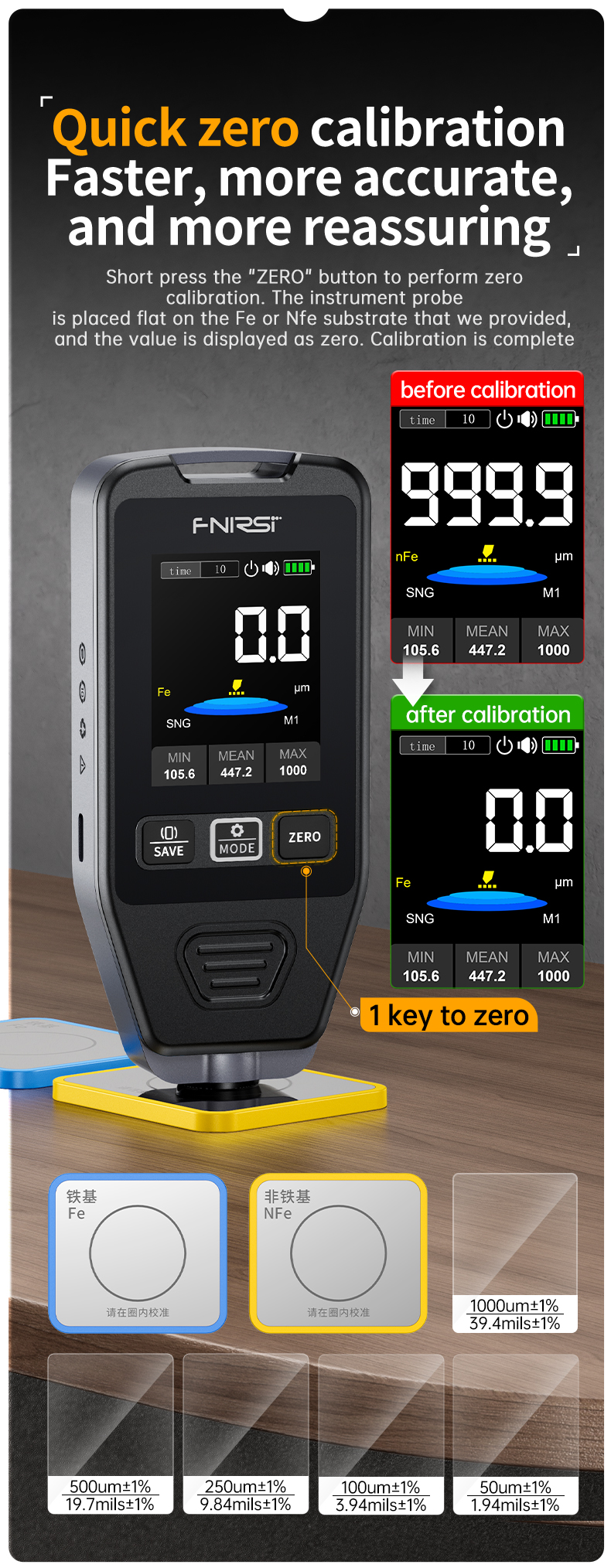

Easy Calibration: Features both zero point and multi-point calibration options, allowing for seamless and straightforward calibration processes.
Compact and Lightweight: With a size of 115x48x18mm and weighing only 83g, this device is portable and comfortable to handle during prolonged use.
Wide Environmental Compatibility: Operates effectively in temperatures ranging from -10°C to 50°C and humidity levels between 20% and 90% RH, suitable for diverse environments.
User-Friendly Interface: Equipped with a clear display and intuitive controls, making it easy to navigate and operate even for first-time users.

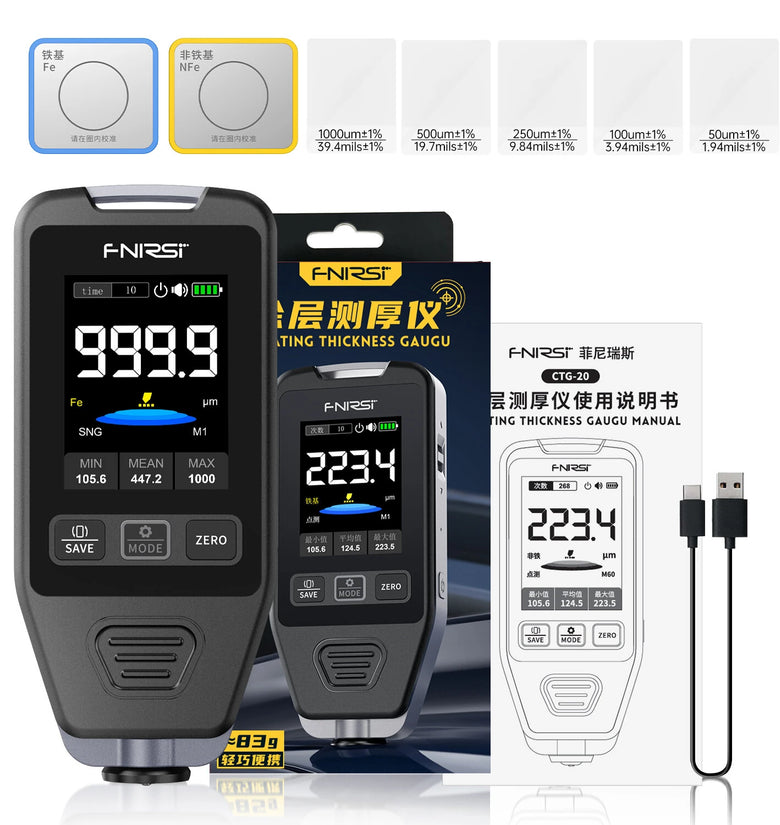

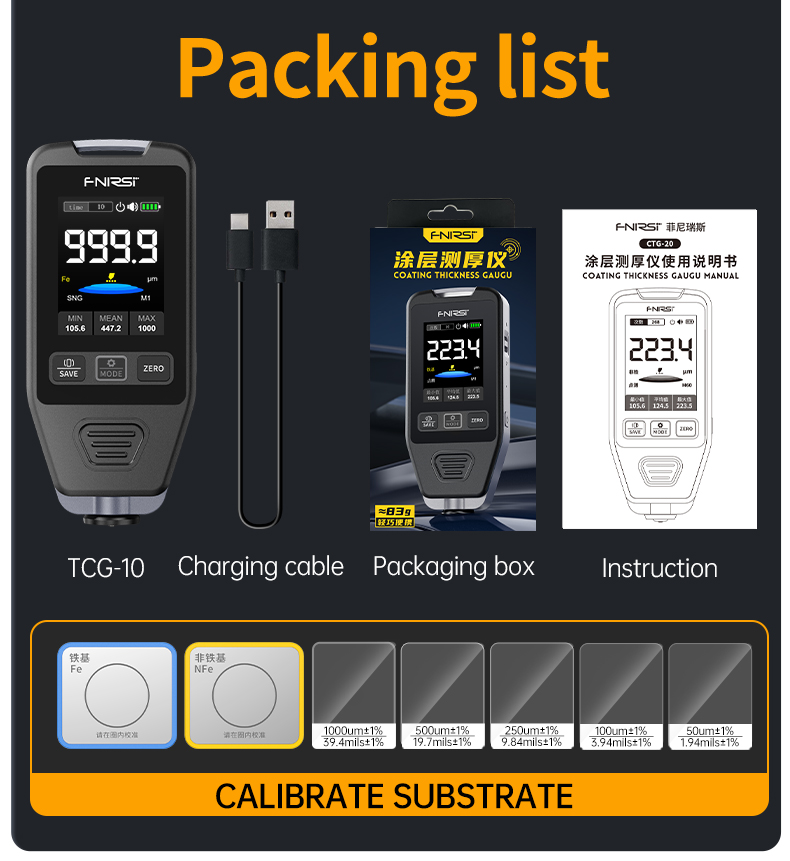

Package Included:

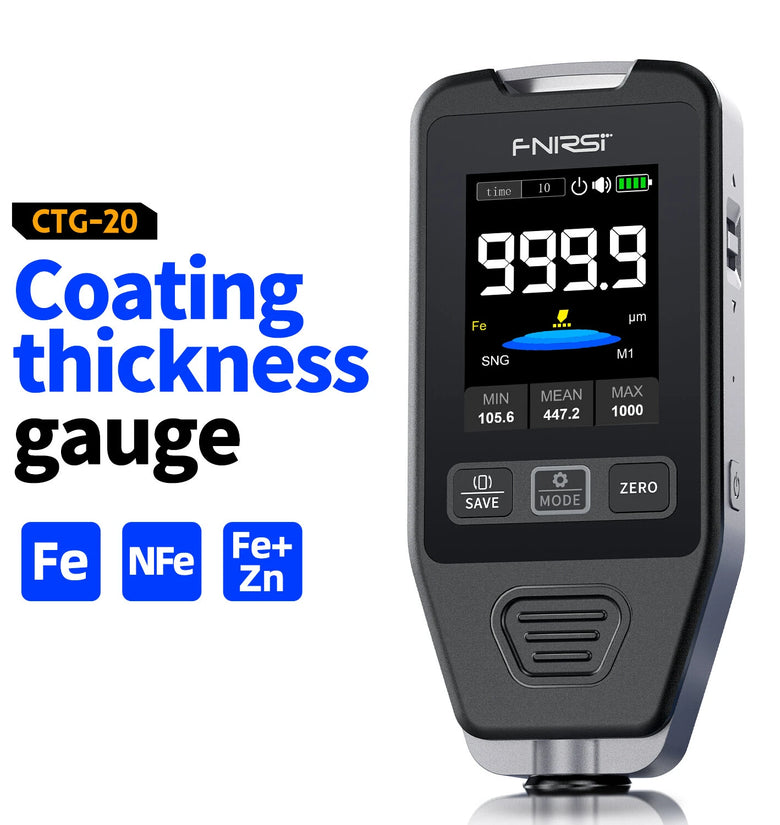

1 x FNIRSI CTG-20 Coating Thickness Gauge
1 x Calibration Foil Set
1 x Carrying Case
1 x USB Charging Cable
1 x User Manual
