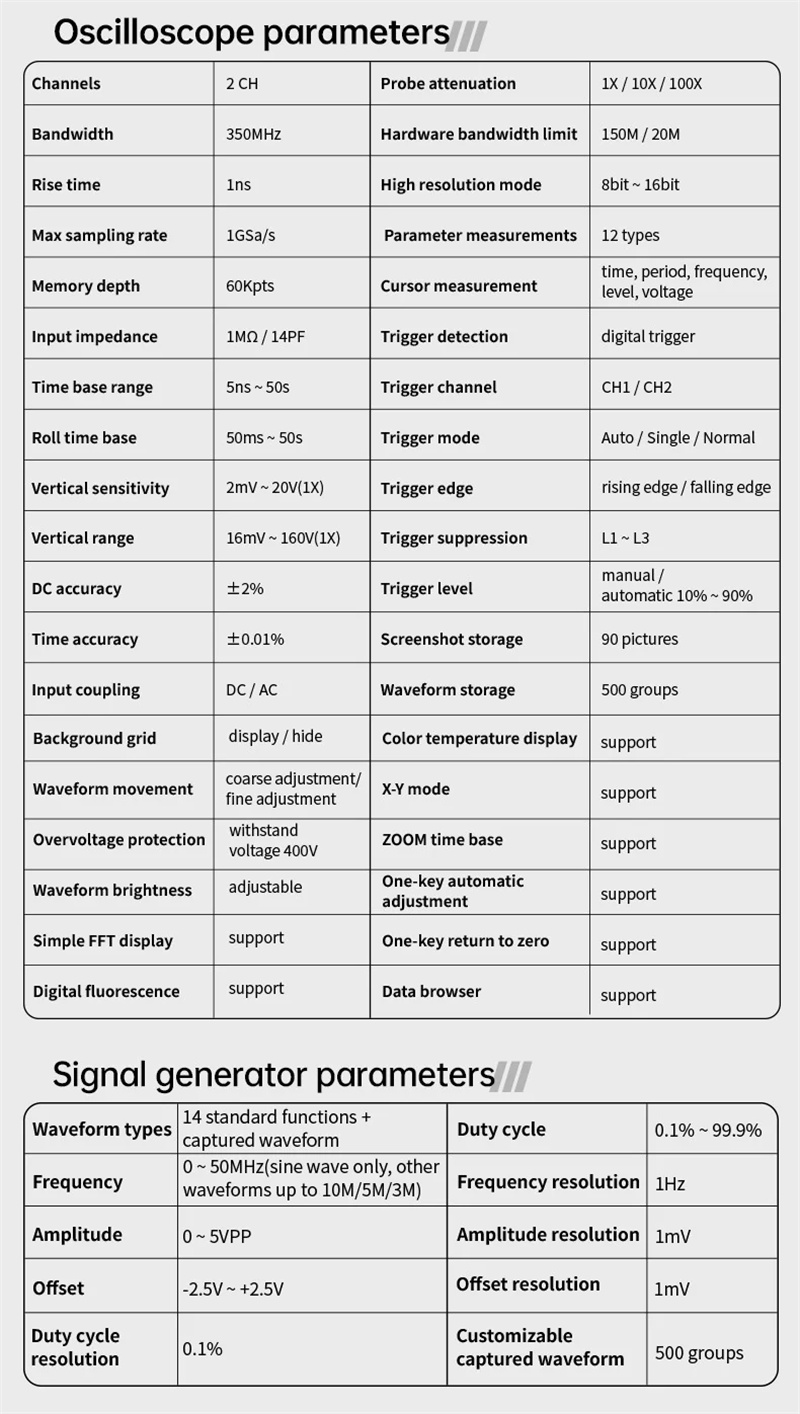

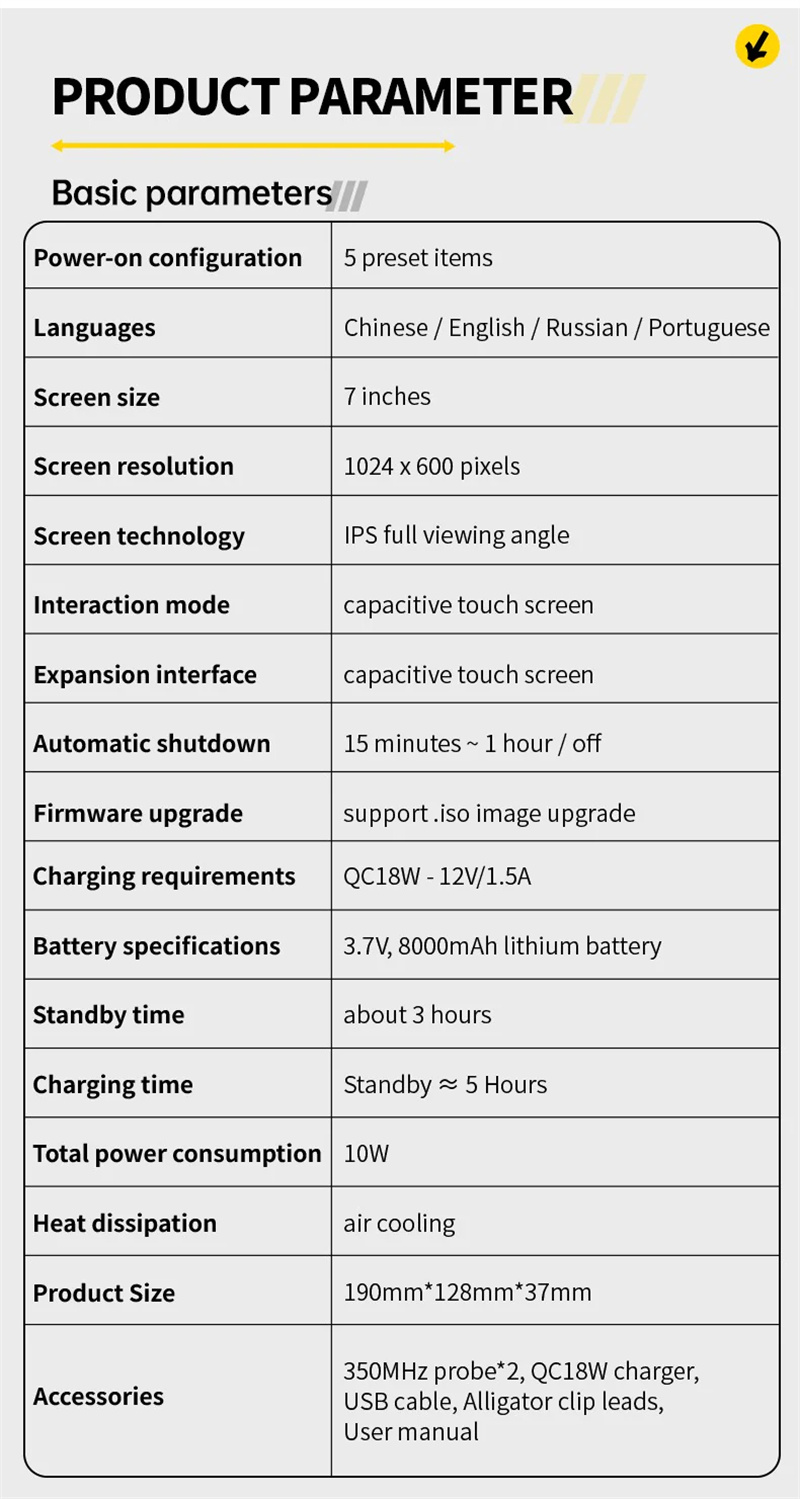

Specifications:

- Brand: FNIRSI

- Model: DPOS350P

- Power-on Configuration: 5 preset items

- Charging Requirements: QC18W - 12V/1.5A

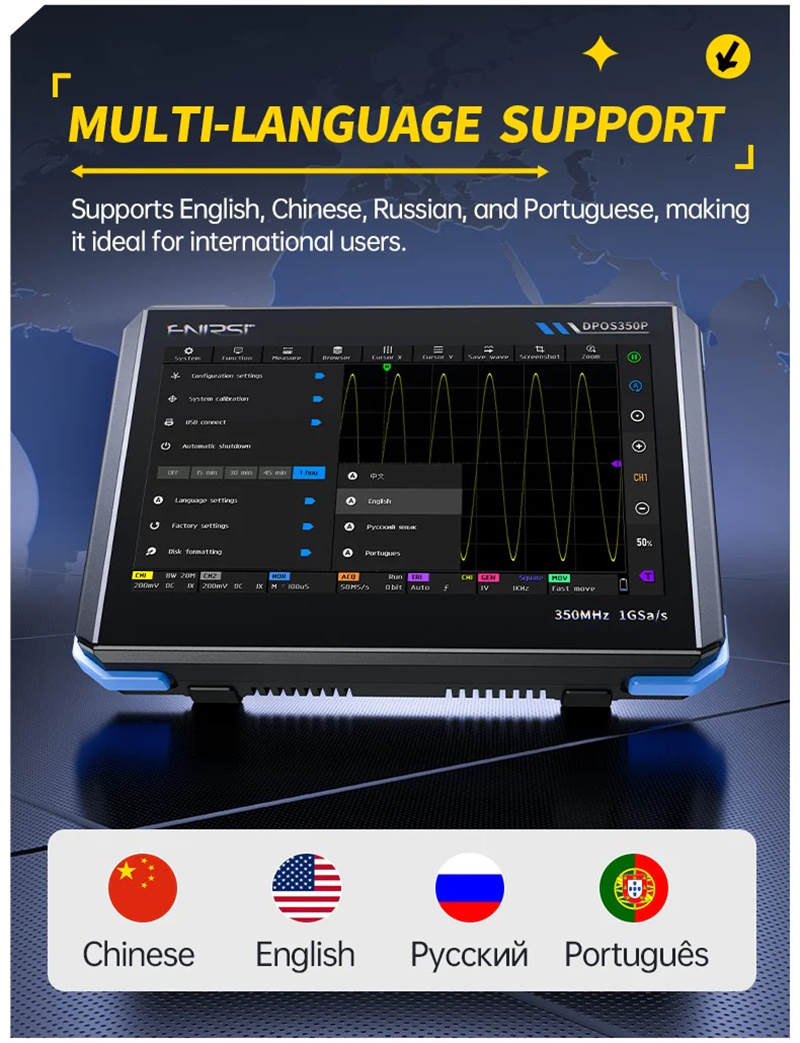

- Languages: Chinese / English / Russian / Portuguese

- Battery Specifications: 3.7V, 8000mAh lithium battery

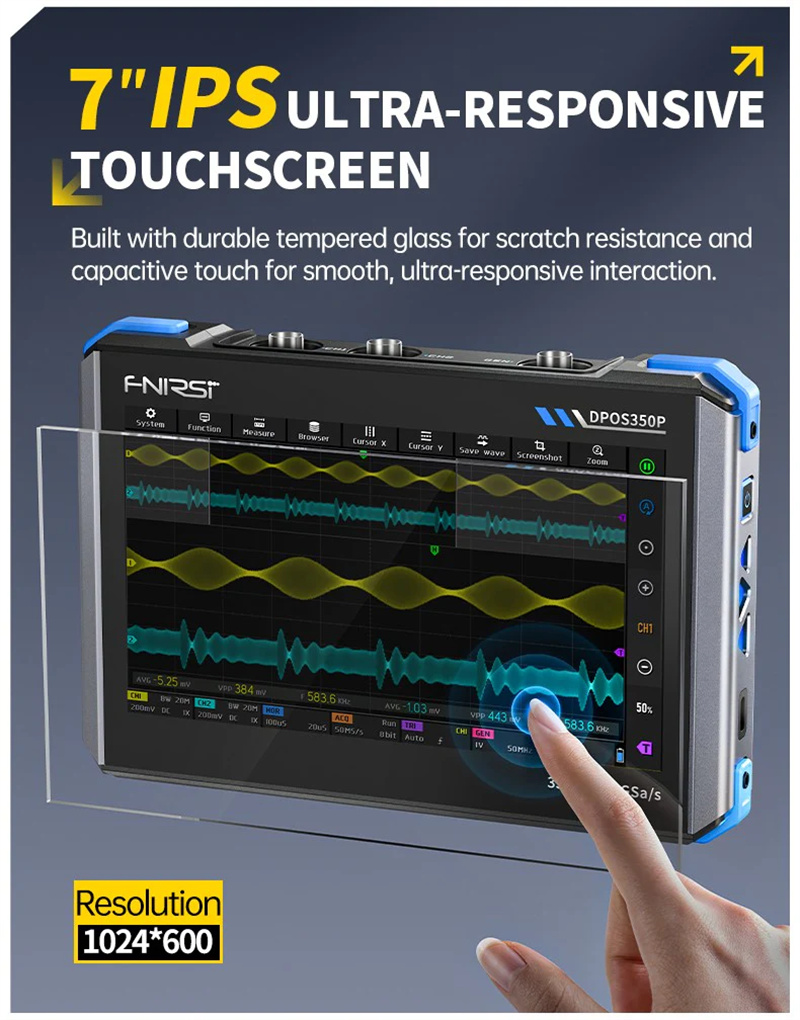

- Screen Size: 7 inches

- Standby Time: Approximately 3 hours

- Screen Resolution: 1024 x 600 pixels

- Charging Time: ≈ 5 Hours (when device is on)

- Screen Technology: IPS full viewing angle

- Total Power Consumption: 10W

- Interaction Mode: Capacitive Touch Screen

- Heat Dissipation: Air Cooling

- Expansion Interface: Capacitive Touch Screen

- Dimensions: 190mm*128mm*37mm

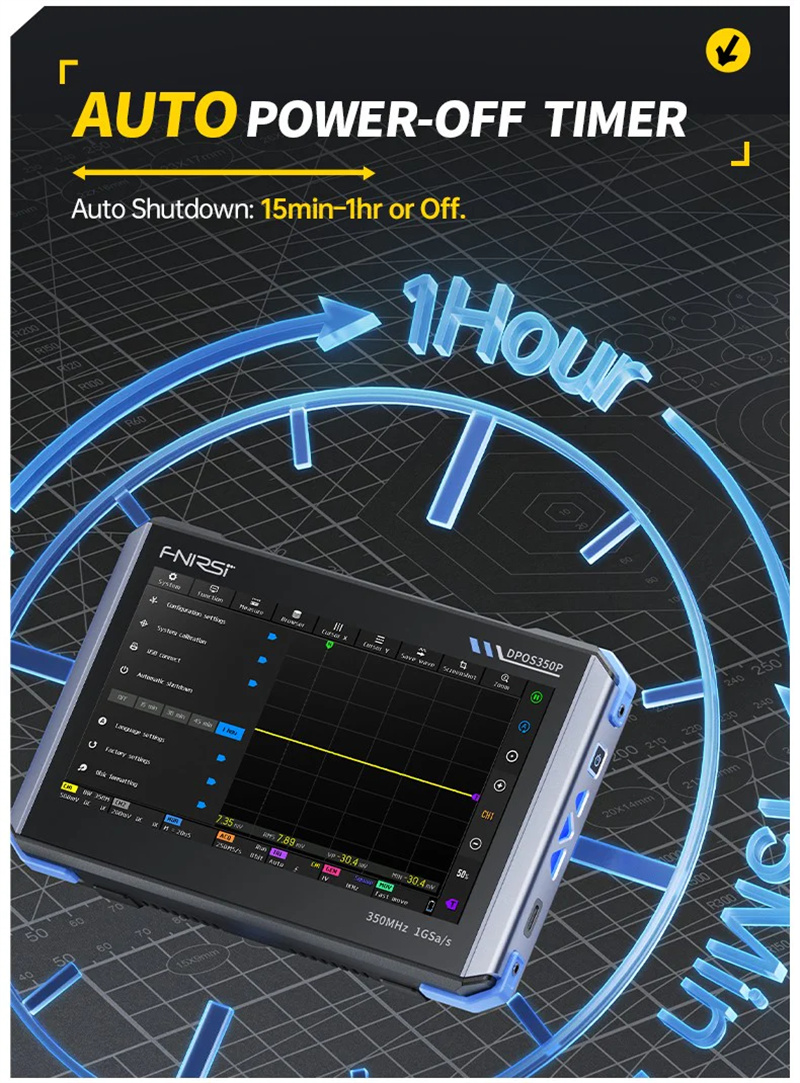

- Automatic Shutdown: 15 minutes ~ 1 hour / off

- Firmware Upgrade: Supports .iso image upgrade

- Storage Temperature Range: -20~60℃

Features:

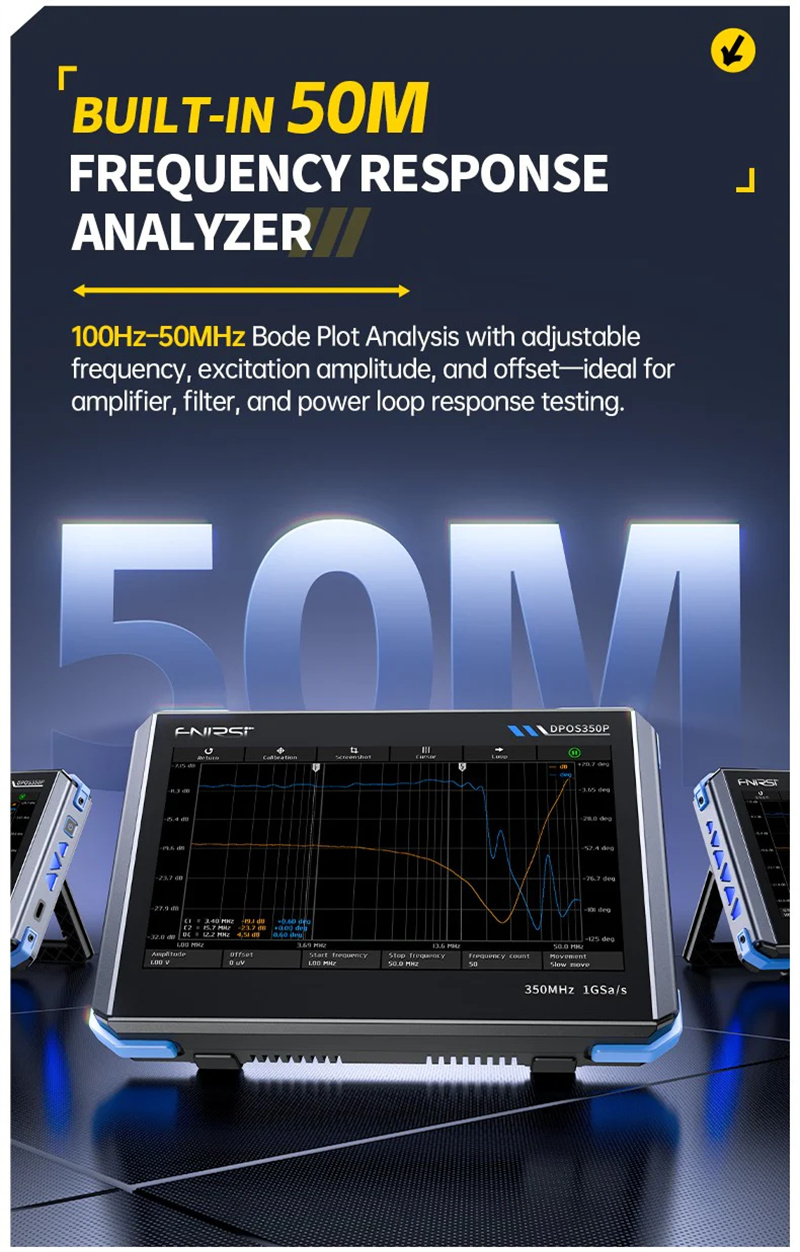

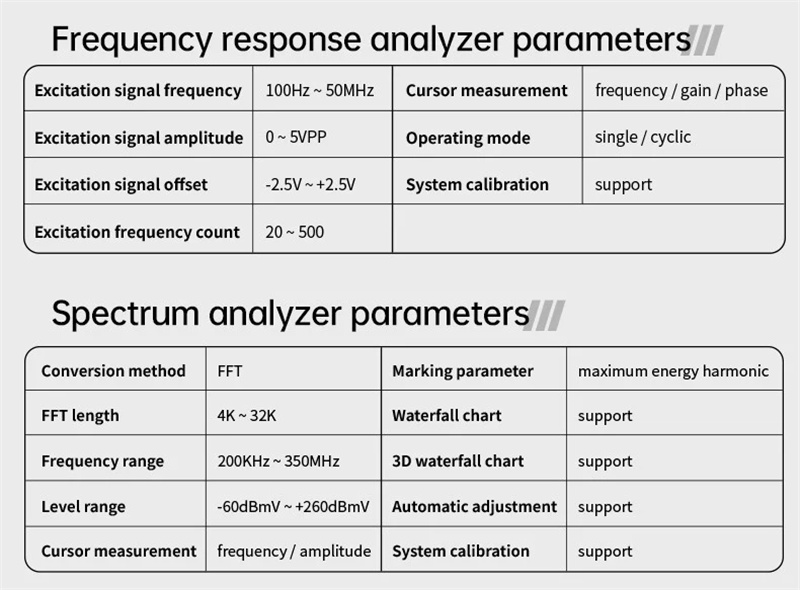

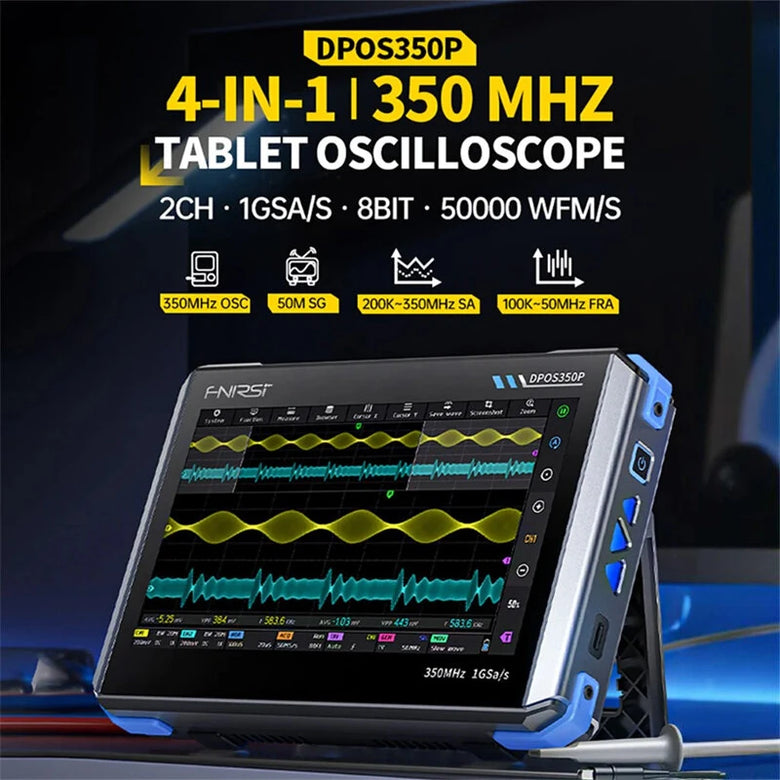

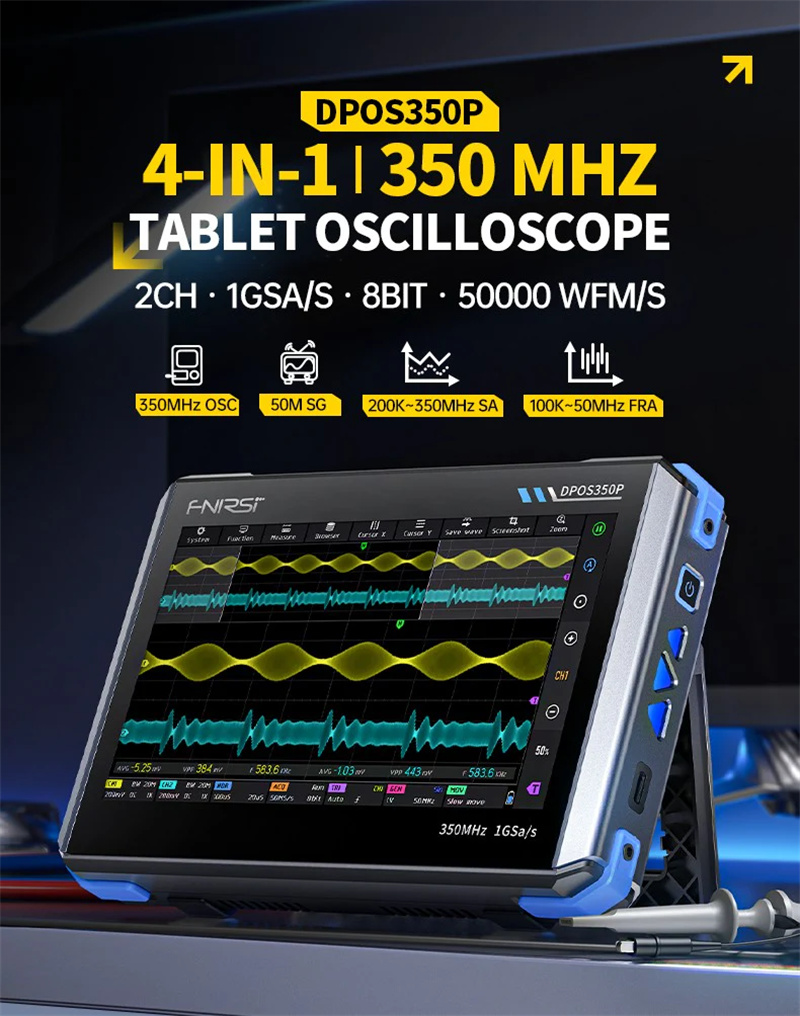

1.Powerful multi-function integration: The DPOS350P combines a 350MHz oscilloscope, 50MHz signal generator, 200K~350MHz spectrum analyzer, and a 50MHz frequency response analyzer to meet various signal testing needs.

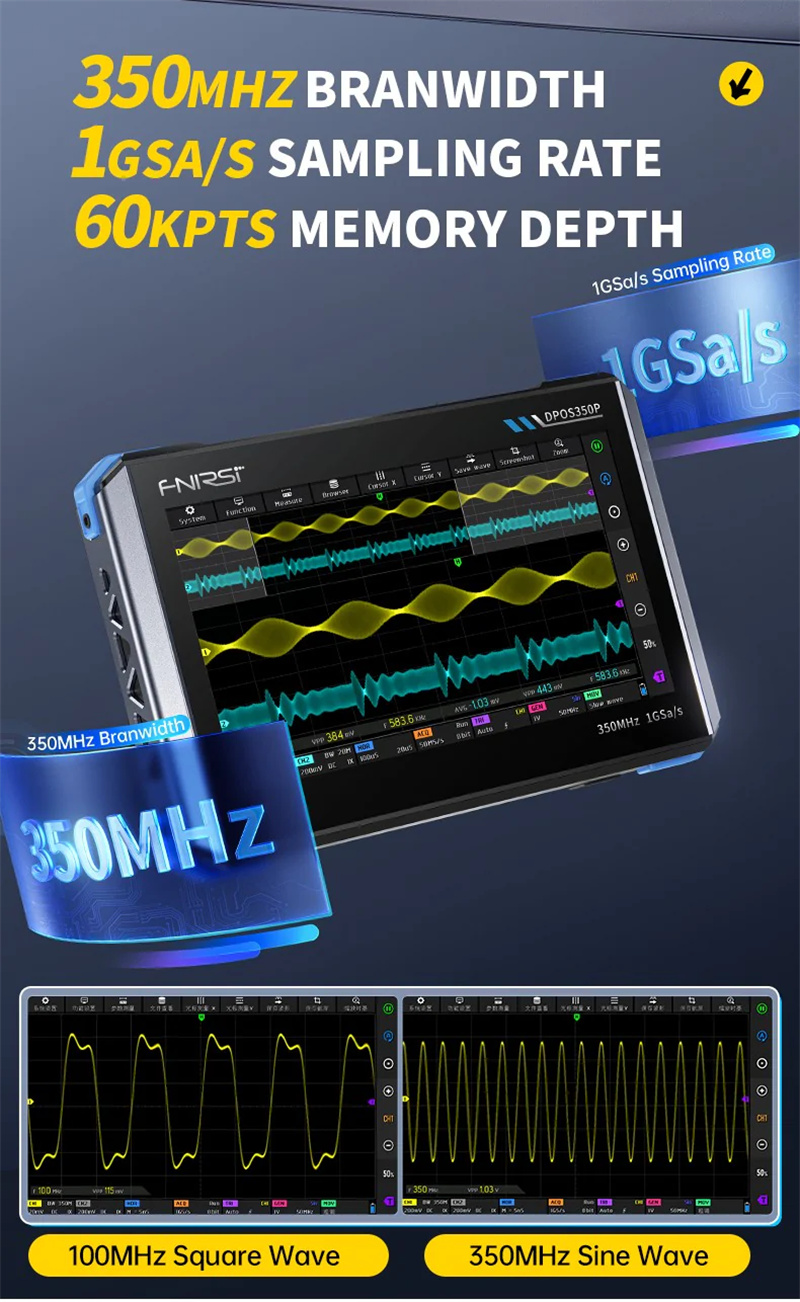

2.High-performance waveform capture: With a 1GSPS real-time sampling rate, 350MHz analog bandwidth (single-channel mode), and an ultra-high 50,000 wfm/s waveform refresh rate, it can accurately capture and display low-probability anomaly signals.

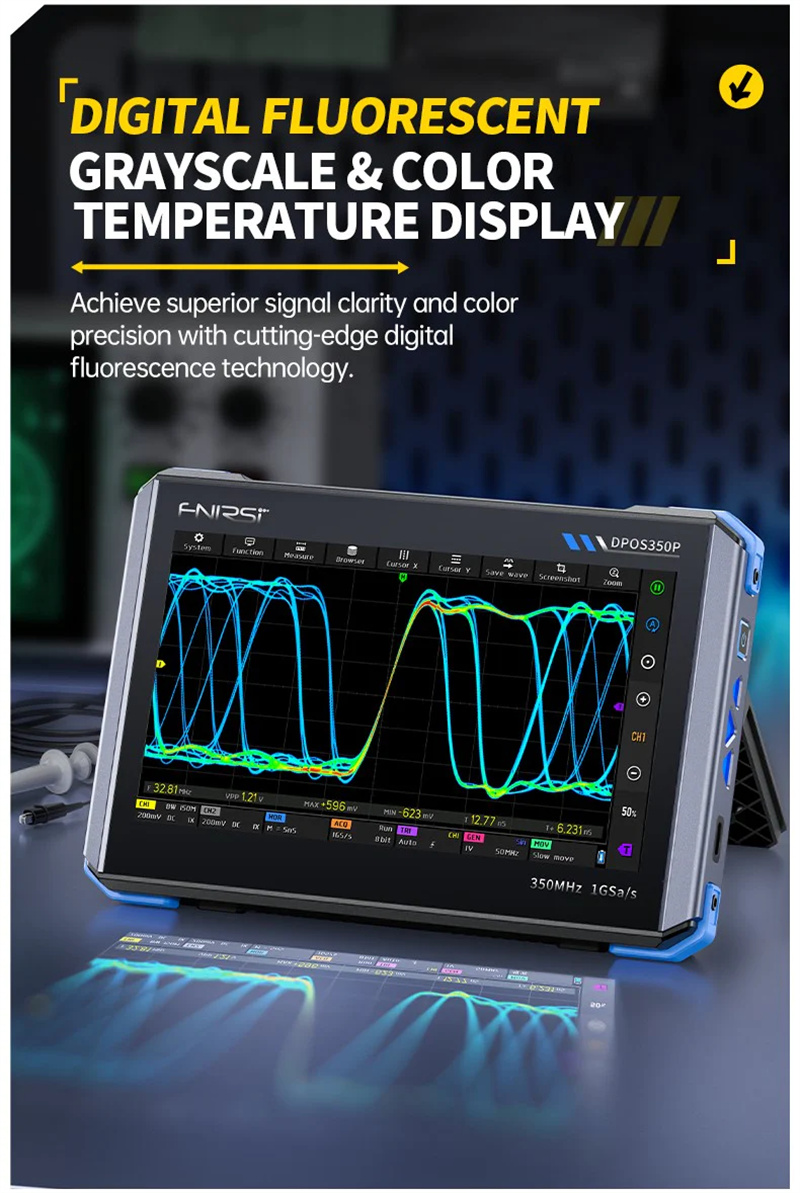

3.Fine display and operation: Equipped with a 7-inch 1024x600 high-resolution IPS touchscreen, it provides clear waveform display and supports grayscale and color temperature mode switching, making it easy to operate in different testing environments.

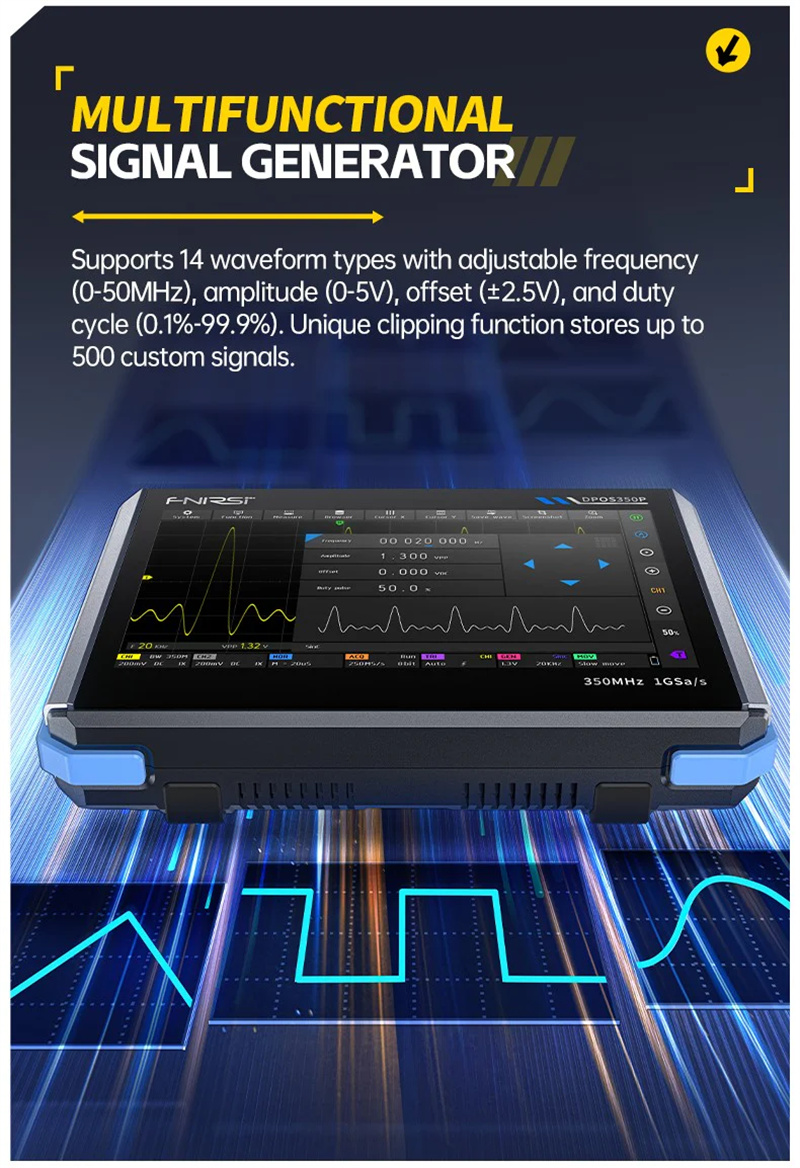

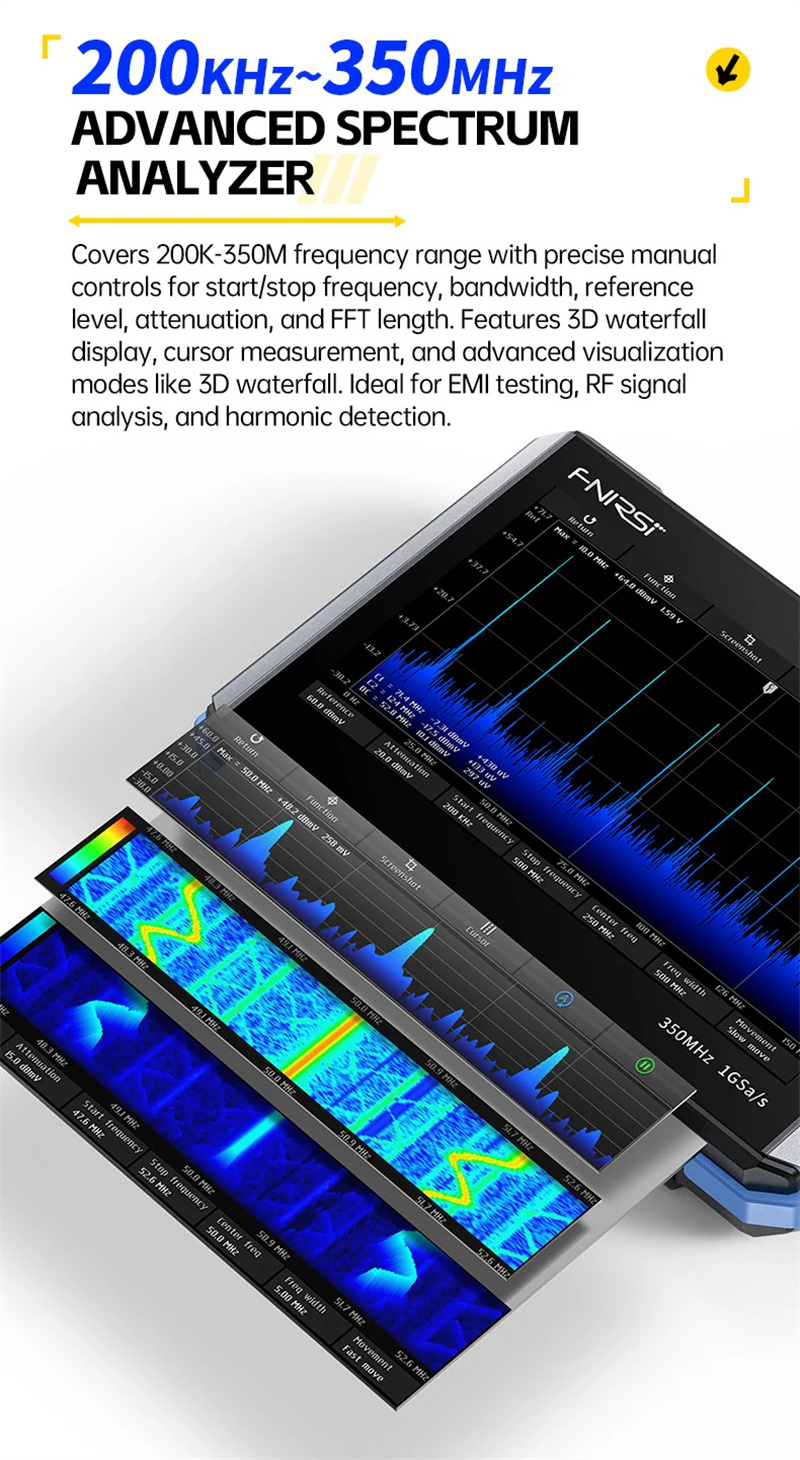

4.Rich signal generation and analysis capabilities: The built-in 50MHz signal generator supports 14 standard waveforms and custom waveform functionality, while the spectrum analyzer covers a frequency range of 200K~350MHz, ideal for EMI, RF, and high-frequency signal testing.

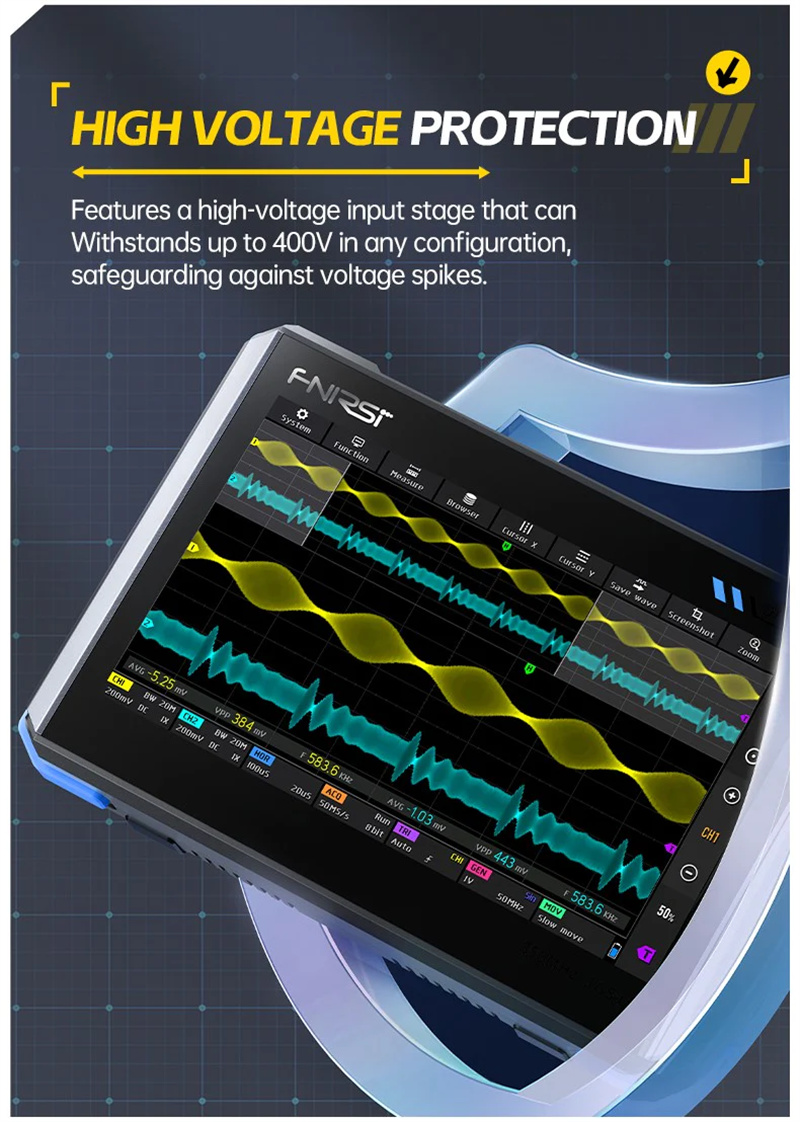

5.High-voltage protection and fast charging: The device has a high-voltage protection design up to 400V for safety, and with QC18W fast charging technology, it can be fully charged in 2 hours, ensuring long-term stable operation.

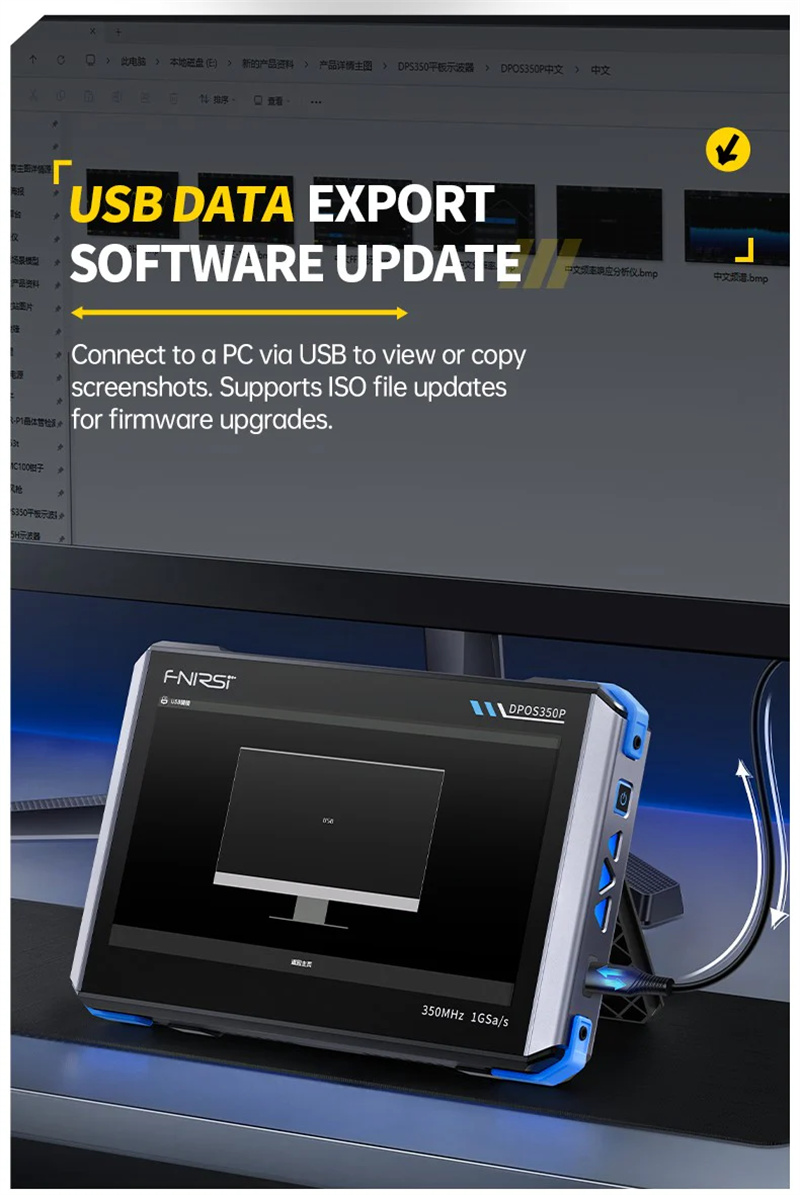

6.Convenient data storage and export: It supports up to 500 waveform data storage and 90 image storage, and has USB data export functionality for easy analysis and report generation.

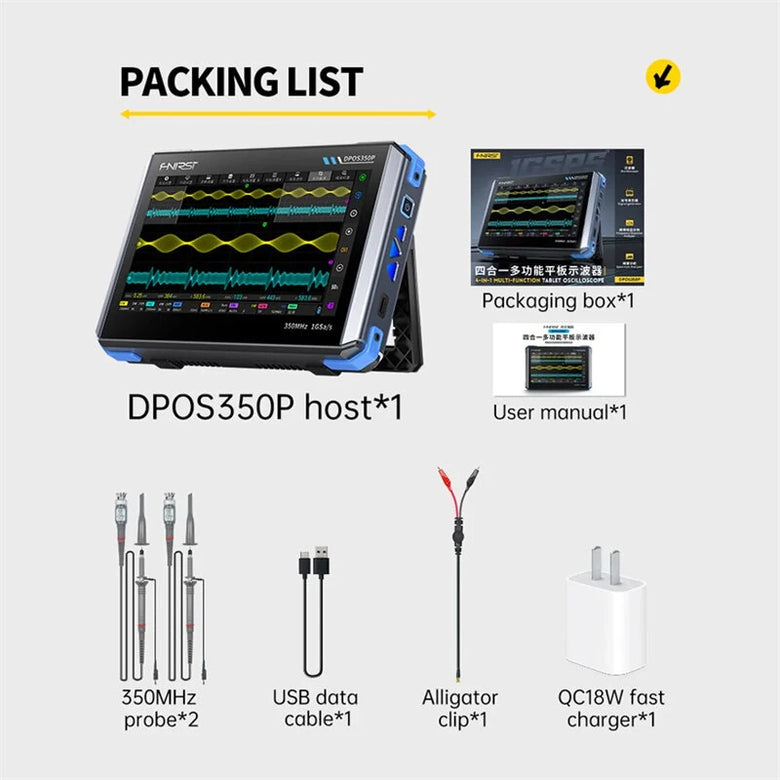

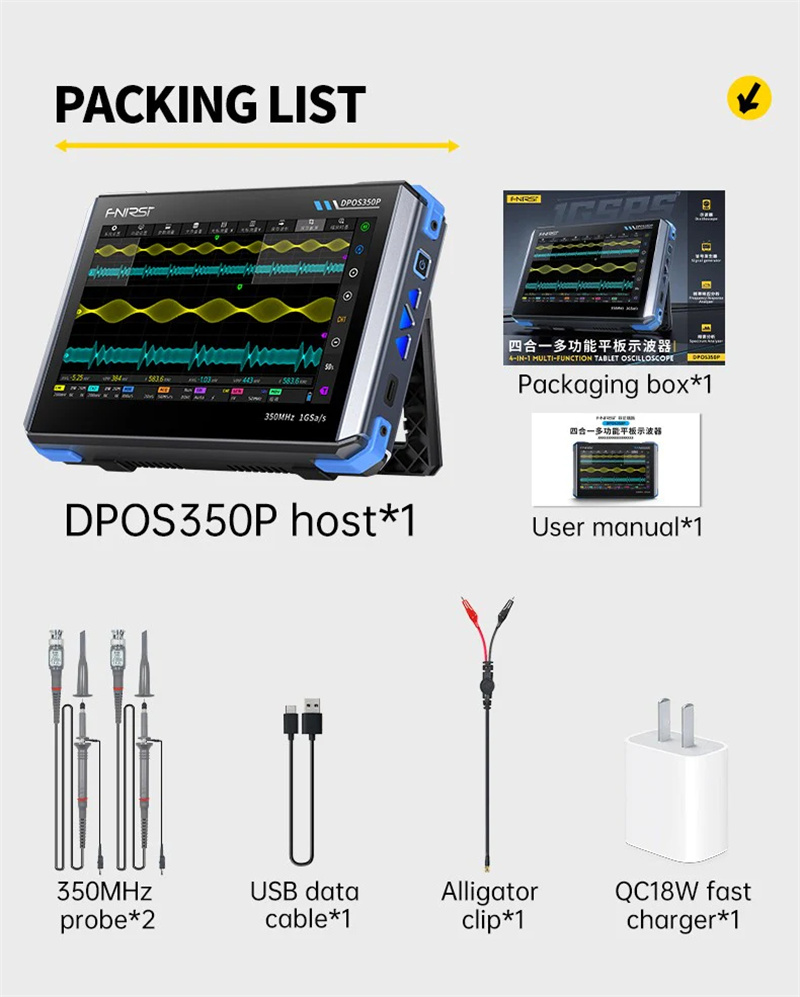

Package Included:

1 x DPOS350P Host

1 x QC18W Fast Charger

1 x 350MHz Probe

1 x Alligator Clip

1 x USB Data Cable

1 x User Manual

1 x Packing Box
