Specifications:

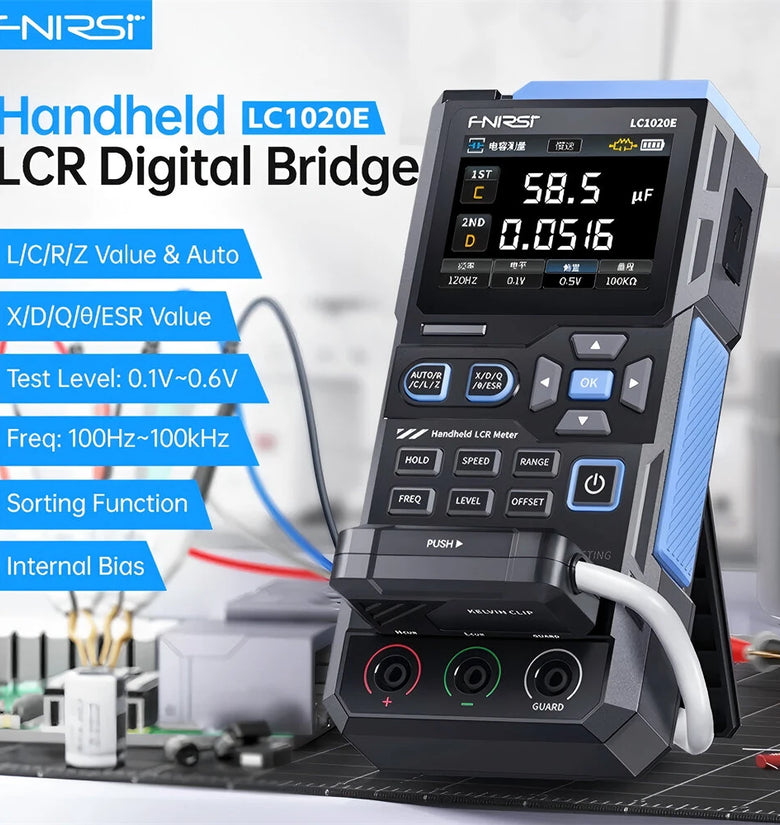

Model: LC1020E

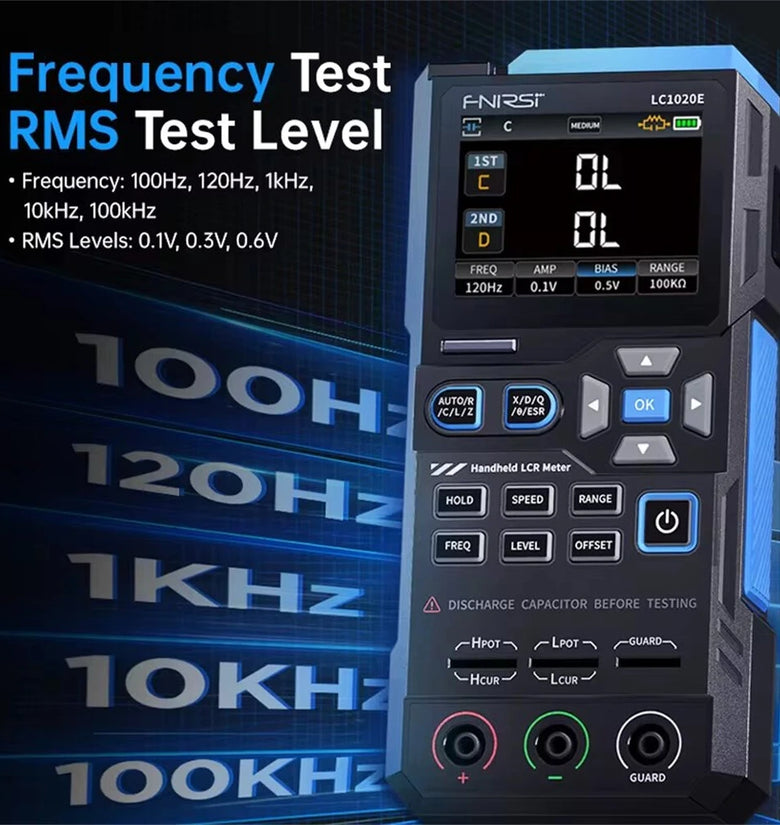

Test Frequency: 100Hz, 120Hz, 1kHz, 10kHz, 100kHz
Basic Accuracy: ±0.3%
Display: 2.8-inch TFT LCD
Display Digits: Main Parameter: 4.5 digits; Secondary Parameter: 4.5 digits
Measurement Parameters: AUTO/R/C/L/Z/X/D/Q/θ/ESR
Measurement Range:
Inductance (L): 0–100H
Capacitance (C): 0–100mF
Resistance (R): 0–10MΩ
Internal Bias Voltage: 0.0V, 0.5V
Test Level Voltage: 0.1V, 0.3V, 0.6V
Calibration Functions: Open circuit calibration, short circuit calibration

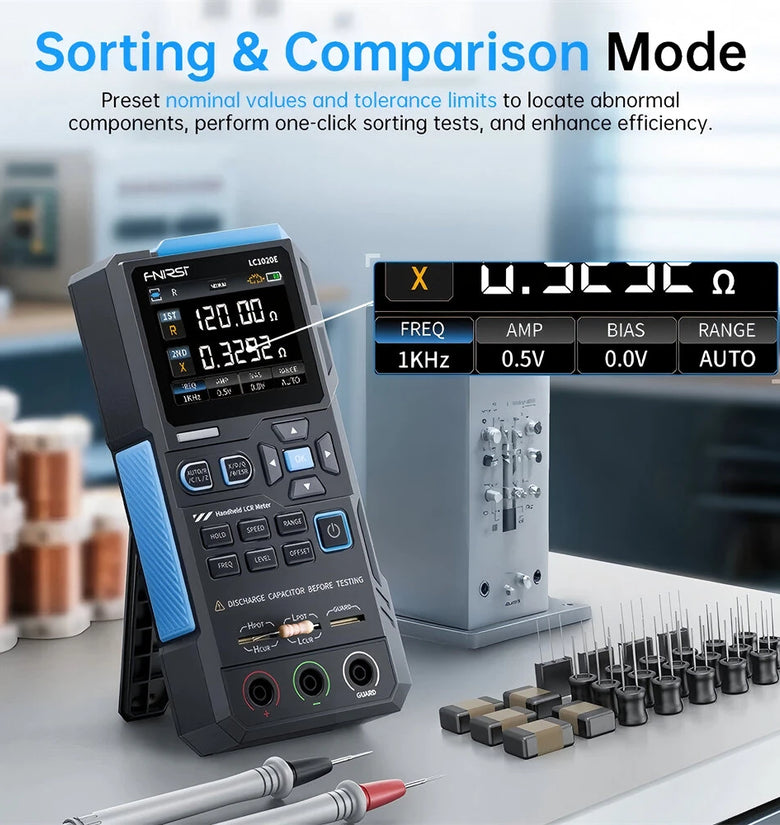

Comparison Function: Relative error calculation with adjustable tolerance range (0.1%–99.9%)
Record Function: Logs measurement success and failure numbers for rapid review
Test Terminal Configuration: Three-terminal, Five-terminal
Output Impedance: 100Ω
Communication Interface: USB Type-C (Virtual serial port)
Additional Features: Language settings, screen brightness adjustment, sound settings, auto power-off, calibration settings, system information
Features:
1.Wide Frequency Adjustment Range
The LC1020E offers frequency settings from 100Hz to 100kHz, enabling versatile testing for components with different frequency-dependent behaviors.

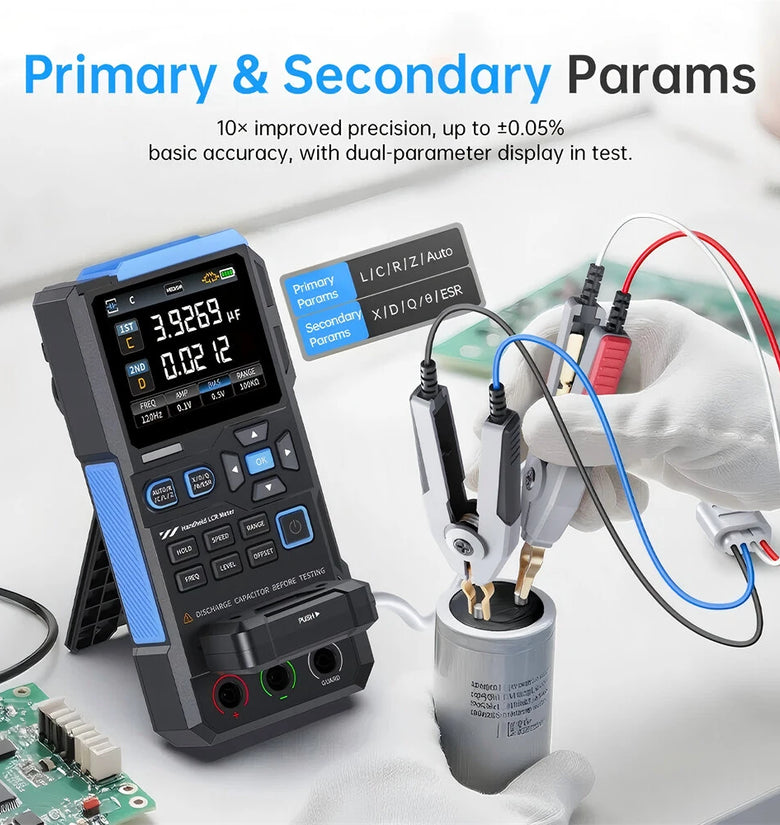

2.Dual-Parameter Display
A 2.8-inch TFT screen showcases both primary and secondary measurement parameters simultaneously, providing users with comprehensive data at a glance.
3.Precision Calibration Functions
Integrated open and short circuit calibration ensures highly accurate measurement results, meeting the needs of professionals across industries.
4.Multi-Mode Test Configuration

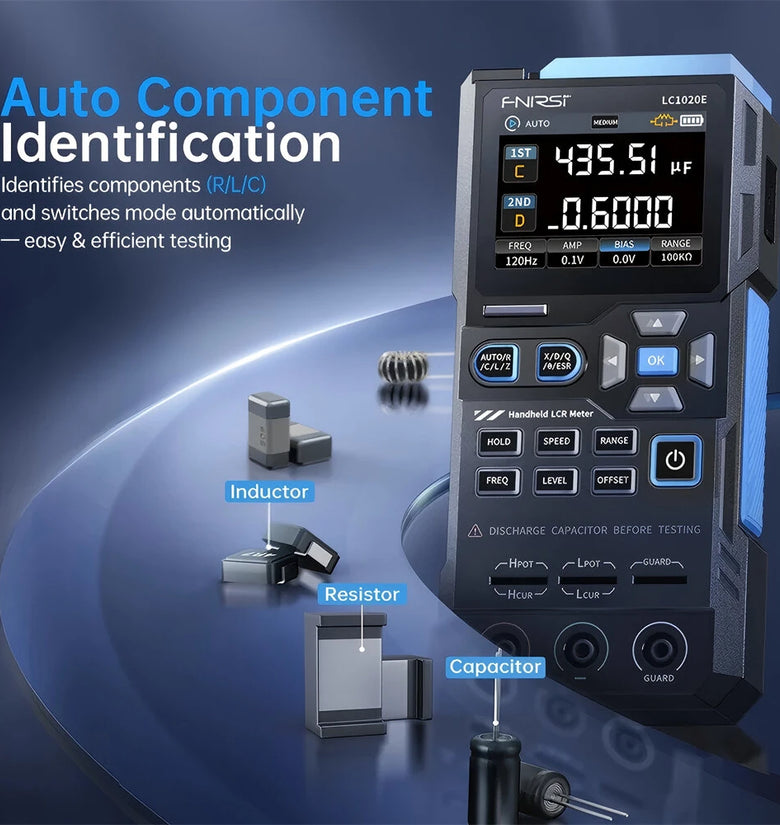

Supports various test modes including AUTO, R/C/L/Z and others, adapting to diverse component types while optimizing operational efficiency.
5.USB Type-C Communication
Equipped with USB Type-C connectivity, the LC1020E simplifies data transfer and communication, streamlining workflows for modern users.

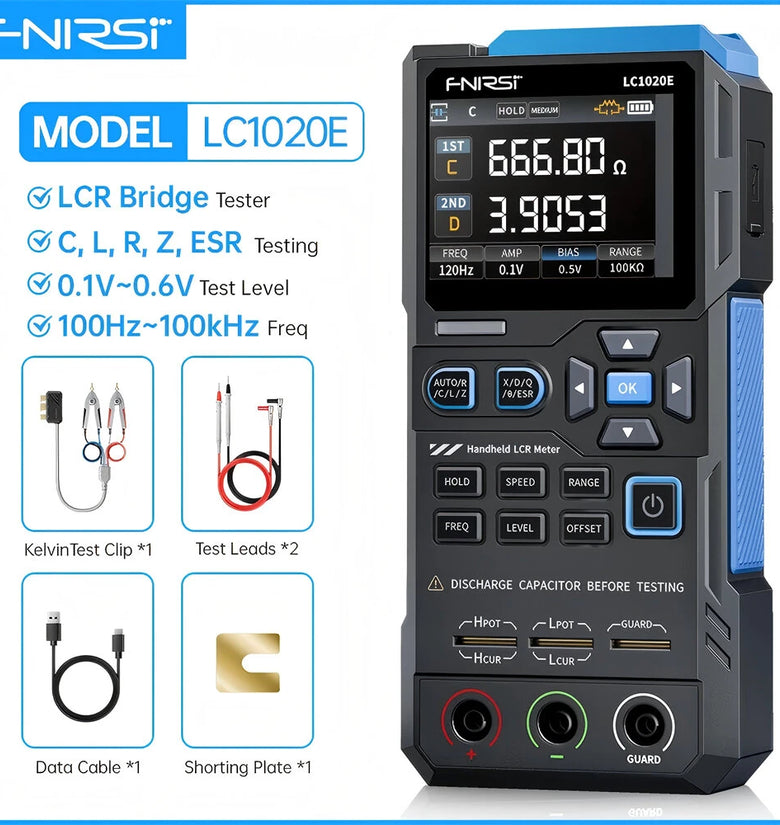

Package Included:
1 x LC1020E LCR Meter
1 x USB Type-C Data Cable
1 x Shorting Plate
1 x Kelvin Test Clip
2 x Test Leads (Black + Red)
1 x User Manual
