Multi-frequency testing and dual-parameter simultaneous display

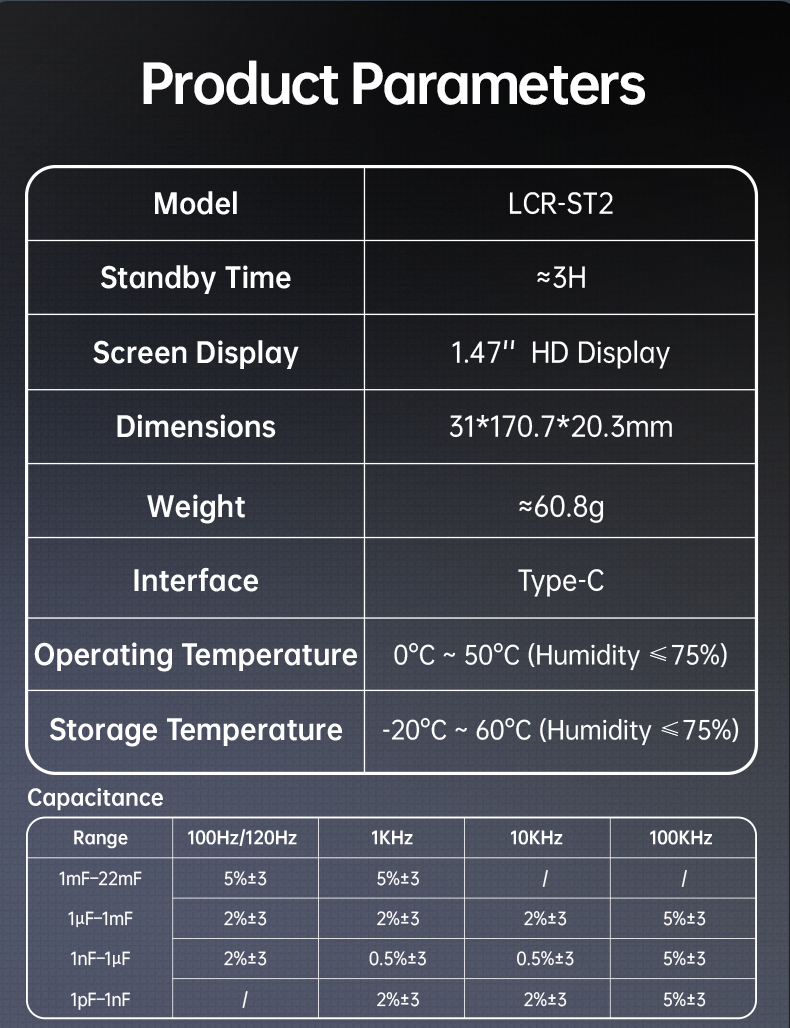

Specifications:

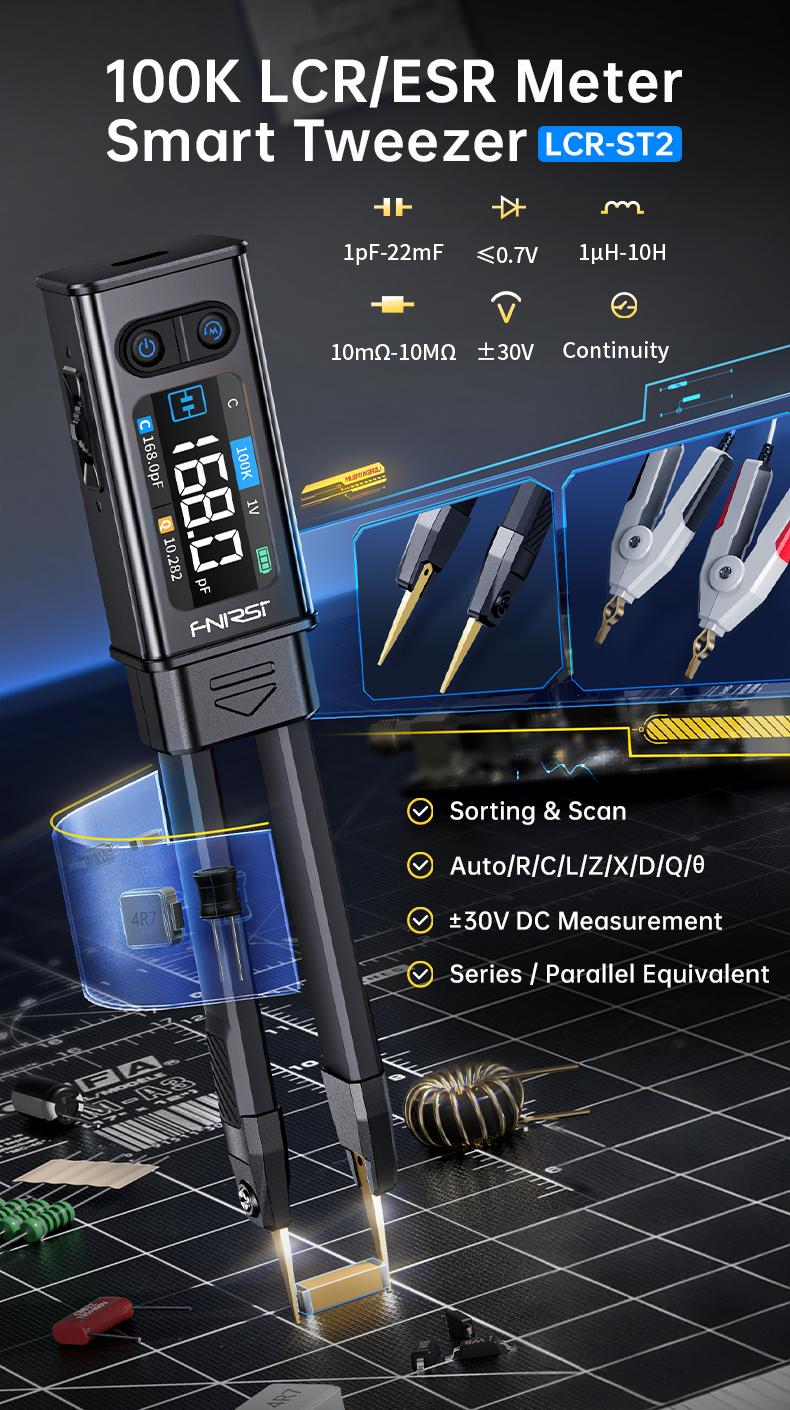

Model: LCR-ST2
Display: 1.47-inch HD color screen
Battery: 300mAh lithium battery, approx. 3 hours of operating time
Charging Port: Type-C

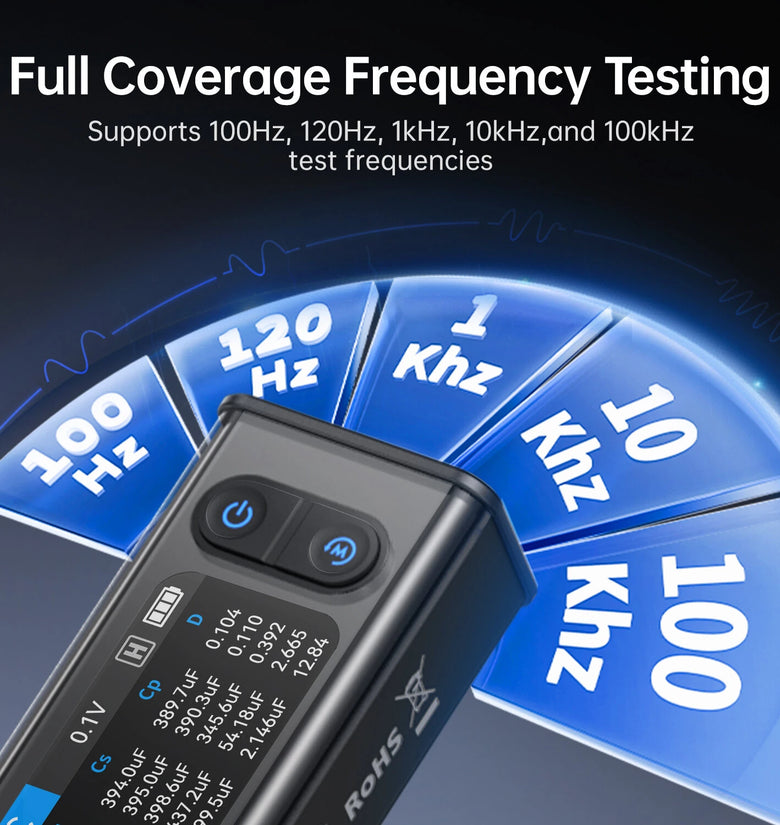

Test Frequencies: 100Hz, 120Hz, 1kHz, 10kHz, 100kHz

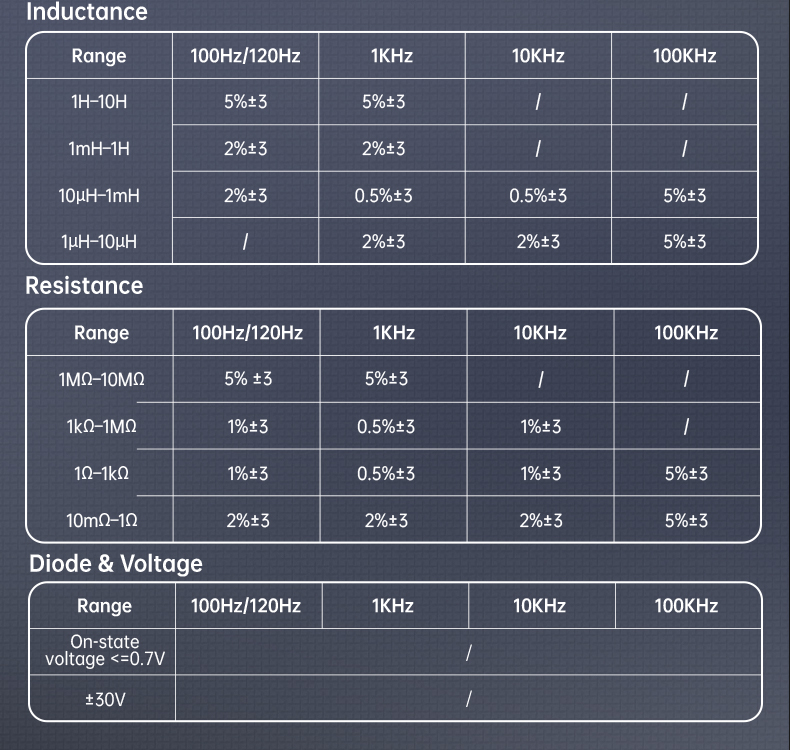

Measurement Ranges:
Capacitance: 1pF–22mF
Inductance: 1µH–10H
Resistance: 10mΩ–10MΩ

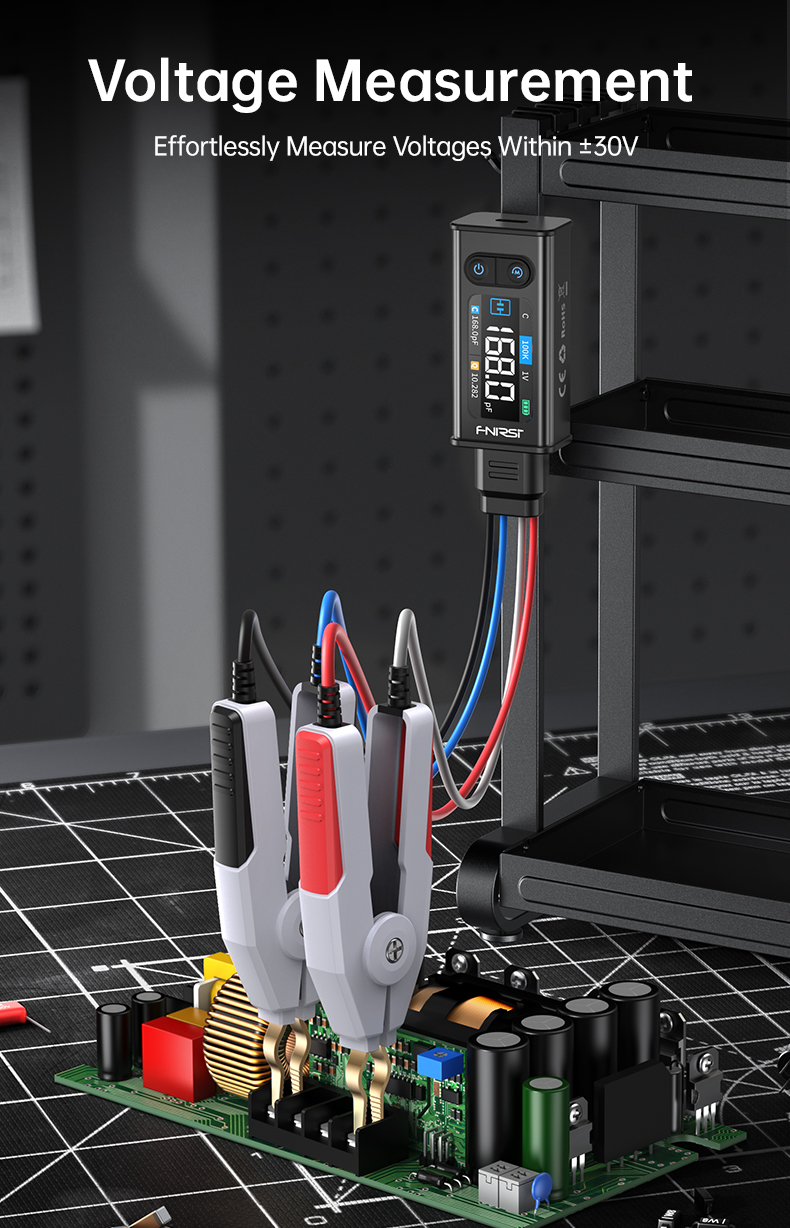

Voltage Range: ±30V

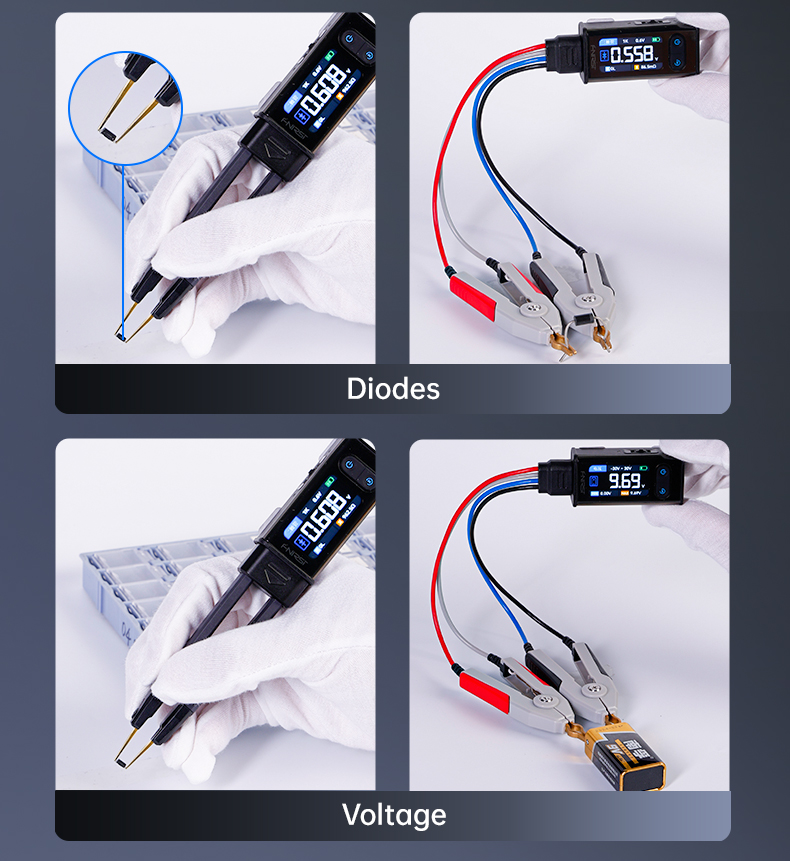

Diode Forward Voltage Measurement: ≤0.7V
Operating Temperature: 0℃–50℃ (≤75%RH)
Storage Temperature: -20℃–60℃ (≤75%RH)
Dimensions: 31 × 170.7 × 20.3 mm
Net Weight: Approx. 60.8g
Calibration Modes: Open / Short / Multiple resistor calibration
Auto Power-Off Options: Never / 5 min / 15 min / 30 min
Features:

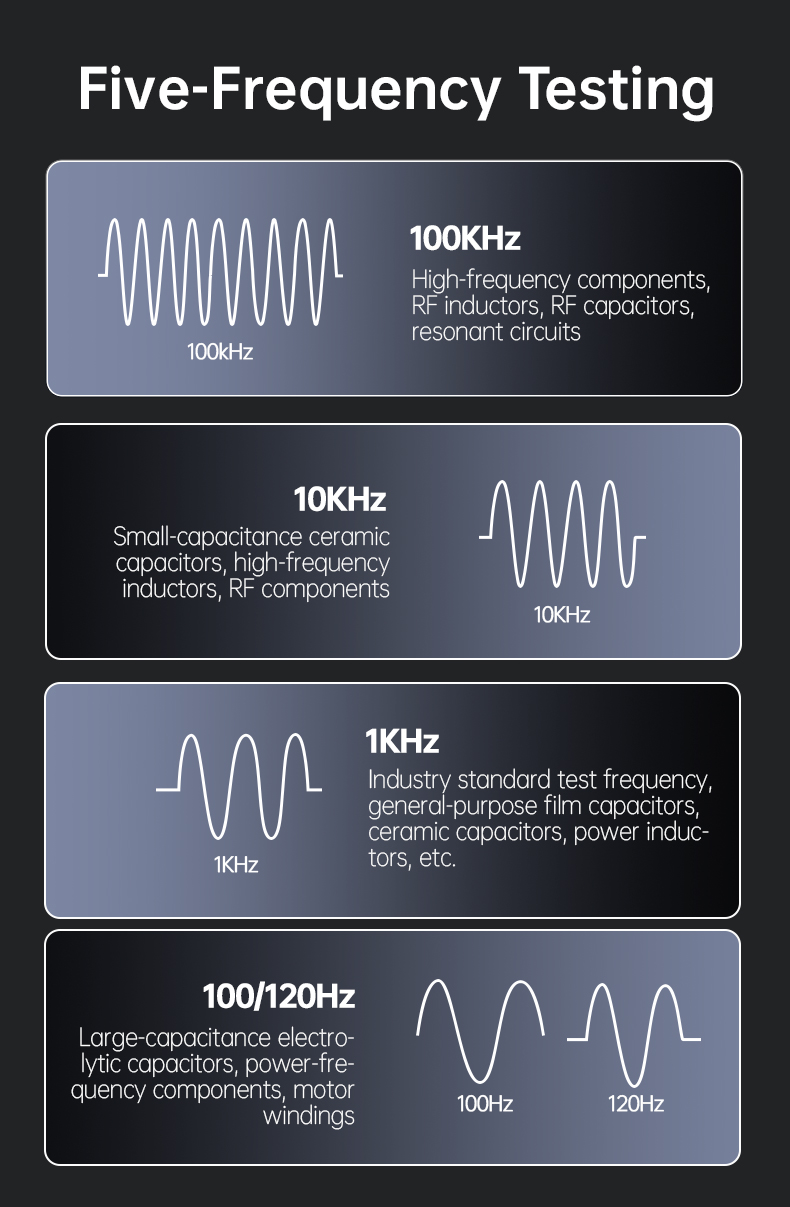

1.Advanced Multi-frequency Testing:
Supports five test frequencies (100Hz–100kHz), ideal for precise characterization of components across different conditions.

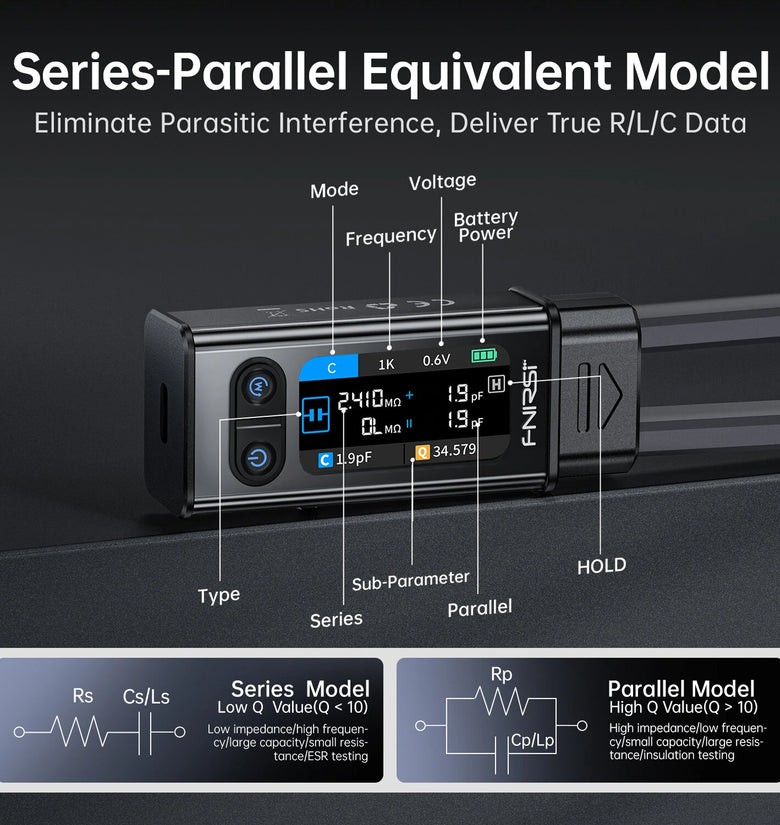

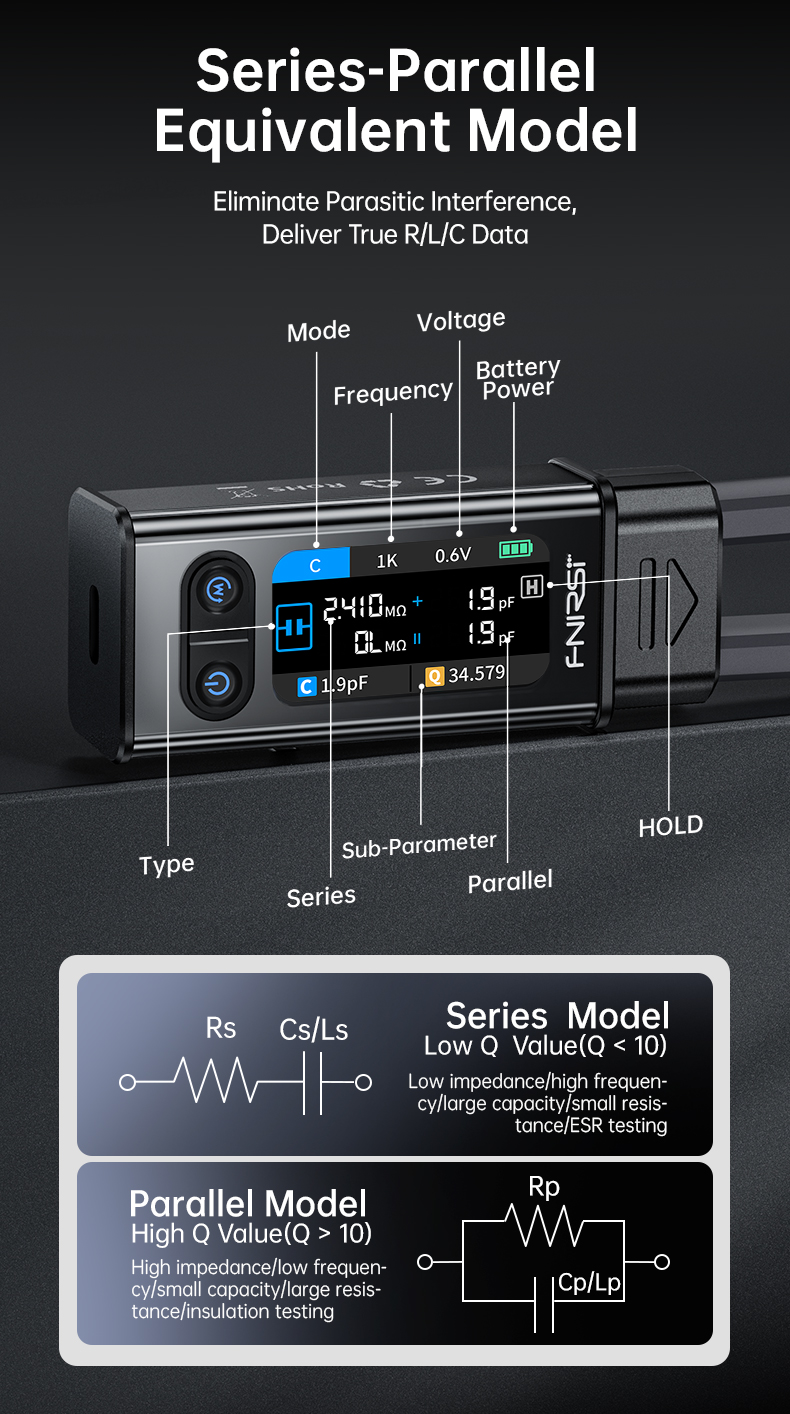

2.Dual-mode Display for Intuitive Analysis:
Simultaneously shows measurements in two modes (e.g., resistance and capacitance) on one screen, enabling quick and easy comparisons.

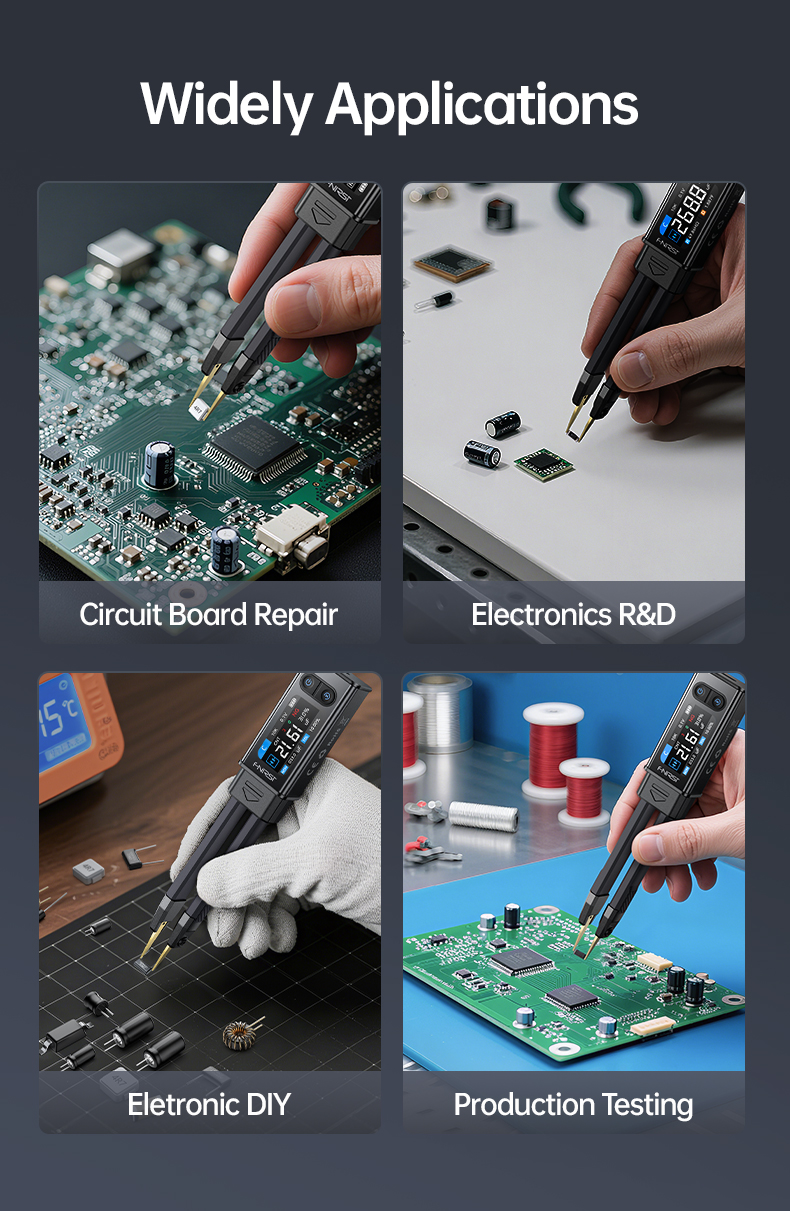

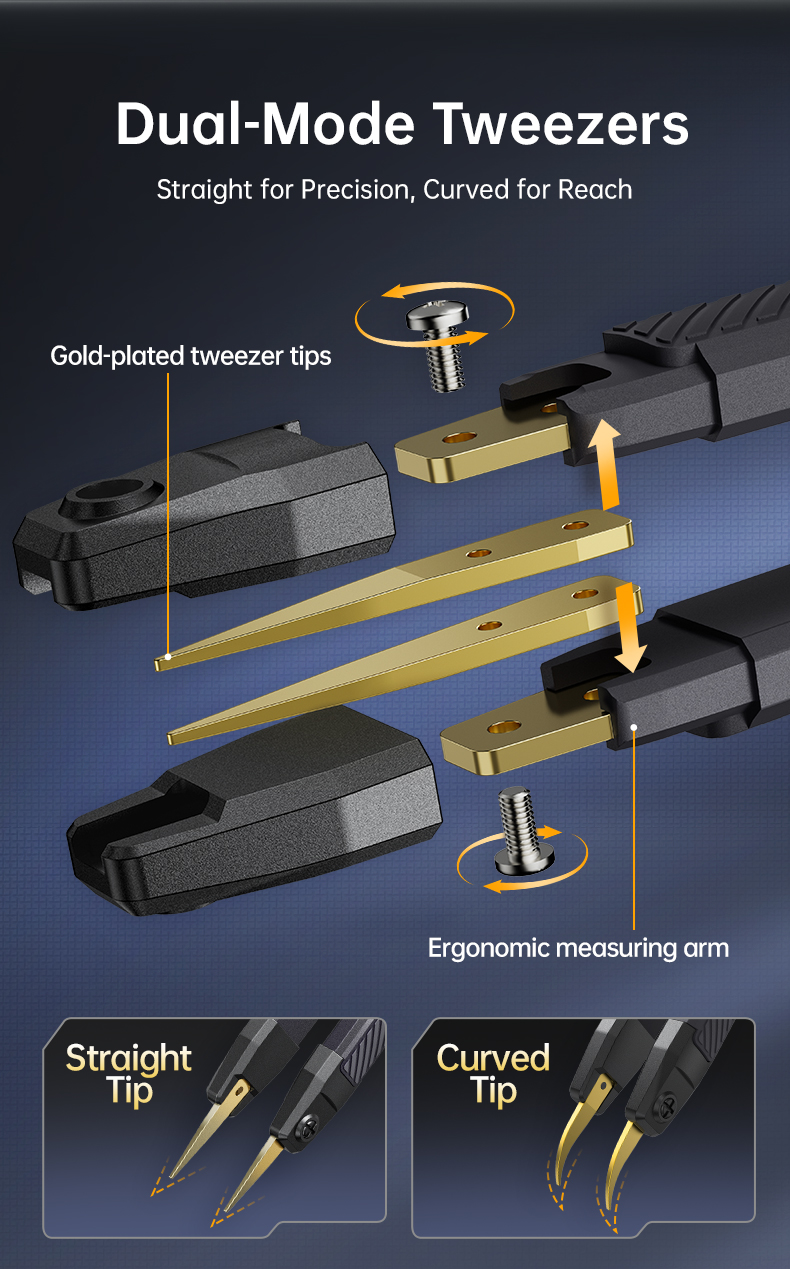

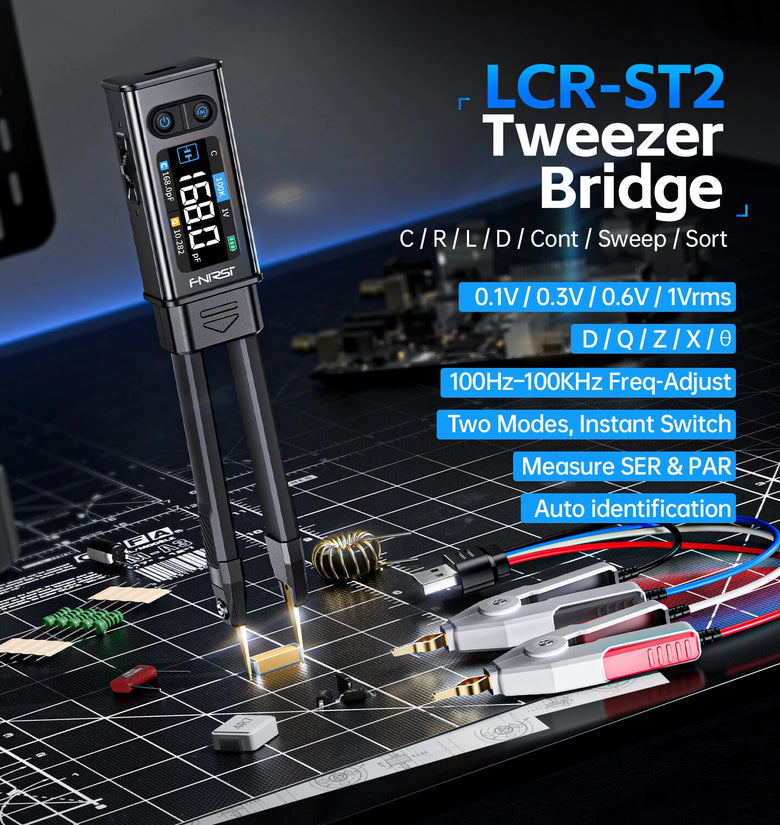

3.Compact Tweezer Design:
Specially designed for testing electronic components in small, tight spaces, ensuring optimal handling and precision during operation.

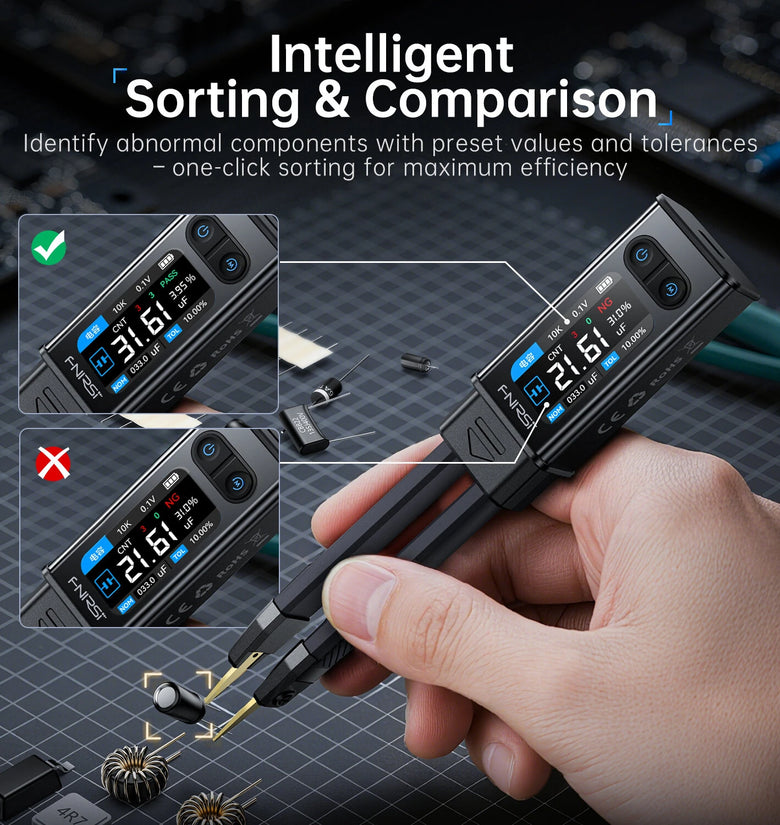

4.Intelligent Sorting Function:
Automatically identifies and categorizes components, streamlining batch testing for improved efficiency and speed.
5.Magnetic Attachment & Battery-Powered Portability:
Equipped with a magnetic design for enhanced portability, plus a 300mAh built-in rechargeable battery for extended usability without interruption.
Package Included:
Basic Version:
1 x LCR-ST2 Tweezer
1 x Storage Bag

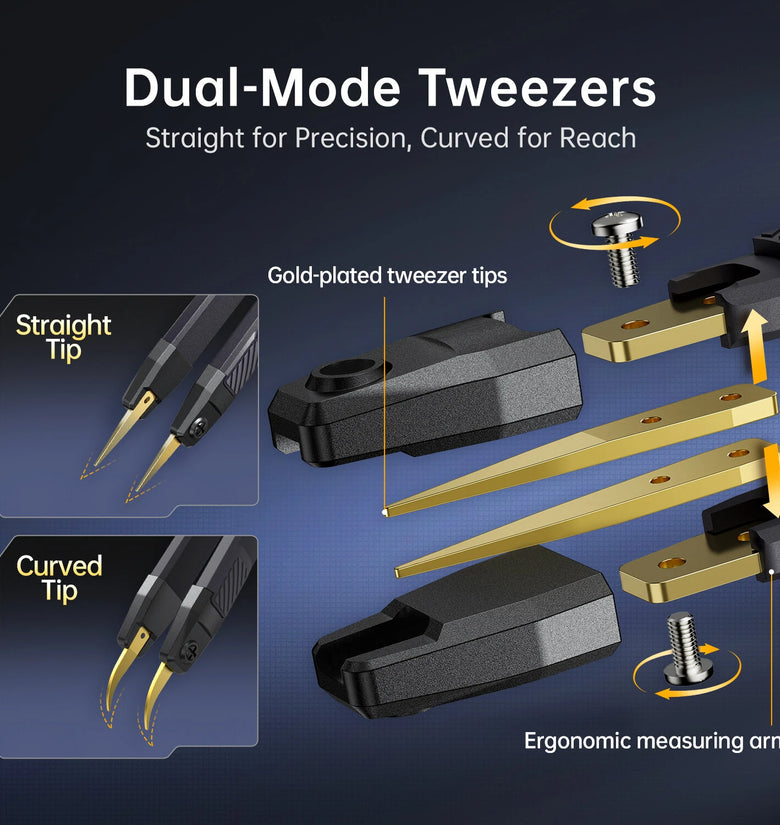

1 x Curved Tip
1 x Shorting Plate
1 x Type-C Data Cable
Pro Version:
1 x LCR-ST2 Tweezer
1 x Storage Bag
1 x Curved Tip
1 x Shorting Plate

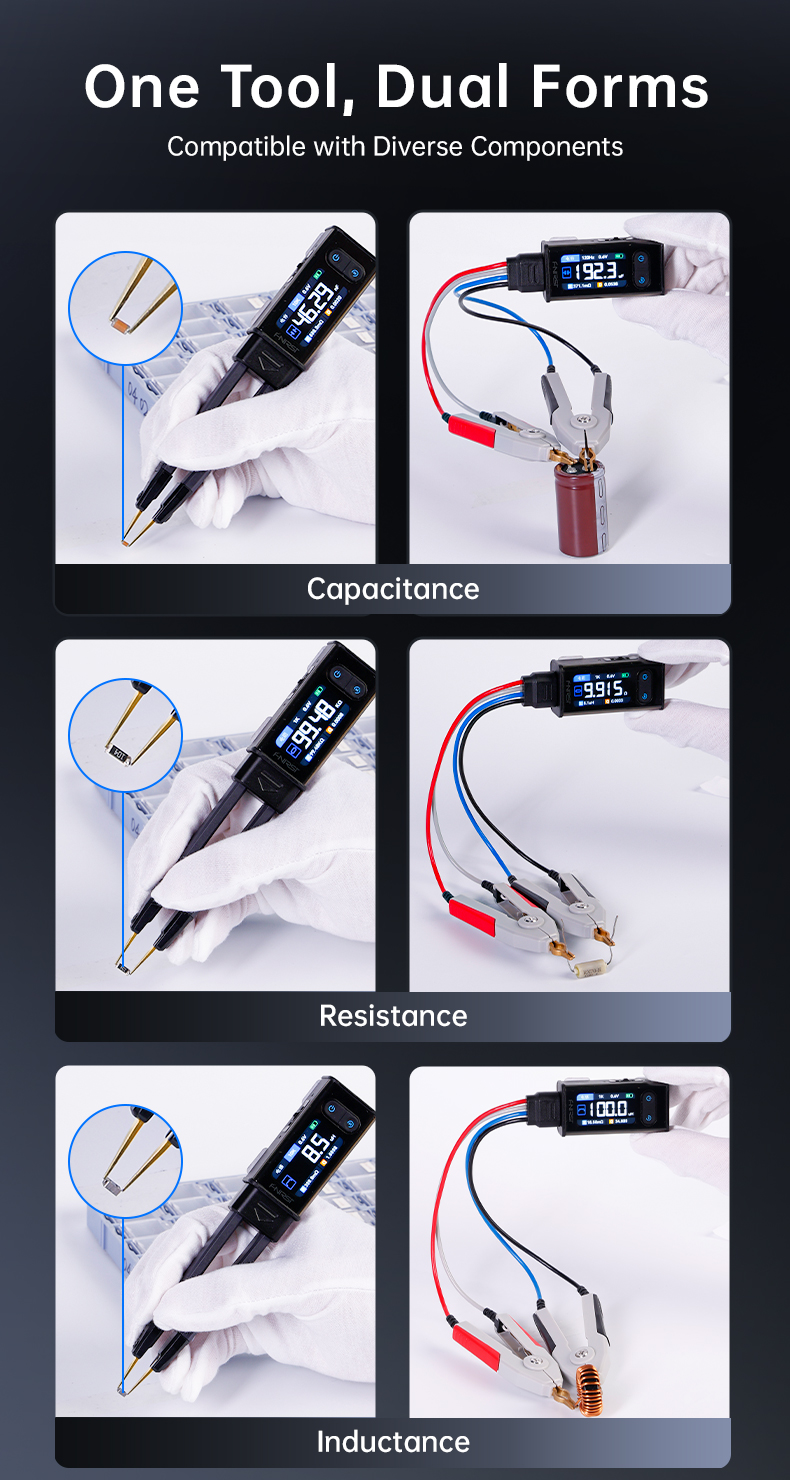

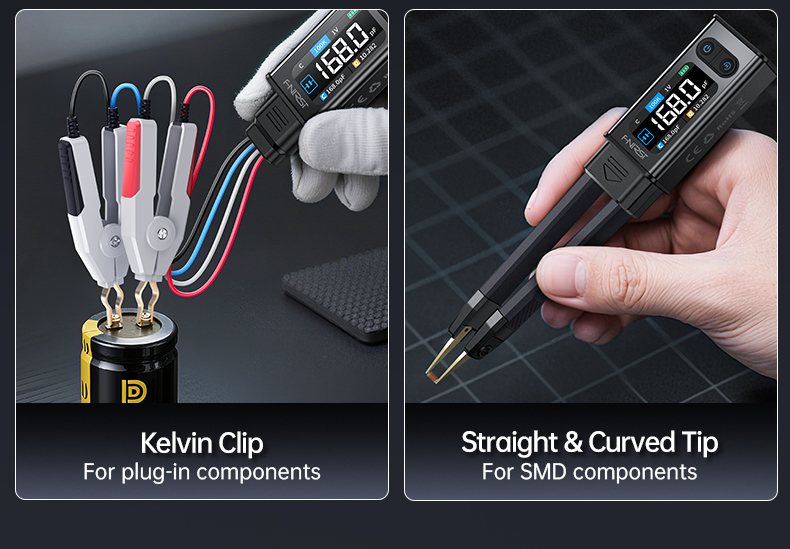

1 x Kelvin Test Clip
1 x Type-C Data Cable
