Specifications:
Optional Models:
Optional Models:
TDM‑120 (thermal imaging only)
TDM‑120P (thermal imaging + digital multimeter)
Probe: Vanadium oxide (UncooledVOX)
IR resolution: 120 × 90
Display: 2.8‑inch touch screen

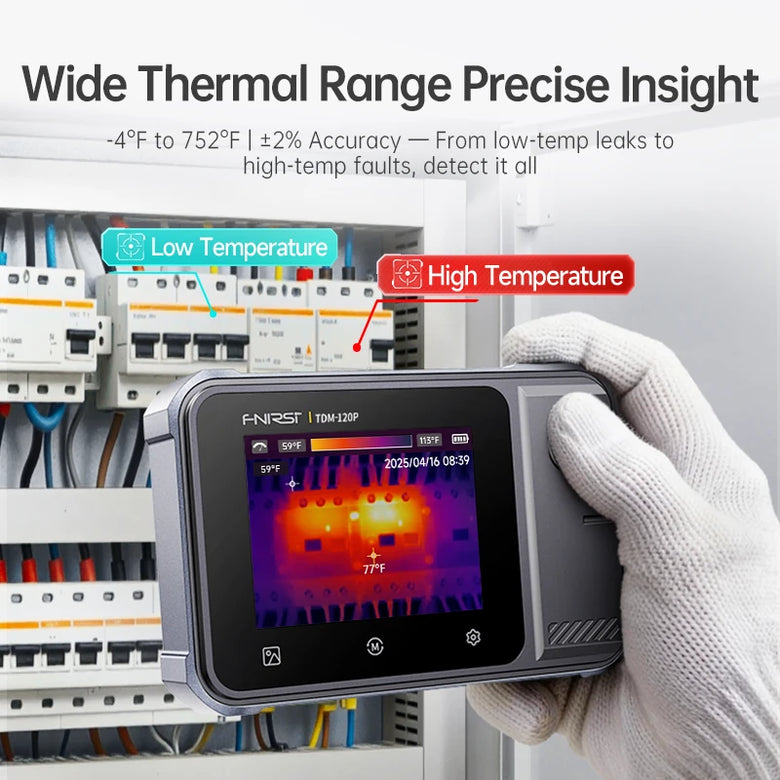

Temperature range: -4°F to 752°F
Accuracy: Take the max value at ±2°C or ±2%

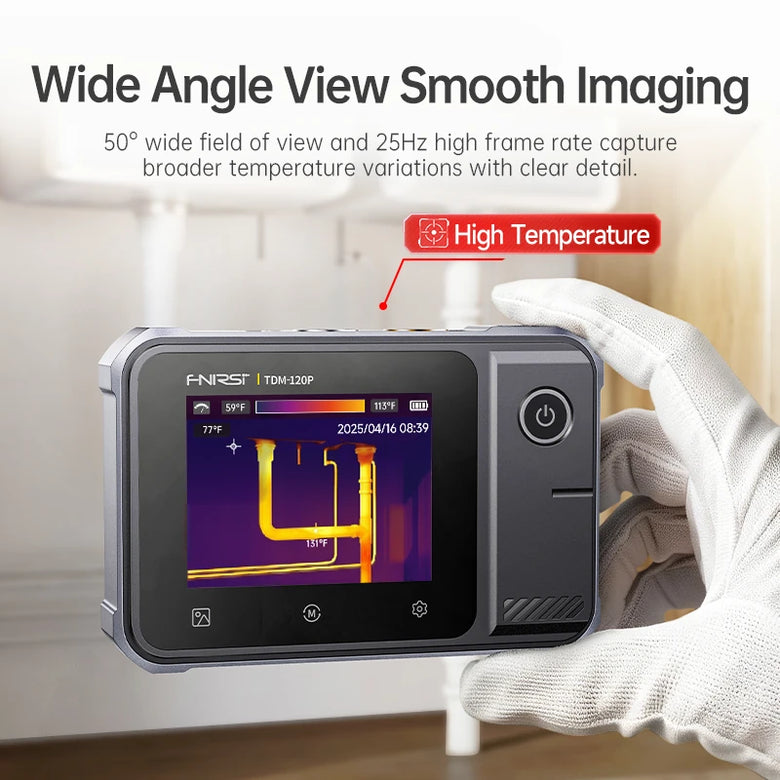

Field of view: 50°
Frame rate: ≤25 Hz
Emissivity: 0.1 – 1 adjustable

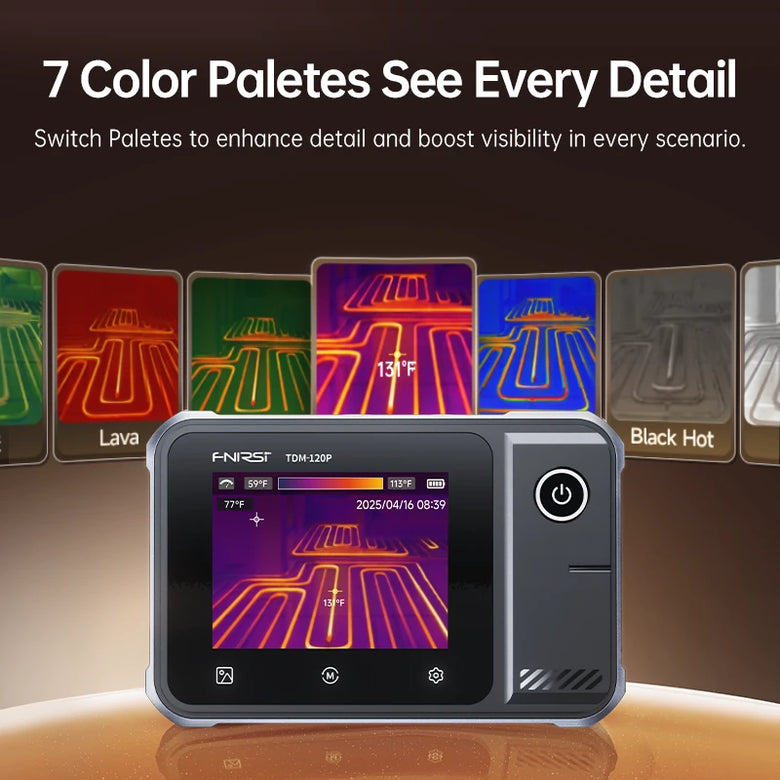

Palettes: Hot Iron, Iron Red, Rainbow,Black Hot, White Hot
Spot/Tracking: Center point, high and low temperature automatic tracking
High/Low alarm: Support
Units: °C/°F
Languages: Chinese, English
Battery: 1500mAh rechargeable
Charging/Port: USB‑C
Brightness: Adjustable
Auto power‑off: 5/10/20 min/off
Digital Multimeter (TDM‑120P only)
DC voltage: 1.9999V/19.999V/199.99V/1000V, accuracy ±(0.5%+3)
AC voltage: 1.9999V/19.999V/199.99V/750.0V, accuracy ±(1%+3)
Resistance: 19.999MΩ/1.9999MΩ/199.99KΩ/19.999KΩ/1.9999KΩ/199.99Ω
Capacitance: 999.9μF/99.99μF/9.999μF/999.9nF/99.99nF/9.999nF/9.999mF/99.99mF
Functions: Diode test, Continuity Test
Features:
1. 120×90 IR core with 50° FOV, quickly highlights heat patterns.
2. Touch‑friendly 2.8' interface, auto hot/cold spot tracking, high/low temperature alarms.
3. Compact body with 90° foldable stand, adjustable brightness, pocket‑sized design.
4. 1500mAh rechargeable battery, USB‑C charging, auto power off.
5. TDM‑120P adds multimeter functions: measure AC/DC voltage, resistance, capacitance, diode test, continuity test.
Package Included:

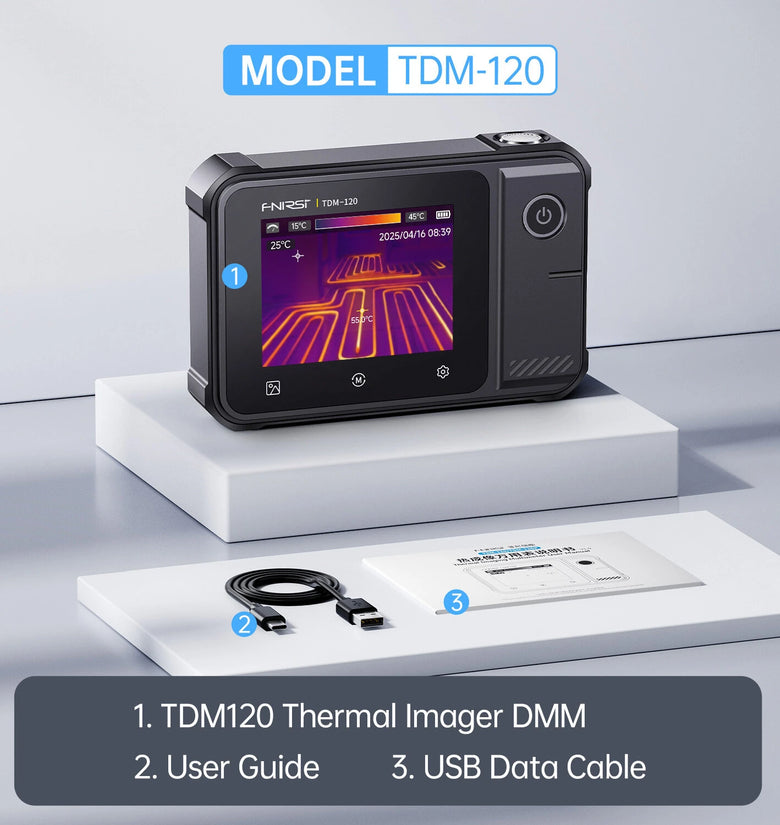

TDM‑120:
1 x TDM‑120 Thermal Imager DMM
1 x USB Data Cable
1 x User Guide

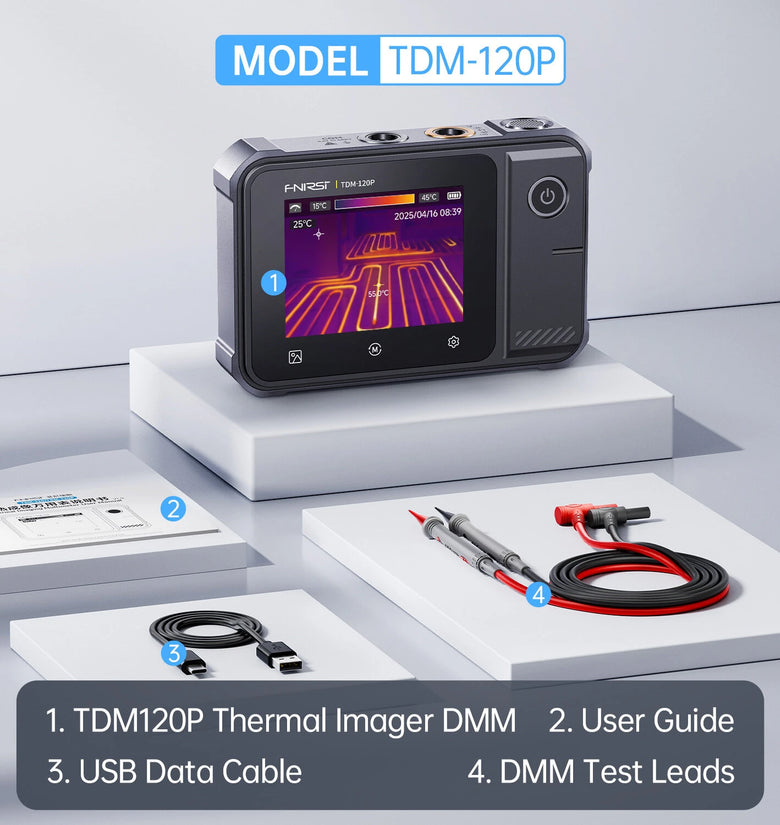

TDM‑120P:
1 x TDM‑120P Thermal Imager DMM
1 x USB Data Cable
1 x DMM Test Leads
1 x User Guide
