Features:

• Adopt the Direct Digital Synthesizer (DDS) technology and provide stable, precise, pure and low distortion signals.

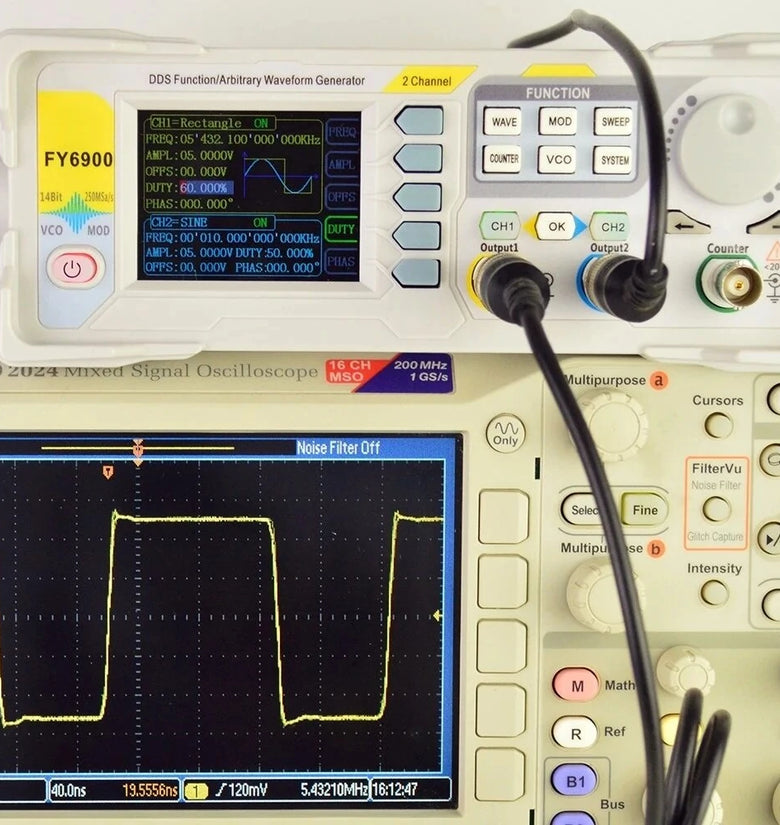

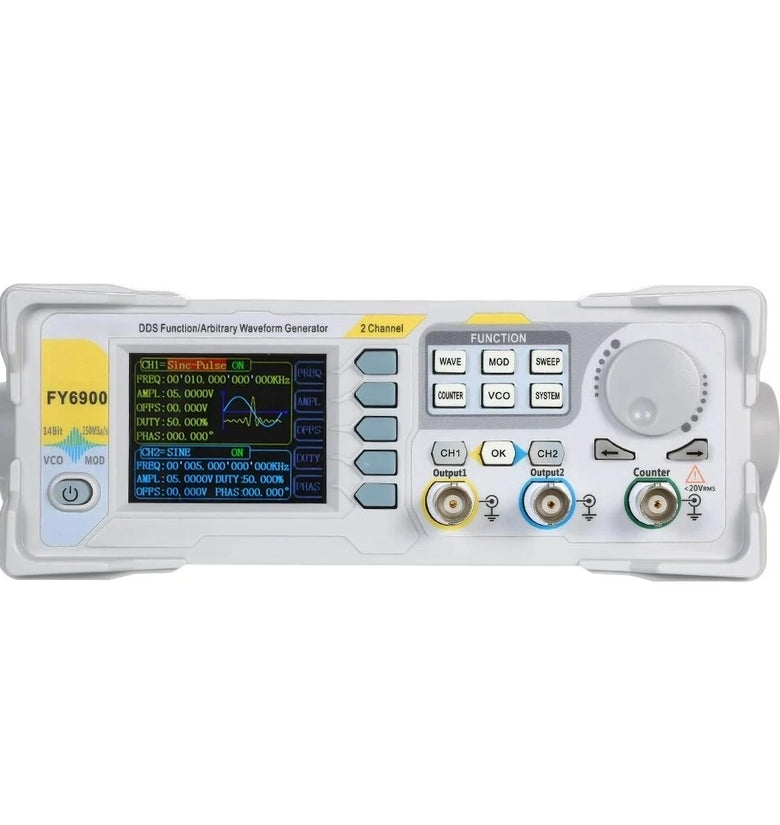

• 2.4 inch TFT color LCD with 320*240 resolution, simultaneously display parameters and graphics of CH1 and CH2.
• Adopt MagicPulse Technology, Low Jitter(RMS)<200ps.
• The instrument uses 14-bit high-speed D/A converter chip (5Vpp output quantization error is less than 1mV), 250MSa/s sample rate, 14bits vertical resolution.
• Can output up to 99 groups of functions / arbitrary waveform, contains 35 groups of preset waveforms and 64 groups of user-defined waveforms. Preset waveforms: Sine, Square (Duty Cycle adjustable), Pulse (Pulse width and cycle time can be set accurately), Triangle/Ramp, CMOS(0～12V), Four channels TTL, Exponential Rise, Exponential Fall, Noise, ECG, DC etc.
• Enable to store 64 arbitrary waveform data files, each one of waveform storage depth 8192 points * 14bits; (The longer the waveform storage depth, the more detail the waveform is saved, and the signal details can be restored with high precision.)
• Various modulation types: AM, FM, PM, ASK, FSK and PSK modulations.
• Sweep Function: it can sweep 4 properties of signals including frequency, amplitude, offsets and duty cycle; It has Linear and Logarithm two sweep types; 0.01S～999.99S sweep time; Up, Down and roundtrip sweep directions.
• VCO Function (Voltage Control Output): can be achieved by an external input signal: voltage controlling frequency, voltage controlling amplitude, voltage controlling offsets, voltage controlling duty cycle and PWM modulations.
• Burst Output Function: there has Manual Trigger, internal CH2 Trigger, and External Trigger for your options. It can output 1～1048575 pulse trains.
• 100M Frequency Meter Function: it can measure frequency, period, pulse width and duty cycle. Max. frequency workable is 100MHz and Min. frequency workable is 0.01 Hz.
• Counter Function: it has 2 coupling measure modes including DC coupling and AC coupling. This design can solve inaccuracy problem of AC coupling.
• Standard dual full functional channels which are equivalent to two independent generators.
• Channel SYNC Function: support waveform copy and state copy between channels.
• Support two or more signal generators connected to achieve multi-channel output, the maximum support 16-channel synchronous output, the phase between each channel can be adjusted.
• Precisely adjust the phases of the two channels. Precision can be 0.01°.
• Min amplitude resolution can be up to 1mV. Amplitude range is 0～24Vpp.
• Duty-cycle of each channel can be adjusted independently 0.01%-99.99%, the adjusting resolution is 0.01%.
• -12V～+12V DC Offsets function. Resolution 0.001V.
• Save Function: it can save 20 sets user-set parameters and can be loaded at any time.
• Communicating Function: all functions can be controlled by PC program and the communication protocol is open for secondary development.
• Output Short-circuit Protection: all channels can work more than 60 seconds when the load is short-circuited.
• Provide powerful waveform editing PC software. Users can download arbitrary waveform to this instrument after edit through PC program which is included in user CD.

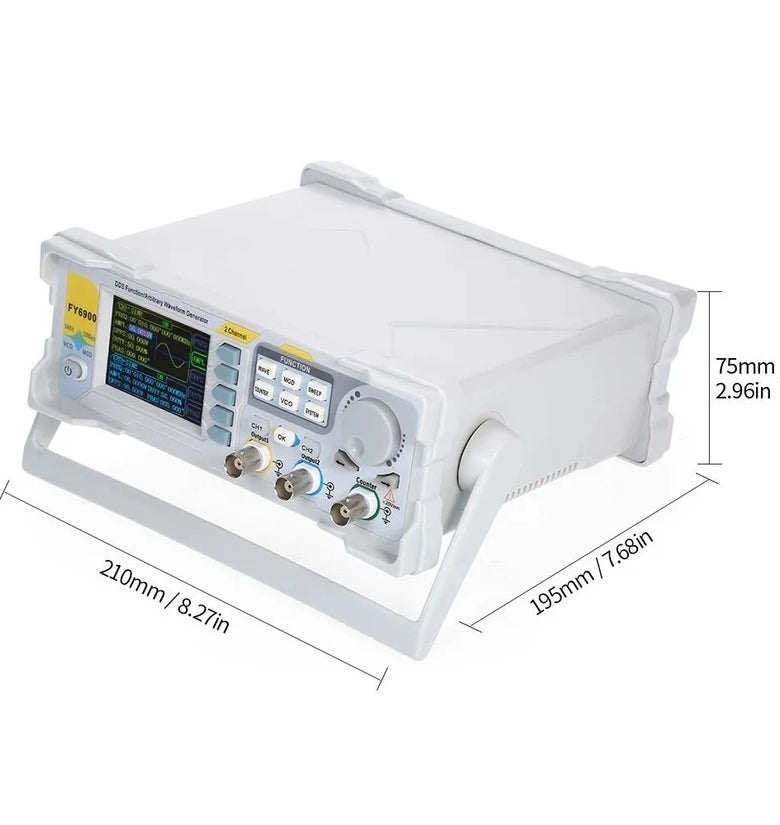

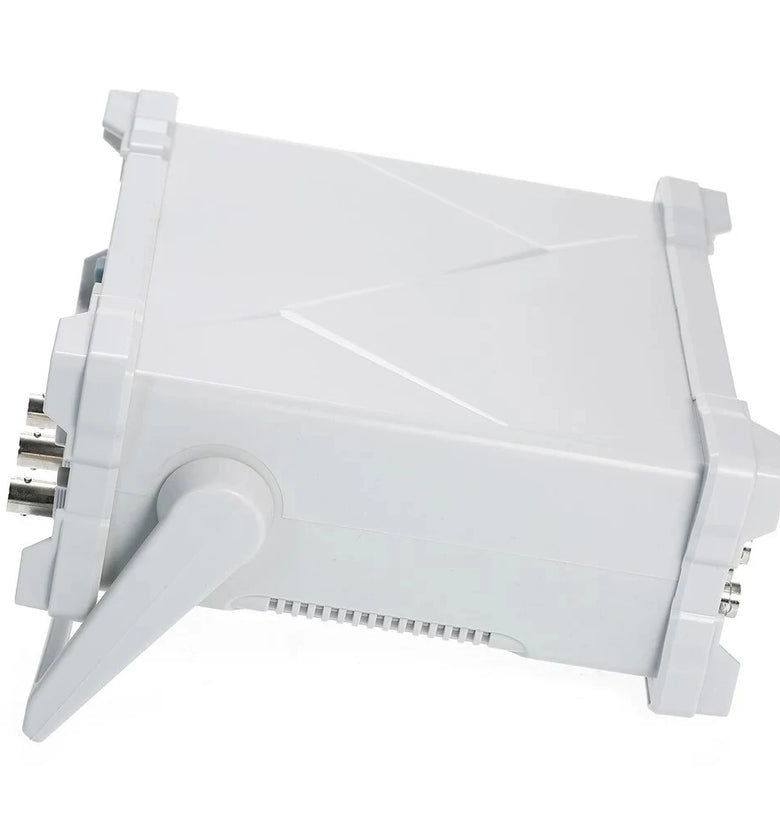

• Adopt ABS plastic shell with table type design. Use 100-240V (AC) wide range voltage power supply.

  Specification:

Plug Type: AU / EU / US / UK (Optional)
