Description:
Integral injection molding makes the usage more flexible and the oscilloscope able to adapt more testing situations. Attenuation ratio: 1x and 10x optional. Compatible with domestic and international digital and analog oscilloscopes in relevant frequency.
Integral injection molding makes the usage more flexible and the oscilloscope able to adapt more testing situations. Attenuation ratio: 1x and 10x optional. Compatible with domestic and international digital and analog oscilloscopes in relevant frequency.
Features:
High quality and reliable.
Attenuation ratio: 1× and 10× adjustable.
Portable design according with ergonomics.
Integral injection molding makes the usage more flexible and the oscilloscope able to adapt more testing situations.
Safety standards: it has passed the CE Attestation of European Community.
Application Fields:
Compatible with domestic and international digital and analog oscilloscopes in relevant frequency.
Measurement in intermediate and low frequency signals.
Specifications:
Color: Black + Grey
Type: PP-80 / PP-150
Attenuation: x1 x10
Input Resistance: 1MΩ: 10MΩ
Input Capacitance: x1: 85pF-115pF
x10: 18.5pF-22.5pF
Compensation Range: 15pF ~ 35pF
System Bandwidth: x1: DC-5MHz
x10: DC-100MHz
Input Voltage: x1: <200V DC +Peak AC
x10: <600V DC +Peak AC
Operating Temperature: -10℃~ +50℃ / 14℉~ 122℉
Non Operating Temperature: -20℃~ +75℃/ -4℉~ 167℉
Humidity: ≤85% (Relative Humidity)
Cable Length: 120cm / 47.2in
Item Size: Approx. 17 x 2 x 2cm / 6.7 x 0.8 x 0.8in (ONLY Probe)
Item Weight: Approx. 49.1g / 1.7oz
Package Size: Approx. 20 x 13 x 2cm / 7.9 x 5.1 x 0.8in
Package Weight: Approx. 74g / 2.6oz

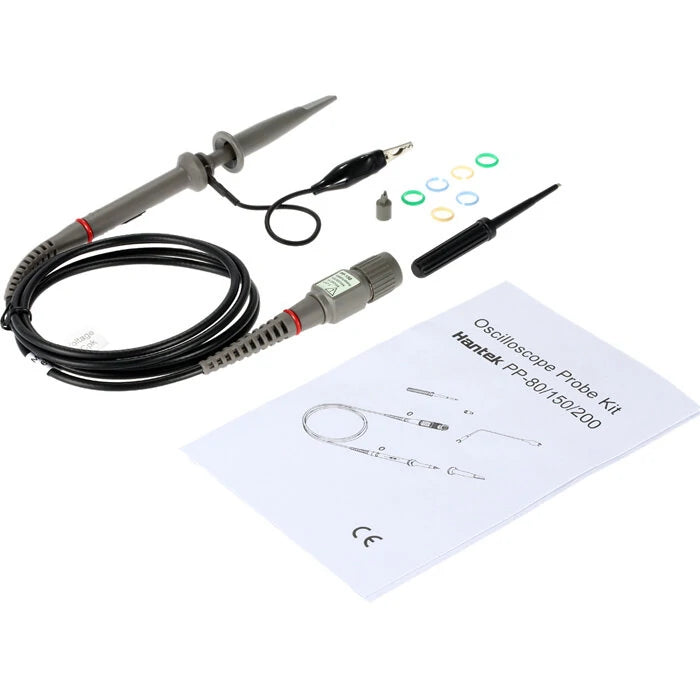

Package included:
1 x Oscilloscope Probe

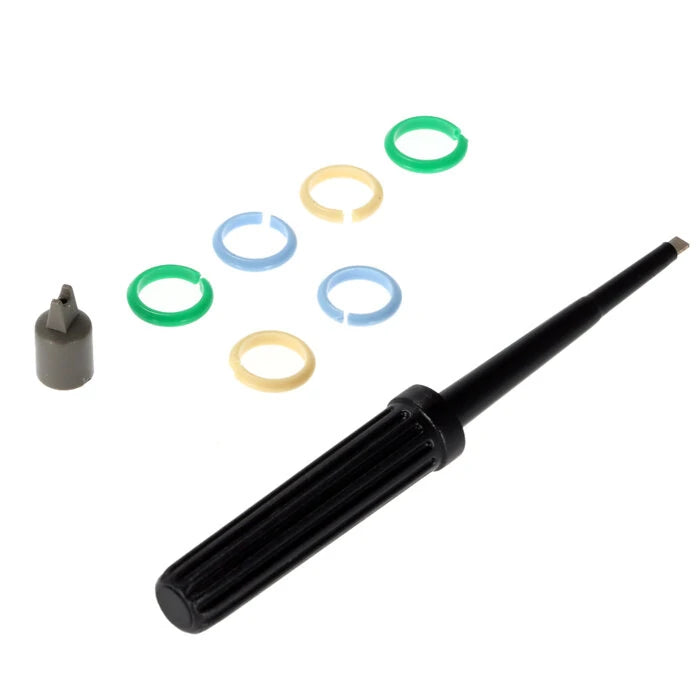

1 x Adjustment Tool
1 x Tip Locating Sleeve
6 x Color Circle(send by random!)
1 x User Instruction

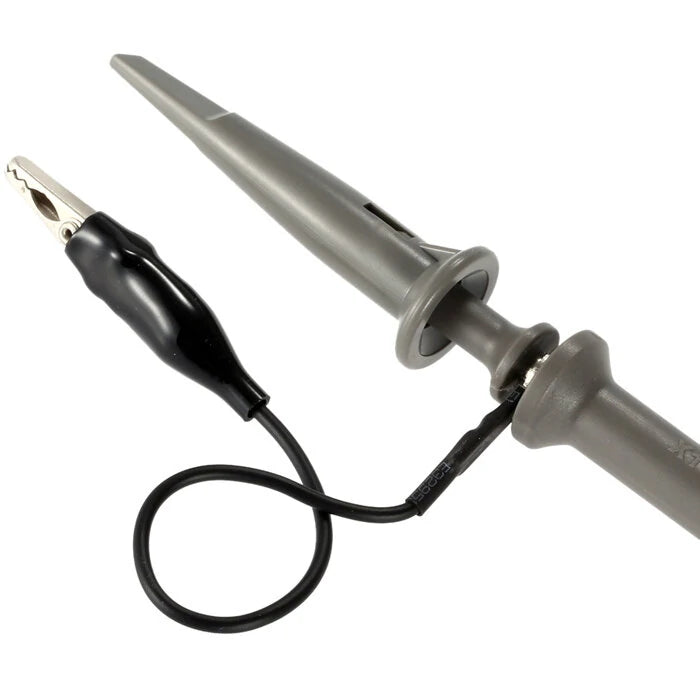

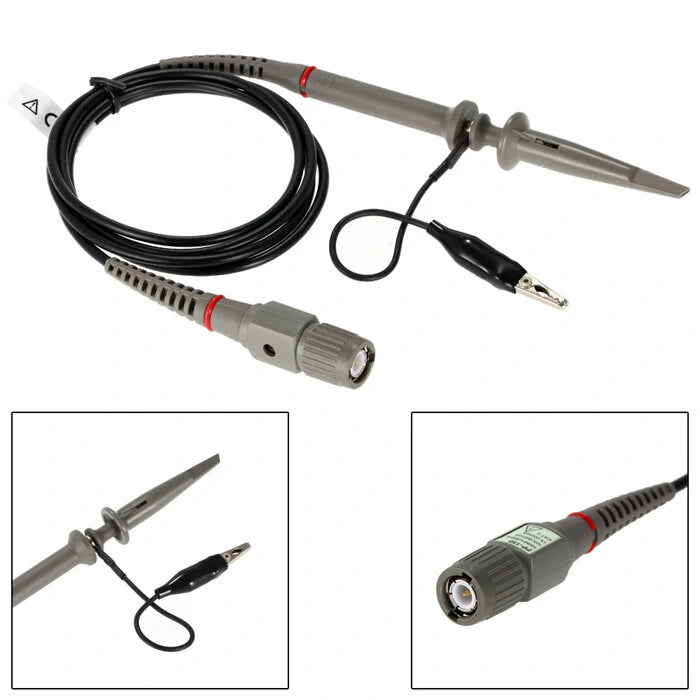

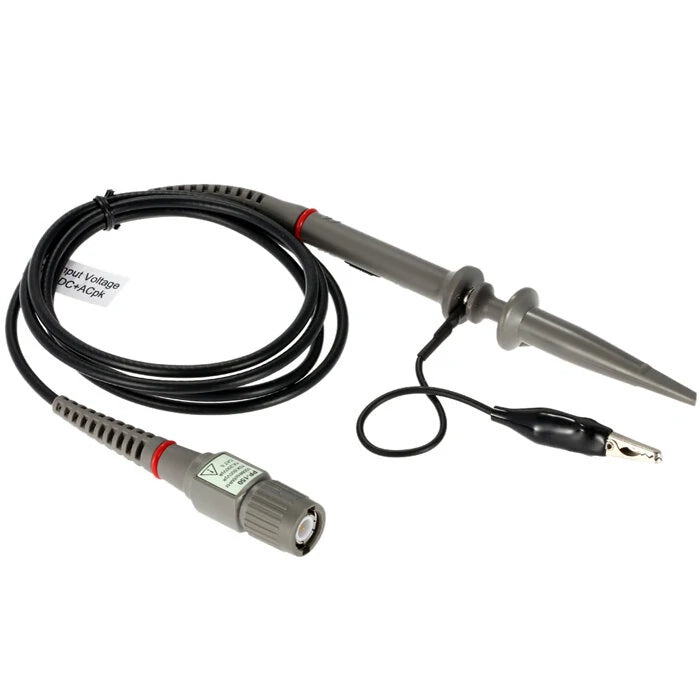

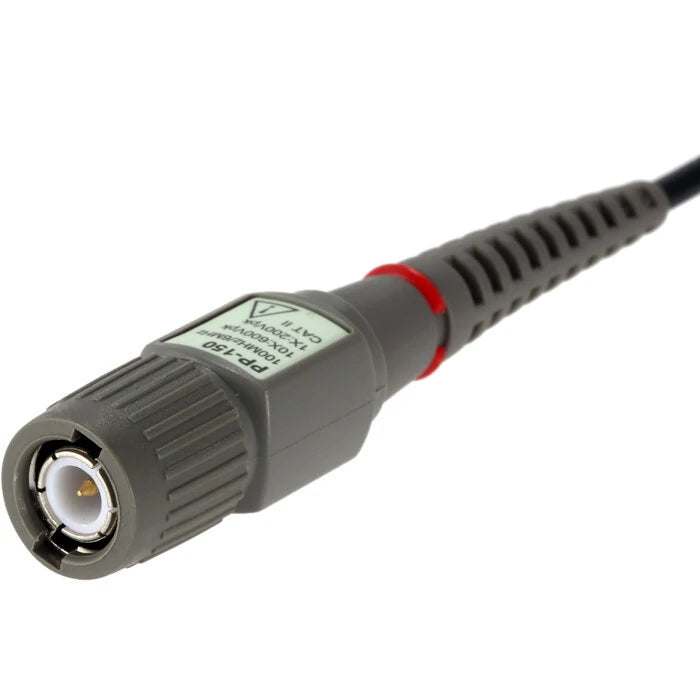

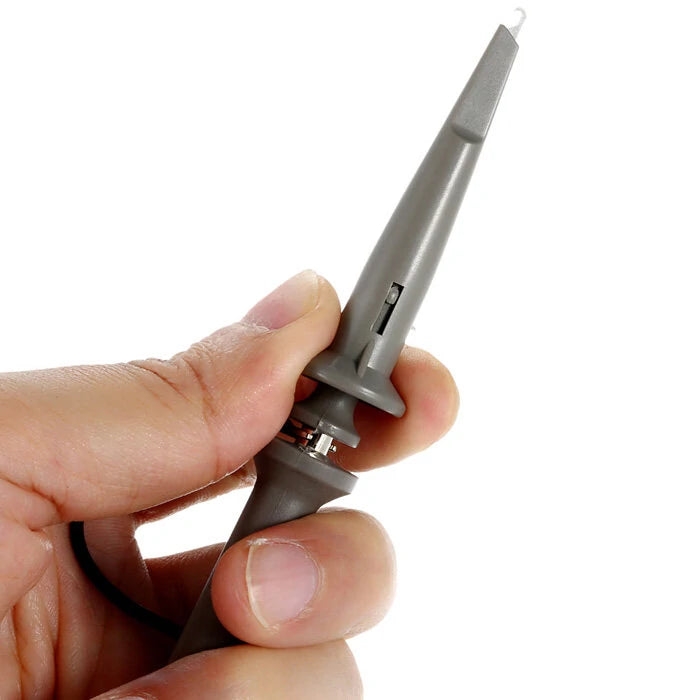

Detail Pictures:
Detail Pictures:
