Features:
1. Widely used in the fields of microelectronics, molds, jewelry, printing, mobile phone repair schools, etc.
2. Especially suitable for observing the surface microstructure of large objects.
3. Using high quality materials, strong and durable, has a long service life.
4. HD camera with 48 megapixel CMOS sensor 1/2.9 inch, with HDMI USB port.
5. Strict quality control and quality assurance, high safety factor, can be used with peace of mind.
Specification:
Item Type: Microscope Camera
Module: 2307D
Sensor: 48MP CMOS
Optical Format: 1/2.9inch
Pixel Size: 1.335μmx1.335μm
Interface: HDMI (Type A). USB (Type B). Small memory card
HDMI Image Resolution: 48MP
Video Resolution: 2K at 30FPS 1080p at 60FPS
HDMI Resolution: 1920 x 1080p 60FPS
HDMI Scale: Support 4: 3,16: 9,16: 10 screen
USB2.0 (Drive Free): 1920 x 1080 at 30FPS 1280 x 720 at 30FPS 640 x 480 at 30FPS
Small Memory Card: Up to 128GB (not included)
AWB: AWB color correction/automatic/manual
R.G.B value setting independent
Exposure: Automatic/manual. AE value can be set
Cross Line: 8 lines, color, width, position can be set
Scale Line: 2 lines.
Dotted Line: 2 lines, color, width, position can be set
Sharpness Contrast Color Gain: Support
Mono Negative Film: Support
Mirror: Horizontal and vertical mirror
Language: English/Simplified Chinese/French/Spanish/Japanese/German And other languages.
Digital Zoom: Support
Infrared Remote Control: Support
Voltage Input: DC 12V
Power Supply Voltage: Input: AC100-240V
Output: DC12V
Power Consumption: Maximum 0.15W 12V, 0.12A
Lens Interface: C/CS port
Remote Control Battery: 1 x CR2025 button battery

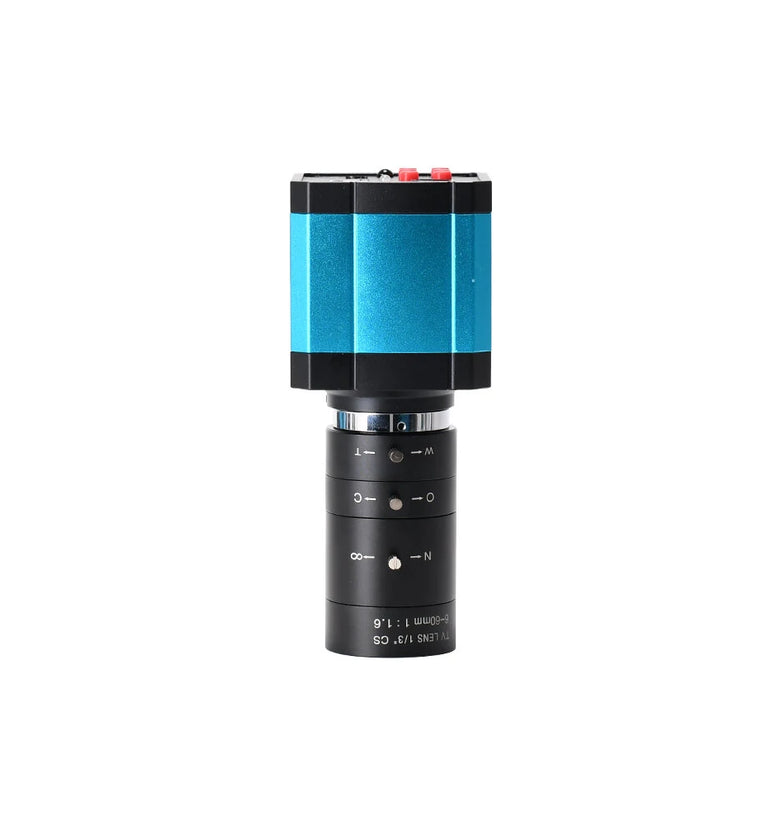

6-60mm Feature:
Image Format: 1/3'
Focus Length: 6-60MM
Aperture: F1.6
Mount Type: CS Type
Angle of View: 44.8°-4.6°
Minimum photographic distance: 0.2
Problem Solution:
LCD no video or flickering
1. Check the power supply. Check if the red LED lights up. Press PowerKey to move it up.
2. Check the lens cover. Increase lighting.
LCD has black bars and image distortion
1. Change the resolution of LCD
2. Change the camera resolution
Dirty spots
1. Check the camera and lens, find the dust, and then cleanly it with absolute ethanol or detergent

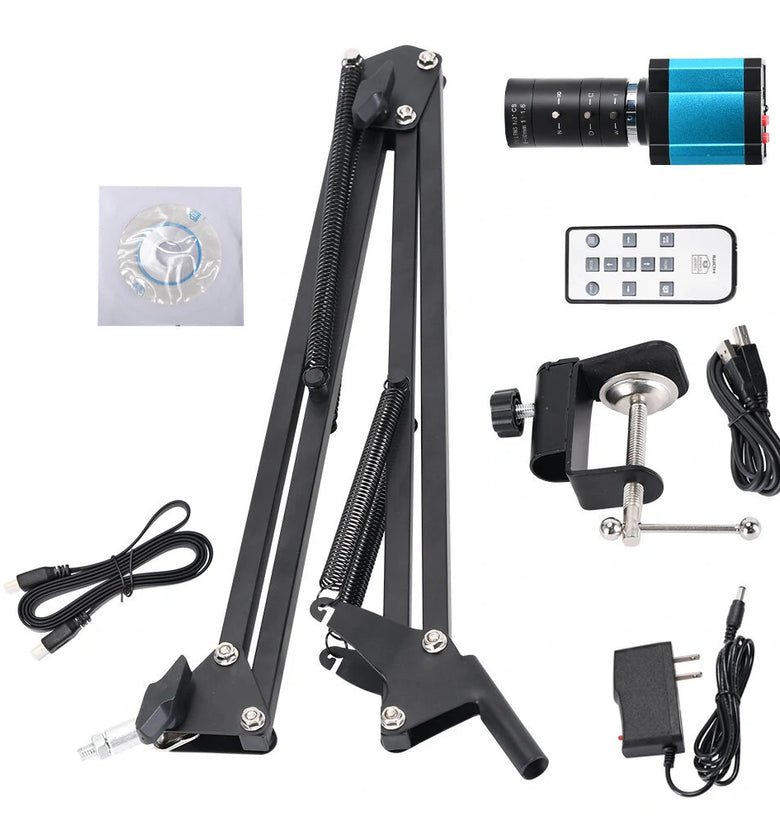

Package includes:
1 x 48MP Microscope Camera
1 x HDMI Cable
1 x USB Cable
1 x IR Remote control
1 x Power Adapter (EU Plug)
1 x Stand
1 x 6-60mm Lens
Details Pictures:
