The brass roller is a consumable. If you need to purchase it, please click the link: ID:2026507

Features:

Integrated Blade Positioning Tool: Set the blade angle in one step and slide out the quick angle positioning tool after clamping the blade.

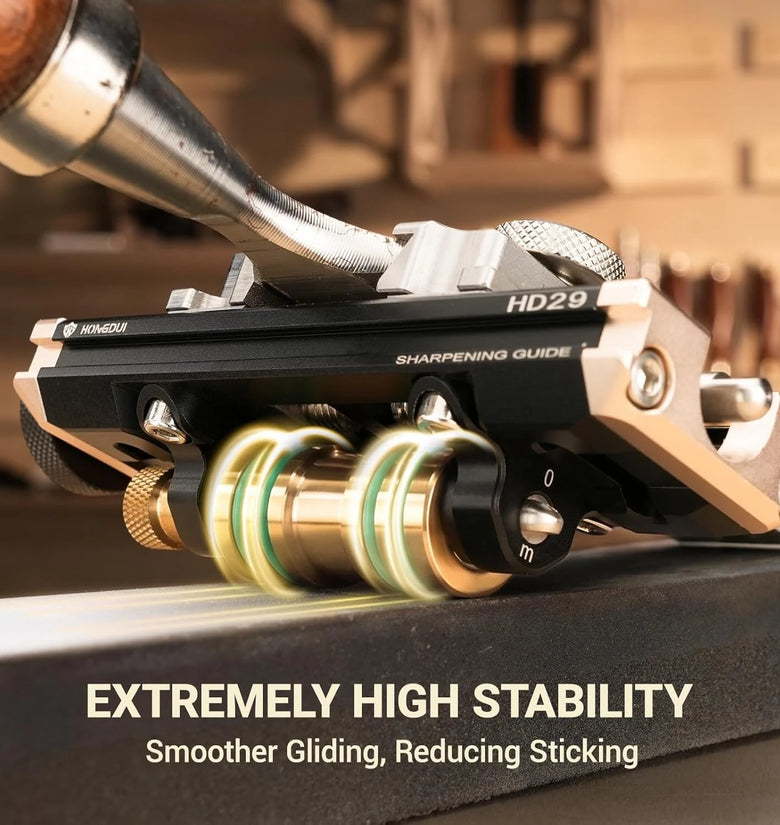

Three-position Eccentric Roller: Three positions Simply pull back on the knob and turn to add a micro bevel to any angle setting.

Innovative Design, Unique: extended working plane, comfortable grip, high clamping accuracy, plane verticality 0.05, clamp hardness HRC40, strong and sturdy.

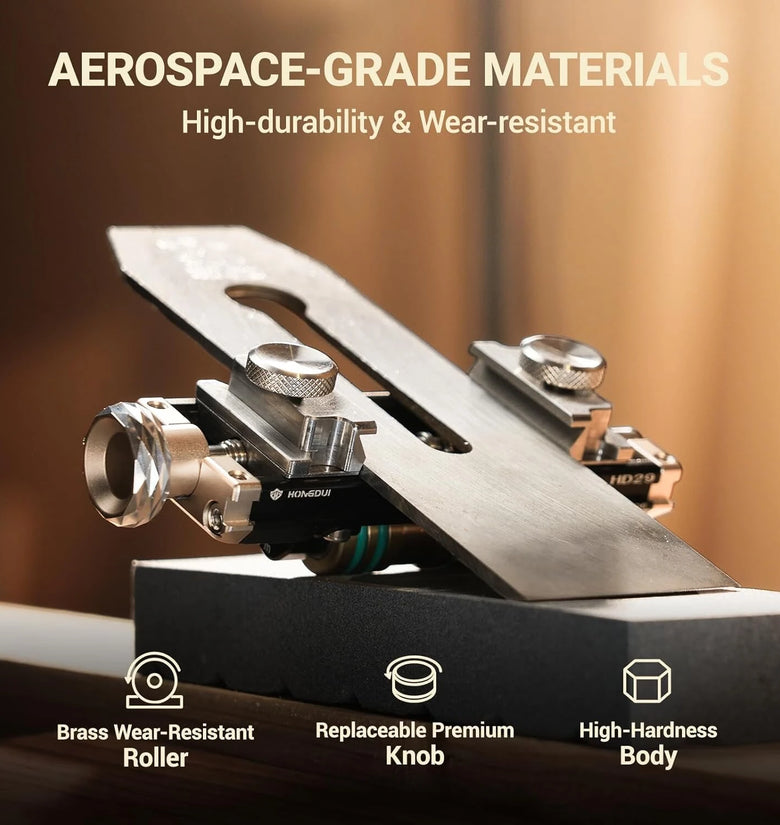

Sturdy Material: The whole 7075 aluminum alloy frame, anodized surface. The screw rod and metal clamping parts are made of 440C medical stainless steel, with enhanced rust resistance.

Three Different Clamping Methods(Module clamping design, more expandable): 1. Lower position clamps a planer blade (maximum opening size 62mm)2. Upper position clamps a chisel (maximum clamping height 9mm)3. Rotating the position allows for unlimited clamping height

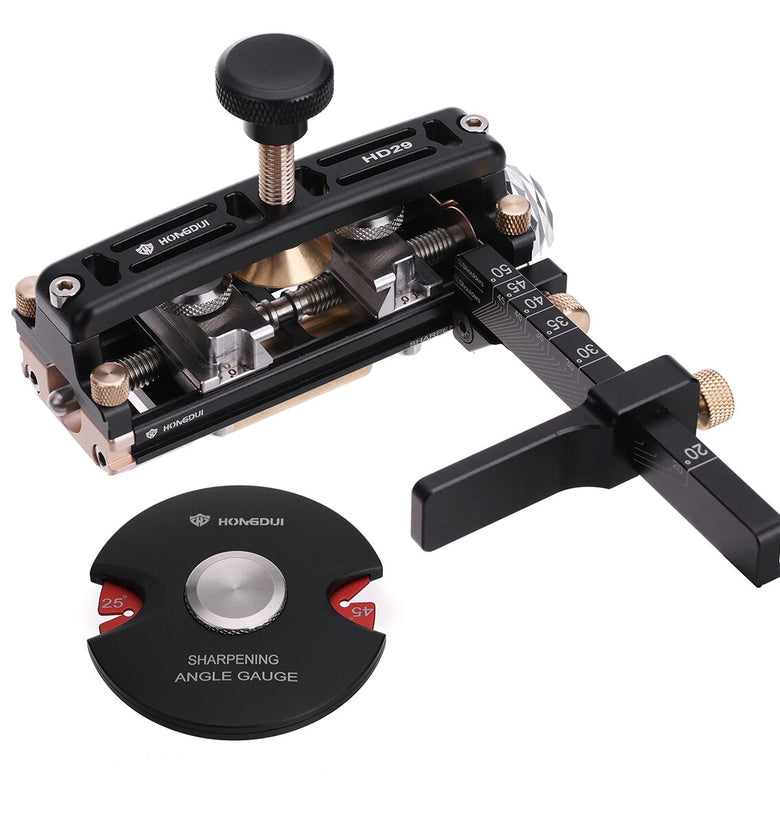

Angle Guage:
Insert the blade into the appropriate notch to obtain the reference angle. The notches for angles are 15º, 20º, 25º, 30º, 35º, 40º, 45º, and 50º

Unique gyroscopic angle reference plate, also a good decompression tool.

Setting The Angle(How to use the quick angle positioning tool):
The angle sharpened on your tool is determined by how much of the tool extends beyond the front edge of the Sharpening Guide. The more the tool extends beyond the Sharpening Guide, the longer the bevel (smaller angle).

Extension Jaw(Long Jaw Pair):

These jaws are reversible. The short end hones a bevel up to 35° and the long end hones a bevel up to 30°.

Sharpening Fixture:

It can be used when the blade or handle is not flat and cannot be clamped with the clamping module.

Notes:

A flat object such as a ruler can be used for quick angle setting.

Specifications:Color: Black

Material:

Main body: 7075 Aluminum Alloy(Surface anodized)

Screw rod & metal clamping parts: 440C medical stainless steel(Enhanced rust resistance)

Angle gauge reference angle: 15º, 20º, 25º, 30º, 35º, 40º, 45º, and 50º

Honing Guide Parameter:

Clamping mouth range: 0-70 mm

Clamping module can be rotated to four positions: ±18 degrees or ±30 degrees

Package Included(Optional):

1pc Option:

1 x Brass Roller/Extension Jaw

4pcs Set Option:

1 x Honing Guide

1 x Angle Gauge

1 x Sharpening Fixture

1 x Angle Quick Positioning Tool

5pcs Set Option:

1 x Honing Guide

1 x Angle Gauge

1 x Sharpening Fixture

1 x Angle Quick Positioning Tool

1 x Extension Jaw
