Specification:
Controller: STM32 V3.1S
Temperature: 50-480℃
Max Power: 120W
Display: 1.3inch
Battery: 3V
Tin Lelting Time: <8s
Battery： 3V
Case Material: Aluminum Alloy
Size: 88 x 40 x 38mm
Note:
The tip is not continuously working at high temperature, which is easy to damage the tip!
The melting point of common solder is 183℃, the melting point of lead-free solder is 227℃, and the general welding temperature is 300-380 ℃.
380°C is the boundary of temperature. When the temperature is higher than 380°C, the iron head will oxidize and lose rapidly, which will seriously affect the life of heating core
The temperature display above 380 ° C will jump, the higher the temperature, the greater the jump!
It is recommended to carry out welding at 300-380℃, most of the work can be carried out, and the temperature beating is normal, which will not affect the use!
The soldering iron used in this welding station is a brand new soldering iron head. Because the resistance of the new iron head is not stable, the temperature will jump or error, which is a normal phenomenon. After multiple use, the stability will gradually stabilize.
Package Included:

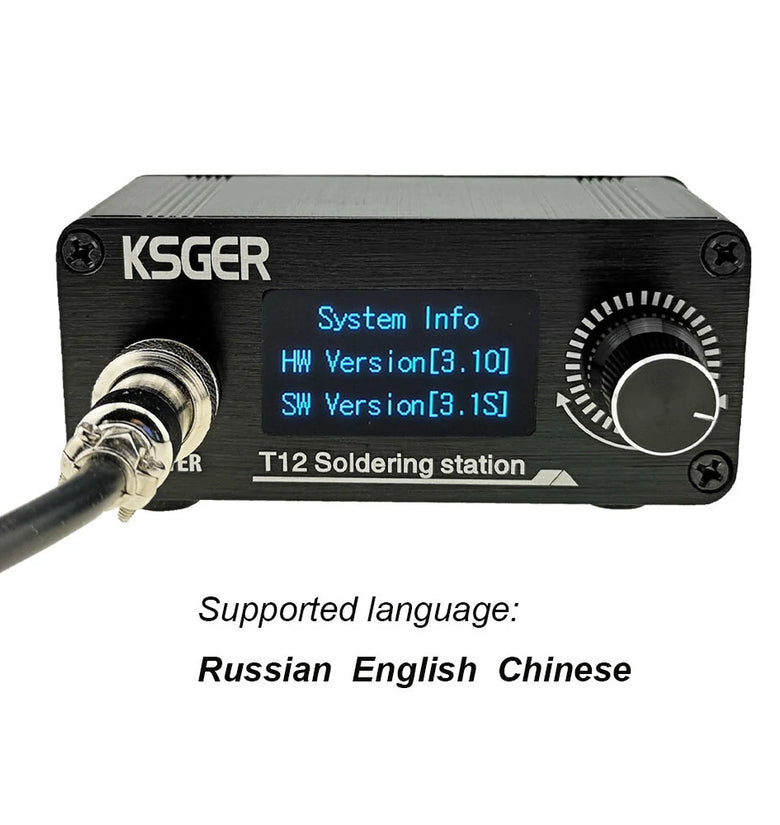

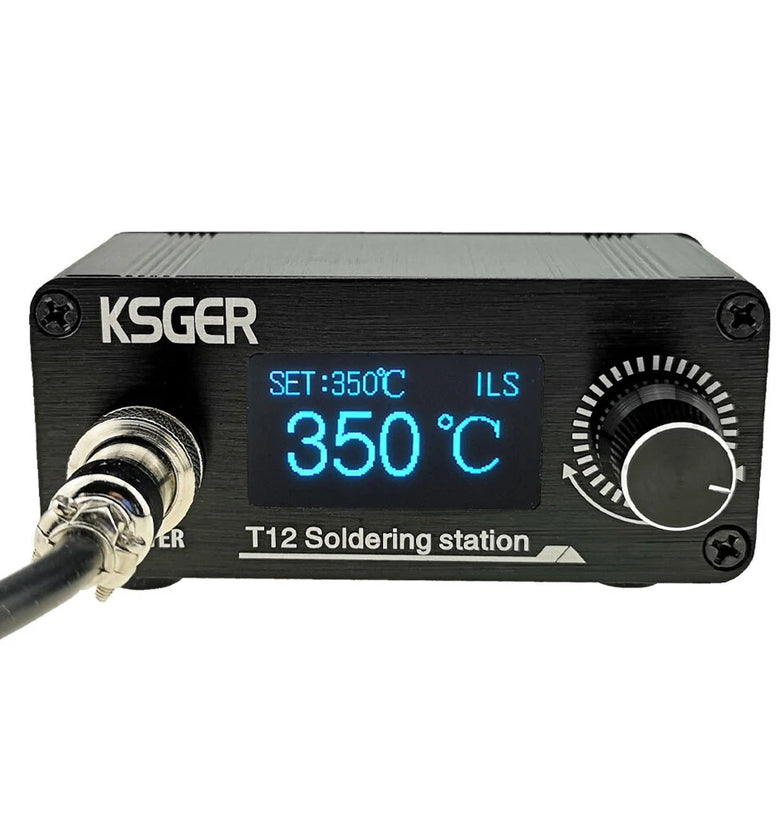

1 x KSGER Mini T12 STM32 V3.1S Welding Soldering Station

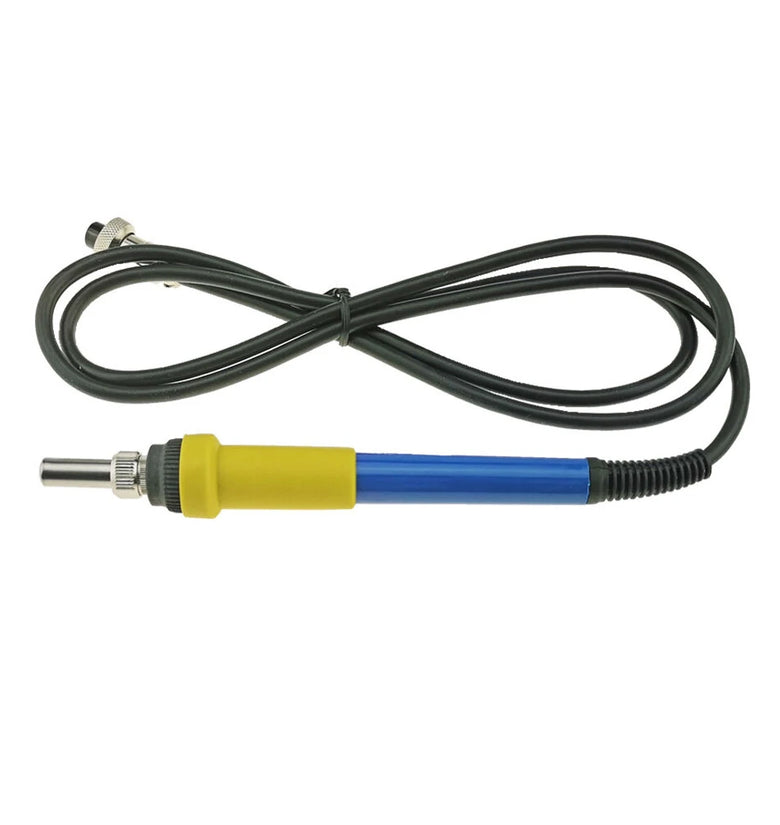

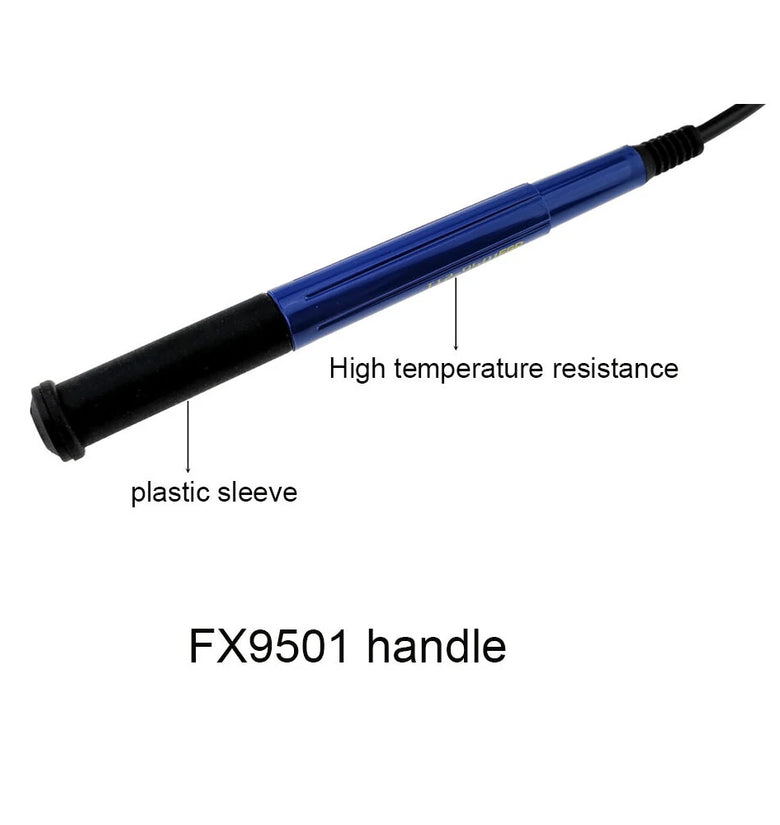

1 x Handle
1 x T12-K Soldering Tip
1 x T12-BC2 Soldering Tip
Detail Pictures:
