Suitable for:
• Engineers familiar with VNA operation and calibration procedures• Electronics labs/RF R&D teams• Geeks seeking high-quality, cost-effective products
Specifications:
Frequency Range: 100 kHz - 6 GHz
Port Type: Dual-port Vector Network Analyzer (VNA)
Connector Options: Type A (Standard Connector, enhanced heat dissipation); Type B (Flange Connector, military-grade, shockproof, anti-twist)
Measurement Stability: Optimized cooling structure for stable performance over extended measurement periods
Calibration: Includes 5 calibration adapters for precise measurements
Features:
1.Dual Version Design: Offers two configurations to meet diverse professional needs—Type A with enhanced heat dissipation and Type B with military-grade flange connectors for better high-frequency performance accuracy.
2.Wide Application Range: Ideal for RF engineers, electronic laboratories, and tech enthusiasts who work with high frequencies or VNA calibration protocols.
3.Heat Dissipation Optimization: Enhanced heat management in the Type A version ensures consistent functionality over long measurement sessions without performance drops.
4.Flange Connector Precision: Type B version features anti-twist and anti-shock military-grade connectors, built for precise measurements in demanding environments.
5.User-Friendly Software Integration: Includes software and technical documentation for efficient setup and operation, compatible with modern electronic testing workflows.
Package Included:

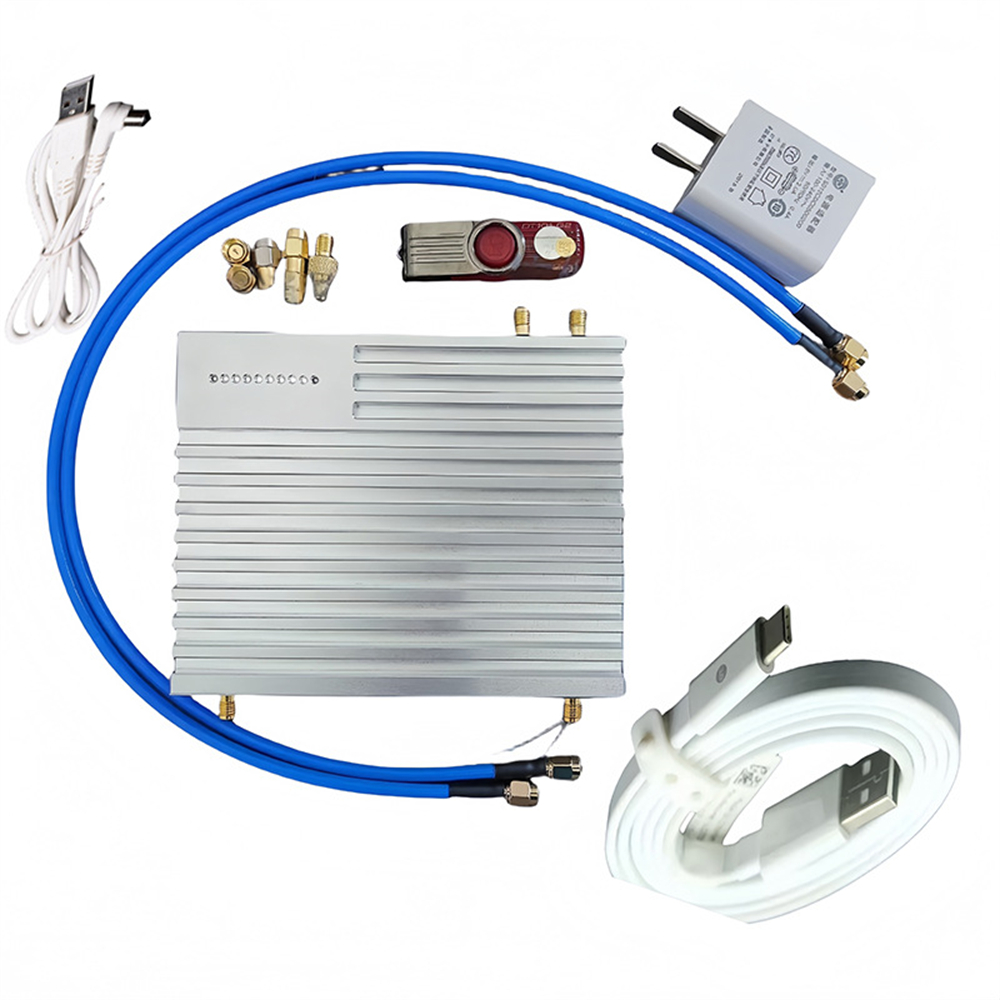

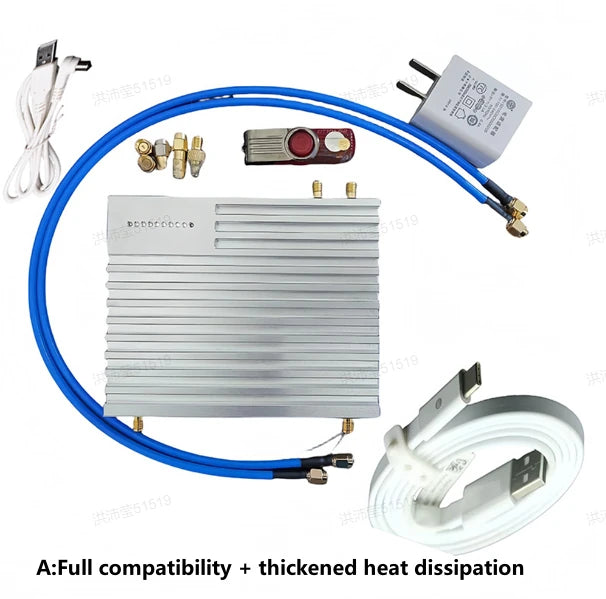

Type A:
1 x VNA (thick version with standard connectors)
2 x RF coaxial cables
5 x Calibration adapters
1 x Power adapter
1 x Data cable
1 x Software manual

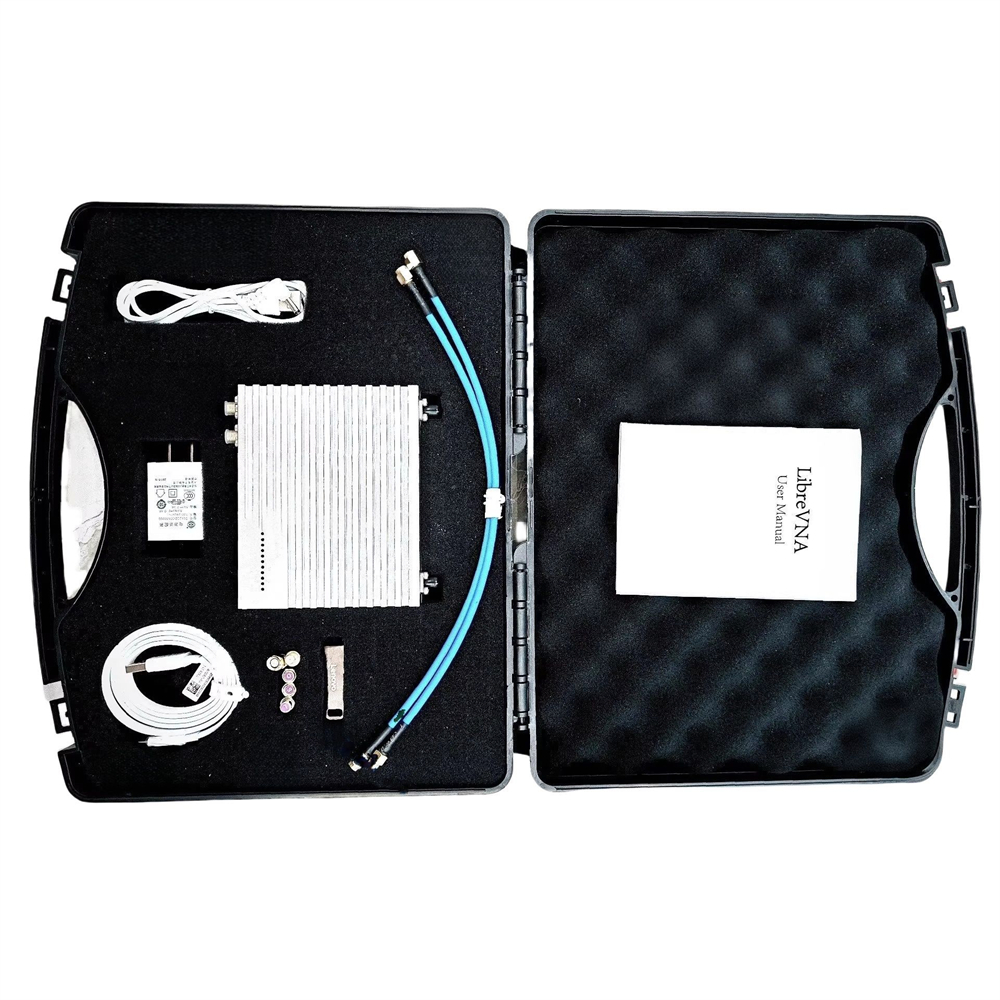

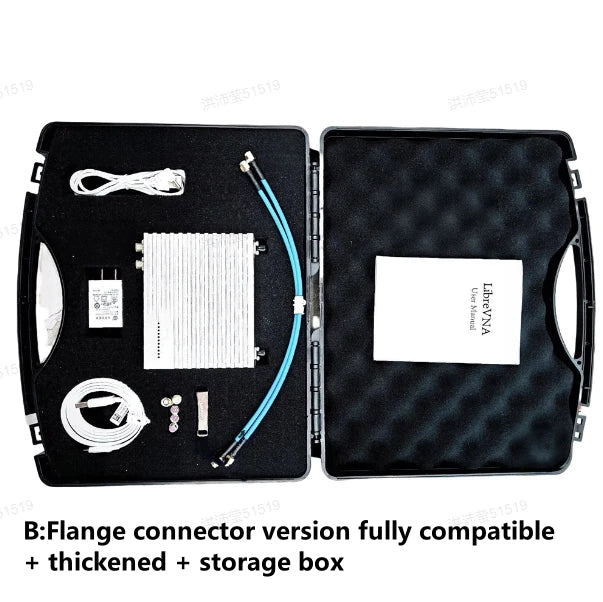

Type B:
1 x VNA (thick version with flange connectors)
2 x SMA test cables
5 x Calibration adapters
1 x Power adapter
1 x Supply cable
1 x Data cable
1 x USB drive (software materials)
1 x Instruction manual
