Specifications:
Power Supply: TYPE-C line
Module Frequency Range: 10MHz - 6GHz
Noise Figure: NF = 4-5dB (refer to the measured curve for specific frequencies)
Gain: 10dB / 20dB / 30dB / 40dB (refer to the measured curve for different frequencies)
Size: 4.5 x 3 x 1.4 cm (excluding protruding SMA)
Weight: 66g (including host and TYPE-C cable)
Current Consumption: < 100mA
P1dB: +18dBm @ 2GHz

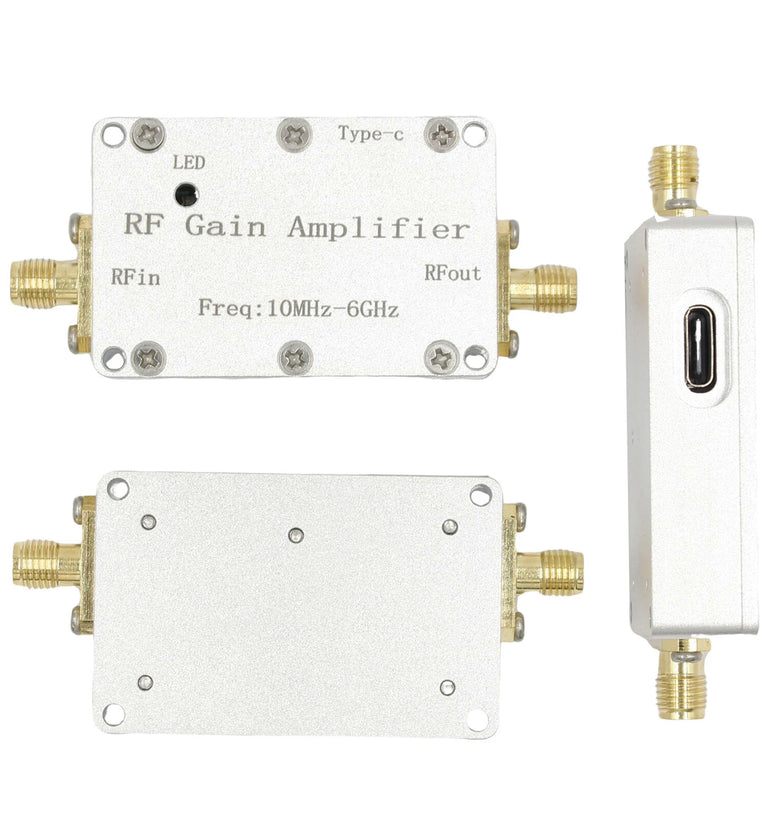

Output Interface: SMA female, input-output impedance: 50 ohms
Features:
Wide Frequency Range: Covers a range of 10MHz to 6GHz, suitable for various applications like GPS, FM radio, and radar reception.

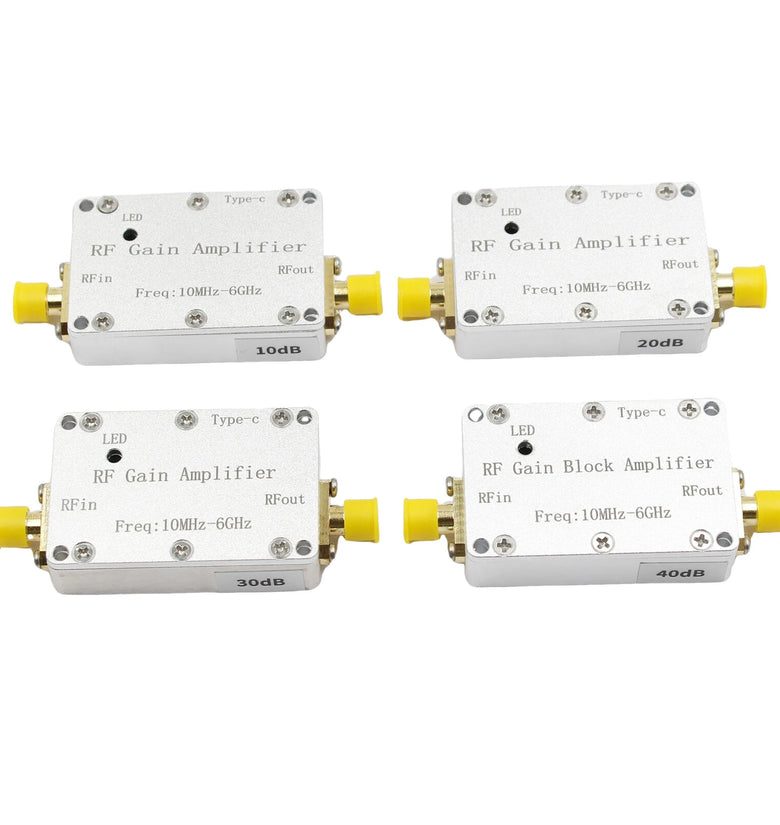

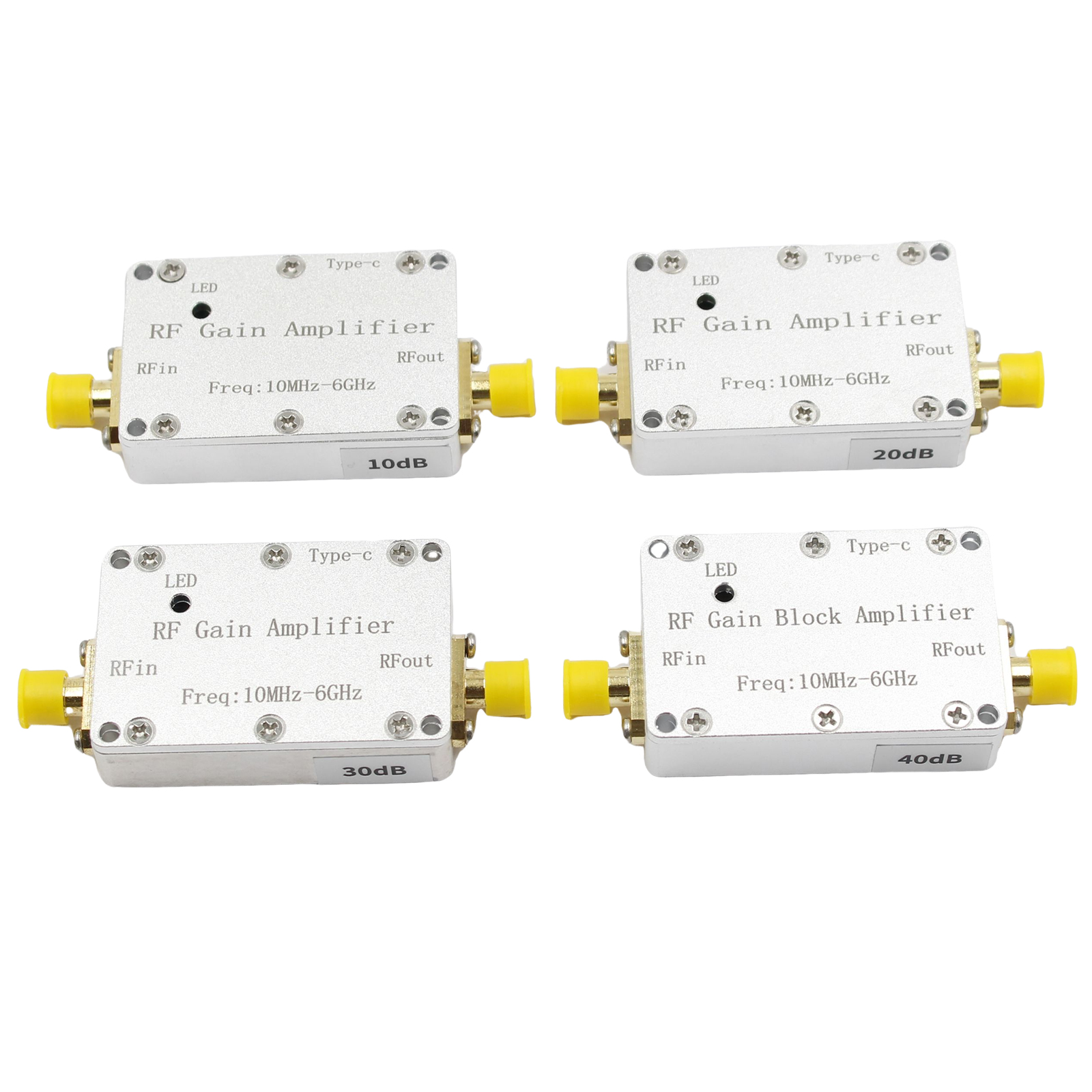

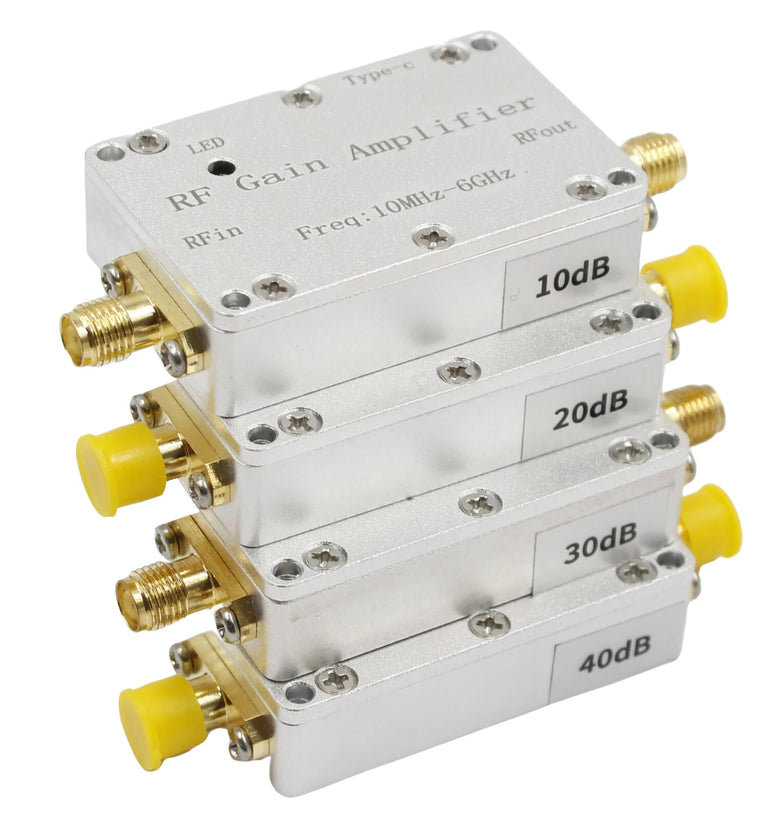

Multiple Gain Options: Available in 10dB, 20dB, 30dB, and 40dB variants, easily adaptable to your specific needs.
Low Noise Figure: Maintain signal integrity with a noise figure of 4-5dB, ensuring high performance.

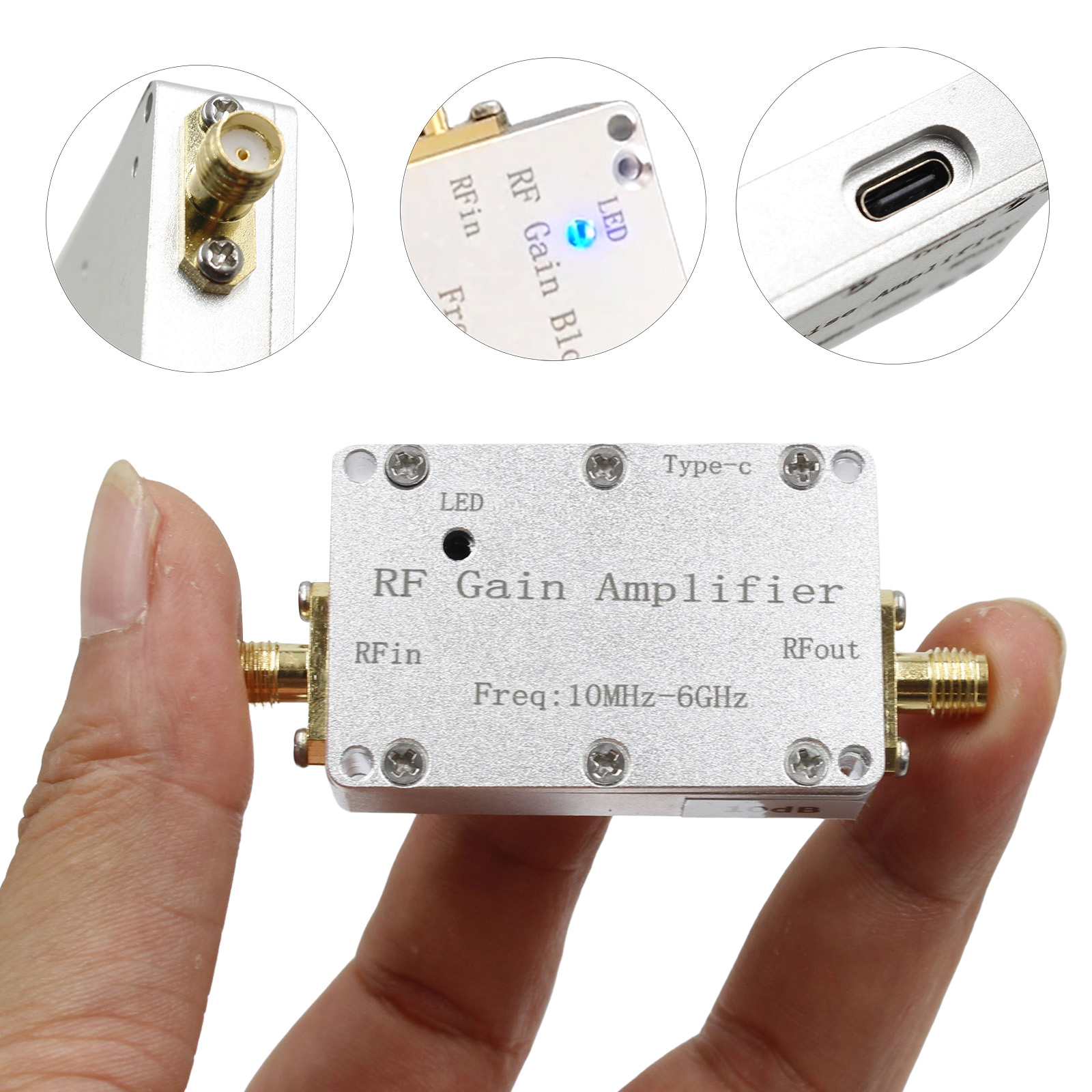

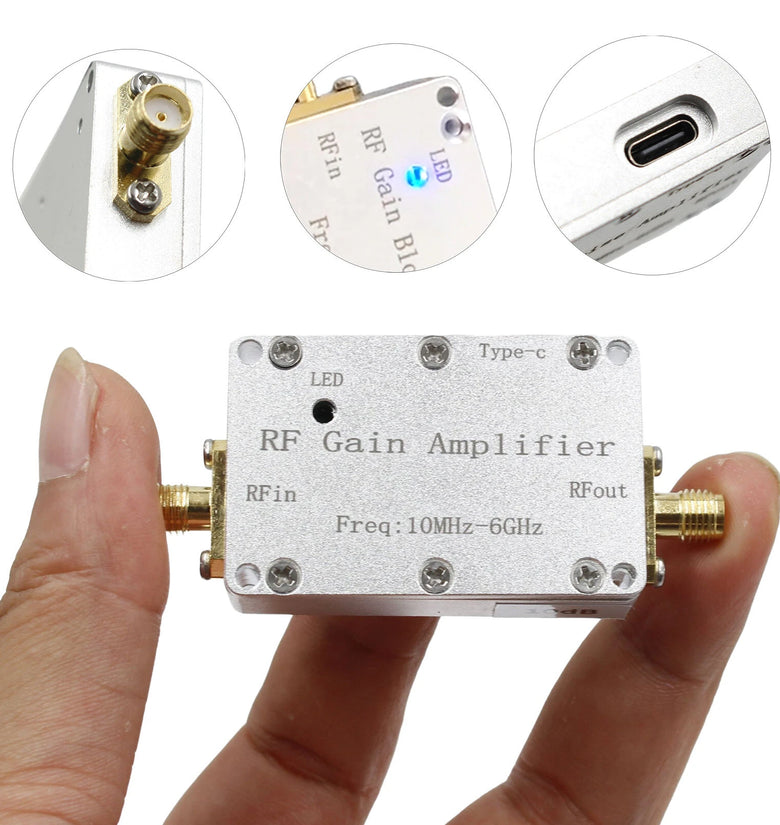

Compact and Lightweight Design: Small footprint of 4.5 x 3 x 1.4 cm and light weight of 66g make it easy to integrate.
Reliable Power Supply: Operates with a Type-C power input and consumes less than 100mA of current.
Package Included:
Type A:

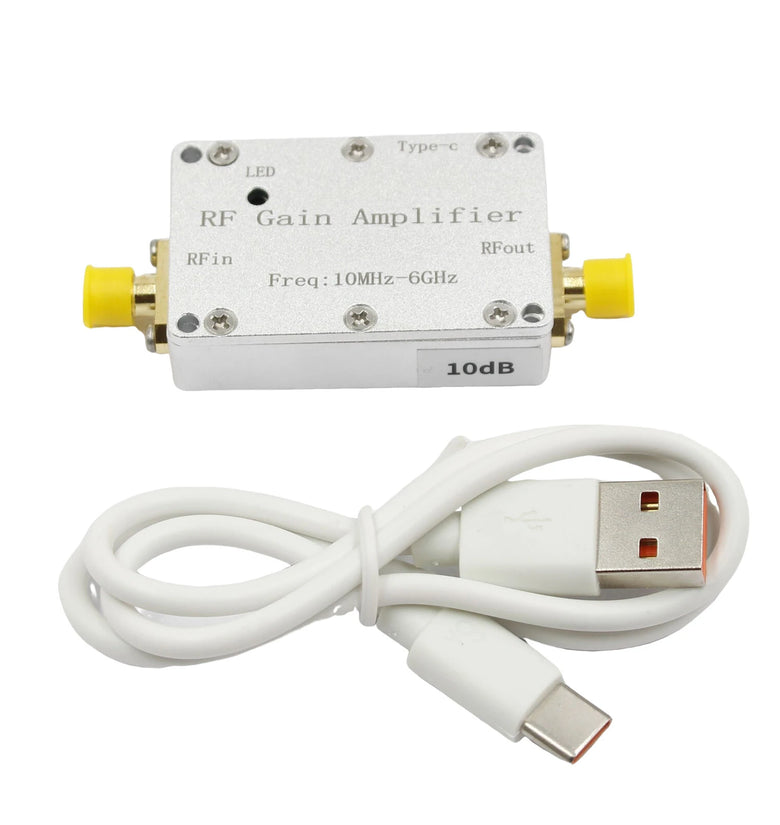

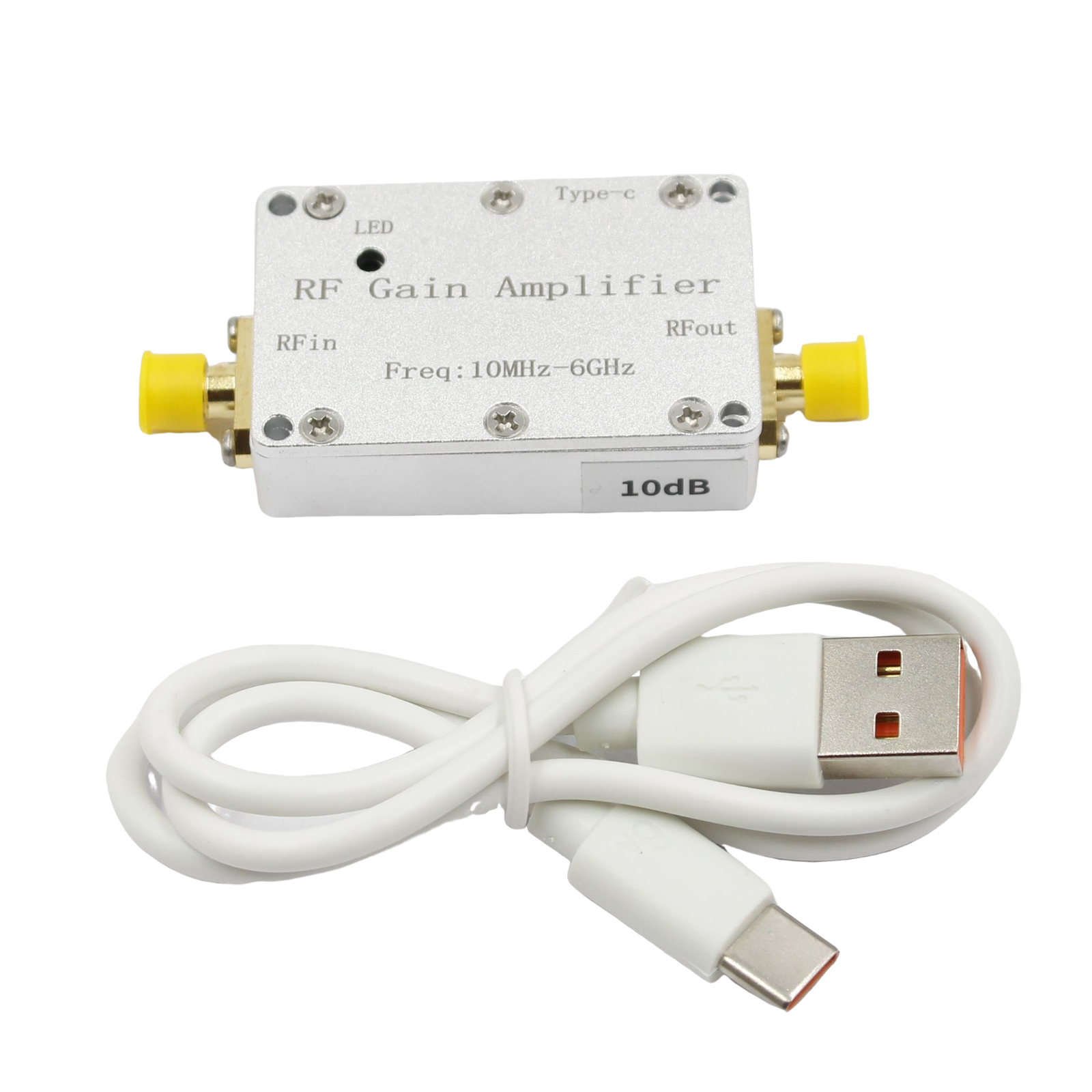

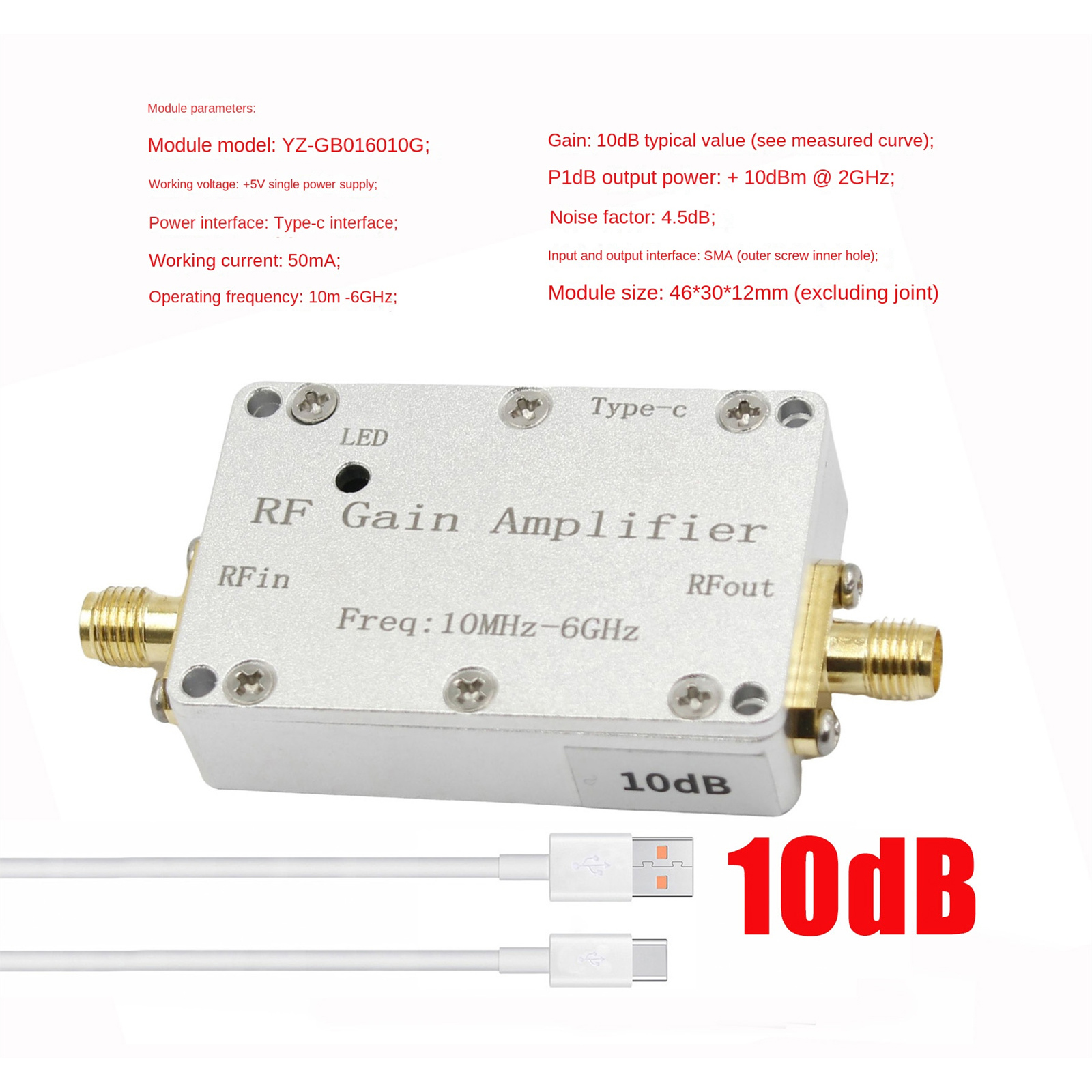

1 x 10db RF Gain Amplifier
1 x TYPE-C Cable

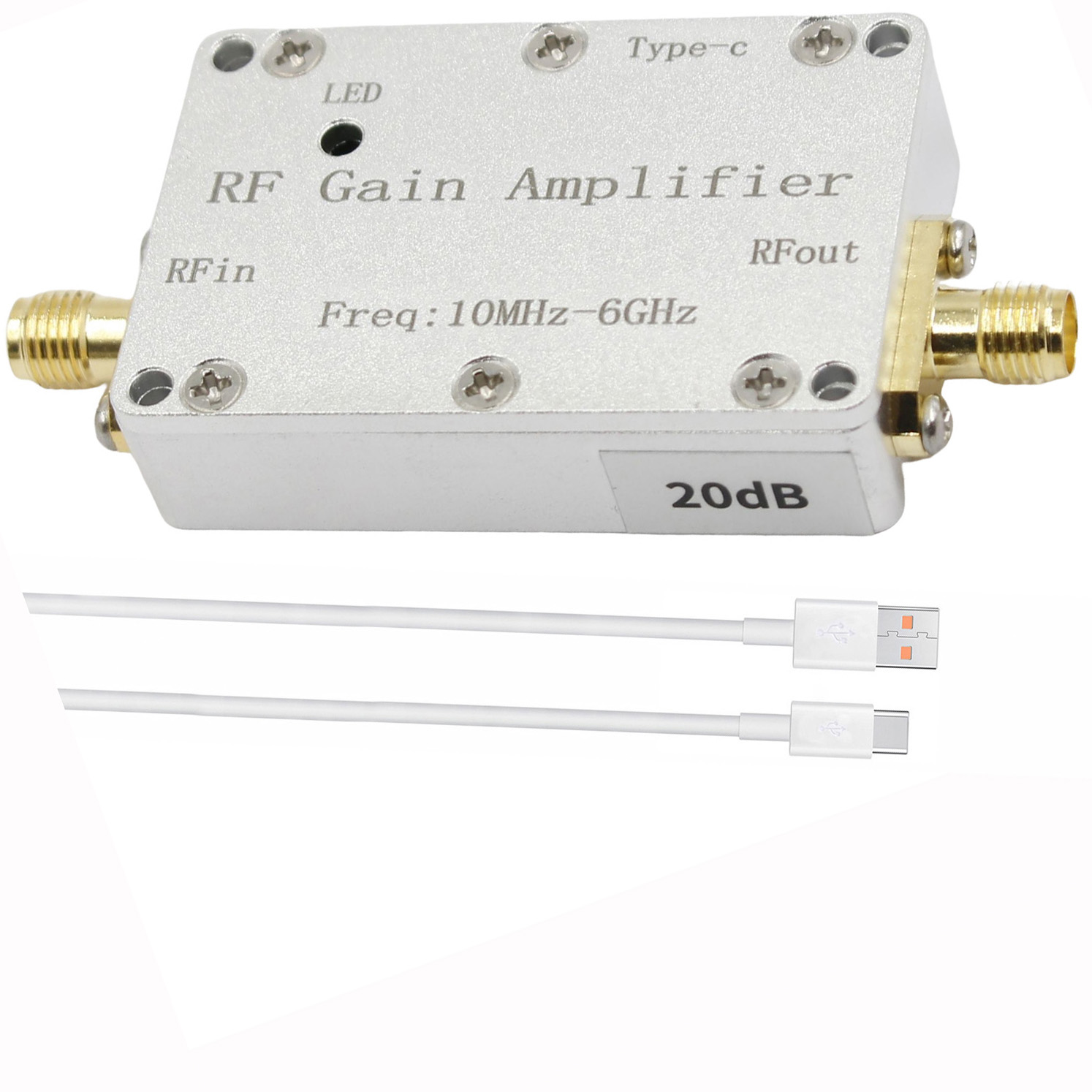

Type B:

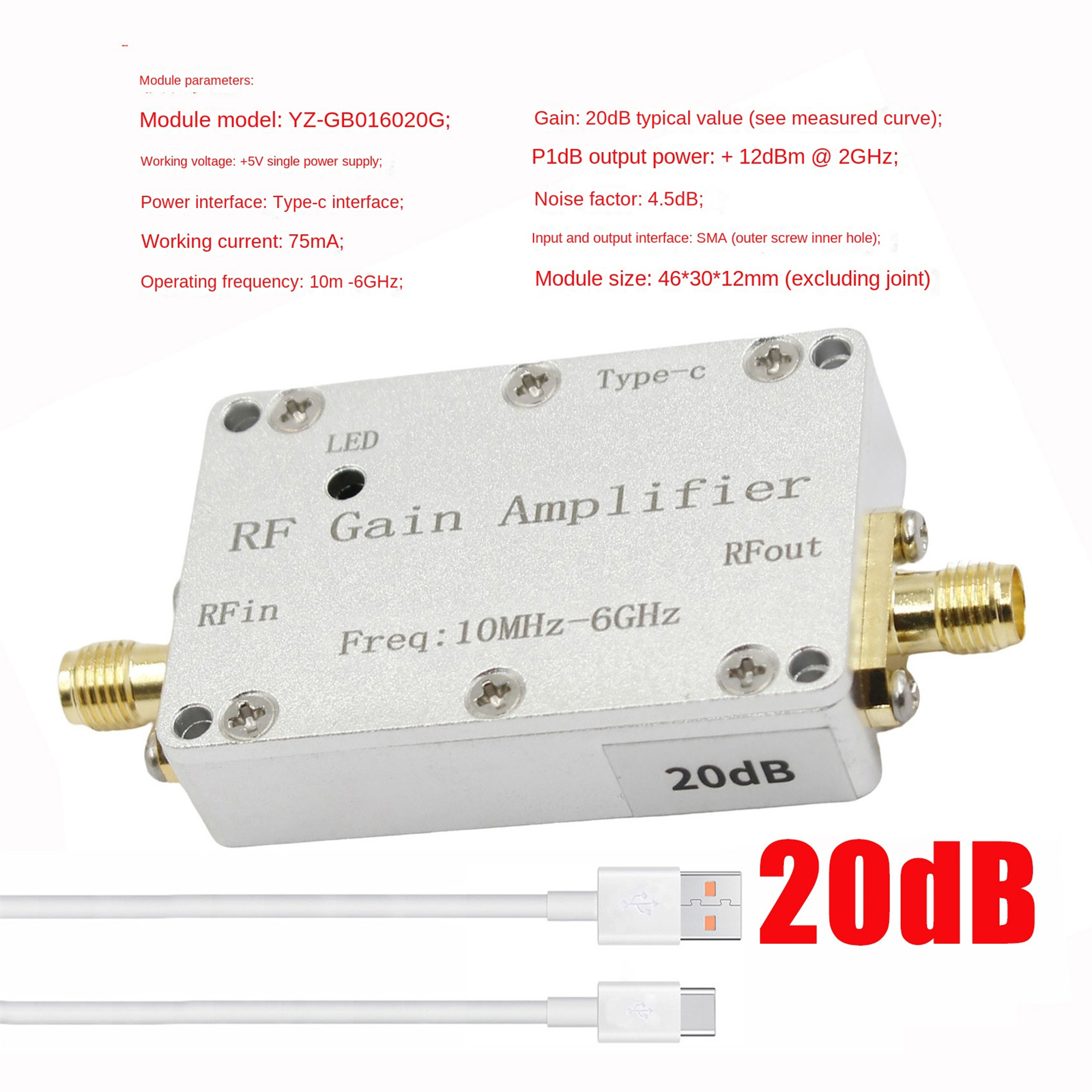

1 x 20db RF Gain Amplifier
1 x TYPE-C Cable
Type C:

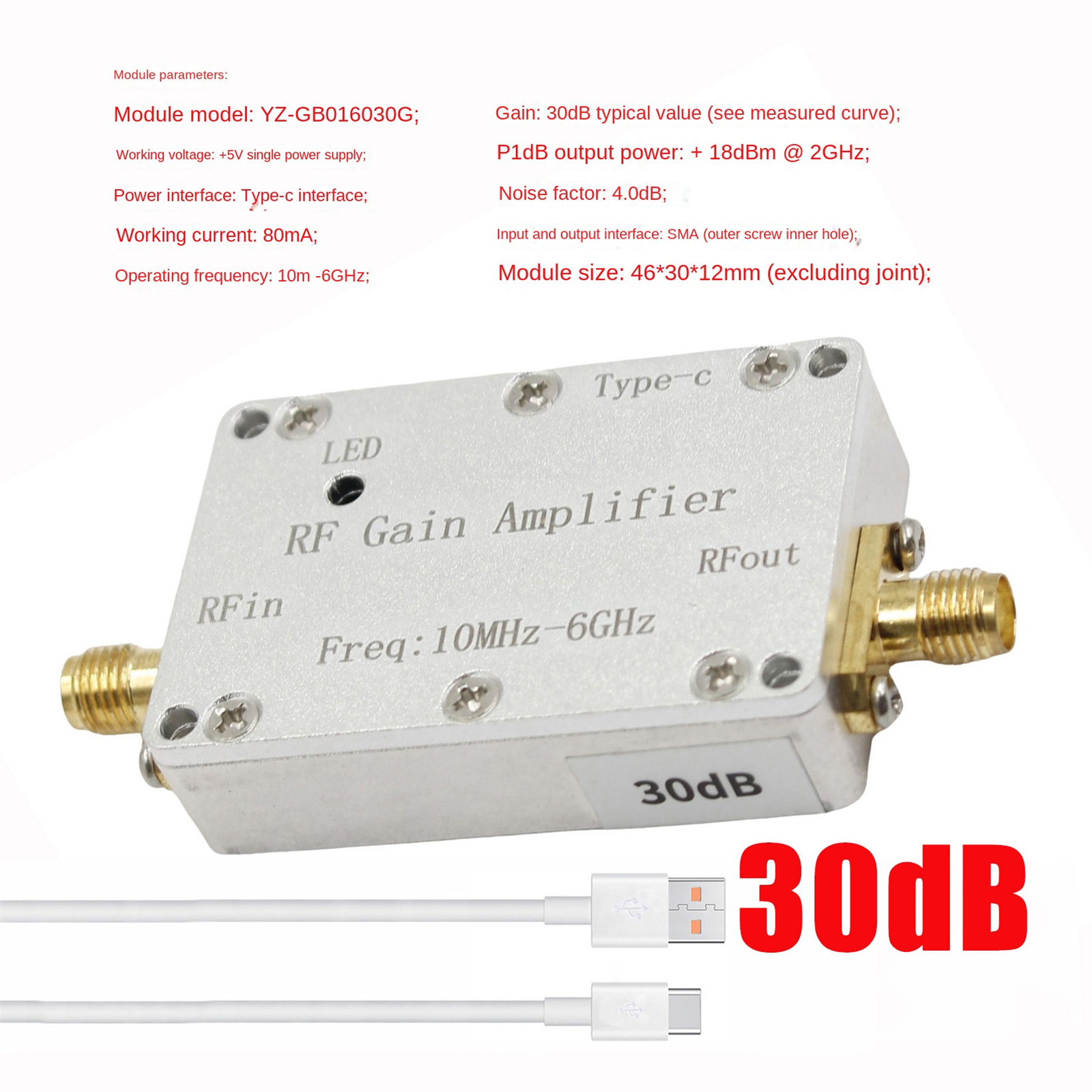

1 x 30db RF Gain Amplifier
1 x TYPE-C Cable
Type D:

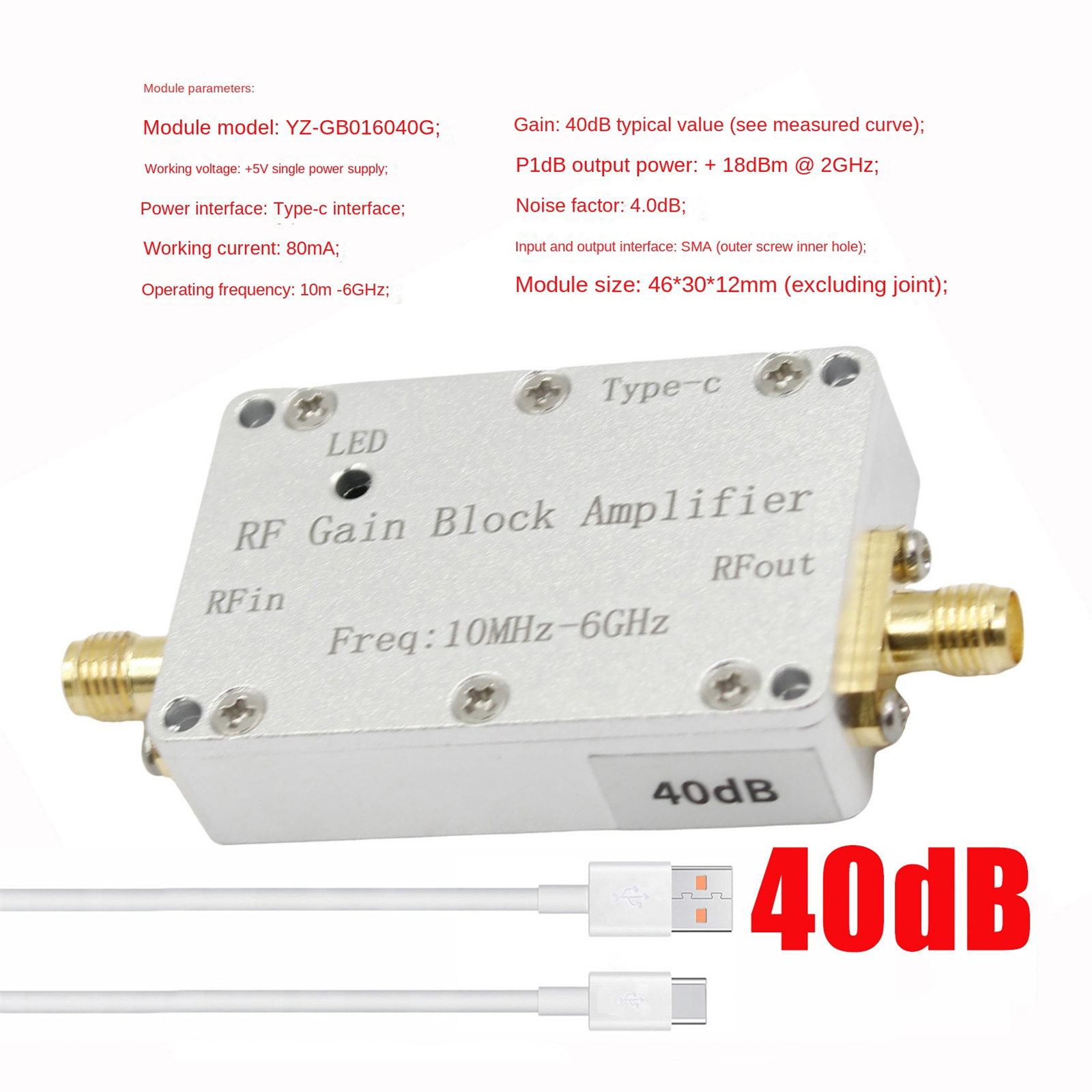

1 x 40db RF Gain Amplifier
1 x TYPE-C Cable
