Descriptions:

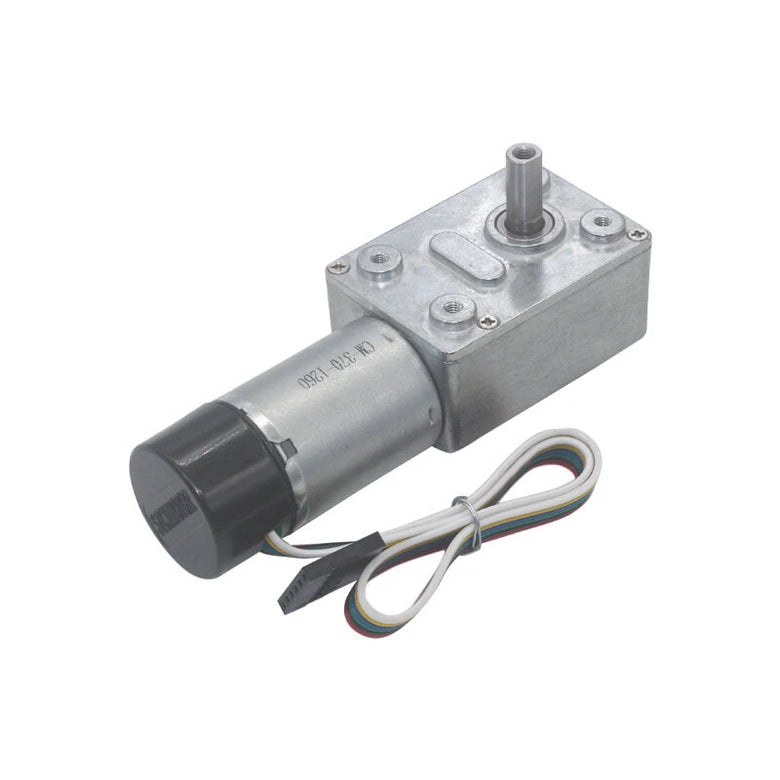

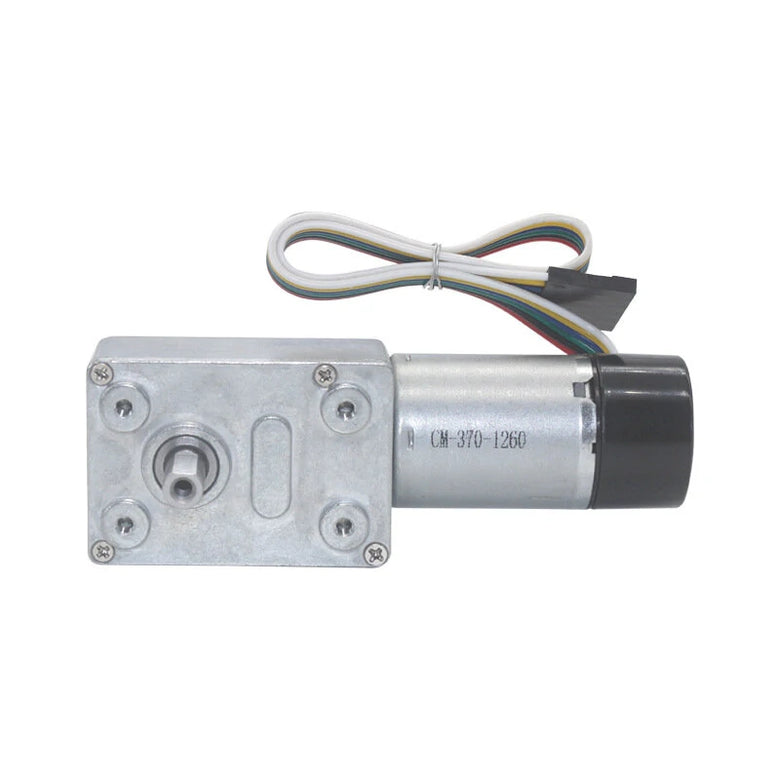

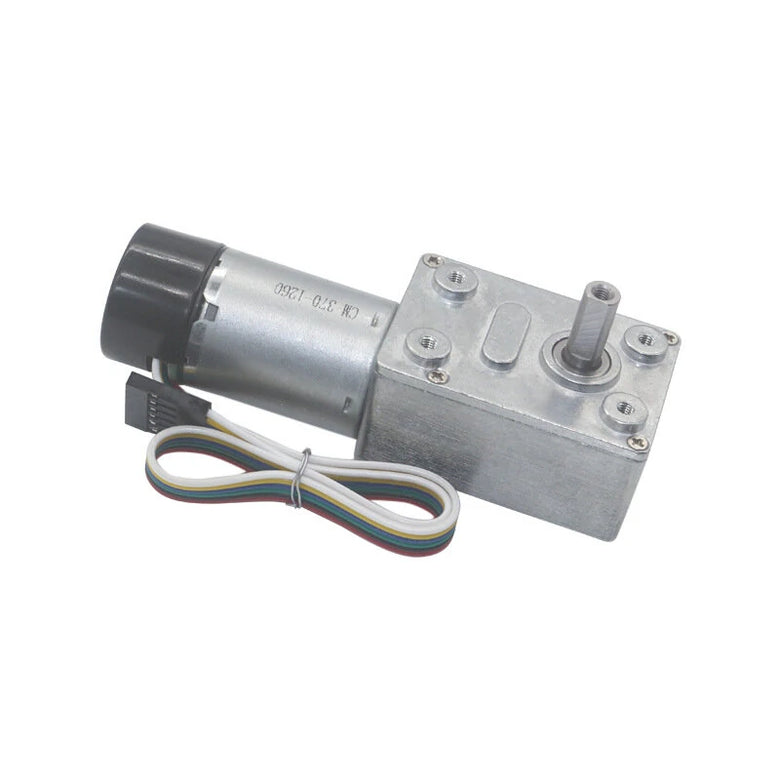

Machifit JGY-370 12V Reduction Gear Turbine Worm Self-locking Low Speed Motor Encoder Signal Feedback
Specifications:
Brand: MachifitType: Reduction Motor
Material: Metal
Voltage: DC 12V
Weight: 167g
Power: 3W
Rated Voltage: 3 - 24V
Speed Regulation: Yes
Rotation In Both Directions: Yes
Size:
Outer Dia.: 6mm
Motor: 46 x 32mm(without shaft)Line Length: 230mm
| Reduction Ratio | 600 | 200 | 65 | 40 |
| No-load Current (MA) | ≤40 | |||
| No-load Speed (rpm) | 10 | 30 | 90 | 150 |
| Rated Torque (Kg.cm) | 15.9 | 5.3 | 0.5 | 0.2 |
| Rated Speed (rpm) | 7.5 | 22 | 70 | 120 |
| Rated Current (A) | ≤0.3 | |||
| Maximum Torque (Kg.cm) | 30 | 10 | 1.6 | 0.9 |
| Stop Current (A) | 0.85 | |||
Wiring:
Red: red motor + positive
Black: black motor - negative
Green: Green sensor ground wire - (5-12V)
Blue: blue sensor power + (5-12V)
Yellow: Signal A output point (11 pulses)
White: Signal B output point (11 pulses)
Features:
- D-axis Display
More fixed, superior thermal conductivity, high hardness and anti-friction;
- Internal Gearbox
All metal materials are used for more wear resistance, long service life, no rust, high-end atmosphere;
- Covered Encoder
The copper wire has super-conductivity, so that the motor power output is smoothly, and the three-layer high-density molecular paint effectively isolates dust, is not easy to damage, and has 10 times longer life than ordinary coating;
- High quality motor with a service life of up to 1000 hours;
- Suitable for massage chairs, electronic locks, smart devices, fishing equipment, etc.
Package Included:
1 Pc x 12V Reduction Gear Motor
