Note: The product comes standard with a 10:1 probe, without a spring.
Description:

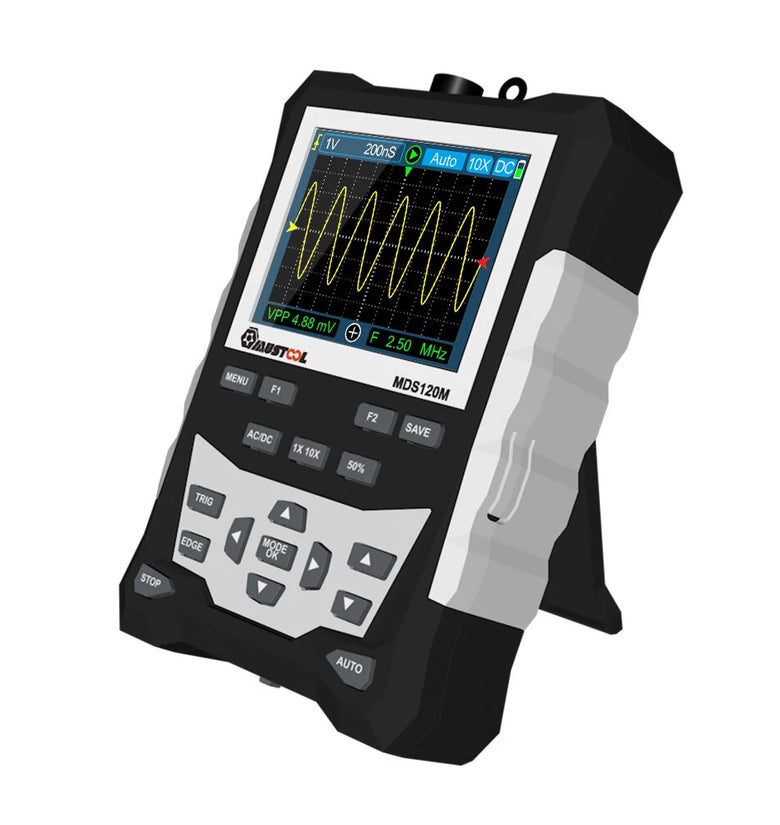

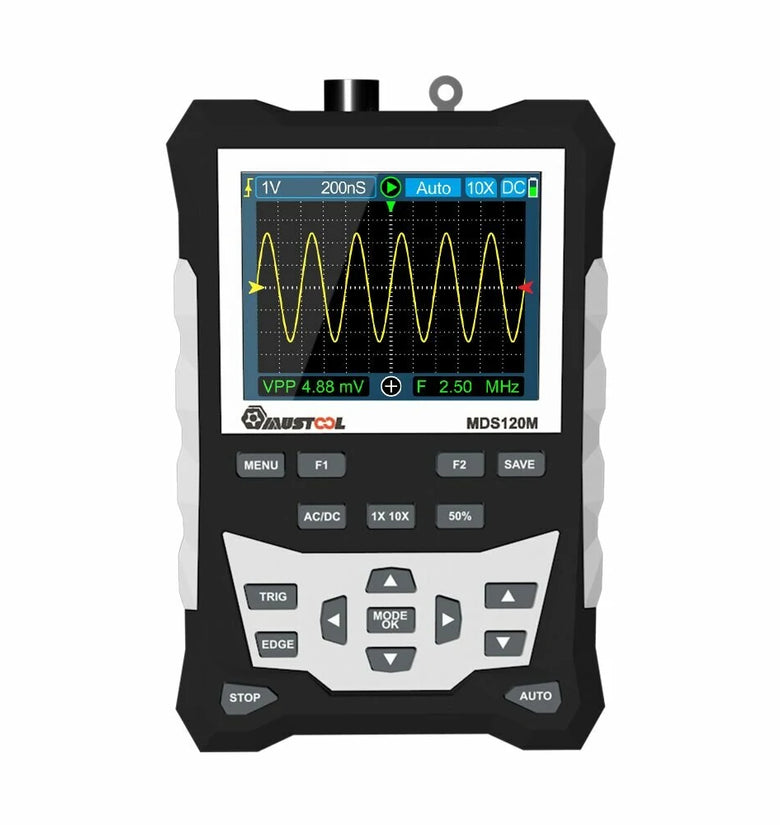

Hello everyone, this is a professional oscilloscope provided by the MUSTOOL Team

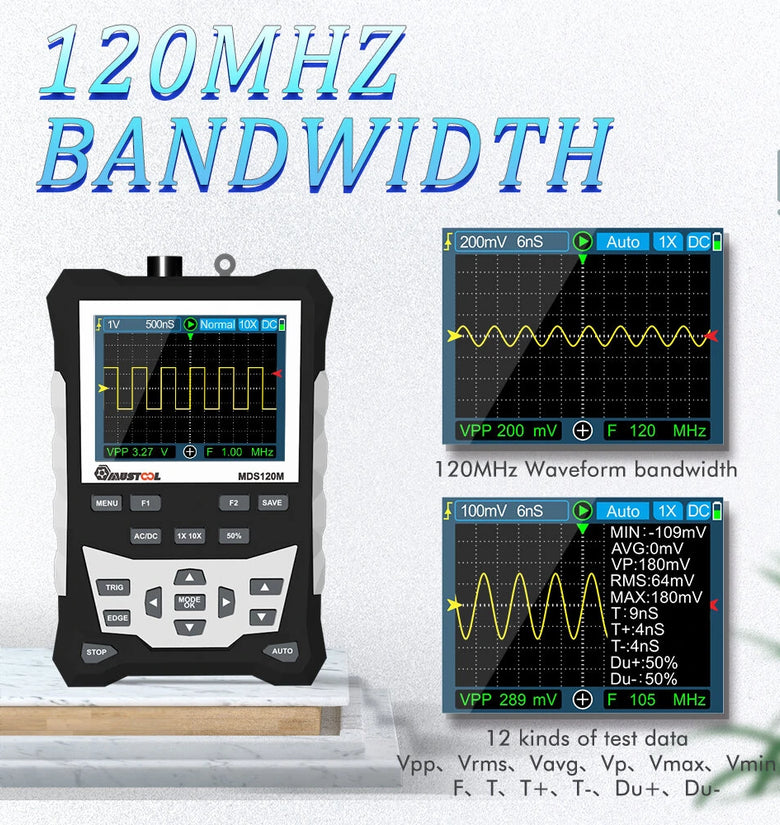

120MHz bandwidth and 500MSps sampling rate

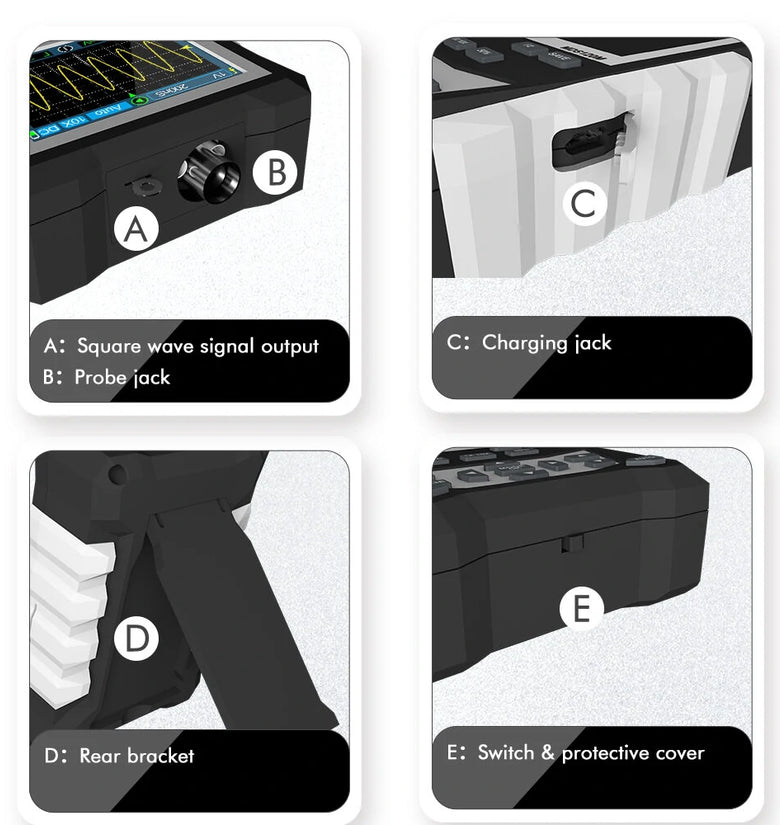

It is not just an oscilloscope, but also has 4 speeds of square iwave signal output function(1kHz,10KHz,100KHz,1MHz)
Portable, hand-held, sufficient power can achieve 6 hours of battery life

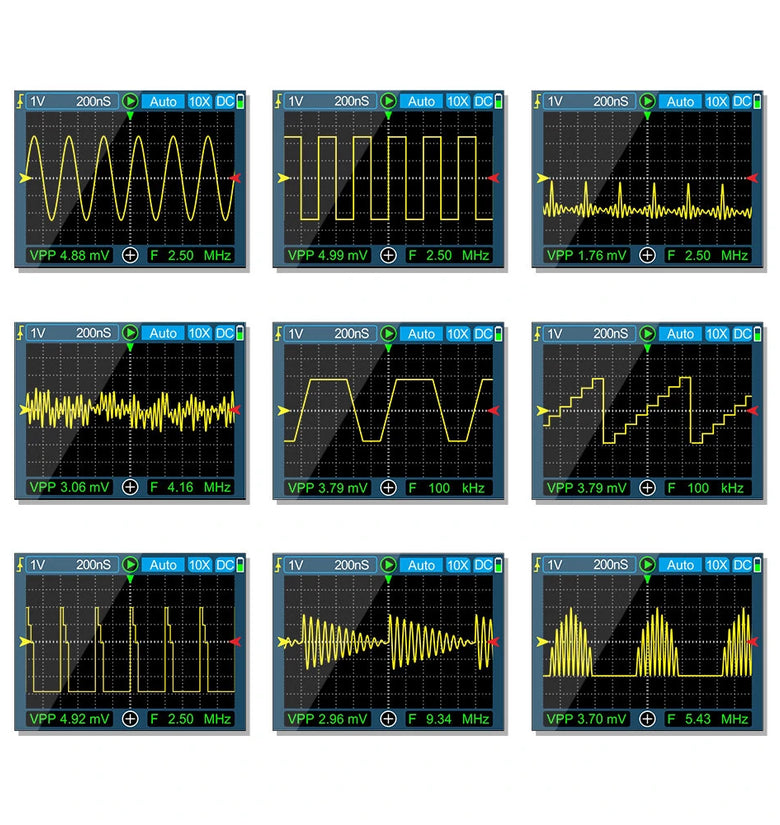

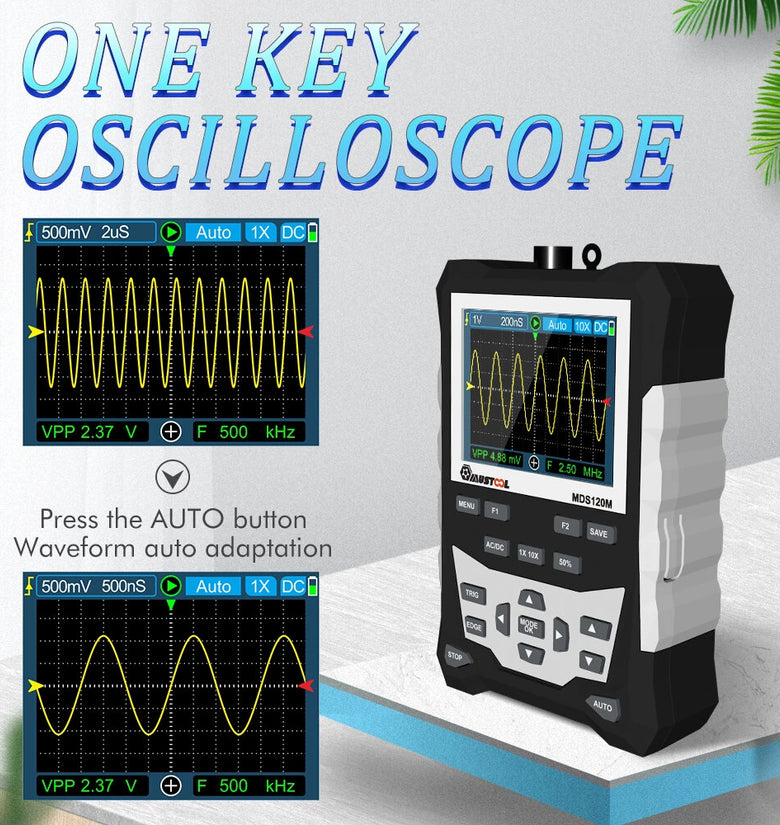

One-key automatic measurement of waveforms, with one X1/X10 oscilloscope probe included
12 kinds of parameter measurement: Vpp, Vrms, Vavg, Vp, Vmax, Vmin,F,T,T+,T-. Du+, Du-
Specifications:

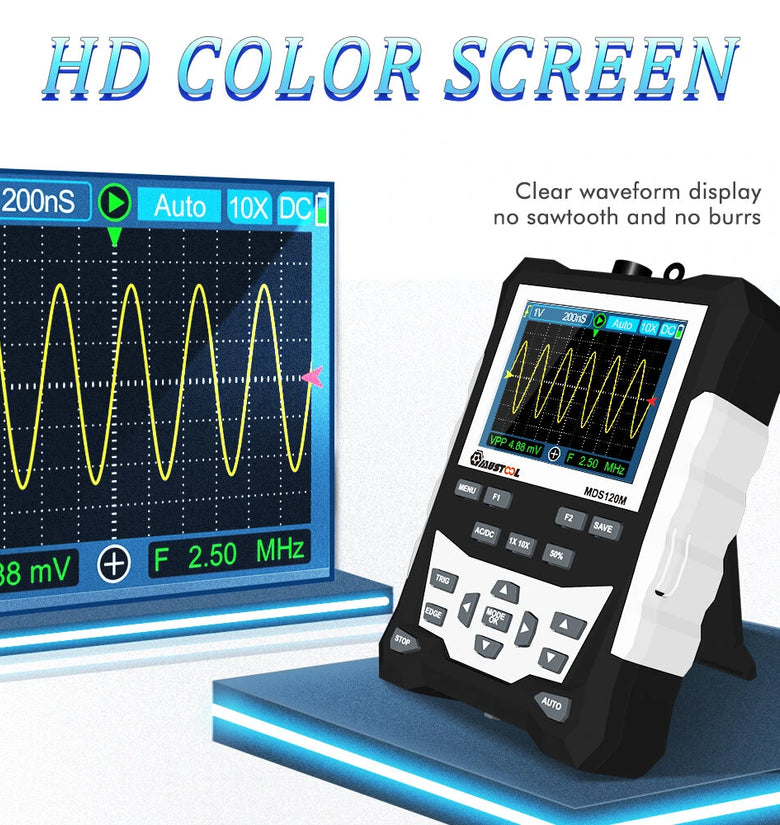

Display |
320x240 LCD screen |
Display area |
50mm x 40mm |
Backlight |
White, brightness adjustable |
Impedance |
x1: 1MΩ / x10: 10MΩ |
Battery |
18650 lithium battery |
Auto shutdown |
No operation for 15 minutes |
Storage |
2500 DSO waveforms |

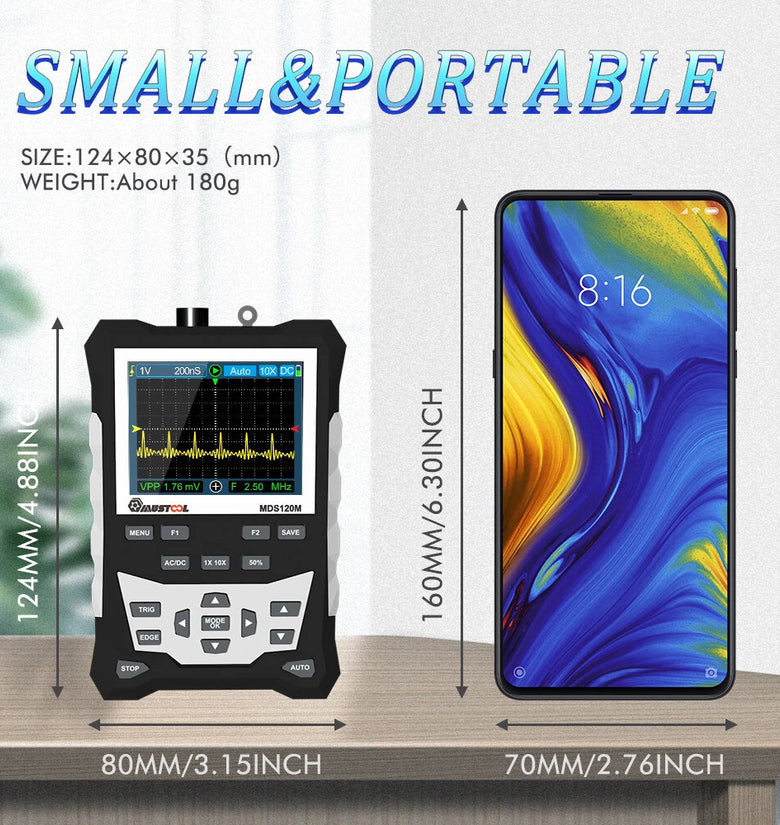

Size |
124 X 80 X 35mm |
Use conditions |
0C~ +40℃; < 75%RH |
Storoge conditions |
-10C~ +60℃; < 90%RH |
Analog bandwidth |
120MHz |
Vertical resolution |
8 bits |
Vertical accuracy |
±(5%+ 0.2div) |
Auto zero reference |
During DC meosurement |
Trigger level |
±3.8div (0. 1div per step) |
Trigger position |
± 6div (0. 1div per step) |
Cursor function |
△V, △t, 1 / △t |
Measuremer couocyy |
±(5%+ 0.2div) |
Non. linearity |
±1 bits |
Coupling method |
DC/AC |
Division |
Verical: ±3.8 Horizontal:12 |
Time base range |
