Specifications:

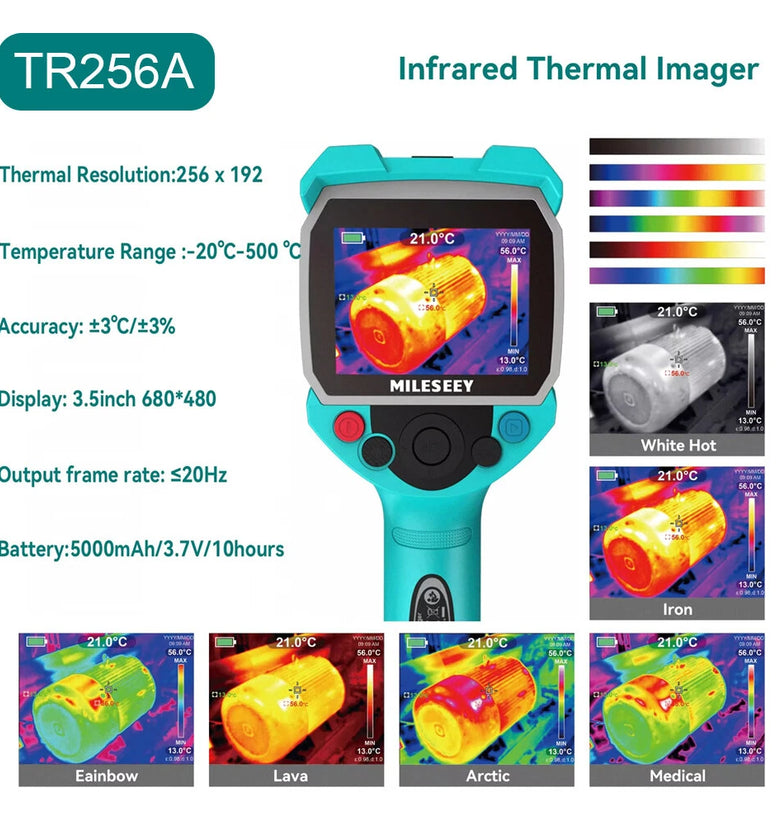

MiLESEEY TR256A:
Display Size: 3.5 inch
Display Resolution: 640 x 480
Thermal Imaging Pixel: 256 x 192
Display Modes: Thermal image
Laser Distance: Not supported
GPS: Not supported
Wi-Fi: Not supported
Digital Camera: Not supported
Visual Resolution: Not available
High & Low Temperature Alarm: Supported
Video Output: Supported
Spectral Response Band: 8~14µm
Pixel Size: 12µm
Thermal Sensitivity: ≤50mK
Measuring Range: -20°C ~ 550°C
Palette: Six color palettes
Field of View (FOV): 56° x 42°
Power Supply: 5000mAh/3.7V
Communication Interface: USB 2.0 (HS)*480M
LED Lighting: High-power white LED
IP Level: IP65
Working Temperature: 0°C ~ 35°C
Storage Temperature: -40°C ~ 70°C
Fall Prevention: 1.5m
Dimensions: 238 × 95 × 95mm
Weight: 540g

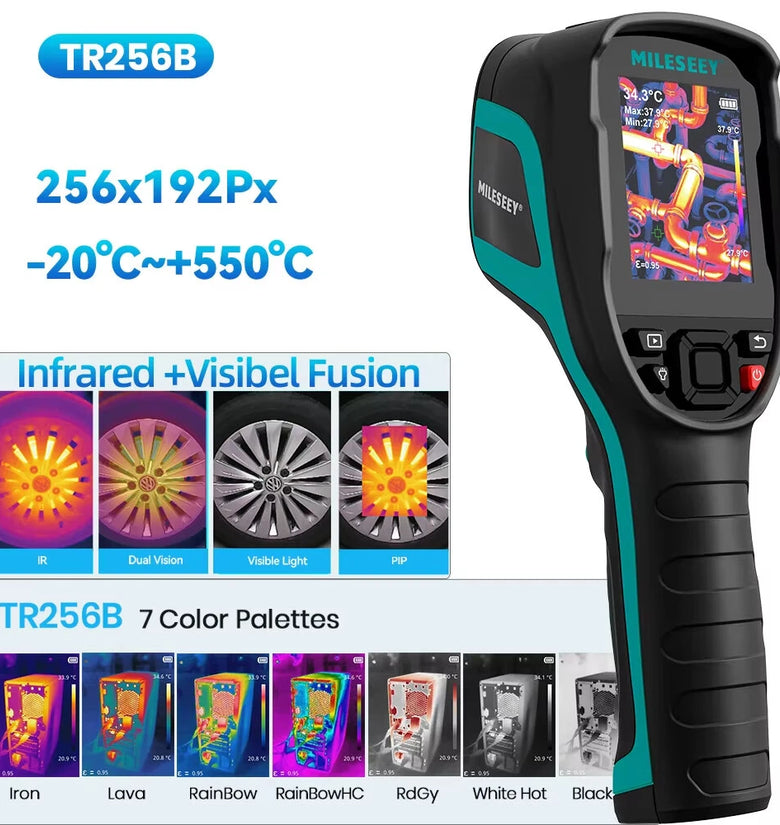

MiLESEEY TR256B:
Display Size: 2.8 inch
Display Resolution: 320 x 240
Thermal Imaging Pixel: 256 x 192

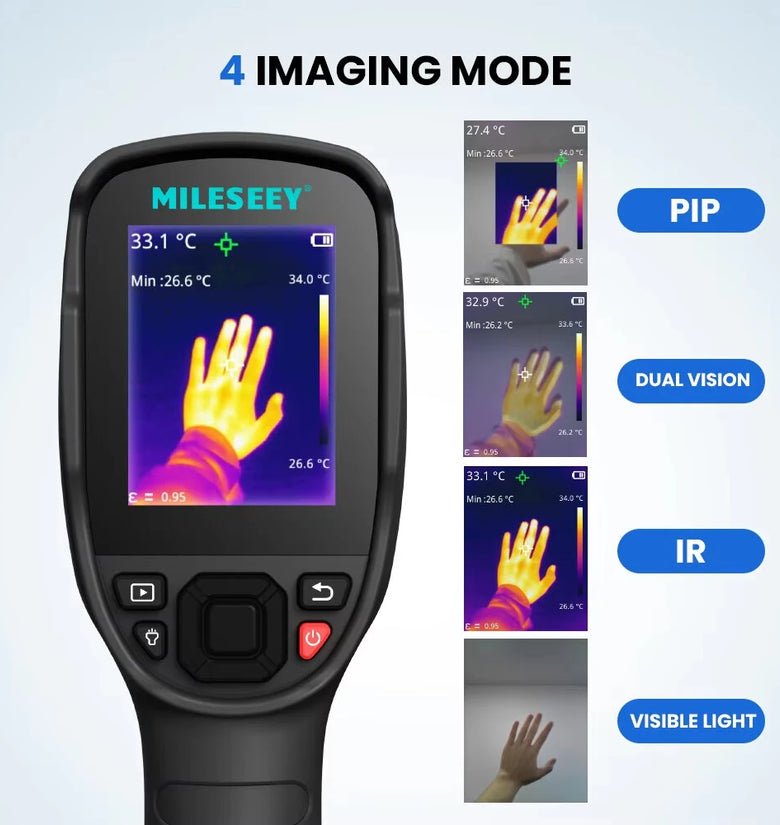

Display Modes: Thermal image, Fuse, PIP (Picture-in-Picture), Visible, Alignment
Laser Distance: Not supported
GPS: Not supported
Wi-Fi: Not supported
Digital Camera: Supported
Visual Resolution: 200W
High & Low Temperature Alarm: Supported
Video Output: Not supported
Spectral Response Band: 8~14µm
Pixel Size: 12µm
Thermal Sensitivity: 40mK
Measuring Range: -20°C ~ 550°C
Palette: Seven color palettes
Field of View (FOV): 56° x 42°
Power Supply: 5000mAh/3.7V
Communication Interface: USB 2.0 (HS)*480M
LED Lighting: Ordinary LED lamp
IP Level: IP54
Working Temperature: -10°C ~ 50°C
Storage Temperature: -20°C ~ 60°C
Fall Prevention: 2m
Dimensions: 237×74.4×108mm
Weight: 520g

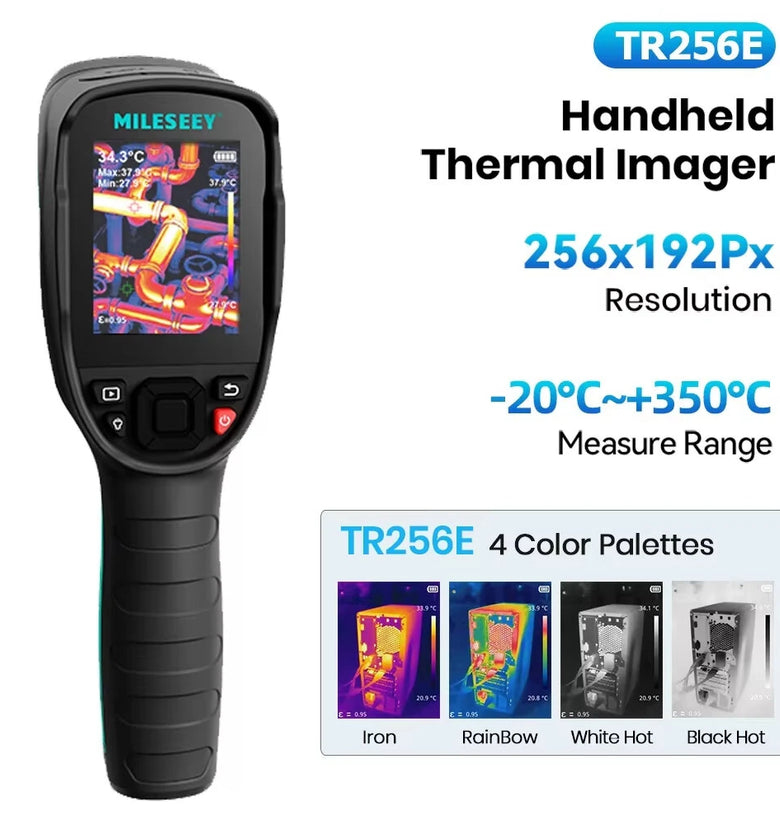

MiLESEEY TR256E:
Display Size: 2.8 inch
Display Resolution: 320 x 240
Thermal Imaging Pixel: 256 x 192
Display Modes: Thermal image
Laser Distance: Not supported
GPS: Not supported
Wi-Fi: Not supported
Digital Camera: Not supported
Visual Resolution: Not available
High & Low Temperature Alarm: Supported
Video Output: Not supported
Spectral Response Band: 8~14µm
Pixel Size: 12µm
Thermal Sensitivity: 40mK
Measuring Range: -20°C ~ 350°C
Palette: Four color palettes
Field of View (FOV): 56° x 42°
Power Supply: 5000mAh/3.7V
Communication Interface: USB 2.0 (HS)*480M
LED Lighting: Ordinary LED lamp
IP Level: IP54
Working Temperature: -10°C ~ 50°C
Storage Temperature: -20°C ~ 60°C
Fall Prevention: 2m
Dimensions: 237×74.4×108mm
Weight: 520g

Features:
1.High Thermal Sensitivity for Detailed Detection:
With a thermal sensitivity of 40mK (TR256B and TR256E) or ≤50mK (TR256A), our devices provide precise thermal imaging and detect subtle temperature variations, making them suitable for professional use.

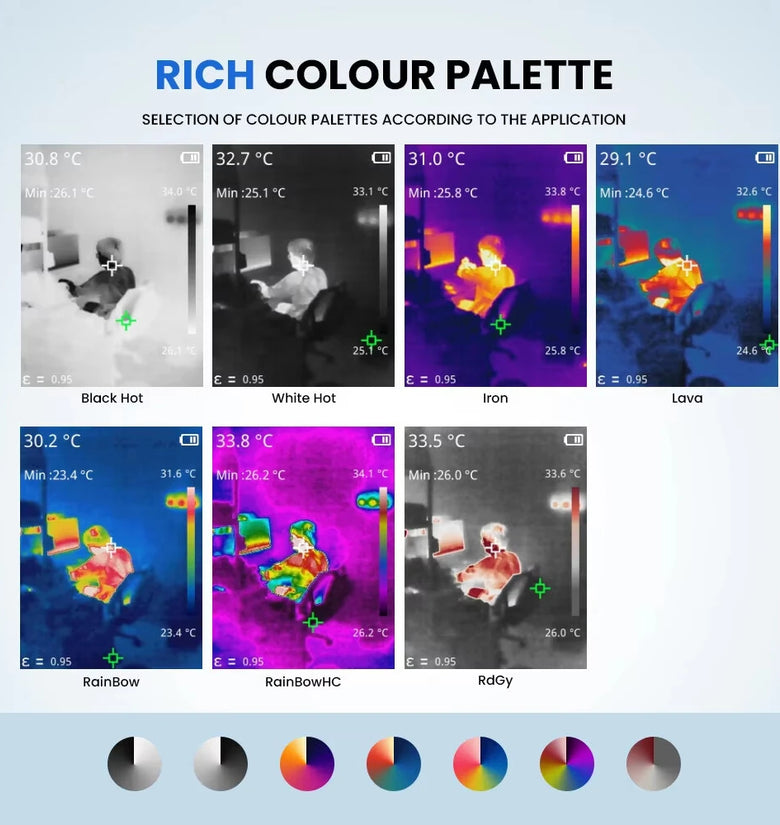

2.Multiple Color Palettes for Visualization:
The devices offer customizable palettes: Six palettes (TR256A), seven palettes (TR256B), and four palettes (TR256E), allowing users to adapt to different environments for optimal thermal viewing.

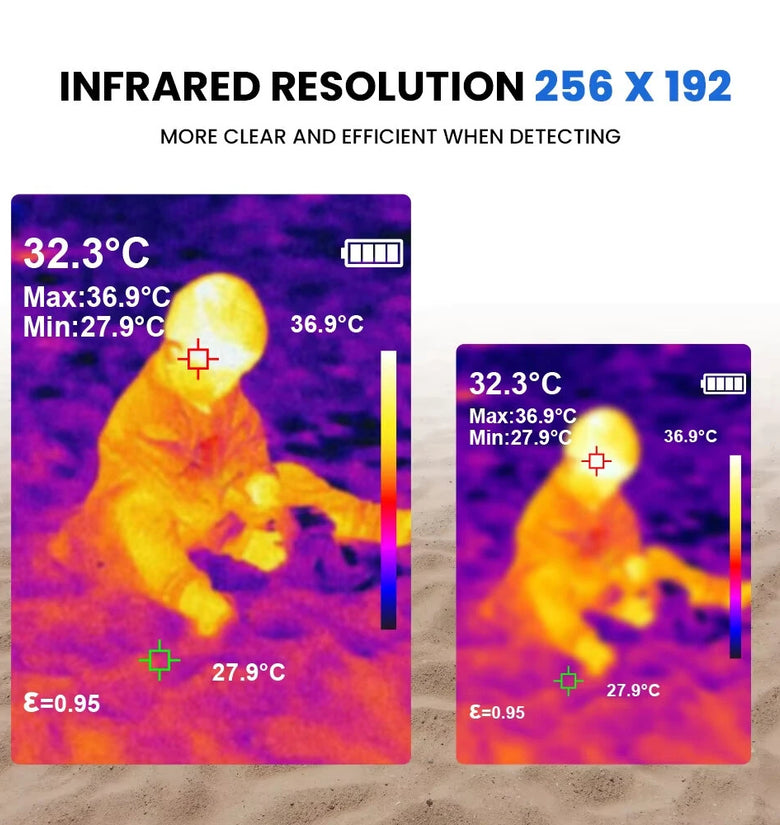

3.Enhanced Imaging Resolution:
Featuring up to 256 x 192 thermal pixels and display resolutions of either 640 x 480 (TR256A) or 320 x 240 (TR256B/E), the products ensure sharp imagery for clear identification of problem areas.
4.Stable Build with IP Protection:
The TR256 series includes IP65 protection (TR256A) or IP54 (TR256B/E), enabling the devices to withstand challenging conditions like dust and water exposure in industrial scenarios.
5.Advanced Functionality & Temperature Alarm:
Built-in high & low-temperature alarms across all models ensure timely alerts, providing practical applications in electrical inspection, HVAC diagnostics, or mechanical troubleshooting.

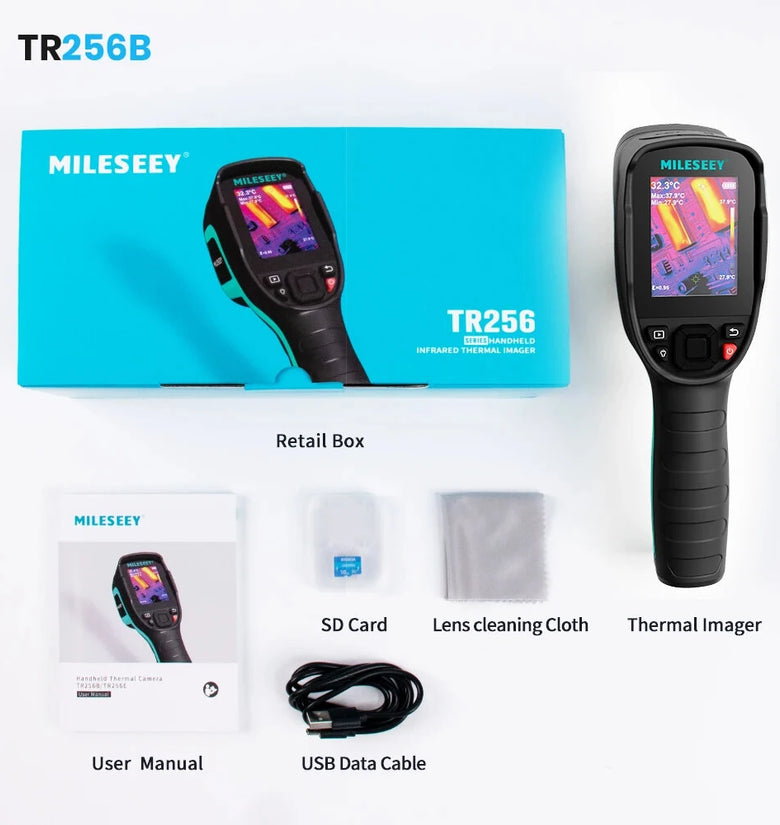

Package Included:
1 x Retail Box
1 xThermal Imager
1 x SD Card
1 x Lens Cleaning Cloth
1 x USB Data Cable
1x User Manual
