Specifications:

Input Signal Parameters:

- Current Signal (mA):

  - Range: -24~24mA

  - Accuracy: 0.03%

  - SR: 0.001mA

  - IR: 10Ω

- Voltage Signal (V):

  - Range: -30~30V

  - Accuracy: 0.03%

  - SR: 0.001V

  - IR: 2MΩ

- ±5(V):

  - Range: -5~5V

  - Accuracy: 0.03%

  - SR: 0.0001V

  - IR: 2MΩ

- Frequency (Hz):

  - Range: 0~50000Hz

  - Accuracy: 0.03%

  - SR: Auto Range

  - IR: 100K

- Millivolt (mV):

  - Range: -110~110mV

  - Accuracy: 0.03%

  - SR: 0.01mV

  - IR: 20MΩ

- Thermocouple Types (TC):

  - TC-S Range: 0~1760°C, Accuracy: 0.10%, SR: 1°C, IR: 20MΩ

  - TC-B Range: 0~1810°C, Accuracy: 0.20%, SR: 1°C, IR: 20MΩ

  - TC-E Range: 0~990°C, Accuracy: 0.10%, SR: 1°C, IR: 20MΩ

  - TC-K Range: 0~1320°C, Accuracy: 0.10%, SR: 1°C, IR: 20MΩ

  - TC-R Range: 0~1760°C, Accuracy: 0.10%, SR: 1°C, IR: 20MΩ

  - TC-J Range: 0~1190°C, Accuracy: 0.10%, SR: 1°C, IR: 20MΩ

  - TC-T Range: 0~390°C, Accuracy: 0.10%, SR: 1°C, IR: 20MΩ

  - TC-N Range: 0~1290°C, Accuracy: 0.10%, SR: 1°C, IR: 20MΩ

- Resistance Input:

  - Range: 0~400KΩ

  - Accuracy: 0.10%

  - SR: Auto Range

Output Signal Parameters:

- Current Signal (mA):

  - Range: 0~23mA

  - Accuracy: 0.03%

  - SR: 0.001mA

  - IR: 100Ω

- Voltage Signal (V):

  - Range: 0~23V

  - Accuracy: 0.03%

  - SR: 0.001V

  - IR: 2KΩ

- Low Voltage (V):

  - Range: -0.22~2.4V

  - Accuracy: 0.03%

  - SR: 0.1mV

  - IR: 2KΩ

- Millivolt (mV):

  - Range: -10~110mV

  - Accuracy: 0.03%

  - SR: 0.01mV

  - IR: 2KΩ

- Passive Signal (XMT):

  - Range: 0~24mA

  - Accuracy: 0.03%

  - SR: 0.001mA

  - IR: 100Ω

- 24V Circuit Detection:

  - Range: 0~24mA

  - Accuracy: 0.05%

  - SR: 0.001mA

  - IR: 100Ω

- Frequency (Hz):

  - Range: 0~100KHz

  - Accuracy: 0.03%

  - SR: 0.001Hz~1Hz

  - IR: 100K

- Thermocouple Types (TC):

  - TC-S Range: 0~1760°C, Accuracy: 0.10%, SR: 1°C, IR: 2K

  - TC-B Range: 0~1810°C, Accuracy: 0.10%, SR: 1°C, IR: 2K

  - TC-R Range: 0~1760°C, Accuracy: 0.10%, SR: 1°C, IR: 2K

  - TC-E Range: 0~990°C, Accuracy: 0.10%, SR: 0.1°C, IR: 2K

  - TC-K Range: 0~1320°C, Accuracy: 0.10%, SR: 0.1°C, IR: 2K

  - TC-J Range: 0~1190°C, Accuracy: 0.10%, SR: 0.1°C, IR: 2K

  - TC-T Range: 0~390°C, Accuracy: 0.10%, SR: 0.1°C, IR: 2K

  - TC-N Range: 0~1290°C, Accuracy: 0.10%, SR: 0.1°C, IR: 2K

- Resistance Output:

  - Range: 0~4000Ω

  - Accuracy: 0.10%

  - SR: 0.1Ω

Features:

1. Versatile Signal Types:

    This multifunctional device supports a wide variety of signal types including voltage, current, frequency, resistance, and thermocouples, making it a one-stop solution for numerous applications.

2. High Accuracy:

    With an impressive accuracy of 0.03% for most signal types, this device ensures precise measurements and outputs, which is critical for high-stakes environments.

3. Easy Simultaneous Measurement and Output:

    Offering both simplex and duplex modes, it allows for simultaneous measurement and output, enhancing workflow efficiency and simplifying complex tasks.

4. Wide Temperature Range:

    Supports an extensive temperature range across various thermocouple types, accommodating industries that require strict thermal regulation and monitoring.

5. User-Friendly Interface:

    The intuitive user interface makes this device straightforward to operate, reducing training time and improving operational productivity.

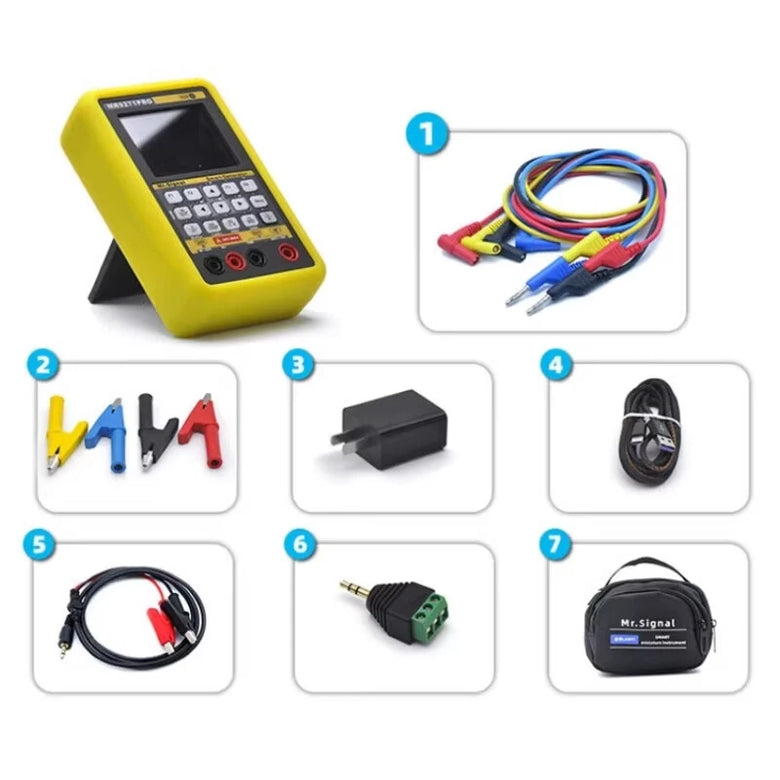

Package Included:

1 x MR9271PRO Signal Generator

4 x Test Cable Set

1 x Power Adapter

1 x USB Cable

4 x Alligator Clips (Yellow, Blue, Black, Red)

1 x Alligator Clip Cable

1 x 3.5mm to Terminal Connector

1 x Carrying Case
