Specifications:
Model: YXI256
Temperature Range: -20℃ to 550℃
Infrared Resolution: 256×192
Measurement Accuracy: ±2℃ or ±2% of reading (whichever is greater)
Tester Type: Vanadium Oxide Microbolometer
Measurement Mode: Industrial Temperature Measurement
Emissivity: 0.01~1.00 (default: 0.95)
Infrared Response Band: 8~14μm
Pixel Size: 12μm
Spatial Resolution: 3.43mrad
Focal Length: 3.5mm
Frame Rate: 25Hz
Thermal Sensitivity: ≤40mK (@25℃, F#1.0)
Focusing Method: Fixed Focus
Field of View (FOV): 50.0° × 37.2°
Temperature Units: °C / °F / K

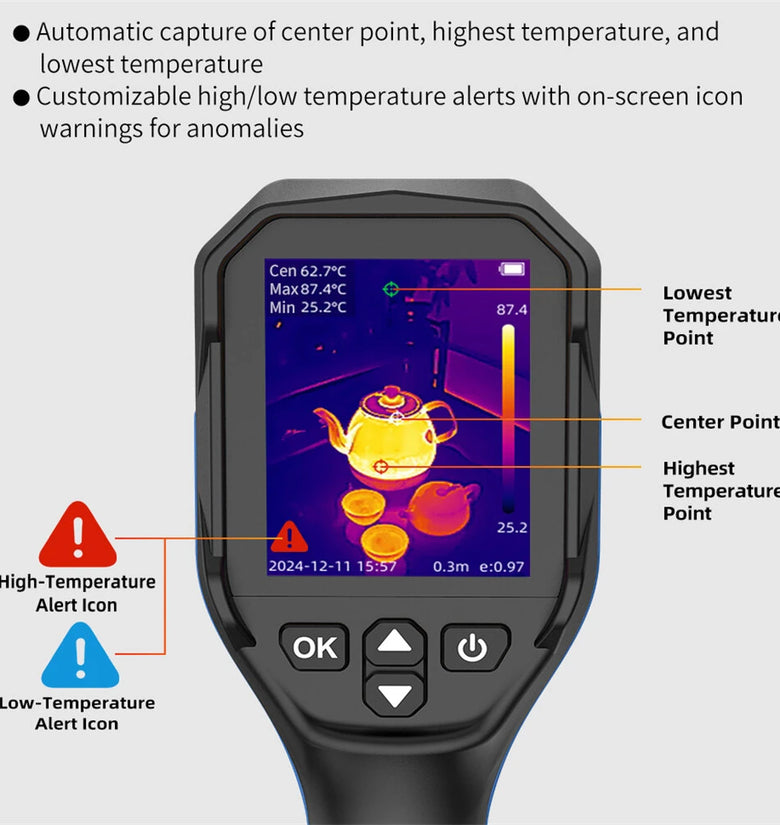

Display Capabilities: Point temperature, average temperature, highest/lowest temperature
Analysis Features: 3 points, 3 lines, 3 rectangles
High/Low Temperature Alarm: On-screen icon alarm
Color Palettes: White Hot, Black Hot, Rainbow, Iron Red, Red Hot, Fusion

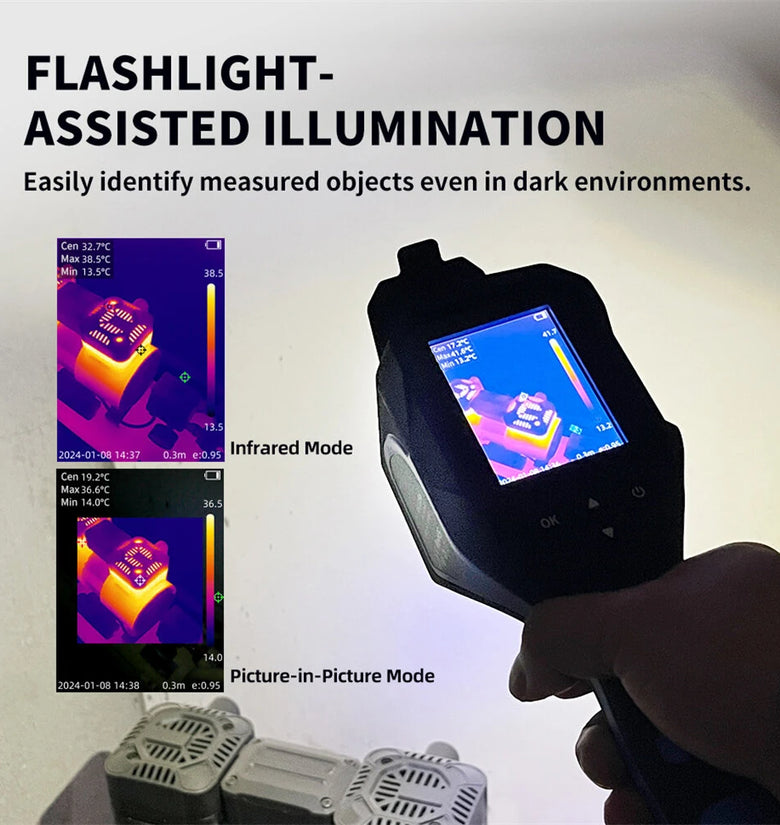

Image Modes: Infrared, Visible Light, Fusion, Picture-in-Picture
Photo/Video Recording: Supported
Image/Video Format: Image: JPEG / Video: MP4
Data Interface: Type-C USB
Mobile App Compatibility: Android 6.0 / iOS12.0 and above
Storage: 16G
Battery: 18650 Battery (3200mAh, non-removable)
Charging Time: ≤4 hours
Working Time: ≥6 hours
Operating Temperature: -10℃ to 50℃
Operating Humidity: 10% ~ 90% (non-condensing)
Storage Temperature: -20℃ to 60℃
Power Consumption: < 1.6W
Certifications: CE, FCC, RoHS
Product Dimensions: 231×79.2×84.9mm
Net Weight: 392g

Features:

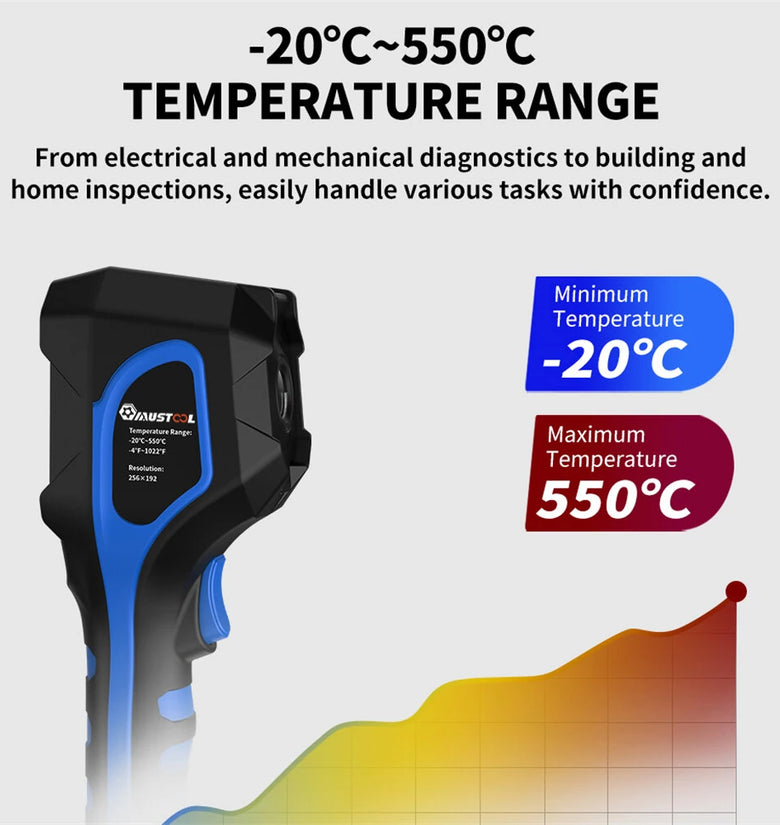

1.Precise Temperature Measurement
The YXI256 features a wide temperature range from -20℃ to 550℃, with high accuracy (±2℃ or ±2%) to handle industrial, electrical, and mechanical applications reliably.
2.High-Resolution Infrared Imaging
Equipped with a 256×192 infrared resolution and ≤40mK thermal sensitivity, it captures clear thermal images for efficient fault diagnosis and temperature tracking.
3.Multi-Mode Display Options
Provides versatile imaging modes including Infrared, Visible Light, Fusion, and Picture-in-Picture, paired with six adjustable color palettes for enhanced usability in various scenarios.
4.User-Friendly Design and Integration

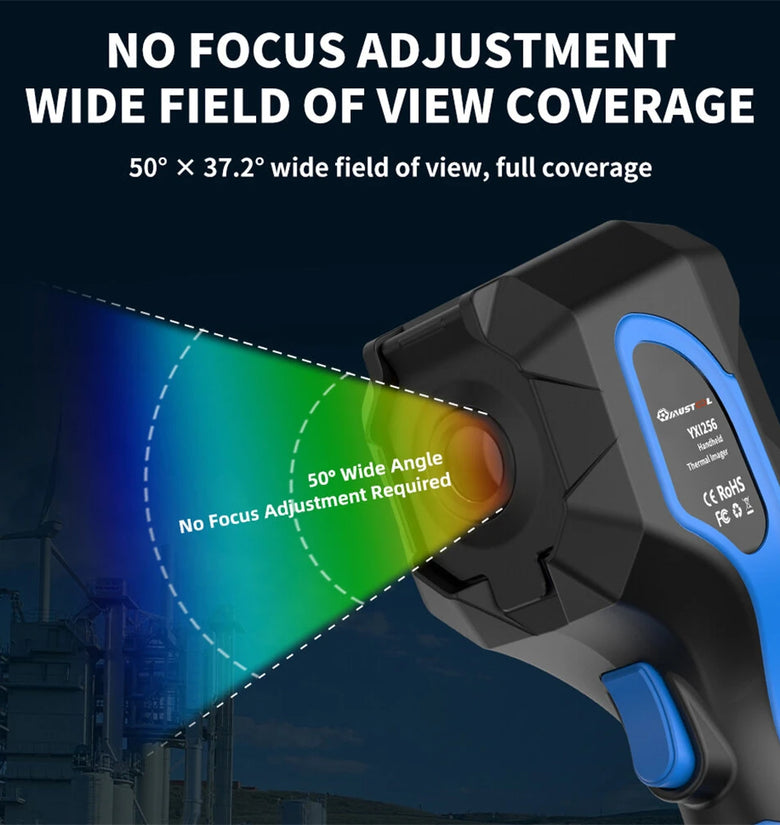

Fixed focus field-of-view (50.0° x 37.2°) combined with Type-C interface ensures seamless data transfer and compatibility with both Android/iOS devices for real-time analysis.
5.Long-Lasting Battery Performance
Powered by a 3200mAh rechargeable battery, the device delivers up to 6+ hours of continuous working time while charging quickly in under 4 hours.

Package Included:
1 x Handheld Thermal Imager(as picture)
1 x Type-C Data Cable
1 x User Manual
1 x Lanyard
1 x Color Box
