>>Please click here to download the MT13S product manual<<
Features:
High-Resolution Images: With an uncooled focal plane sensor and an image capture frequency of 20Hz, as well as an imaging pixel of 192*192px, this device is capable of providing clear and detail-oriented thermal images.
Adjustable Field of View: The field of view is tunable from 0.1 to 0.99, with 0.95 being the default, making it suitable for various applications.
Multifunctional Multimeter: Equipped with a wide array of parameters, the integrated multimeter can measure readings up to 1000V for DC and 750V for AC inputs, and also includes high measurement resistance, capacity, diode and duty cycle ranges.
User-Friendly Interface: Featuring a 2.8 inches LCD touch screen with 320 by 480 resolution and a Type-C USB interface, the device ensures an interactive operation.
Portable and Power-Saving: The compact size, lightweight structure, and inbuilt Li-ion battery not only make this device easy to carry but also reduce power consumption, offering a convenient experience for fieldwork tasks.
Specifications:
Thermal Imaging parameters |
MT13S or |
Sensor |
Uncooled focal plane |
Image capture frequency |
20Hz |
Thermal imaging pixel |
192*192 |
Display image resolution |
240*240 |
Field of view (Fov) |
50.0(H) × 50(V)/72.1(D) |
Emissivity |
0.1-0.99 is tunable and 0.95 is the default |
Measurement temperature range |
-20℃ ~+550℃ |
Mode |
Automatic gain |
Color board |

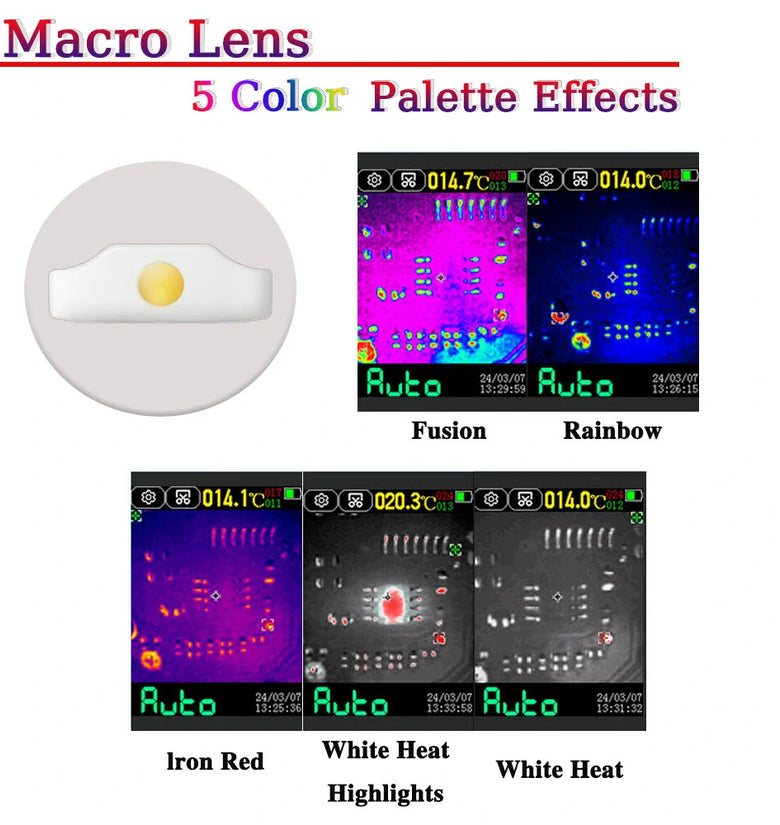

Iron Red, Rainbow, Fusion, White Heat, White Heat Highlights |
Temperature measurement error |
>0℃±2℃ or ±2% ≤0℃±5℃ or ±5 |
Display temperature accuracy |
0.1℃/0.1F |
Multimeter parametars | |
DC highest input voltage |
1000V |
AC highest input voltage |
750V |
Resistance highest measurement resistance |
99.99MΩ |
Capacitance highest measurement capacity |
99.99mF |
Duty cycle measurement range |
0.1% ~ 99.9% |
Diode measurement range |
0V ~ 3V |
On-off test maximum resistance |
999.9Ω |
Display number |
9,999 words updated about 3 times per second |
Other parameters of the device | |
Display Screen |
2.8 inches, 320 by 480 resolution |
Touch Screen |
Resistive touch screen |
USB interface |
Type-C USB |
storage capacity |
3.5MB |
image format |
BMP file |
battery |
Built-in lithium battery- |
storage temperature |
20~60℃ (-4~140F) |
working temperature |
0～50℃ (32～122F) |
working humidity |
<85%RH (Non-condensing) |
product size |
|
