Description:

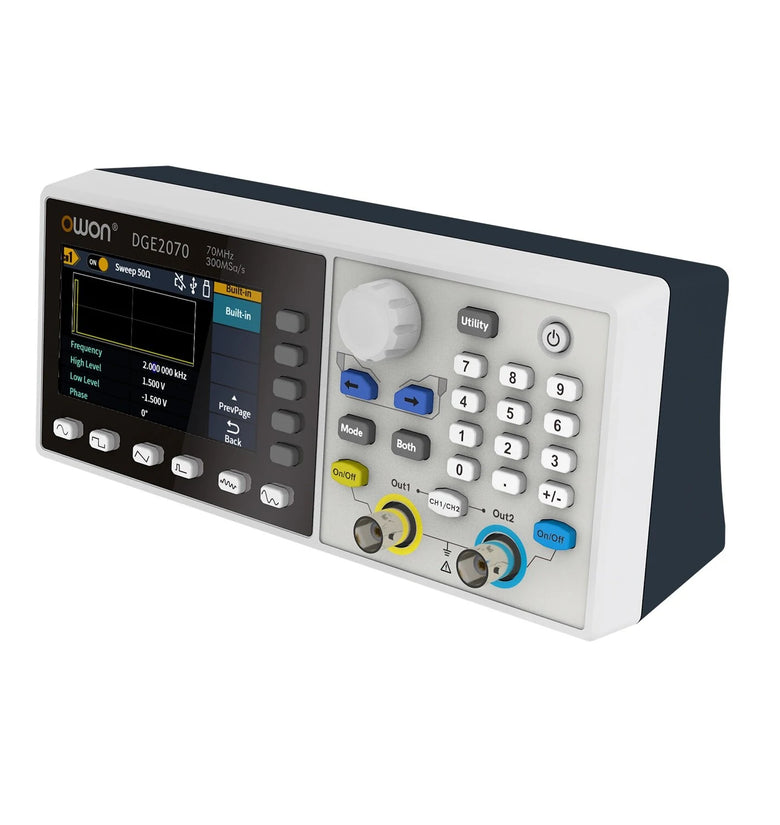

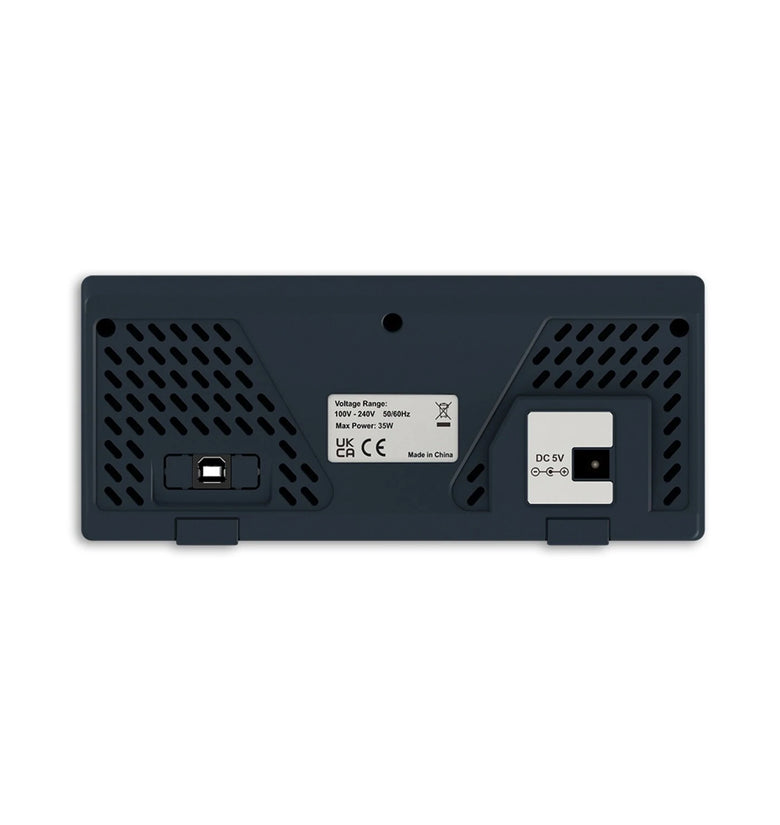

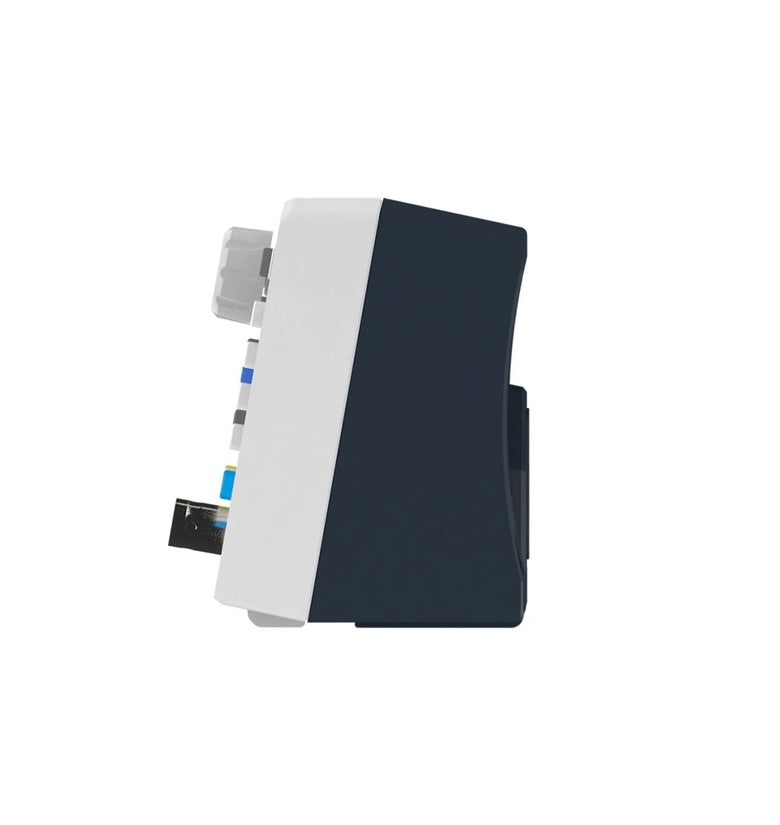

DGE2000 Series Arbitrary Waveform Generator
- 35MHz/70MHz frequency output
- Max 300MSa/s Sample rate, Vertical resolution 1μHz
- 14 bits Vertical Resolution, 8K Arb waveform length
- Comprehensive waveform output : 5 basic waveforms,
and 150 built-in arbitrary waveforms
- Comprehensive modulation functions : AM, FM, PM, FSK, Sweep, and Burst
- SCPI, and LabVIEW supported
- 3.6 inch TFT LCD display
Model |
DGE2035 |
DGE2070 |
Channel |
2 |
2 |
Frequency Output |
35MHz |
70MHz |
Sample Rate |
125MSa/s |
300MSa/s |
Vertical Resolution |
14 bits |
14 bits |
Packing includes:
1 x Arbitrary Waveform Generator
1 x BNC to Alligator Clip
1 x Q9 Cable
1 x USB Cable
1 x USB to DC Cord
1 x Power Adapter (EU Plug)
1 x User Manual
1 x Packaging Box
Note: We will send the appropriate rotor head according to your country.
