>>More information on HDS2102 & HDS2102S<<
Note: If the computer does not automatically install the software successfully, please install the software manually according to the PDF file in the manual.
>> English Manual and Software<<
Features:

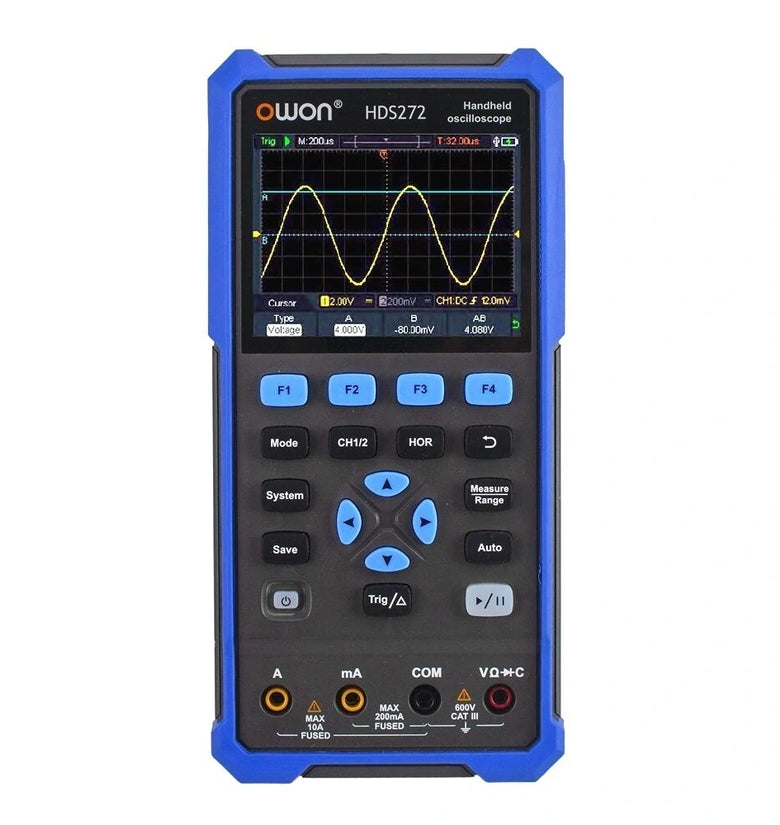

●Oscilloscope + multimeter + waveform generator, multifunction in one
●3.5-inch high-resolution, high-contrast color LCD display, suitable for outdoor use
●18650 lithium battery, comprehensive power consumption≤3W, can work continuously for about 6 hours

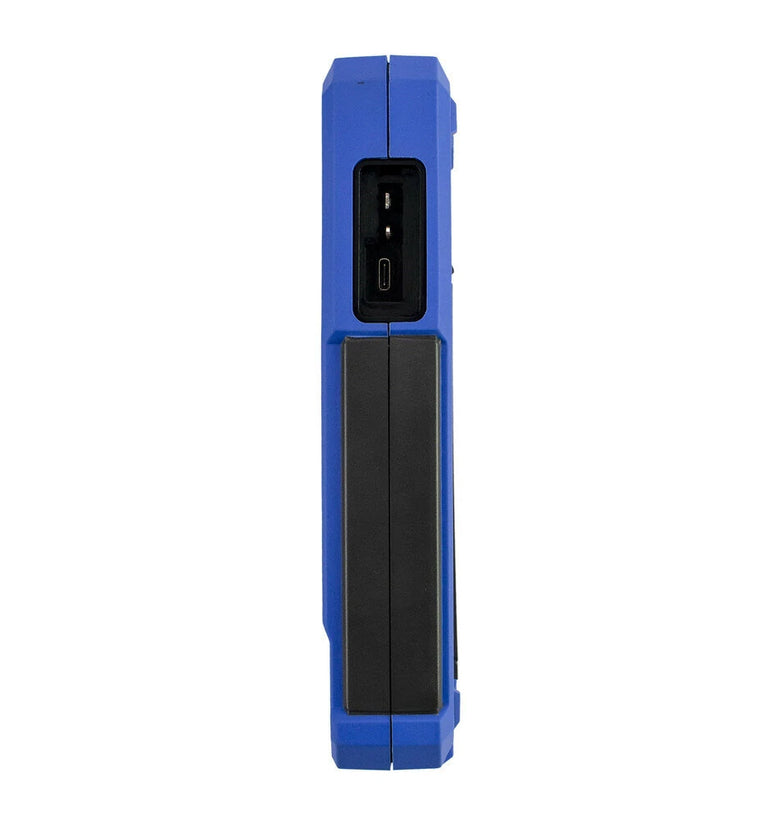

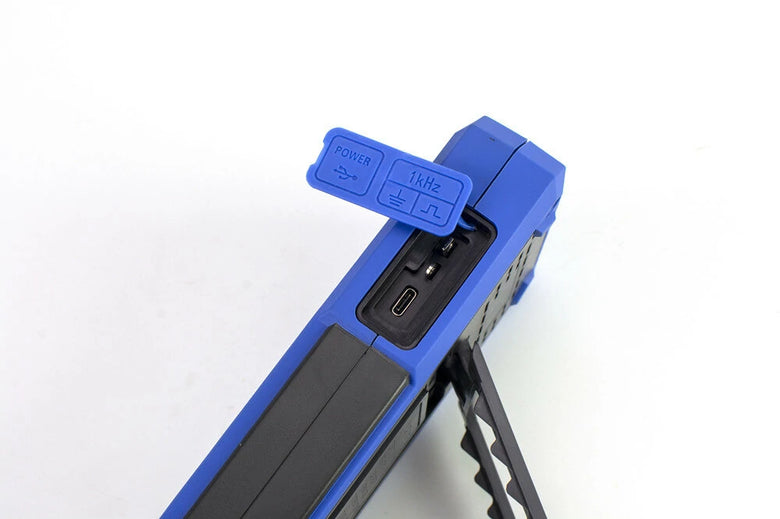

●USB Type-C interface, support power bank, support PC software connection
●Self-calibration function
●SCPI supported, facilitate secondary development
Specifications:
Oscilloscopes
Model |
HDS242 |
HDS272 |
HDS2102 |
HDS242S |
HDS272S |
HDS2102S |
||||
Bandwidth |
40MHz |
70MHz |
100MHz |
40MHz |
70MHz |
100MHz |
||||
Channels |
2- CH Oscilloscope |
2-CH Oscilloscope +1-CH Generator |
||||||||
Sample Rate |
250MSa/s |
250MSa/s |
500MSa/s |
250MSa/s |
250MSa/s |
500MSa/s |
||||
Acquisition Model |
Normal, Peak Test |
|||||||||
Record Length |
8K |
|||||||||
Display |
3.5 -inch LCD |
|||||||||
Waveform Refresh Rate |
10,000 wfrms/s |
|||||||||
Input Coupling |
DC, AC, and Ground |
|||||||||
Input Impedance |
1 MΩ+2%, in parallel with 1 6pF+10pF |
|||||||||
Probe Attenuation Factors |
1X,10X,100X,1000X,10000X |
|||||||||
Max. input Voltage |
400V (DC+AC, PK PK, 1MΩ input impedance) (10:1 probe attenuation) |
|||||||||
Bandwidth Limit (typical) |
20MHz |
|||||||||
Horizontal Scale |
5ns/div - 1000s/div, step by 1-2- 5 |
|||||||||
Vertical Sensitivity |
10mV/div - 10V/div |
|||||||||
Vertical Resolution |
8 bits |
|||||||||
Trigger Type |
Edge |
|||||||||
Trigger Modes |
Auto, Normal, single |
|||||||||
