Specifications:
Oscilloscope:

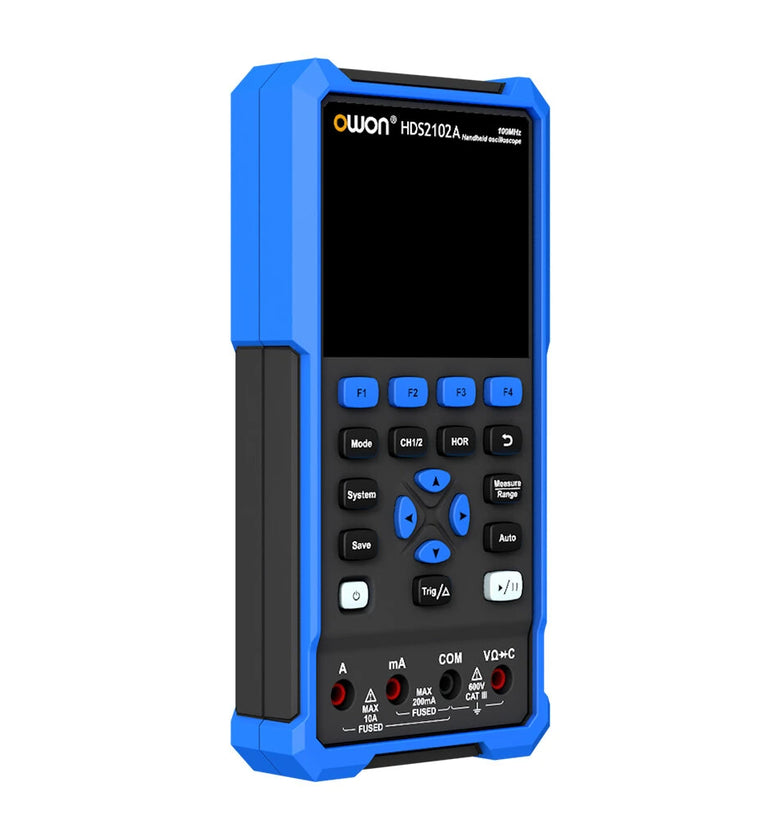

Model: HDS2102A
Bandwidth: 100MHz
Channels: 2
Sample Rate: 500MSa/s
Memory Depth: 8kpts
Waveform Refresh Rate: 10,000 wfms/s
Display: 3.5-inch LCD
Vertical Sensitivity: 10mV/div - 10V/div
Vertical Resolution: 8-bit
Horizontal Scale: 5ns/div - 1000s/div
Max Input Voltage: 400V (DC+AC, PK-PK, 1MΩ input impedance at 10:1 probe attenuation)
Input Impedance: 1MΩ±2% (parallel with 16pF±10pF)
Trigger Modes: Auto, Normal, Single
Automatic Measurements: Frequency, Period, Amplitude, Max, Min, Mean, PK-PK
Cursor Measurements: ∆V, ∆T, ∆T & ∆V
Multimeter:
Max Resolution: 20,000 counts
Testing Modes: Voltage, Current, Resistance, Capacitance, Diode, Continuity
Input Impedance: 10MΩ
Max Input Voltage:
AC: 750V
DC: 1000V
Max Input Current:
DC: 10A
AC: 10A
Features:
1. Multifunctional Design: Combines an oscilloscope, multimeter, and automotive diagnostic tool in a compact device, streamlining workflows for professionals in multiple industries.
