Description:

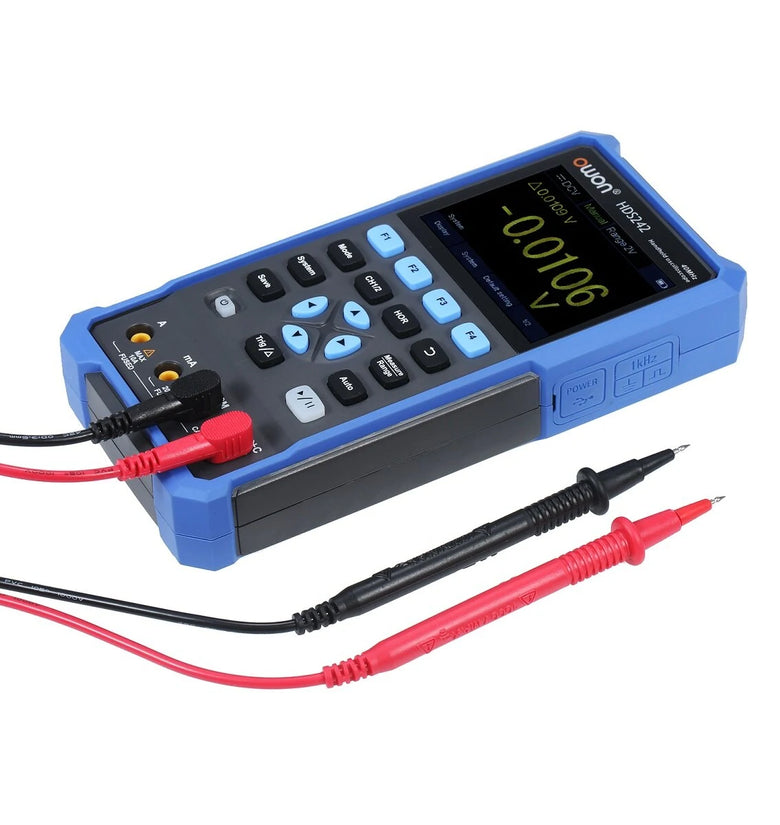

This is a 3-in-1 multifunctional tester, which can be used as a oscilloscope / multimeter / waveform generator. Handheld design, great for outdoor facility maintenance, rapid on-site measurement, automobile maintenance, power detection. etc.
Features:
3-in-1 multifunction- in Oscilloscope mode, it features dual channel input with 40MHz bandwidth and waveform refresh rate up to 10,000wfms/s; in Multimeter mode, it can measure voltage, current, resistance, diode, capacitance and do continuity test ; in Waveform Generator mode,it can output sine, square, ramp, pulse and built-in special waveforms with frequency up to 25MHz.

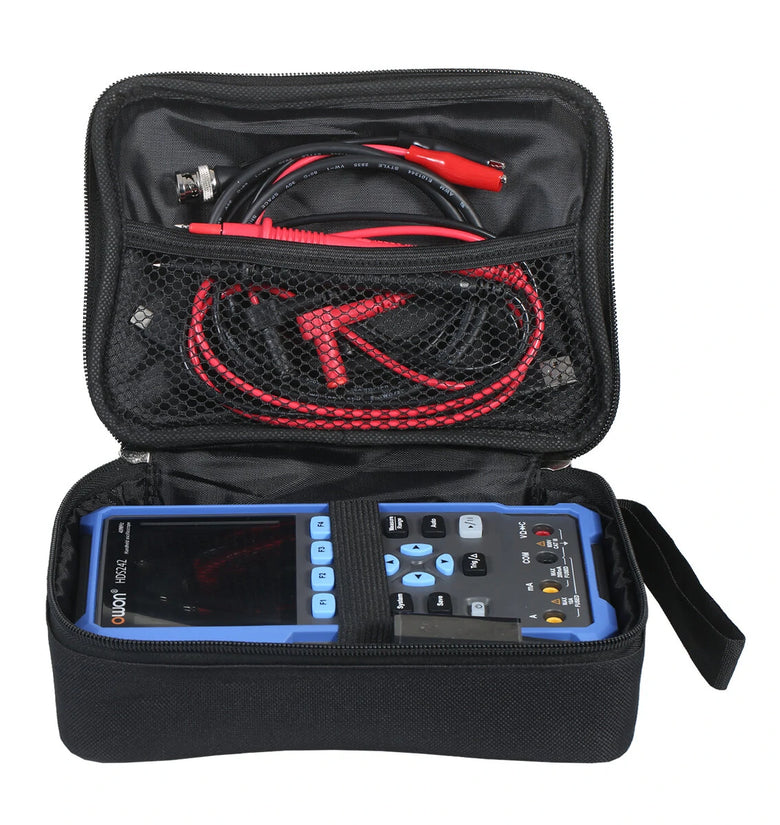

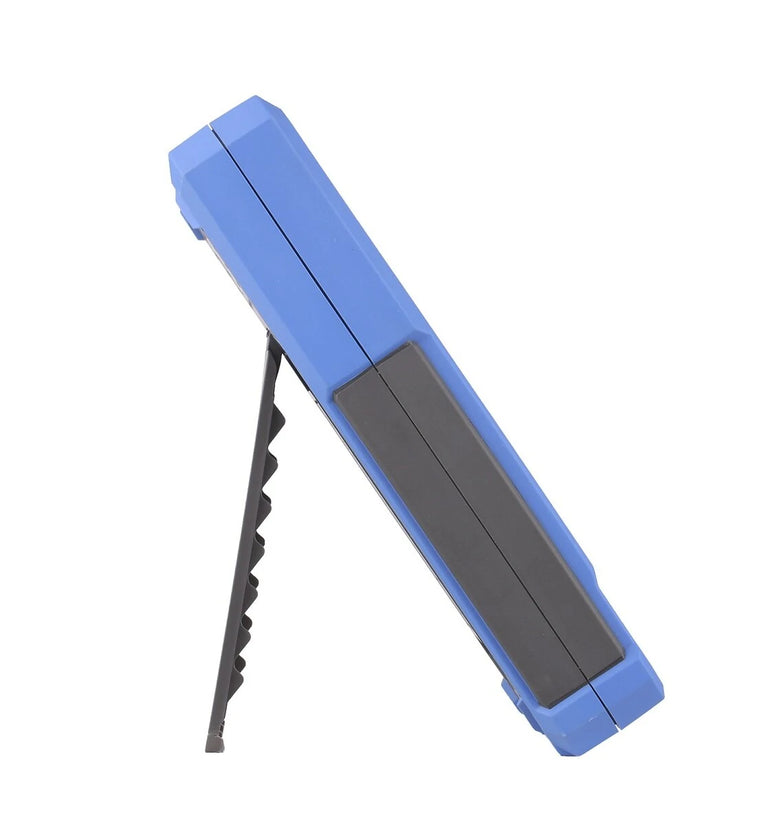

Ergonomic design- its compact size makes it easy to carry outside, and it has a stand which allows it to sit securely on table. Comes with carrying bag for convenient storage.
Large battery capacity- powered by two 2200mAh batteries, it can work continuously for about 6 hours on a single charge, and it can be easily charged via its USB interface by a adapter or portable battery.

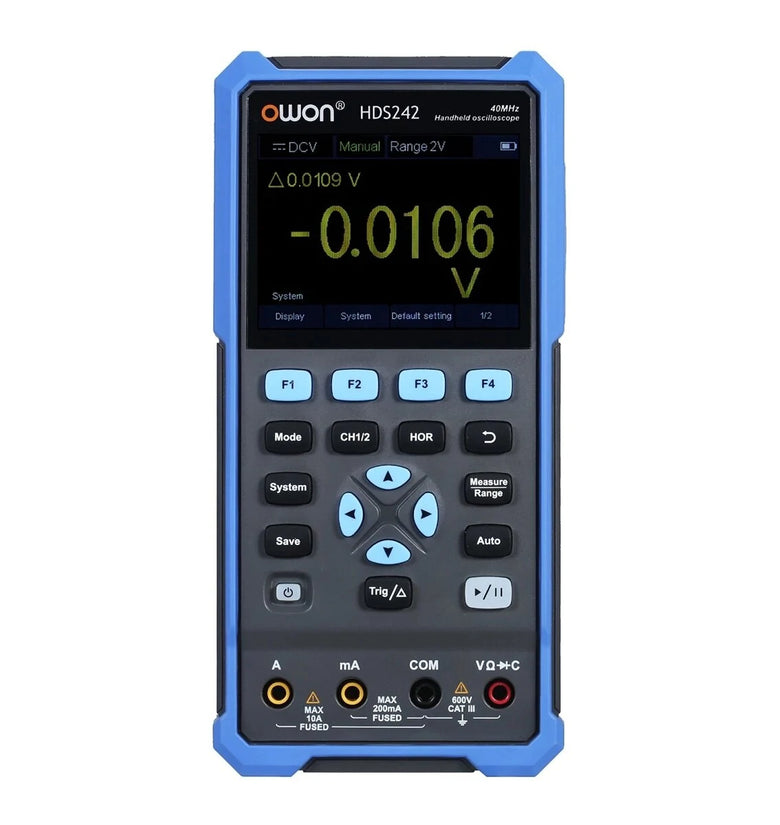

Large and clear display- equipped with a 3.5-inch high-resolution, high-contrast color LCD display, making it easy to read the numbers and waveform details.
Easy to use- with simple button panel and intuitive interface, this device is easy to operate, suitable for outdoor facility maintenance, rapid on-site measurement, automobile maintenance, power detection. etc.
Specifications:
Brand: OWON
Model: HDS242/HDS242S
Material: ABS
Function: Oscilloscope + Multimeter + Waveform Generator(only for HDS242S)
Battery: 2 x 2200mAh 18650 Lithium Battery
Charging Method: USB Type-C
Item Size: 19.5 x 9.5 x 3.8cm / 7.68 x 3.74 x 1.5in
Item Weight: 519g / 18.3oz
Package Weight: 1100g / 38.8oz
Package Size: 24 x 15.5 x 8.8cm / 9.45 x 6.1 x 3.46in
Model |
HDS242 |
HDS272 |
HDS242S |
HDS272S |
|
Oscilloscopes |
Bandwidth |
40MHz |
70MHz |
40MHz |
70MHz |
Channels |
2- CH Oscilloscope |
2-CH Oscilloscope + 1-CH Generator |
|||
Sample Rate |
250MSa/s |
||||
Acquisition Model |
Normal, Peak detect |
||||
Record Length |
8K |
||||
Display |
3.5 -inch LCD |
||||
Waveform Refresh Rate |
10,000 wfrms/s |
||||
Input Coupling |
DC, AC, and Ground |
||||
Input Impedance |
1 MΩ+2%, inparallel with 16pF+10pF |
||||
Probe Attenuation Factors |
1X,10X,100X,1000X |
||||
Max. input Voltage |
400V (DC+AC, PK PK, 1MΩ input impedance) |
||||
Bandwidth Limit (typical) |
20MHz |
||||
Horizontal Scale |
5ns/div - 500s/div, step by 1-2- 5 |
||||
Vertical Sensitivity |
10mV/div - 10V/div |
||||
Vertical Resolution |
8 bits |
||||
Trigger Type |
Edge |
||||
Trigger Modes |
Auto, Normal, single |
||||
Automatic Measurement |
Frequency, Period, Amplitude, Max, Min, Mean, PK-PK |
||||
Cursor Measurement |
△V, △T, △T&△V between cursors |
||||
Communication Interface |
USB Type-C |
||||
Multimeter (Standard) |
Max. Resolution |
20,000 counts |
|||
Testing Mode |
|||||
