Please click here to download the instruction manual
Specifications:
Brand: SDS200 Series
Optional Model: SDS210, SDS210(S), SDS215, SDS215(S), SDS220, SDS220(S)
Optional Plug: US / EU Plug
Bandwidth: 100 MHz (SDS210), 150 MHz (SDS215), 200 MHz (SDS220)
Channels: 2 channels
Acquisition Mode: Normal, Peak detect, Averaging
Sample Rate (real time): 1 GS/s
Input Coupling: DC, AC, Ground
Input Impedance: 1 MΩ±2%, in parallel with 12 pF±5 pF
Input Attenuation: 1X, 10X, 100X, 1000X
Max. Input Voltage: 400V (DC+AC, PK - PK)
Channel-Channel Isolation: 50Hz: 100:1, 10MHz: 40:1
Display: Scanning speed (S/div): 2 ns/div – 1000 s/div, step by 1 – 2 - 5
Vertical Resolution (A/D): 8 bits (2 channels simultaneously)
Sensitivity: 2 mV/div – 10 V/div
Display: 4 inch
Trigger: Edge, Video
Communication Port: USB 2.0
Counter: Supported
Features:
High Bandwidth Options: Choose from 100 MHz, 150 MHz, or 200 MHz bandwidth to suit different signal analysis needs.
Fast Sample Rate: Achieves a real-time sample rate of 1 GS/s, offering precise signal capture and analysis.
Versatile Input Coupling: Supports DC, AC, and Ground input coupling with a maximum voltage of 400V, enhancing measurement flexibility.
Advanced Acquisition Modes: Offers Normal, Peak Detect, and Averaging modes to cater to various signal conditions.
Comprehensive Triggering: Supports edge and video triggering, including standard NTSC, PAL, and SECAM broadcast systems.
Package Included:

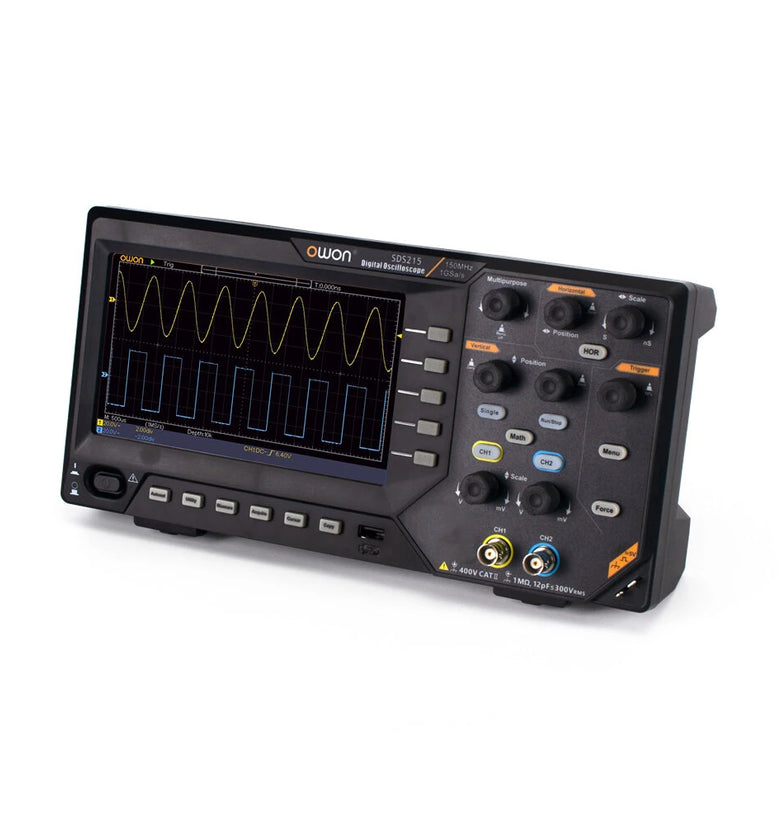

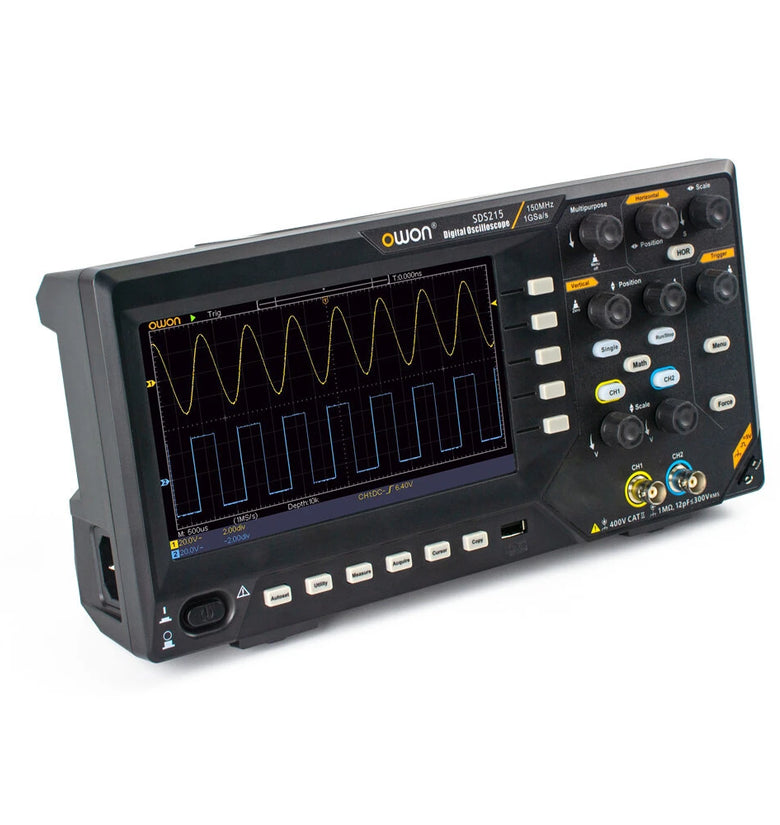

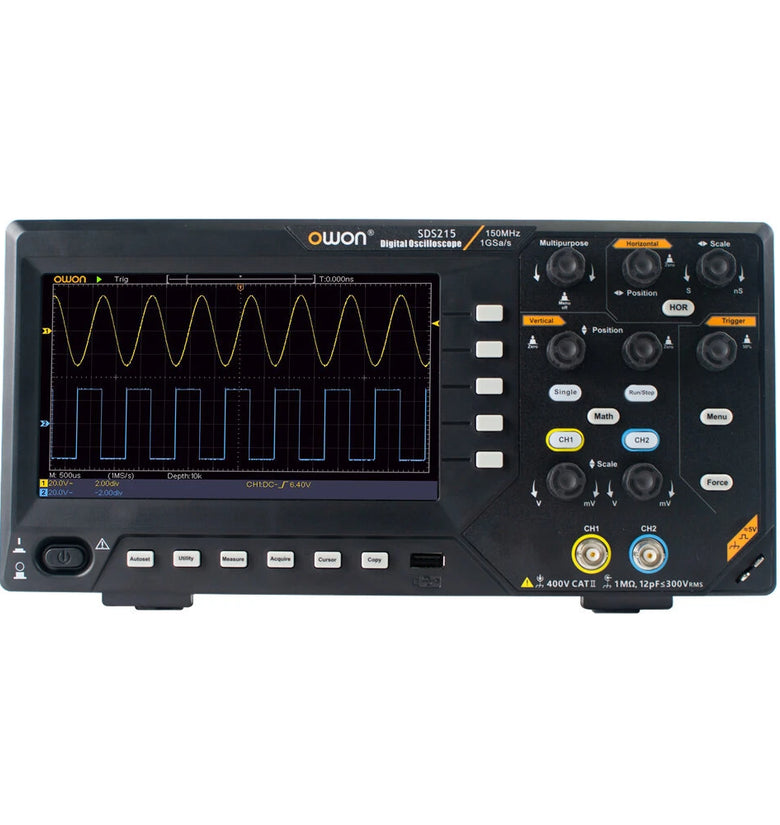

SDS210/SDS215/SDS220
1 x SDS210/SDS215/SDS220 Oscilloscope(option)
1 x USB Cable
1 x Power Adapter(EU/US Plug)
1 x Probe Adjust
2 x Probes
1 x User Manual
1 x Calibration Certificate

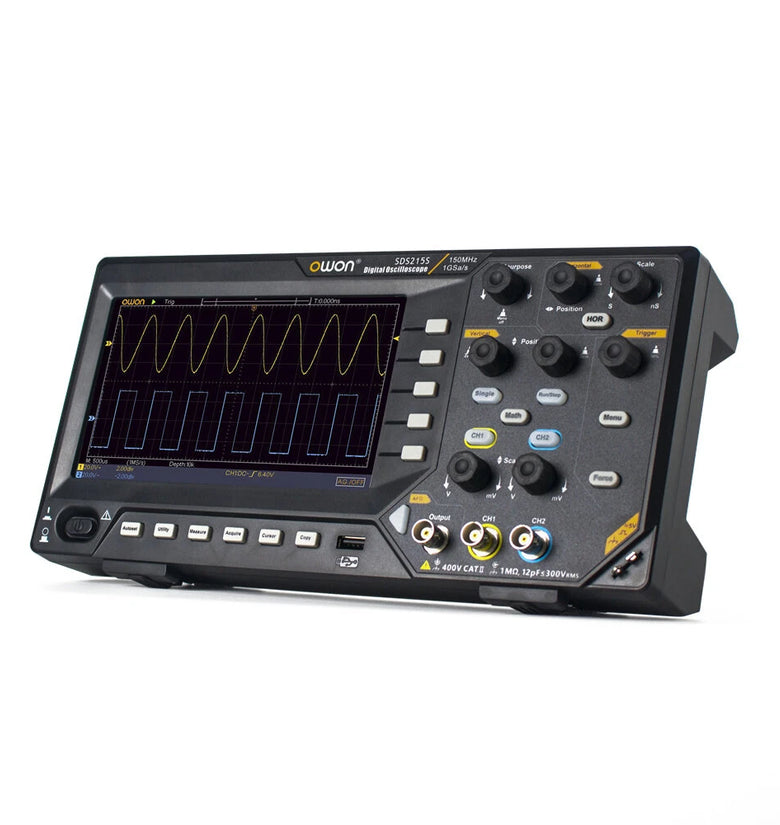

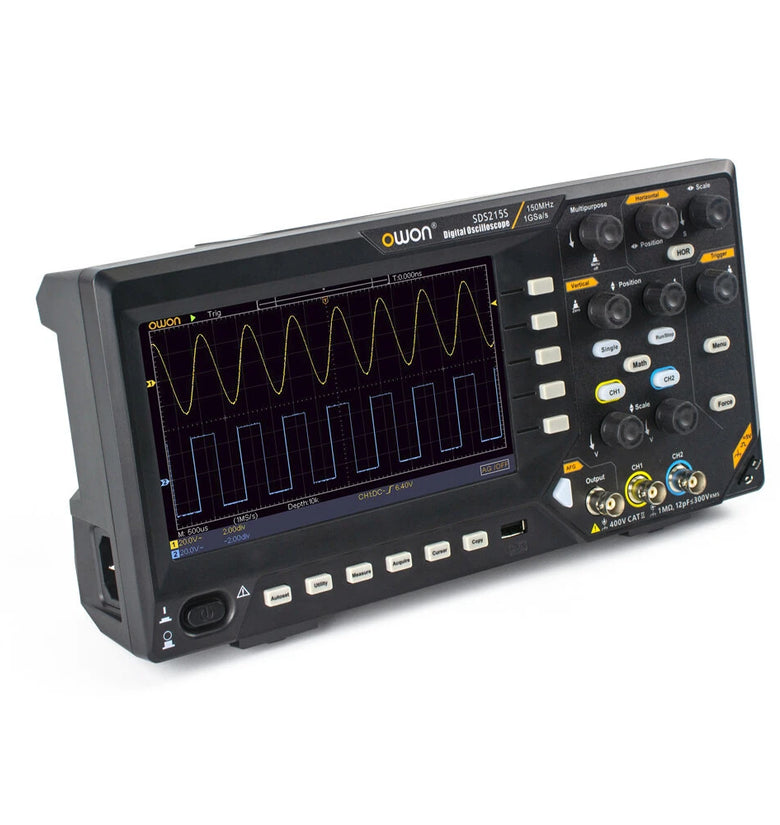

SDS210S/SDS215S/SDS220S
1 x SDS210S/SDS215S/SDS220S Oscilloscope(option)
1 x USB Cable
1 x Power Adapter(EU/US Plug)
1 x Probe Adjust
2 x Probes
1 x User Manual
1 x Calibration Certificate
1 x BNC cable(Only for SDS210S/SDS215S/SDS220S)
