Features:
Up to 100MHz bandwidth, and max 1GS/s real-time sample rate
2/ 4 channels
Max 10M record length
Friendly UI : FFT, or X-Y, and waveform 2 views displayed on the same screen
Multi-trigger option : edge, video, slope, pulse, and alternate
USB isolation - less interference, more PC protection
USB bus powering, and LAN remote control (optional)
Ultra-thin body design, easy portability
SCPI supported
Specification:
Model |
VDS1022 |
|
Bandwidth |
25MHZ |
|
Channel |
2-1 (multi) |
|
Sample Rate |
100MSa/s |
|
Horizontal Scale |
5ns/div-100s/div, step by 1~2~5 |
|
Rise Time |
<14 ns |
|
Record Length |
5K |
|
Input Coupling |
DC, AC, GND |
|
Input Impedance |
1MΩ±2%, in parallel with 10pF±5pF |
|
Channels Isolation |
50Hz : 100 : 1, 10MHz : 40 : 1 |
|
Max Input Voltage |
40V (PK - PK) (DC-AC, PK - PK) |
|
DC Gain Accuracy |
±3% |
|
DC Accuracy |
Average≥16: 士(3% reading + 0.05div) for |
|
Probe Attenuation |
IX，10X，100X，1000X |
|
LF Respond (AC, |
>5Hz (at input, AC coupling, -3dB) |
|
Sampling Rate / |
150ps |
|
Interpolation |
sin(x) /x |
|
Interval (Triangle T) |
Single: 土（ 1 interval time + 100ppm x |
|
Vertical Resolution |
8 bits (2 channels simultaneously) |
|
Vertical Sensitivity |
5mV/div~5V/div |
|
Trigger Type |
Edge, Pulse, Video, Slope, Alternate |
|
Trigger Mode |
Auto, Normal, Single |
|
Trigger Level |
±5 divisions from screen center |
|
Acquisition Mode |
Sample, Peak Detect, and Average |
|
Line Field |
NTSC, PAL, and SECAM standard |
|
Cursor Measurement |
Triangle V, and Triangle T between cursors |
|
|
Automatic Mcasmsmcnt |
Vpp, Vmax. Vmin. Vtop, Vbase, Vamp, |
|
Waveform Math |
FFT.十，-，x,/，invert |
|
Lissajous Figure |
Bandwidth |
full bandwidth |
Phase Difference |
±3 degrees |
|
|
Communication Interface |
USB 2.0 |
|
|
Multi-function Interface |
Signal Type |
TTL |
Level Standard | ||
Power Supply |
5.0V/1A |
|
|
Power Consumption |
<1.5W |
|
Dimensions |
170 x 120x18 (mm) |
|
Weight |
721g |
|

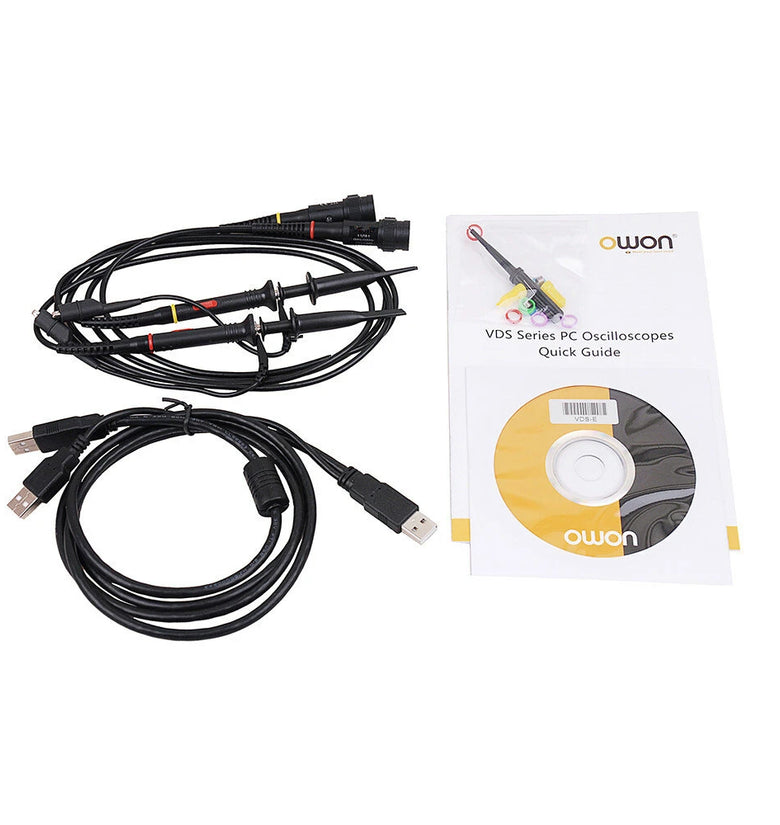

Package included:
1 x OWON VDS1022 PC Oscillscope
1 x CD Rom
1 x User Manual
1 x USB Cable
1 x Probe

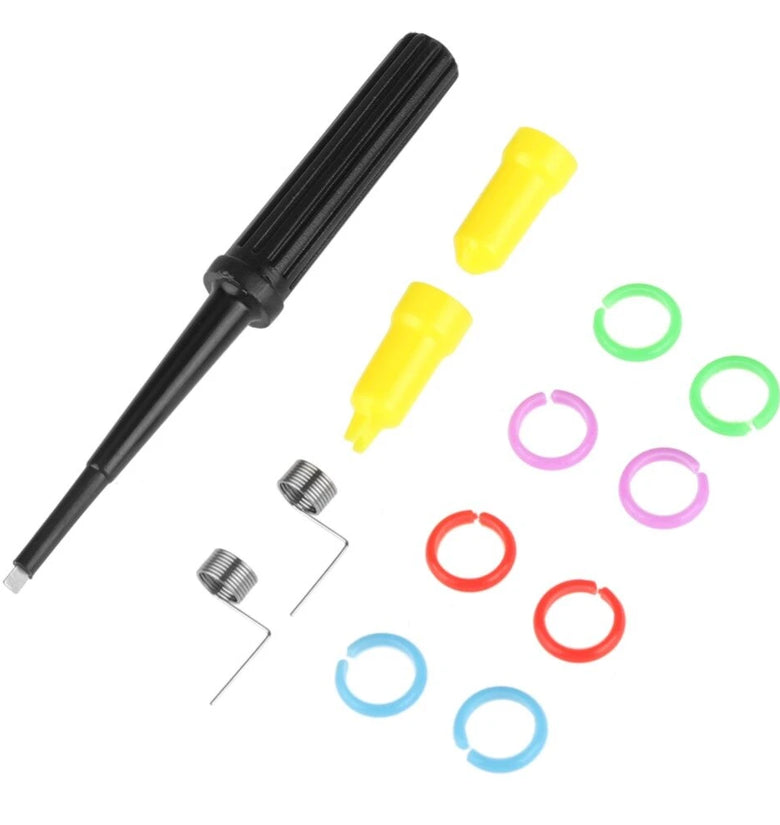

1 x Probe Adjust

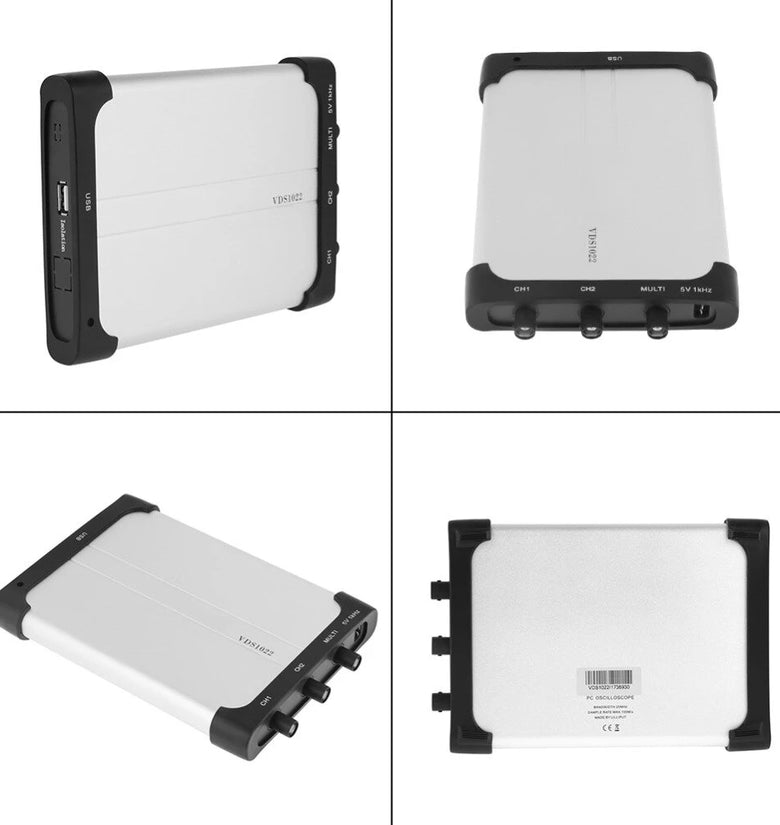

Details Pictures:
