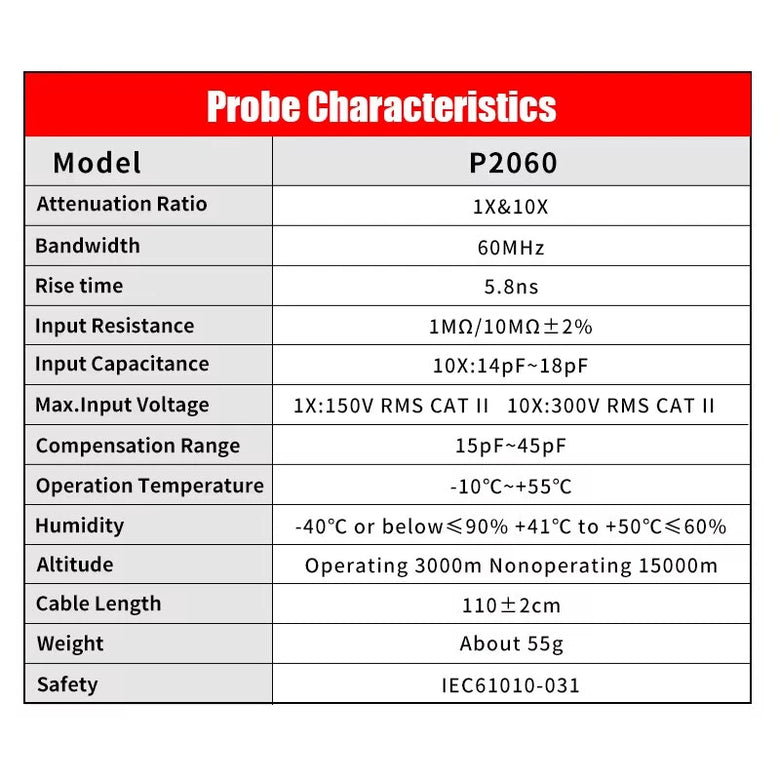

Specifications:
Model: P2060
Attenuation Ratio: 1X & 10X
Bandwidth: 60MHz
Rise Time: 5.8ns
Input Resistance: 1MΩ/10MΩ ± 2%
Input Capacitance: 10X:14pF~18pF
Max. Input Voltage: 1X: 150V RMS CAT II, 10X: 300V RMS CAT II
Compensation Range: 15pF~45pF
Operation Temperature: -10°C~+55°C
Humidity Range: -40°C/or below ≤ 90% +41°C to +50°C ≤ 60%
Operating Altitude: Up to 3000m; Non-operating up to 15000m
Cable Length: 110 ± 2cm
Weight: Approximately 55g
Safety Certification: IEC61010-031
Features:
1.High Bandwidth Compatibility: Equipped with a 60MHz bandwidth and rise time of 5.8ns, this probe ensures precise and reliable waveform measurement across various electronic applications.
2.Flexible Attenuation Options: The switchable 1X and 10X attenuation ratios allow users to adapt to different signal testing scenarios, making it suitable for both high-precision and standard requirements.
3.Wide Operation Range: Designed to perform efficiently across a wide temperature (-10°C to +55°C) and humidity range, catering to diverse environmental conditions and technical needs.
4.Compact and Lightweight Design: With an ergonomic structure and 55g weight, it’s portable and easy to handle during extended testing sessions without compromising on functionality.
5.Safety-Driven Construction: This probe adheres to IEC61010-031 standards, safeguarding users during operation while handling various voltage levels up to 300V RMS CAT II.
Package Included:

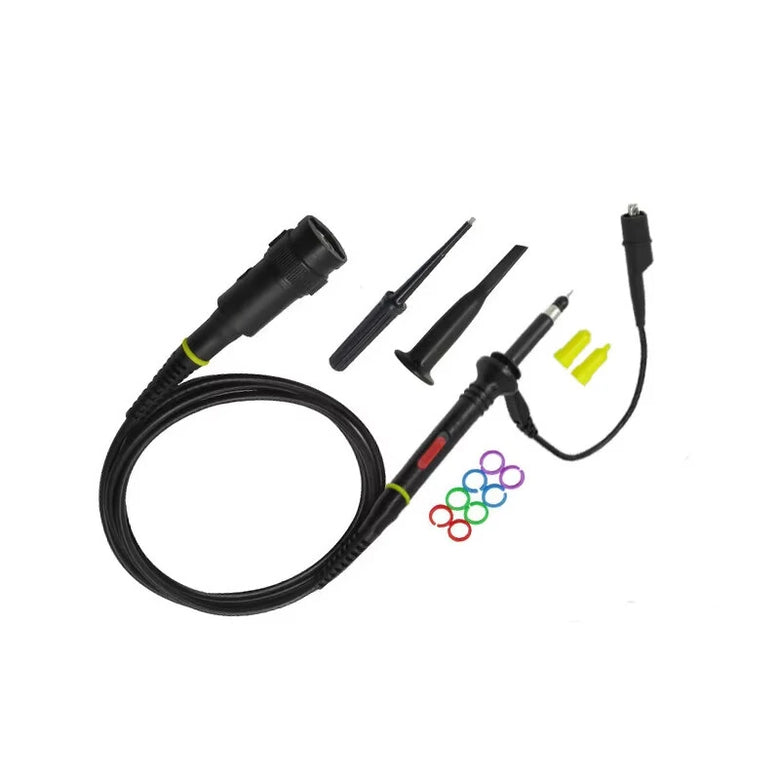

1 x Oscilloscope Probe Kit
