Specification :
| Input voltage | Electricity | Accessibility power | Speed of melt tin |
| 19V | ≥2.38A | 45W | 9S |
| 20V | ≥2.50A | 50W | 9S |
| 21V | ≥2.63A | 55W | 8S |
| 22V | ≥2.75A | 61W | 8S |
| 23V | ≥2.88A | 66W | 8S |
| 24V | ≥3.00A | 72W | 7S |

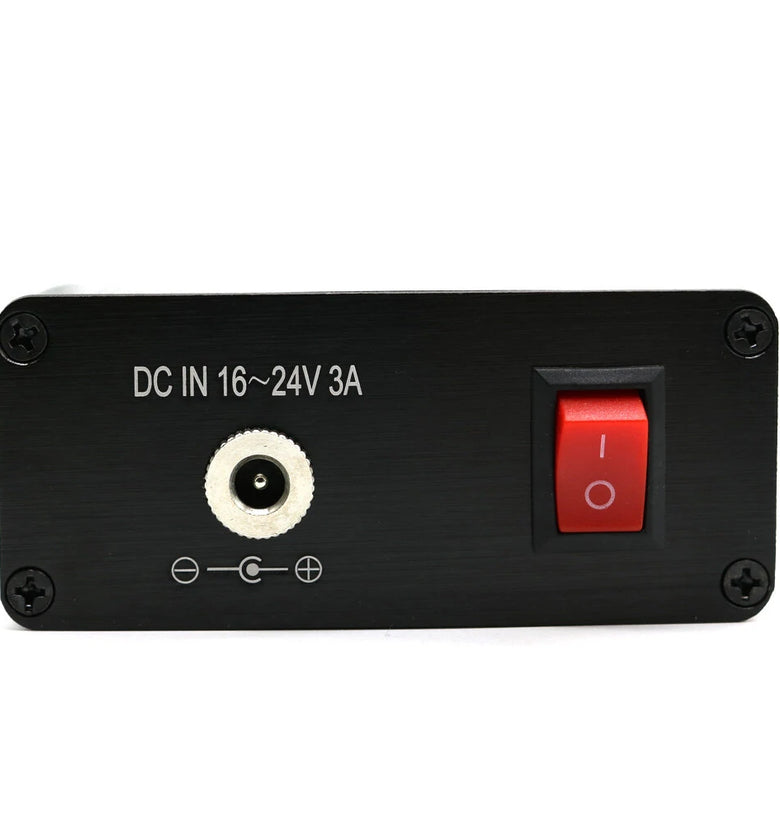

Suitable for DC 24V notebook power, car power, mobile power and battery supply.

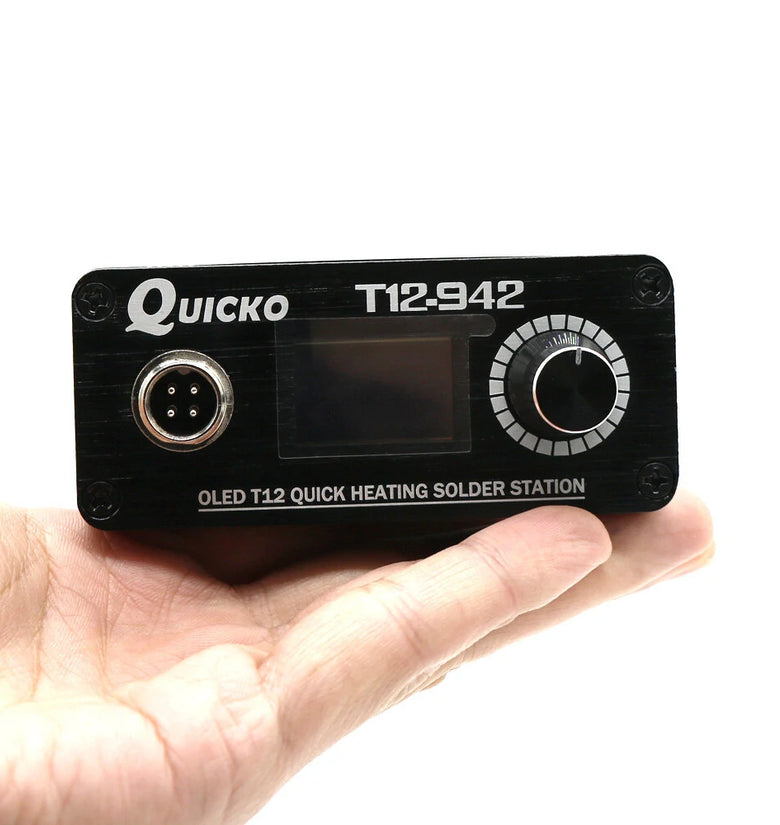

THIS IS MINI Portable OLED T12 solder iron station, you need to prepare a DC 24V 3A-5A power by yourself.
Size: 88mm*41mm*38mm
NOTE:
Iron tip do not work high temperature continuously, the tips will be damage easier.
Solder melting point is 183°C, lead-free solder melting point is 227°C, the welding temperature is 300-380°C.
380°C is the temperature of the dividing line.
When the temperature is higher than 380°C, iron head oxidation and loss is fast, affect the life of heating core.
380°C is the temperature of the dividing line.
When the temperature is higher than 380°C, iron head oxidation and loss is fast, affect the life of heating core.
Higer than 380°C, temperature display also will be beating, the higher the temperature, the greater the beating!
Recommended in the 300-380°C for welding work, most of the work can be carried out, the temperature beating is normal.
Recommended in the 300-380°C for welding work, most of the work can be carried out, the temperature beating is normal.

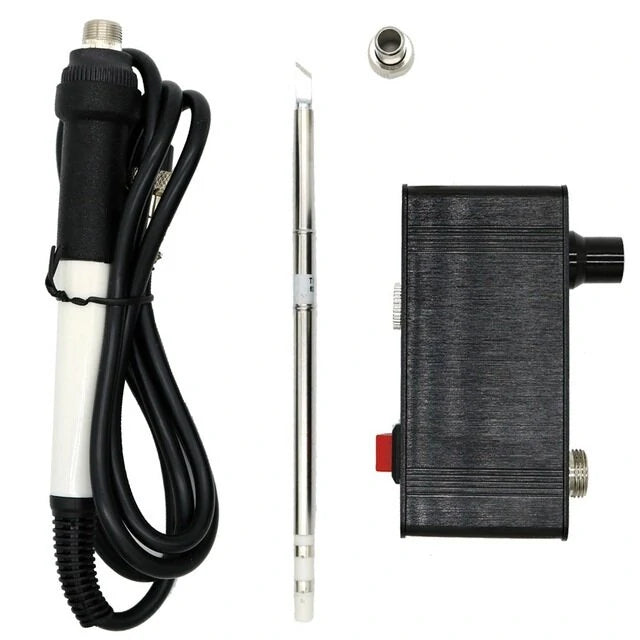

Package includeds :
1 x Mini OLED T12 Controller
1 x T12 Iron Handle
1 x T12-K Soldering Iron

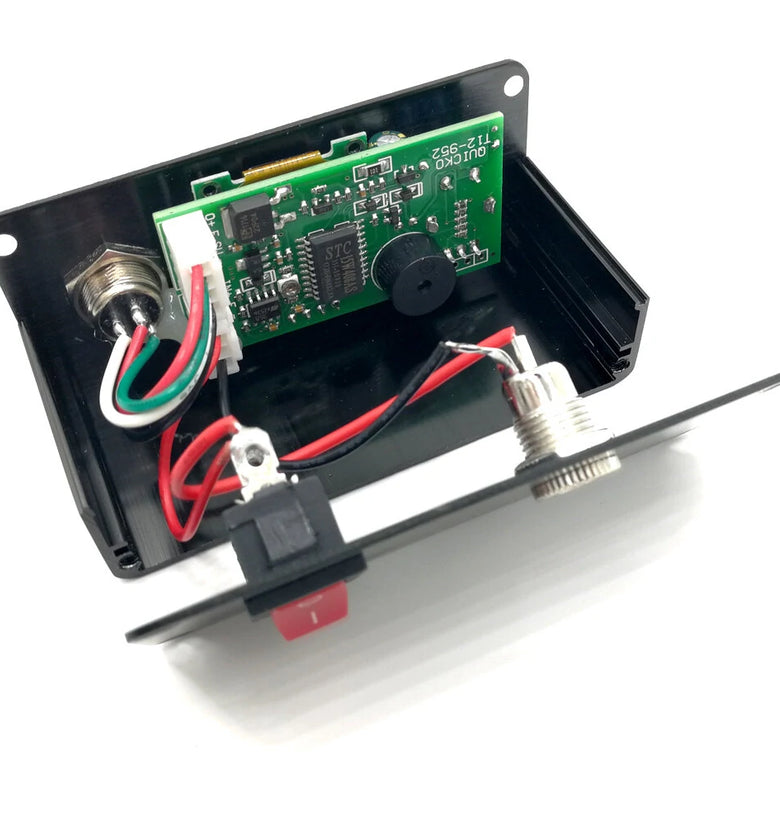

Details pictures :
