Product Performance:

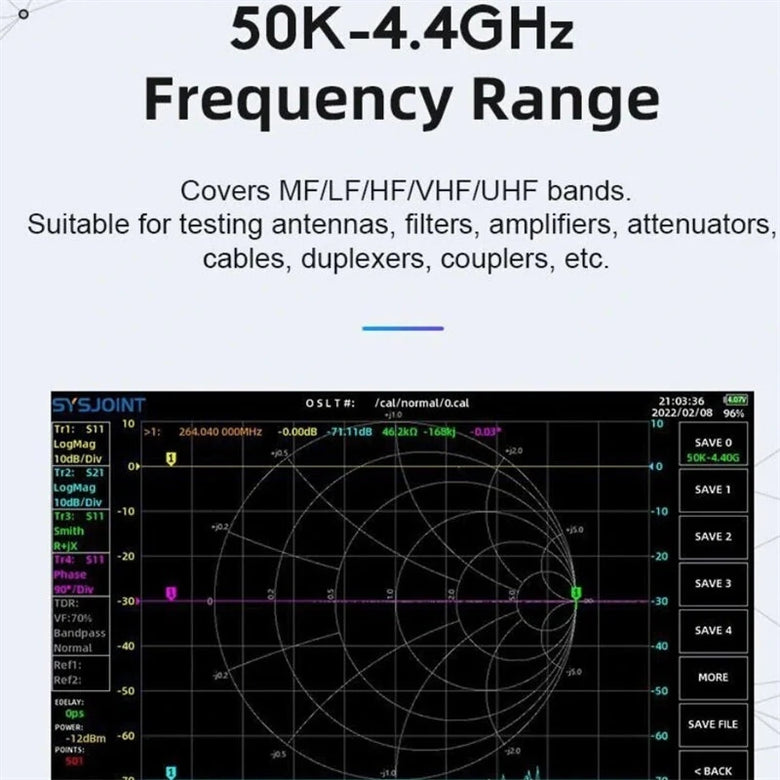

1. Measurement frequency range: 50KHz-4400MHz;
2. RF output power: adjustable from -12dbm to -42dbm (step 1db) (error in the whole frequency band: plus or minus 1db);
3. Frequency accuracy: ±1ppm, ±5KHz >140MHz

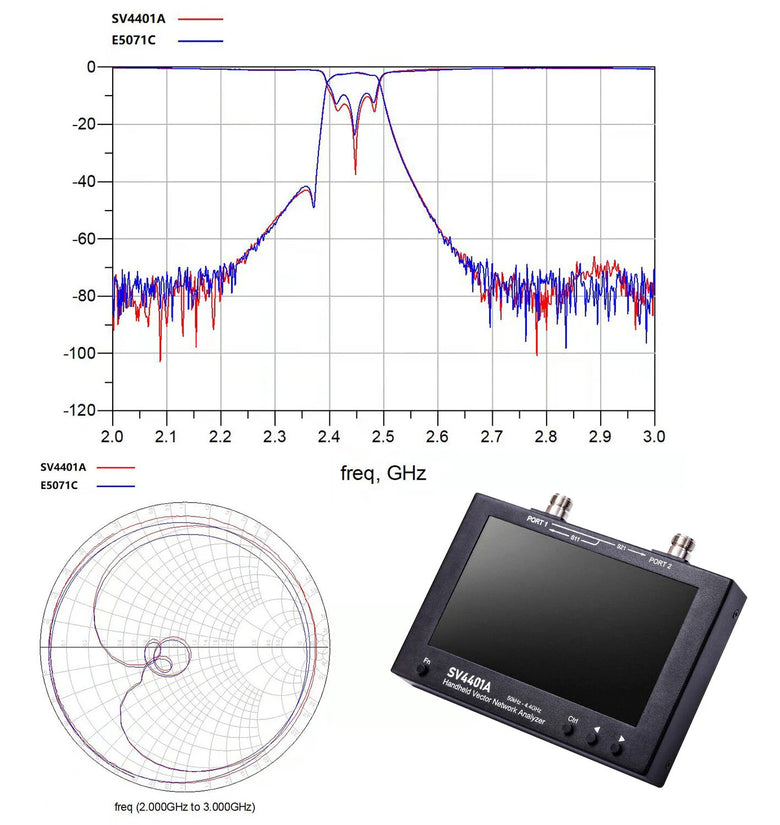

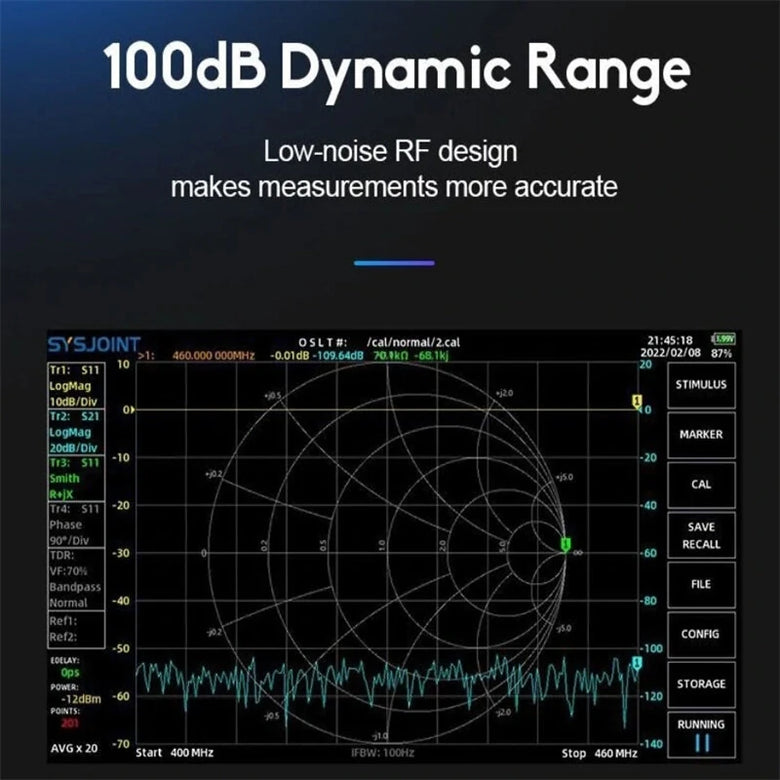

4. S21 dynamic range: 90dB (below 2GHz), 75dB (4.4GHz) (25 times average and 100Hz IF are turned on), if 100Hz and 25 times average are turned on, 100db of dynamics can be achieved below 1.3GHz.
5.S11 dynamic range: better than 50db
6.2 port return loss: 30dB typ (1.5GHz), 20dB min (4.4GHz)
7.USB Interface: USB Type-C Communication Mode: CDC (Serial)
8. Number of calibration points: 101-1001 points
9. Number of scanning points: 101-1001 points
10. Display trace: 7 traces
11. Mark: 8 mark points (the mark bar can be moved anywhere on the screen)

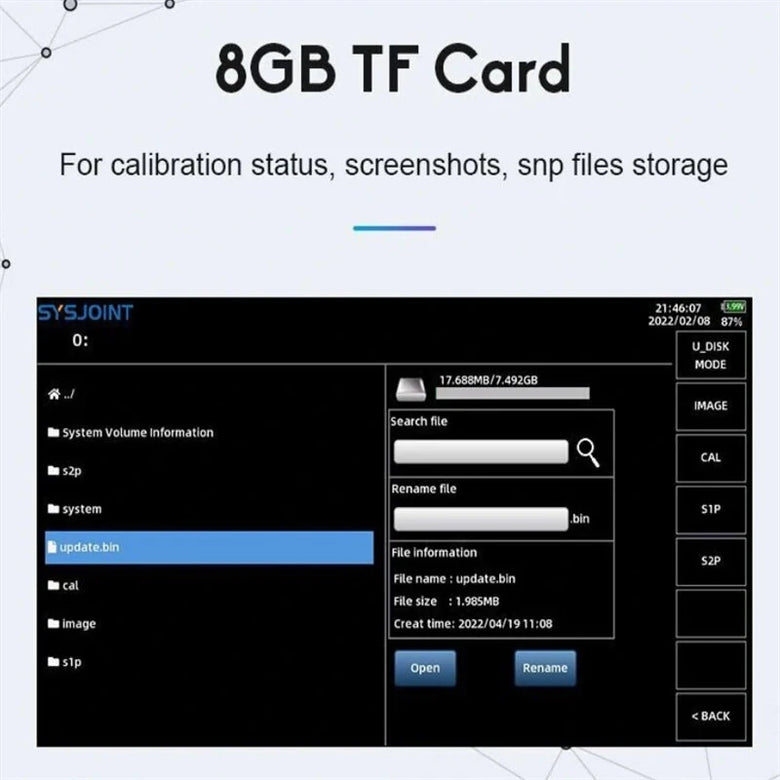

12. Save settings: 12 (quick menu) (after saving, it can be directly called when the next startup is used, no need to re-calibrate, and the saved parameters before the last shutdown will be automatically recalled when the next startup, and the function of automatically storing the start and end frequencies is added. , which is convenient for the next call) Built-in file saving, in principle, unlimited storage units can be saved, depending on the capacity of the TF card.
13. Scanning speed: about 400 points/second
14. It can measure S parameters, voltage standing wave ratio, SWR, Smith chart, phase diagram, group delay, TDR function...;

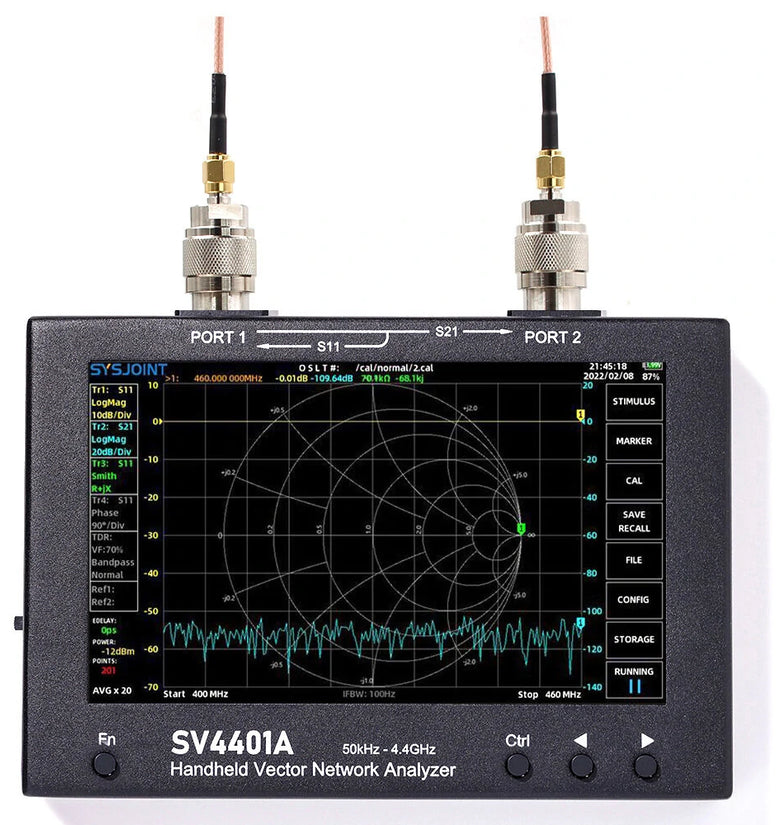

15. Using a 7-inch high-brightness IPS capacitive touch screen, the viewing angle of IPS TFT (1024x600) is close to 180°, and it will not hurt the eyes when used for a long time; payment)
16. The metal case is used to effectively shield electromagnetic interference, making S21 better than 100dB dynamic range within 2GHz
17. Compact design, body size 195mm*150mm*35mm, small and portable; outer packaging size: 25x20x7cm
18. The radio frequency interface is L16-F (N female base), which is convenient to connect various DUTs;
19. The standard configuration uses two 18650 batteries with a total capacity of 6600mAh, and the battery life can reach 4 hours; (you can modify it to install two 21700 battery holders, the capacity can reach 10000mAH, and the battery life can reach about 6 hours.
20. Full touch screen design, supports 4 front panel buttons at the same time, flexible and convenient operation;
21. Support Chinese and English menus;
22. Support screen brightness adjustment;
23. Upgrade the firmware through a virtual U disk, no programmer is needed, and only a USB cable can be used to upgrade the firmware;
22. Expand a USB power output interface, 5V/1A output (can be used as a power bank);
24. Using high current 2A charging IC, the charging time is shorter;
25. Support the host computer, you can use the computer as the display operation interface;
26. Net weight: 1160 grams,
27. Total weight of outer packaging: 1590 grams.
28. Support screenshots and upload screenshots to the computer.
Operation Video: https://www.ixigua.com/7067397812358808076
Firmware Upgrade Method:
Connect the computer with a data cable, press and hold Ctrl and turn it on, click the Udisk of Yawang, you will see a USB flash drive on the computer, copy the upgrade file to the USB flash drive, overwrite the original file, shut down, press and hold Ctrl to turn on the A dialog box will poip up, click Upgrade, wait for the completion, and then shut down and then restart.

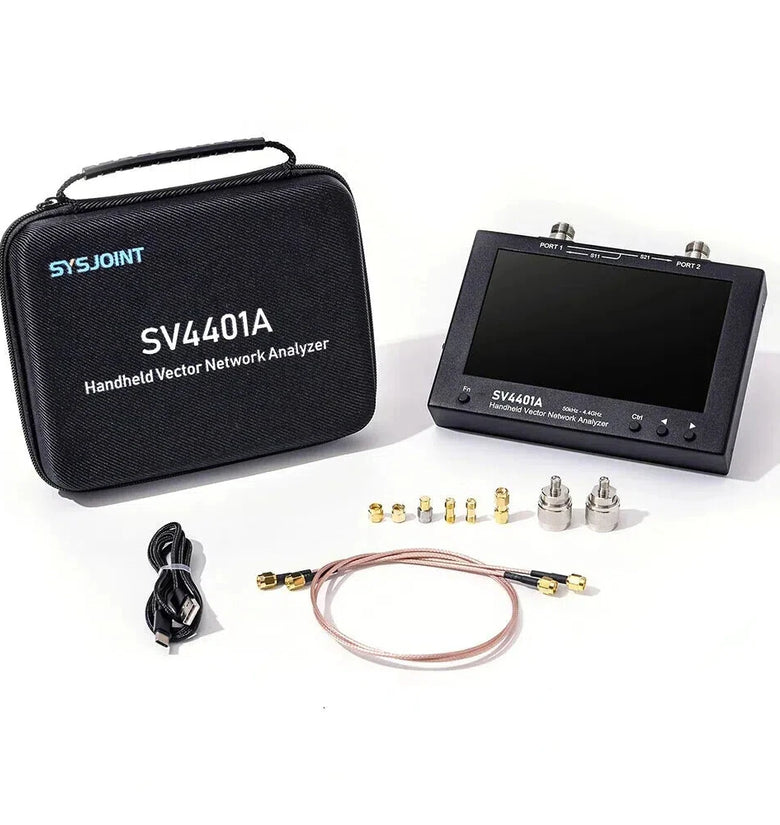

Packing List:
SV4401A host x1
N to SMA adapter x2
SMA Open/Short/Load Calibration Kit x1
SMA Double Female Straight Adapter x2
SMA Double Female Straight Adapter x1
50cm RG316 cable x2
USB type-C data cable x1
