>>Please Click Here to Download the English User Manual<<
Features:

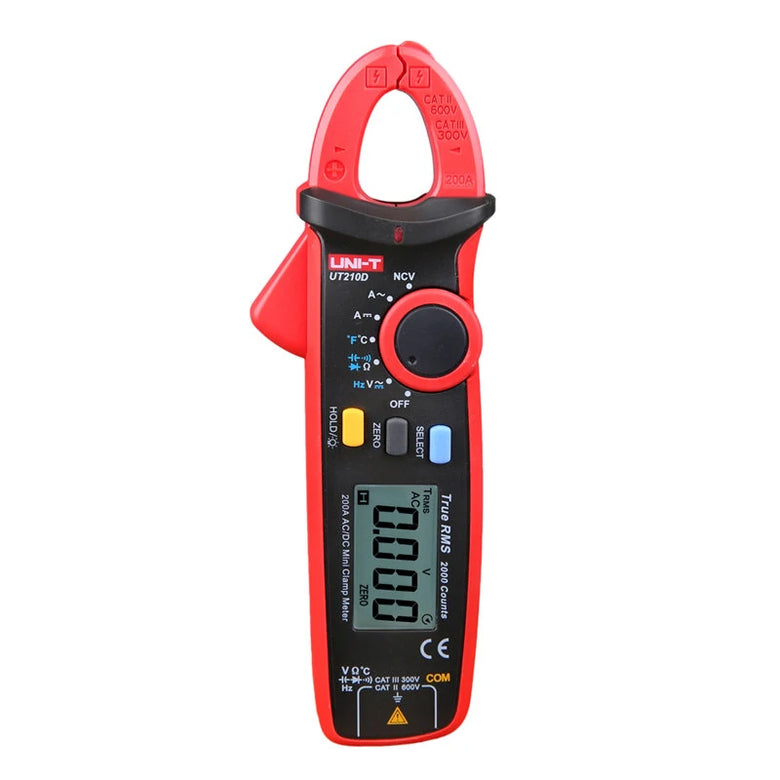

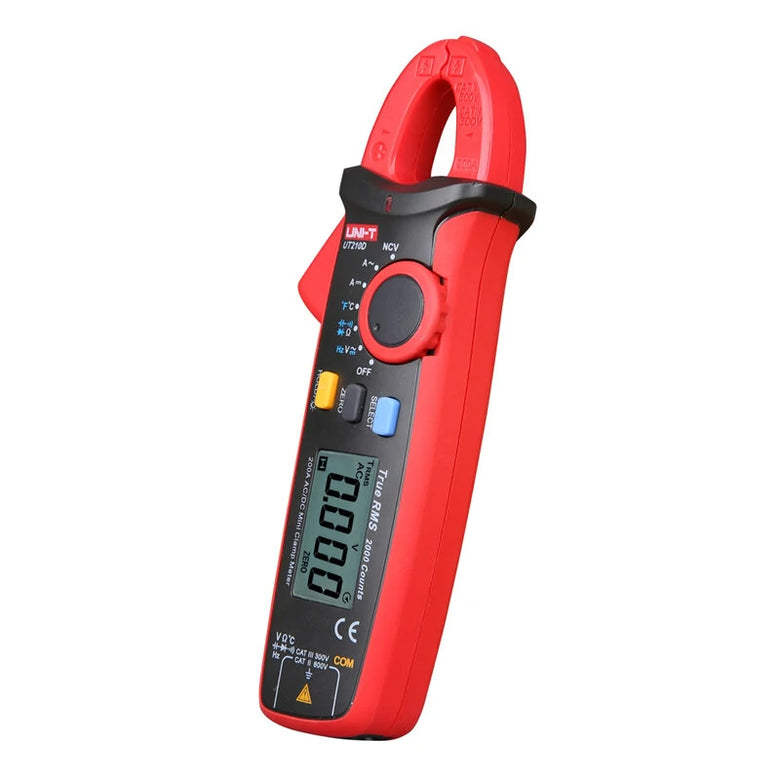

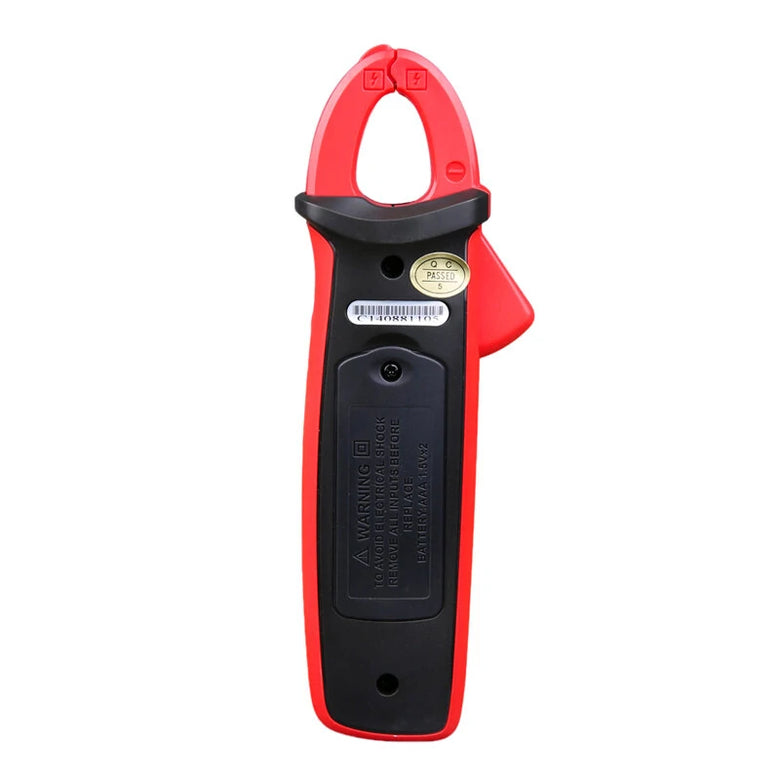

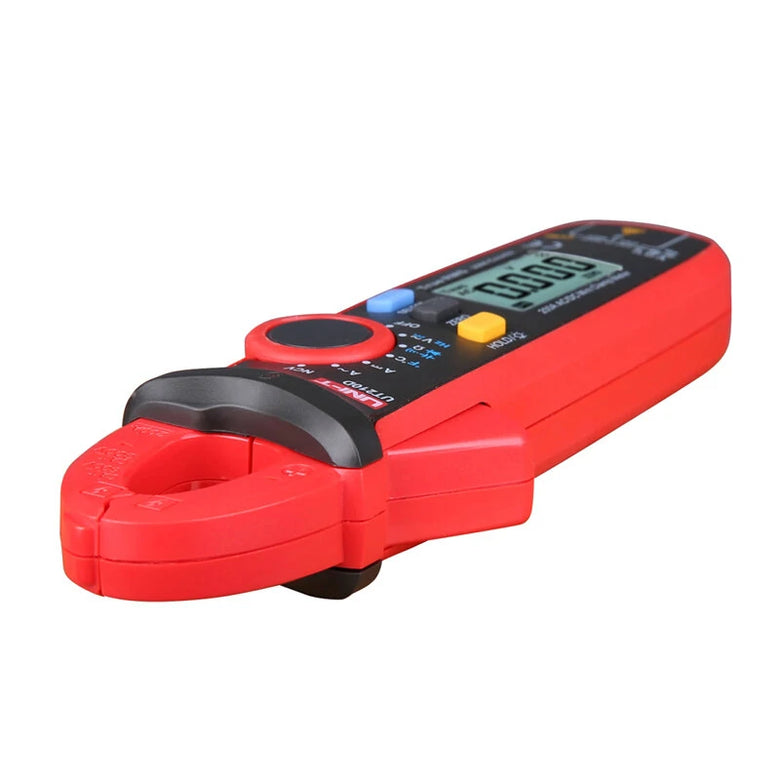

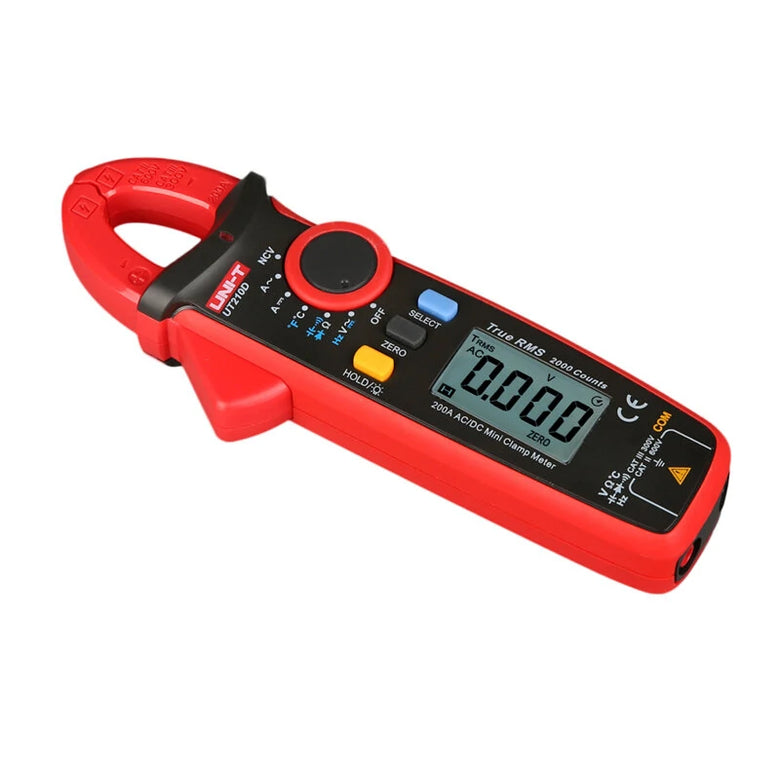

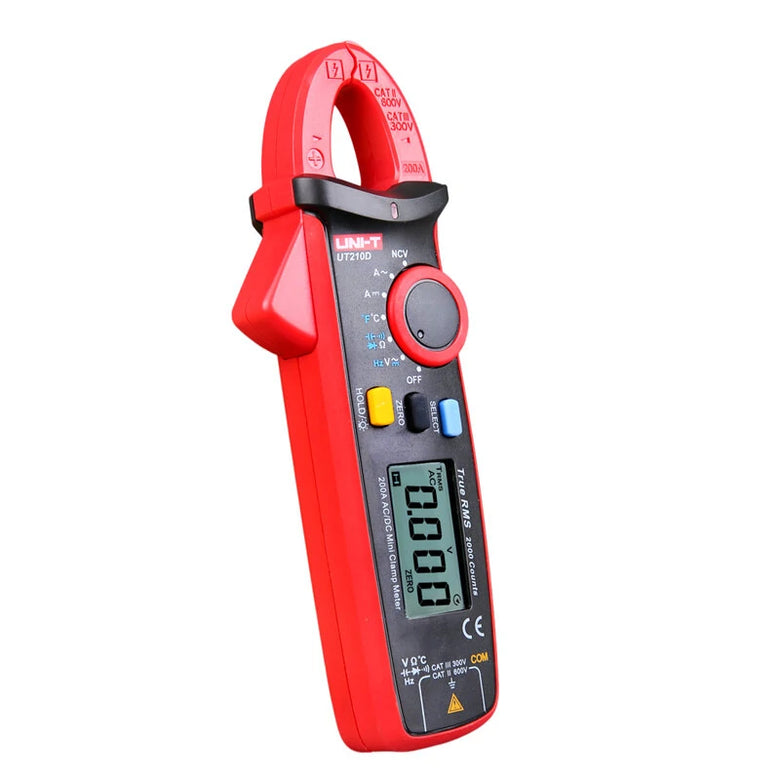

It is a mini 200A True RMS auto range digital clamp meter with 2000 display count portable and multifunctional device.
Voltage and current RMS measurement
With high-precision frequency measurement function.Minimum differentiate 0.001HZ
With up to differentiate 1pF maximum measured capacitance auto range measuring function of 2000uf;
With no-contact AC voltage sensing measurements(NVC) function;
Auto range,2-3/s sampling rate
Auto range,2-3/s sampling rate
Have a measurable voltage drop of 3V diode measurements.Very convenient LED judge good or bad;
Data Hold function,automatic shutdown and backlight;
Temperature measurement,°C and °F for choice,small and easy to carry.
Display Count: 2000
Auto Range
Jaw Capacity:17mm
True RMS
Diode:Around 3.0V
NCV
Data Hold
Zer'o Mode
LCD Backlight
Auto Power Off: Around 15 Minutes
Continuity Buzzer
Low Battery Indication:≤2.5V
Input Protection
Input Impedance for DCV: ≥10MΩ
Low battery indication
Overload protection
Max/Min
Specifications:
Specifications Range Best Accuracy
AC Current (A) 20A/200A ±(2.5%+8)
DC Current (A) 20A/200A ±(2%+3)
AC Voltage (V) 2V/20V200V/600V ±(1%+3)
DC Voltage (V) 200mV/2V/20V200V/600V ±(0.7%+3)
Resistance (Ω) 200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ ±(1%+2)
Frequency(Hz) 10Hz/100Hz/1kHz/10kHZ/60kHz ±(0.1%+4)
Capacitance (F) 2nF/20nF/200nF/2μF/20μF/200μF/2mF/20mF ±(4%+5)
Temperature( °C ) -40 °C ~1000°C ±(1%+3)
Temperature(°F) -40°F~1832°F ±(1.5%+5)
Power:AAA 1.5V x 2(Not Included)
LCD Size:39.3mm x 26.5 mm
Product Color:Red and Grey
Product Net Weight:170g
Product Size:175mm x 60mm x 33.5mm

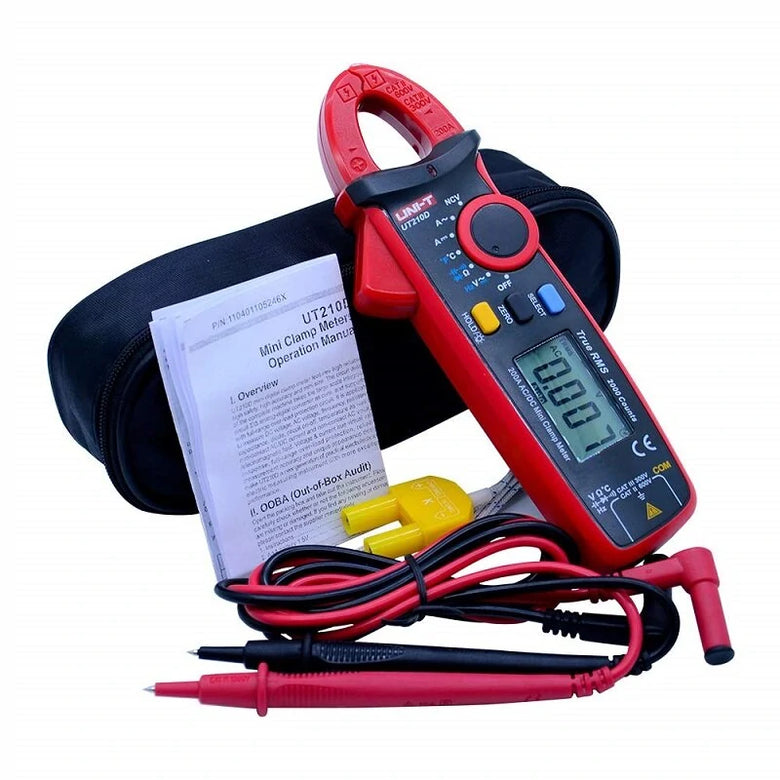

Package Includes:
1 X UT210D Clamp Meters
1 X Test Lead
1 X Manual
1 X Point Contact Temperature Probe
Details Pictures:
