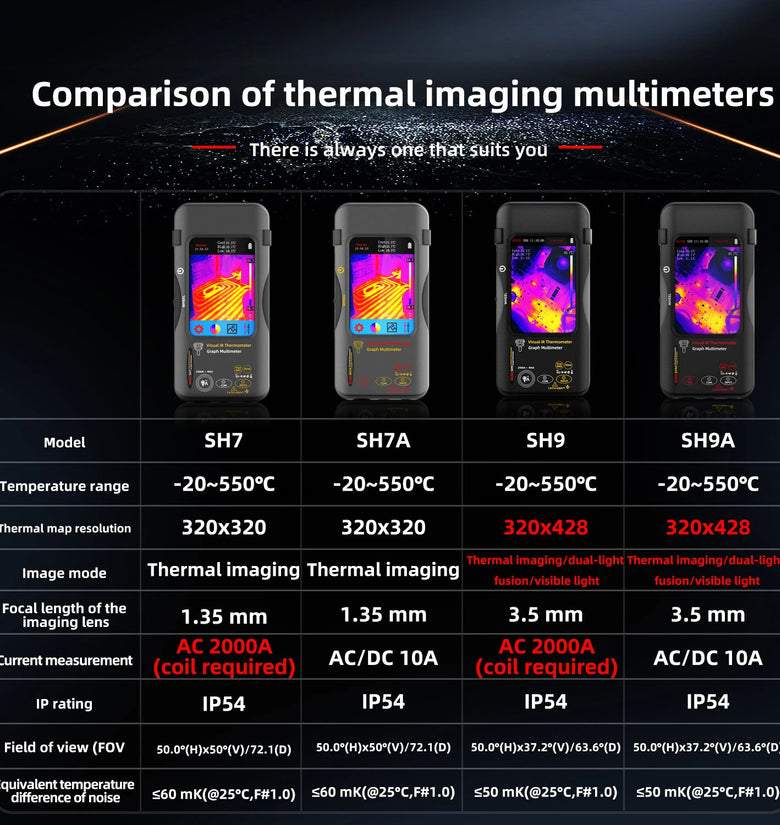

The SH9A measures currents up to 10A without a flexible coil.

SH9A is suitable for low current measurement. The SH9 can measure currents up to 2000A. Smaller currents require the use of a flexible coil.

Specifications:

Sensor Type: Vanadium oxide (VOx) microcalorimeter

Response Band: 8–14 µm

Thermal Image Resolution: 320 × 428 Pixels

Noise Equivalent Temperature Difference (NETD): ≤50 mK (@25°C, F#1.0)

Field of View (FOV): 50.0° (H) × 37.2° (V) / 63.6° (D)

Spatial Resolution (IFOV): 8.89 mrad

Lens Focal Length: 3.5 mm

Temperature Measuring Focal Length: 0.3m–3m Adjustable

Temperature Range: -20°C–550°C

Temperature Measurement Accuracy: ±2°C or ±2% of the reading

Temperature Units: Celsius, Fahrenheit, Kelvin

Temperature Resolution: 0.1°C

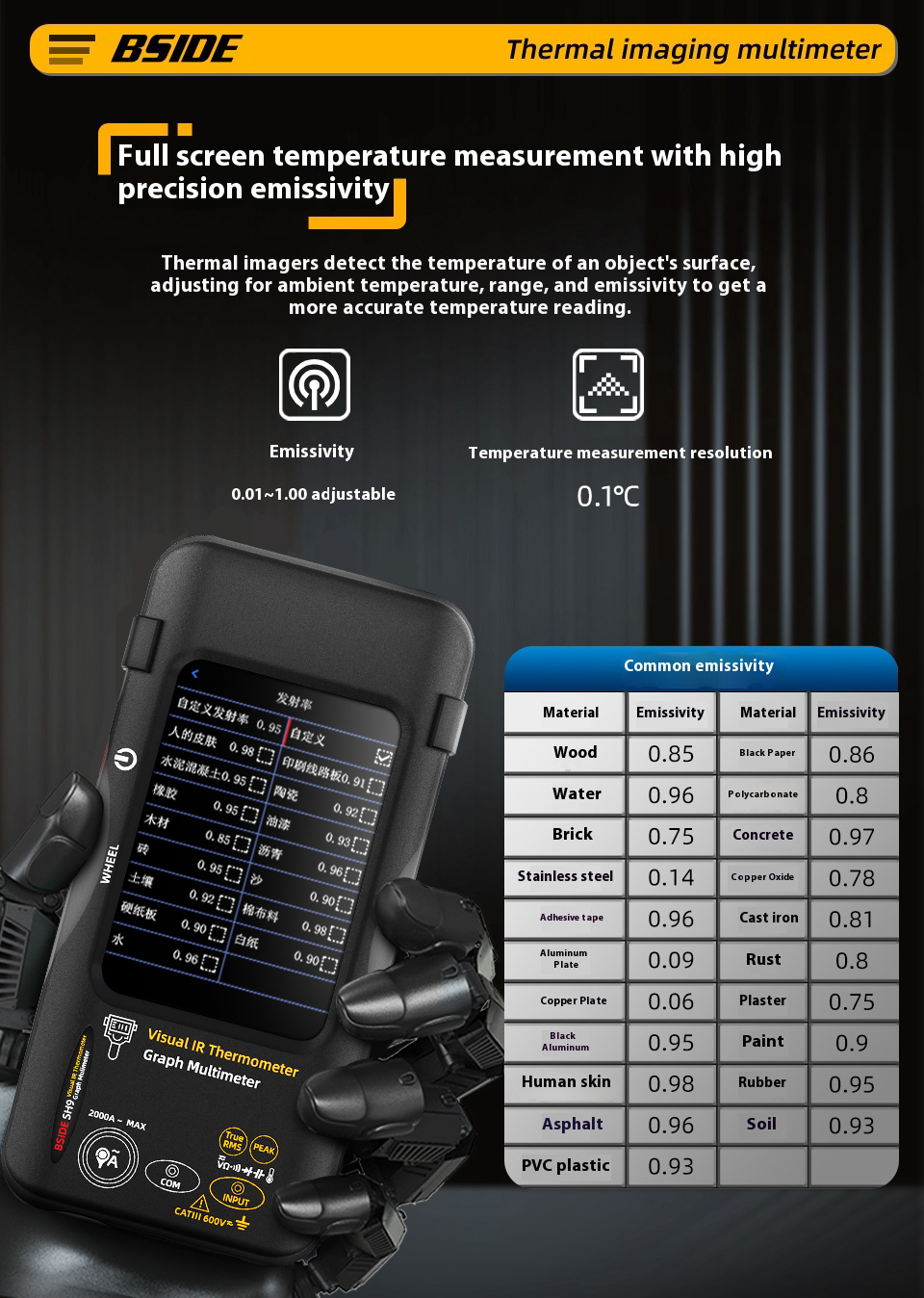

Emissivity: 0.01–1.00 Adjustable

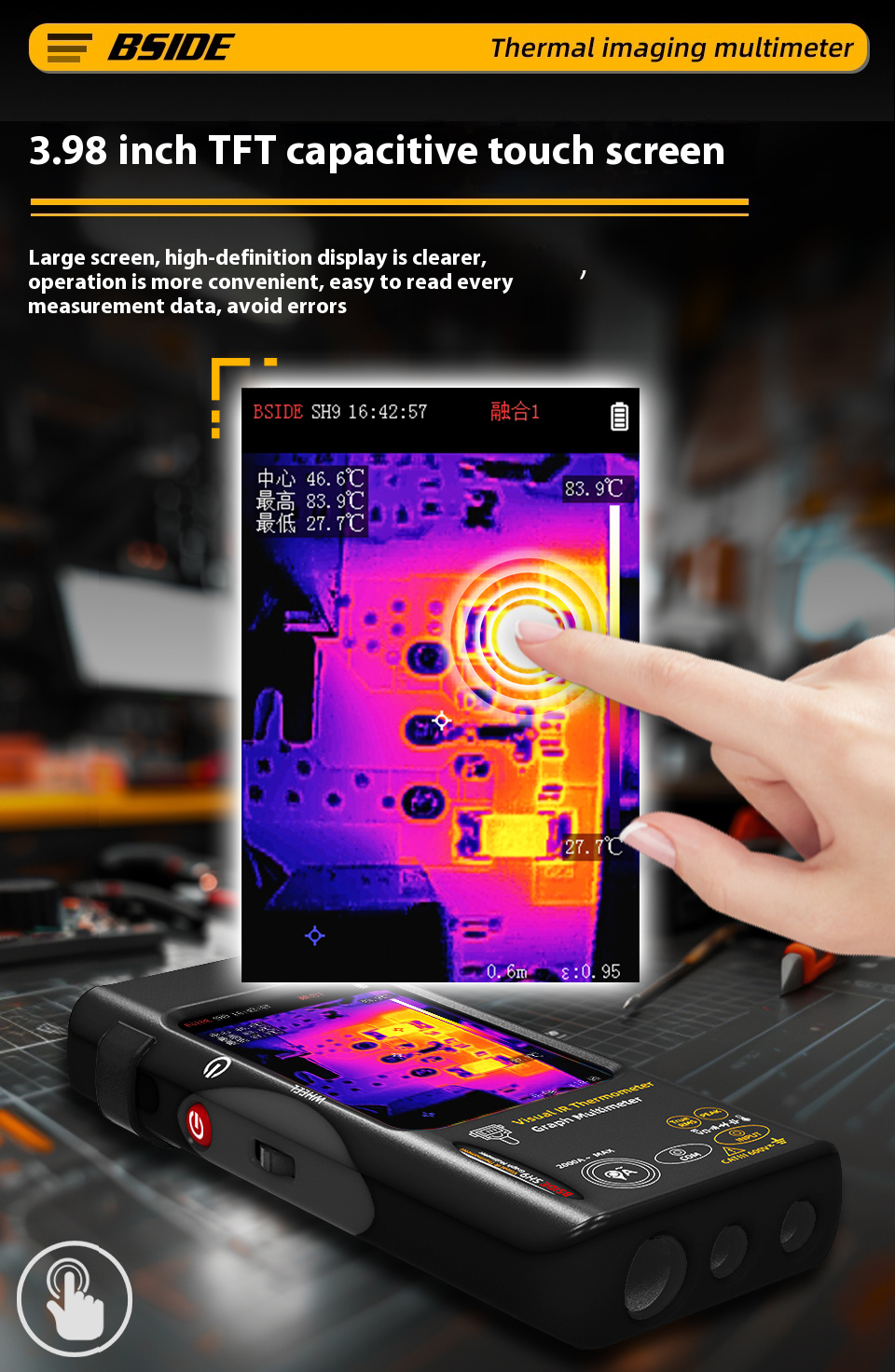

Display: 3.98-inch TFT Capacitive Touchscreen

Display Resolution: 320 × 480

Temperature Alarm: Screen font color alarm

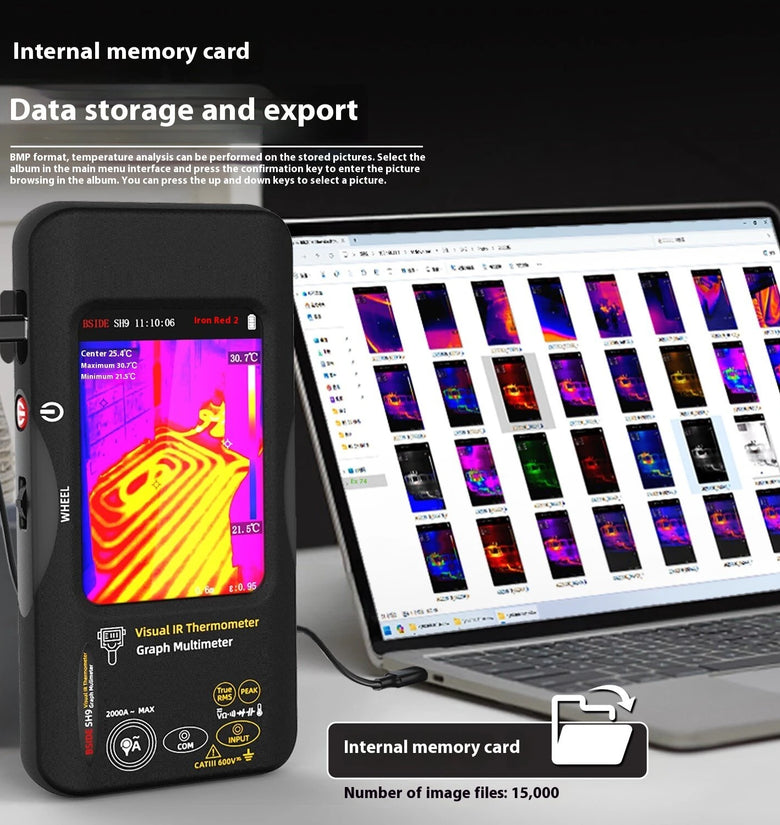

Image Storage: Built-in memory card

Image File Capacity: 15,000 files

Image Format: BMP

Focus Mode: Autofocus

Battery Type: Rechargeable lithium battery (3.7V / 2500mAh)

Operating Hours: Over 5 hours (@25°C)

Charging Time: Less than 3 hours (@25°C)

Charging Voltage/Current: 5V / 2A

Boot Speed: Approximately 3 seconds

Automatic Shutdown: Customizable (default disabled or between 10–60 minutes)

Operating Temperature: -20°C–50°C

Storage Temperature: -40°C–70°C

Storage Humidity: 25–40%RH (Non-condensing)

Working Humidity: ≤85%RH (Non-condensing)

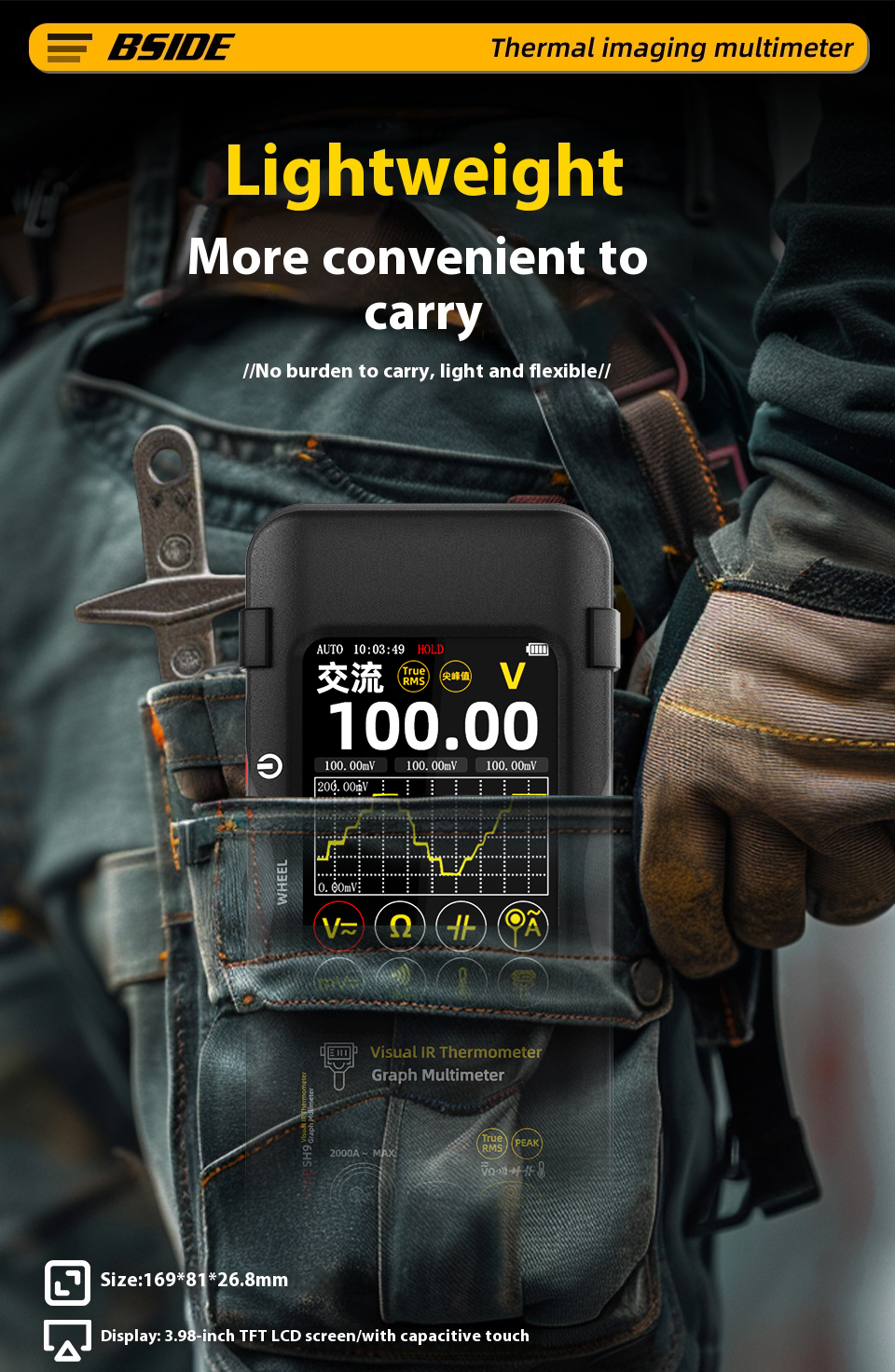

Product Dimensions: 169 × 81 × 26.8 mm

Product Weight: 274.3 g

Features:

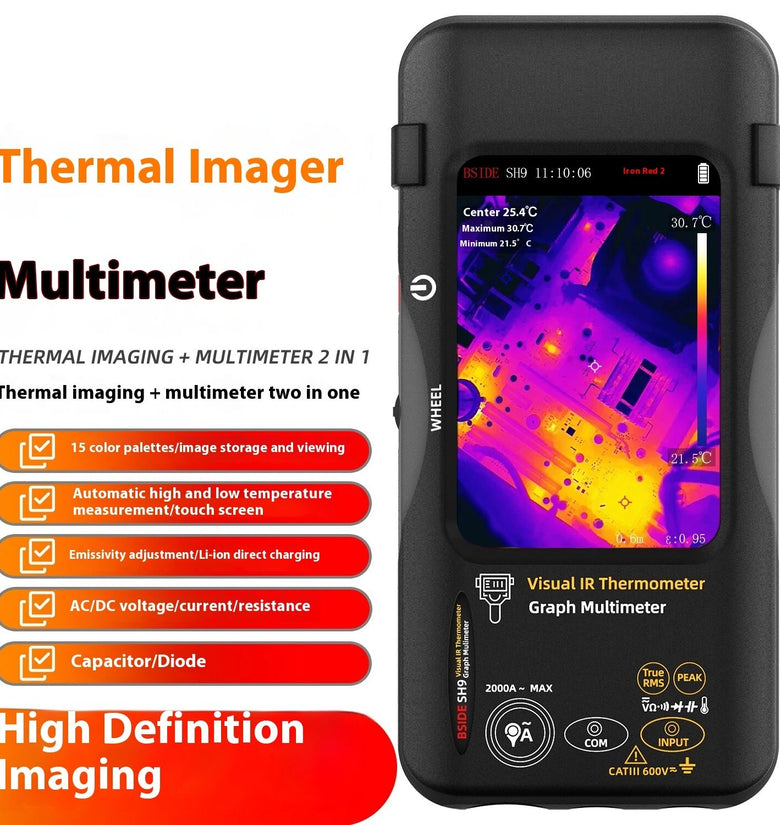

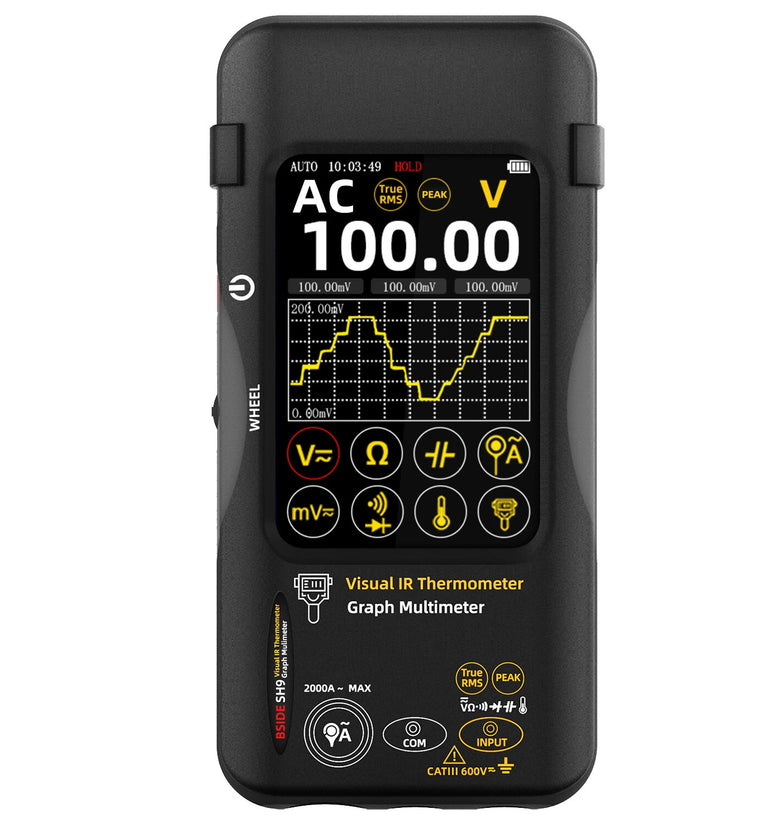

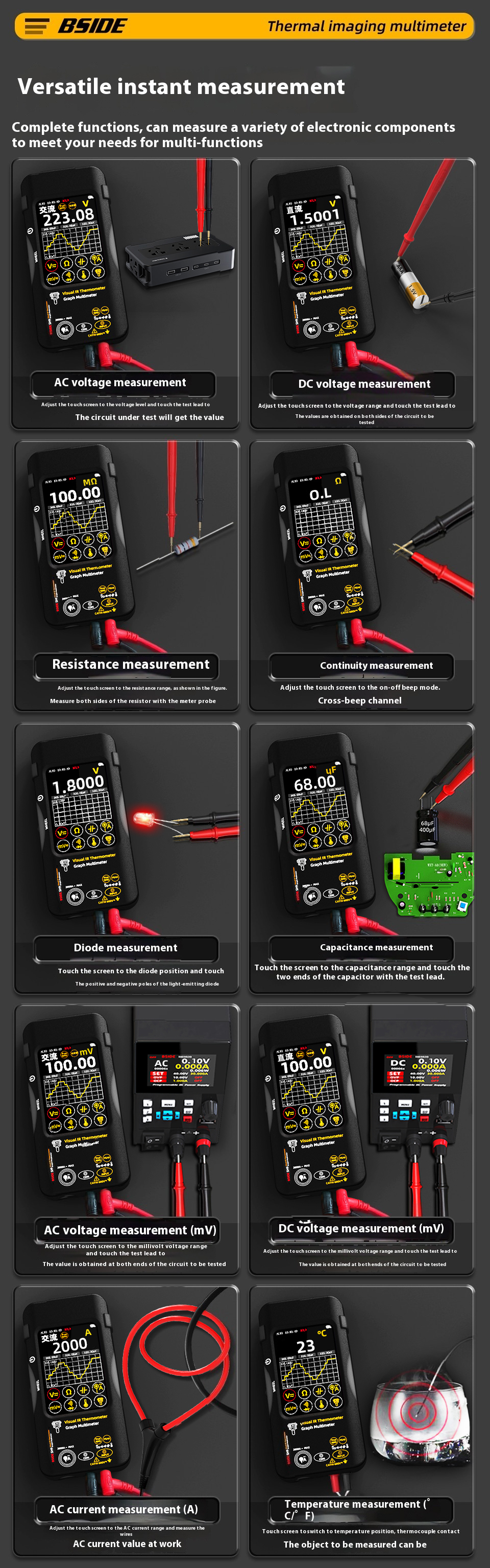

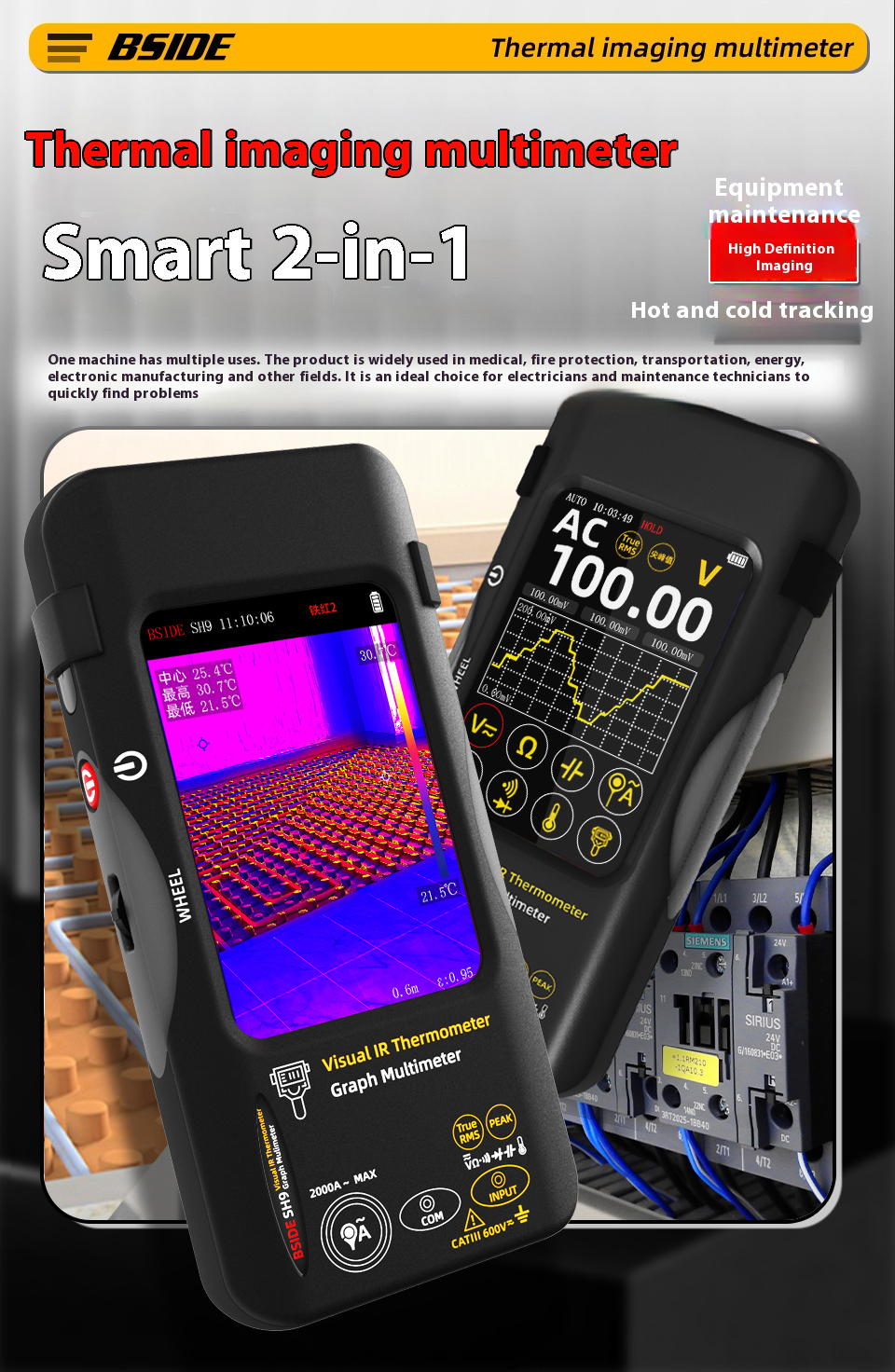

1.Enhanced Dual-Functionality: This device brilliantly combines a thermal imaging camera with a graph multimeter, delivering both accurate temperature measurement and comprehensive electrical diagnostics for field work.

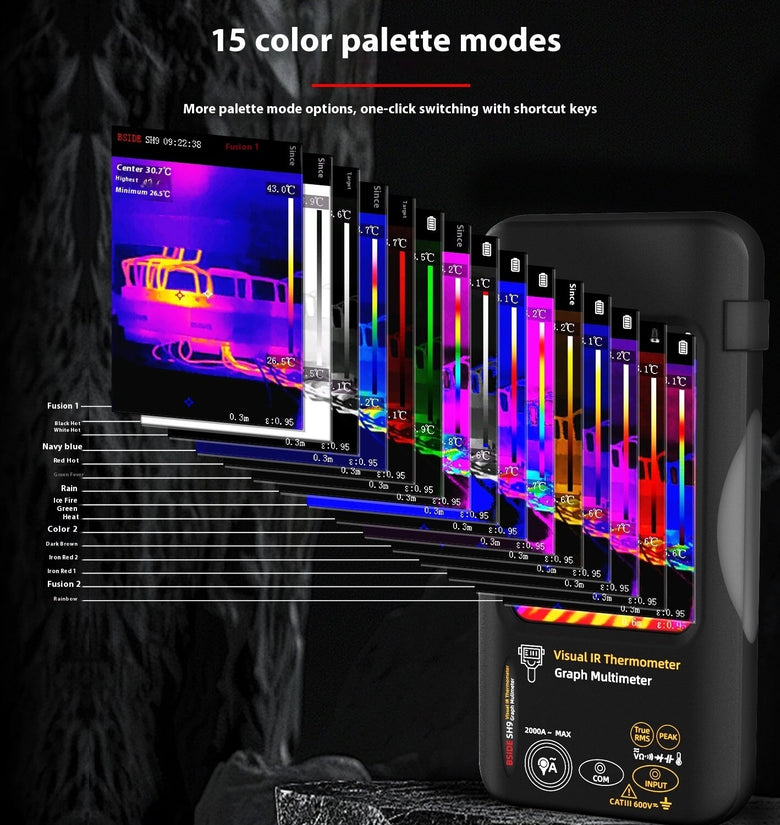

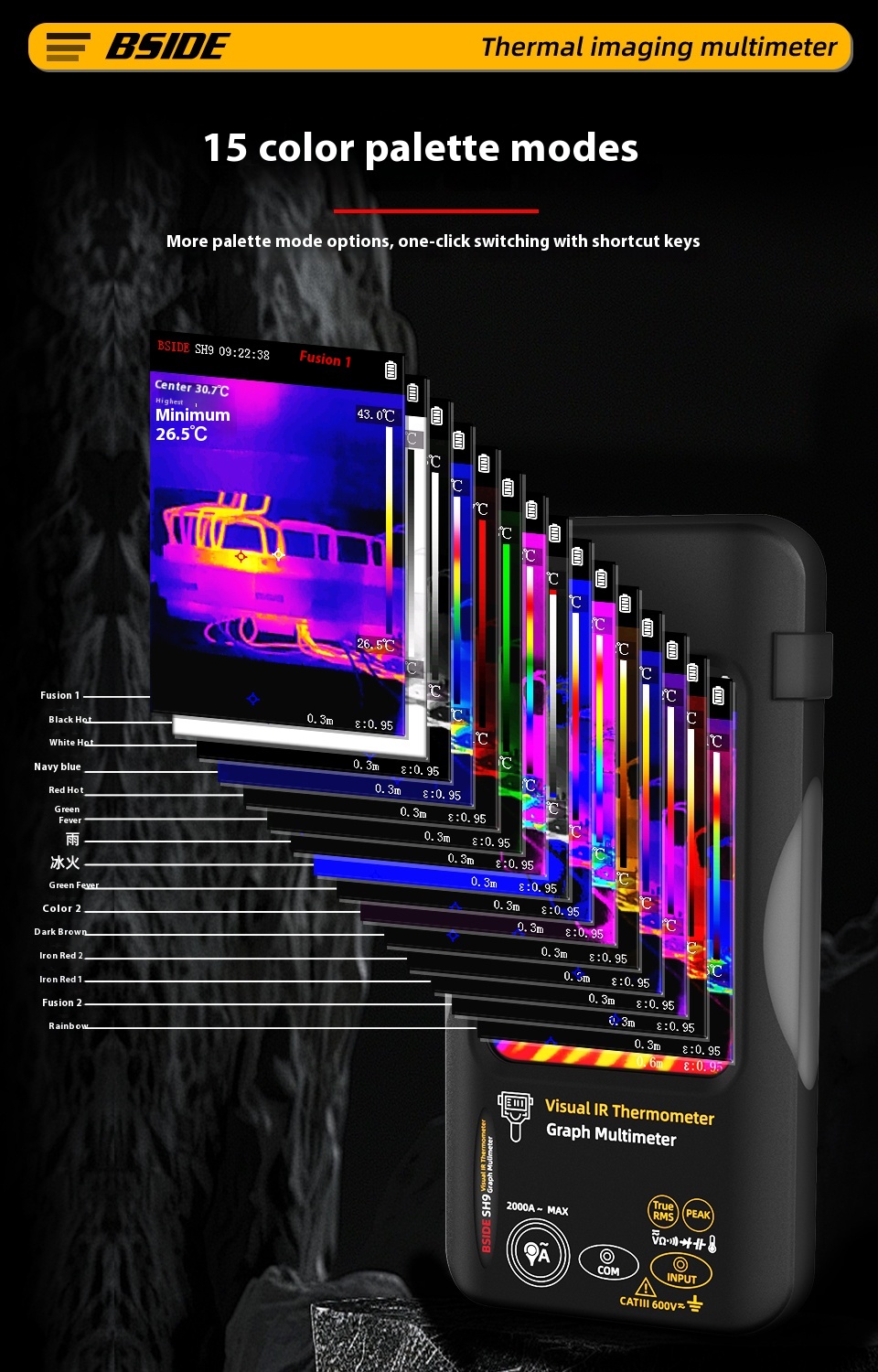

2.Advanced Display Customization: Equipped with 15 adjustable color palettes, the 3.98-inch touchscreen ensures precise visualization of thermal data, as well as real-time selection and optimization for various scenarios.

3.High-Defined Imaging: The thermal resolution of 320 × 428 pixels and NETD ≤50 mK provide crystal-clear thermal visuals, enabling detailed observations from a distance of up to 3 meters.

4.Extended Operating Power: The integrated 2500mAh rechargeable lithium battery delivers up to 5 hours of continuous usage, with fast charging of less than 3 hours—ideal for prolonged field applications.

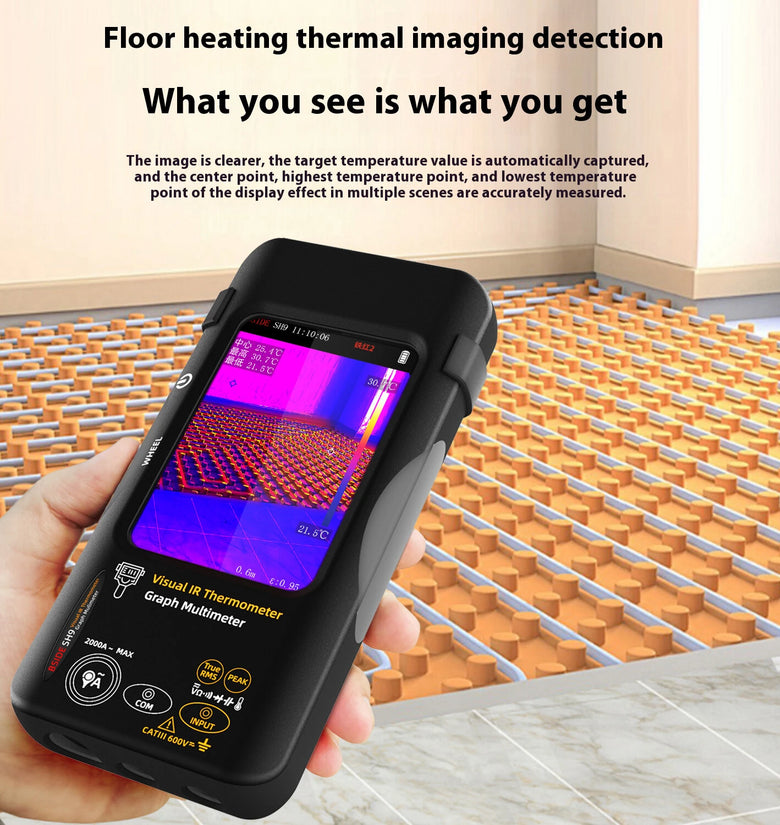

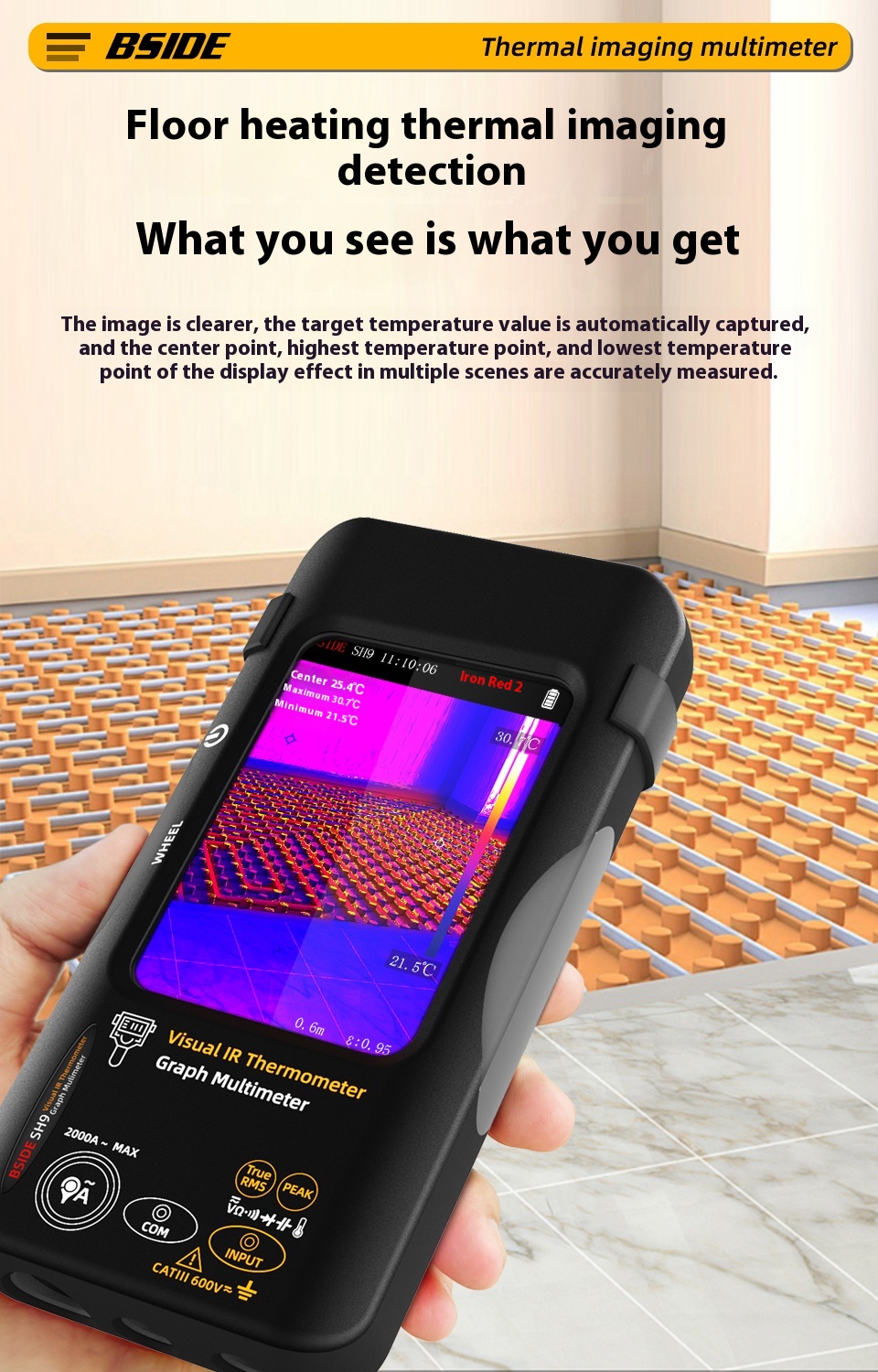

5.Multi-Measurement Modes: Precise tracking of minimum, maximum, and center temperatures, exacting emissivity adjustments, and alarms for temperature thresholds ensure comprehensive monitoring in dynamic environments.

Package Included:

1 x Visual IR Thermometer Graph Multimeter

1 x USB Data Cable

1 x User Manual

1 x Temperature Probe

1 x Storage Bag

1 x Test Pen

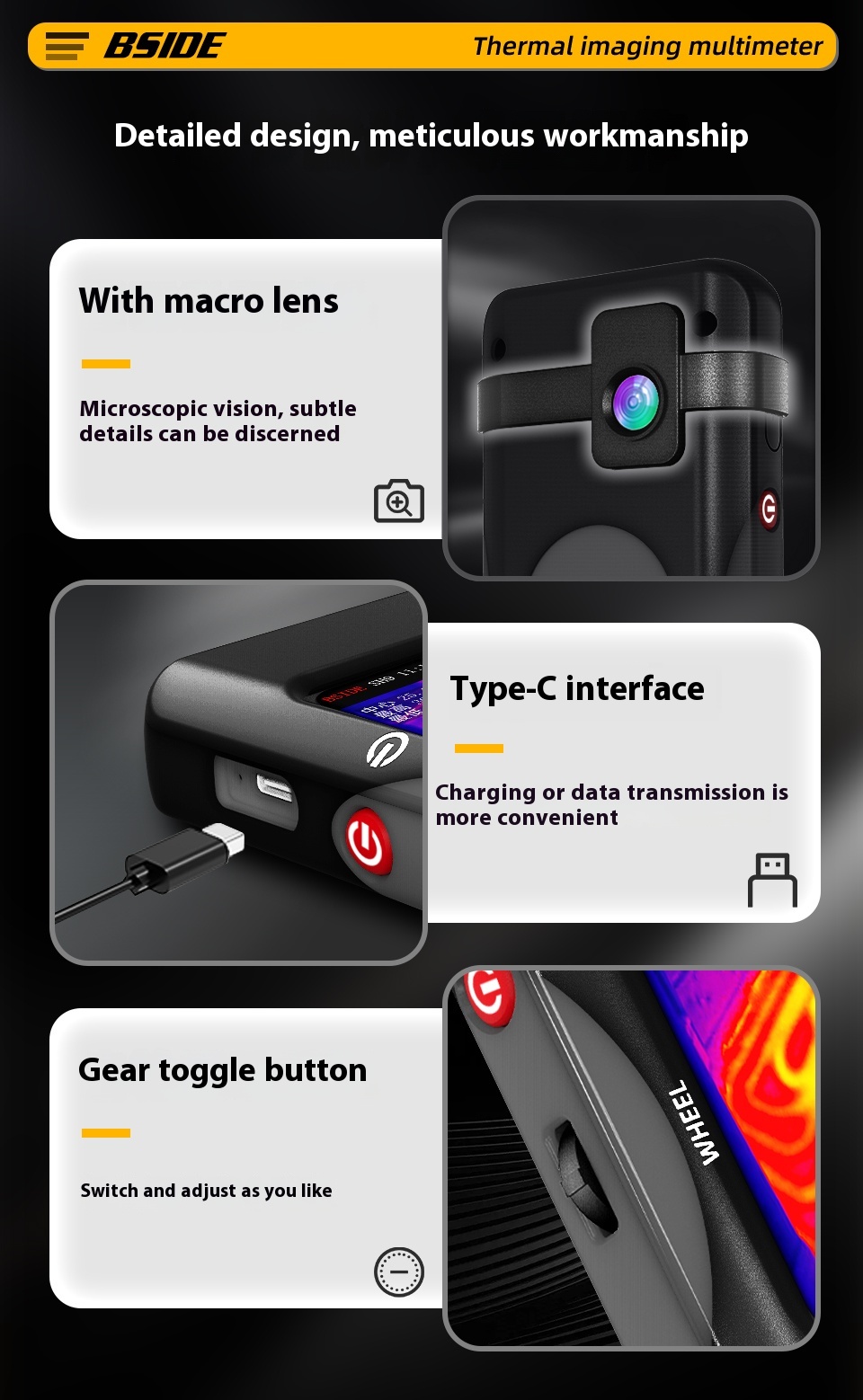

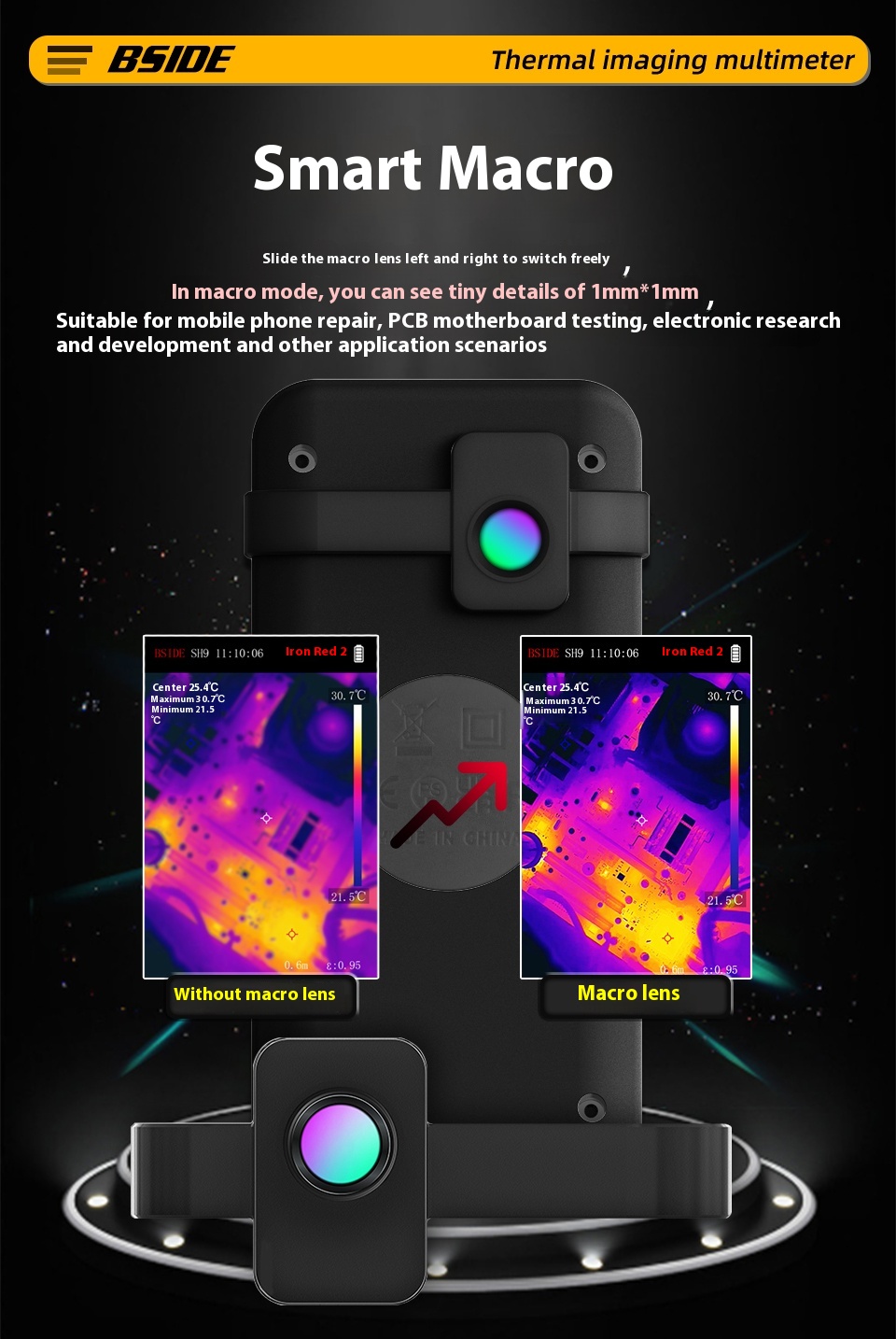

1 x Macro Lens
